| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_107T01_9000001530_10554cztM0_level2.evt | modeM0/AS1A03_107T01_9000001530_10554cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,712,960 | 69,505,920 |
| Size | 483.2 MB | 66.3 MB |
| Events in quadrant A | 3,502,967 | 410,621 |
| Events in quadrant B | 4,446,128 | 403,426 |
| Events in quadrant C | 3,192,221 | 413,965 |
| Events in quadrant D | 3,729,555 | 389,039 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15091 | 3 |
| B | 0 | 17782 | 2 |
| C | 0 | 14410 | 2 |
| D | 0 | 15475 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7000 | 109 | 1.557143% |
| B | 7000 | 422 | 6.028571% |
| C | 7000 | 74 | 1.057143% |
| D | 7000 | 82 | 1.171429% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7755 | 7001 | 37 | 37 | 0.48% | 0.53% |  |
| B | 7755 | 7001 | 230 | 230 | 2.97% | 3.29% |  |
| C | 7755 | 7001 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7755 | 7001 | 10 | 10 | 0.13% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 151793 | 883.27 | 830 | 811 | 170.9 |
| A | 15 | 174 | 88572 | 513.42 | 830 | 811 | 170.9 |
| A | 1 | 162 | 29901 | 170.18 | 830 | 811 | 170.9 |
| B | 4 | 239 | 1052707 | 6645.58 | 825 | 805 | 158.3 |
| B | 4 | 81 | 89738 | 561.85 | 825 | 805 | 158.3 |
| B | 0 | 214 | 31939 | 196.69 | 825 | 805 | 158.3 |
| C | 4 | 175 | 6235 | 28.33 | 815 | 818 | 191.2 |
| C | 13 | 61 | 6062 | 27.42 | 815 | 818 | 191.2 |
| C | 14 | 234 | 5968 | 26.93 | 815 | 818 | 191.2 |
| D | 2 | 16 | 296672 | 1525.68 | 802 | 780 | 193.9 |
| D | 8 | 195 | 246383 | 1266.38 | 802 | 780 | 193.9 |
| D | 1 | 52 | 47128 | 238.98 | 802 | 780 | 193.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

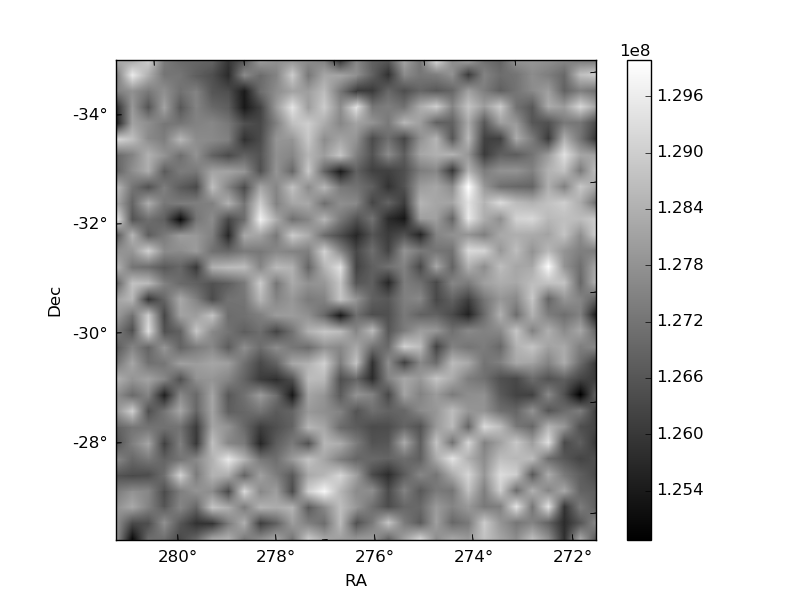

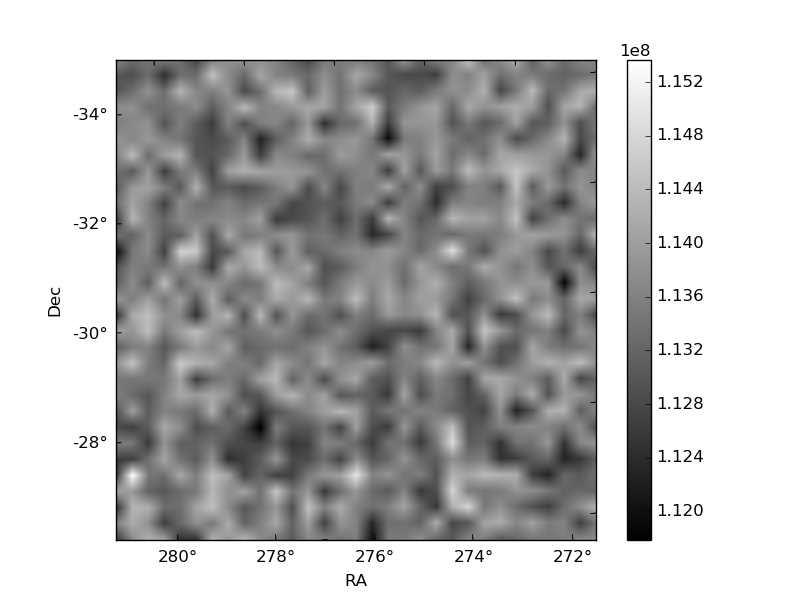

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

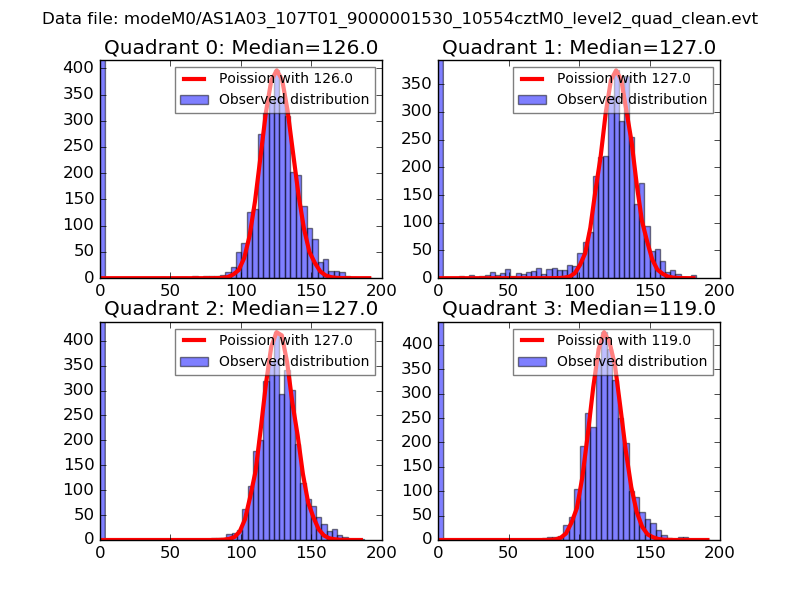

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

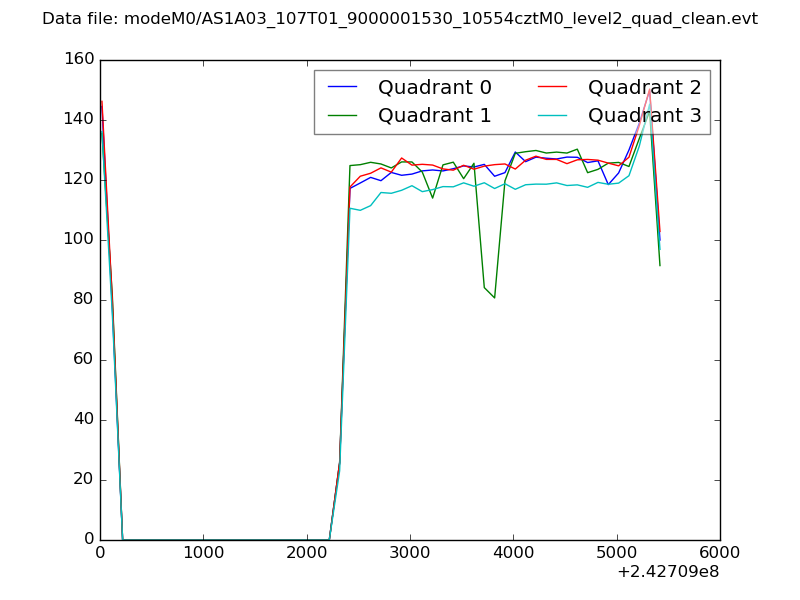

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

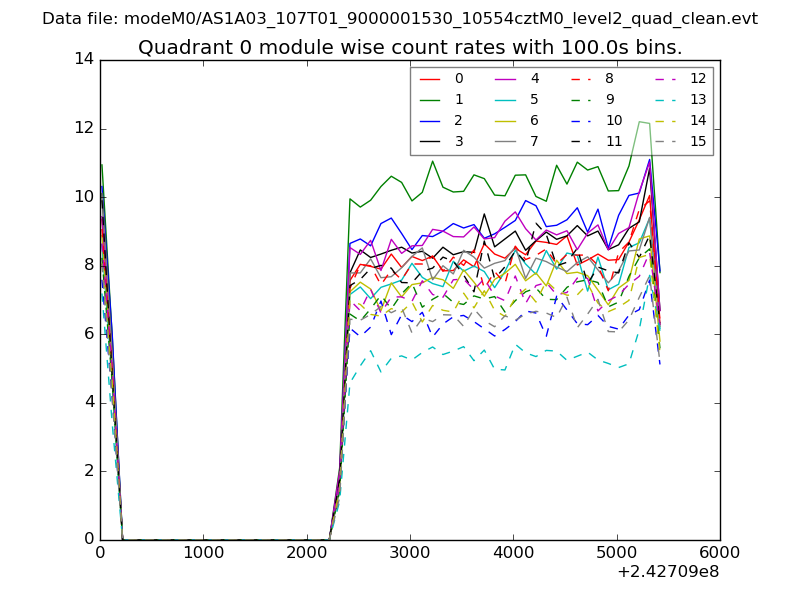

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

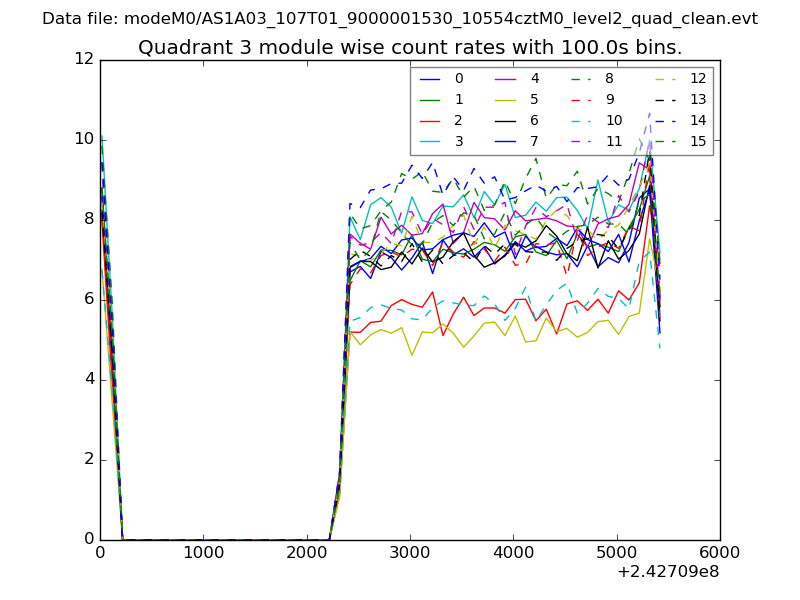

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

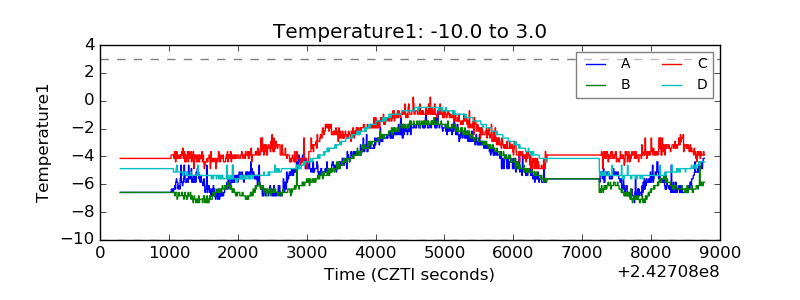

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

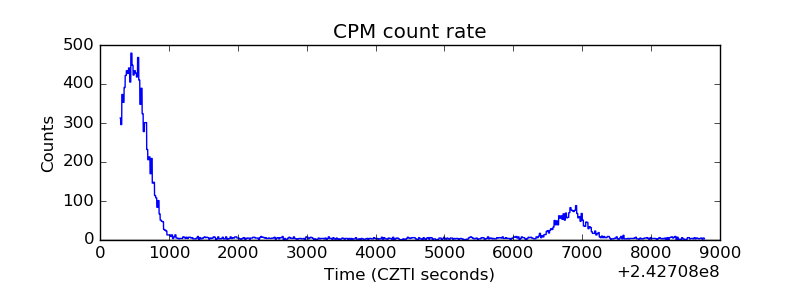

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
