| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_004T01_9000001532_10557cztM0_level2.evt | modeM0/AS1G07_004T01_9000001532_10557cztM0_level2_quad_clean.evt |
| Size (bytes) | 653,224,320 | 100,085,760 |
| Size | 623.0 MB | 95.4 MB |
| Events in quadrant A | 3,944,659 | 610,338 |
| Events in quadrant B | 6,078,794 | 614,157 |
| Events in quadrant C | 3,762,228 | 636,810 |
| Events in quadrant D | 5,439,454 | 597,734 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17424 | 3 |
| B | 0 | 23552 | 2 |
| C | 0 | 17119 | 4 |
| D | 0 | 21069 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8223 | 334 | 4.061778% |
| B | 8223 | 1055 | 12.829867% |
| C | 8222 | 175 | 2.128436% |
| D | 8223 | 518 | 6.299404% |

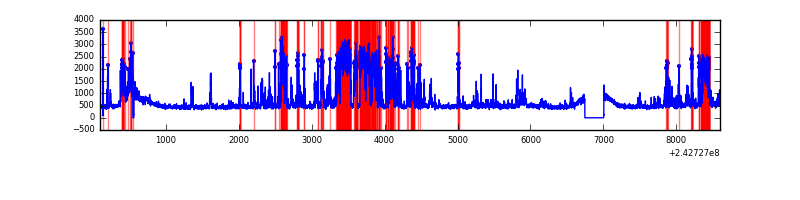

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8498 | 8225 | 17 | 17 | 0.20% | 0.21% |  |
| B | 8498 | 8225 | 559 | 559 | 6.58% | 6.80% |  |
| C | 8498 | 8225 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8498 | 8225 | 286 | 286 | 3.37% | 3.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 76850 | 374.36 | 973 | 949 | 202.7 |
| A | 1 | 162 | 35552 | 170.67 | 973 | 949 | 202.7 |
| A | 13 | 251 | 30211 | 144.33 | 973 | 949 | 202.7 |
| B | 4 | 239 | 2253082 | 12262.59 | 940 | 913 | 183.7 |
| B | 0 | 214 | 64810 | 347.91 | 940 | 913 | 183.7 |
| B | 0 | 197 | 36941 | 196.16 | 940 | 913 | 183.7 |
| C | 14 | 234 | 12379 | 51.75 | 955 | 958 | 220.7 |
| C | 8 | 128 | 11368 | 47.17 | 955 | 958 | 220.7 |
| C | 13 | 61 | 7416 | 29.26 | 955 | 958 | 220.7 |
| D | 1 | 52 | 1027715 | 4331.13 | 927 | 902 | 237.1 |
| D | 8 | 195 | 495792 | 2087.46 | 927 | 902 | 237.1 |
| D | 2 | 16 | 275938 | 1160.11 | 927 | 902 | 237.1 |

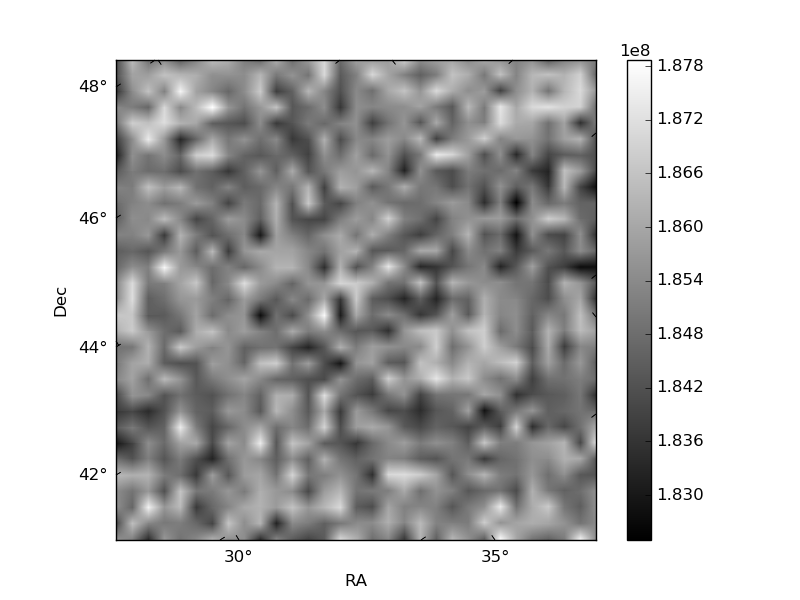

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

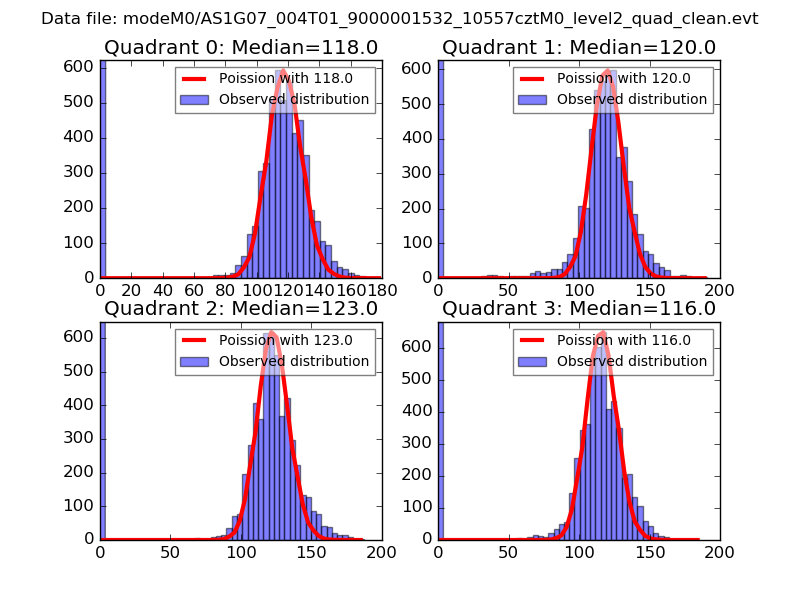

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

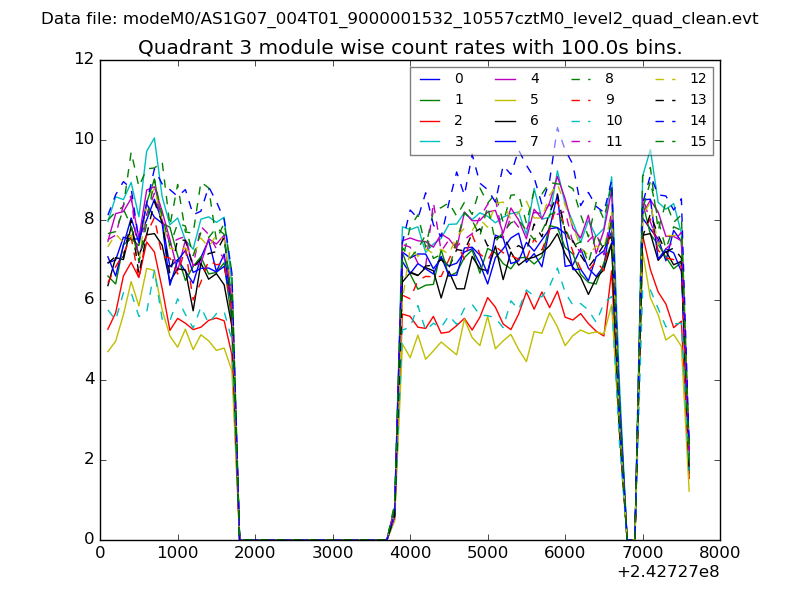

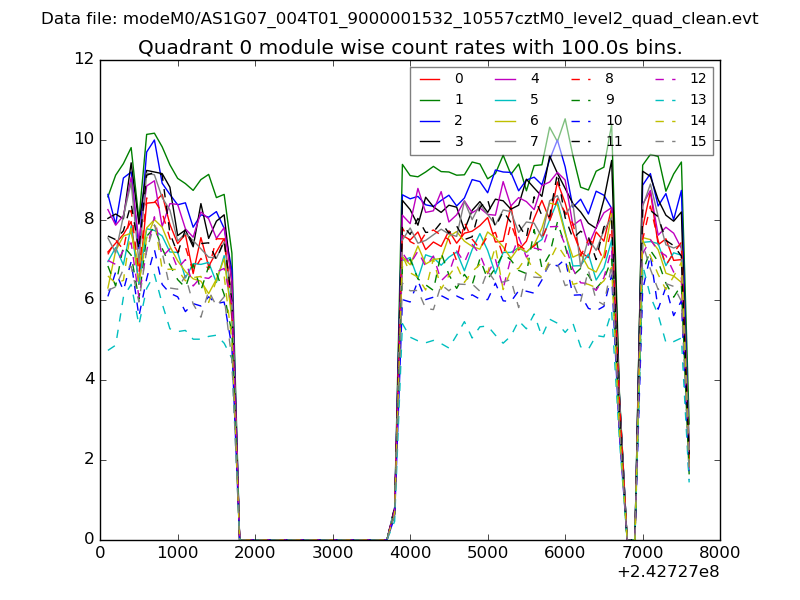

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

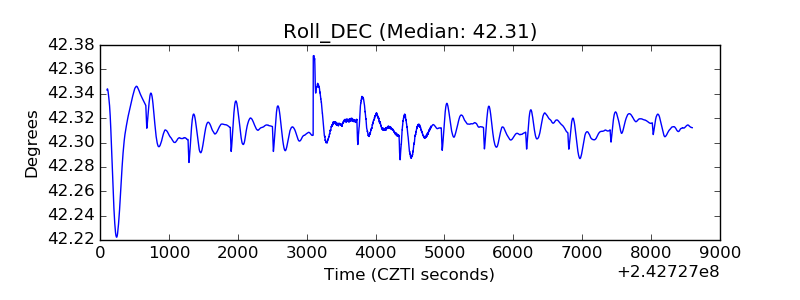

| _Roll_DEC |  |

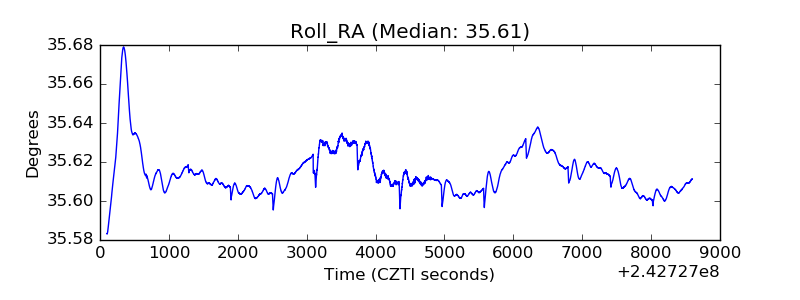

| _Roll_RA |  |

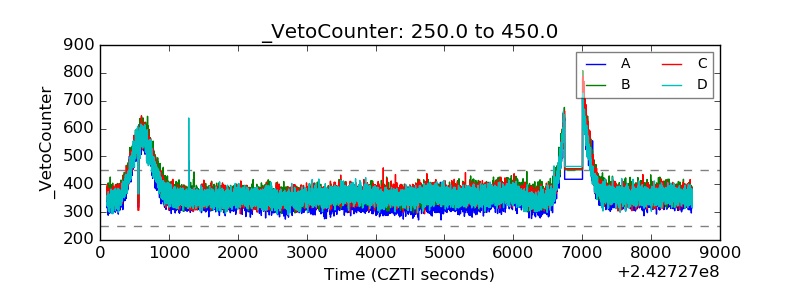

| Veto Counter |  |
