| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_004T01_9000001532_10563cztM0_level2.evt | modeM0/AS1G07_004T01_9000001532_10563cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,680,320 | 89,749,440 |
| Size | 471.8 MB | 85.6 MB |
| Events in quadrant A | 3,149,012 | 565,973 |
| Events in quadrant B | 4,353,588 | 562,944 |
| Events in quadrant C | 3,057,136 | 589,015 |
| Events in quadrant D | 3,987,690 | 553,580 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13792 | 3 |
| B | 0 | 17447 | 2 |
| C | 0 | 13497 | 2 |
| D | 0 | 16200 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6394 | 57 | 0.891461% |
| B | 6394 | 477 | 7.460119% |
| C | 6394 | 58 | 0.907100% |
| D | 6394 | 84 | 1.313732% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

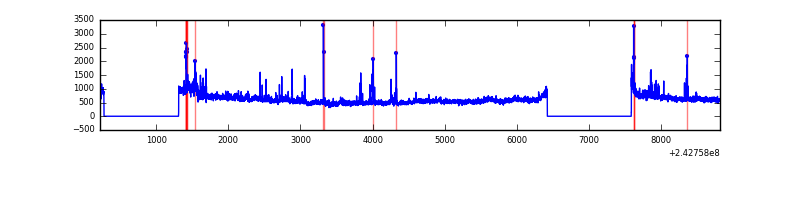

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8594 | 6396 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8594 | 6396 | 293 | 293 | 3.41% | 4.58% |  |
| C | 8594 | 6396 | 7 | 7 | 0.08% | 0.11% |  |
| D | 8594 | 6396 | 16 | 16 | 0.19% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 103129 | 644.2 | 779 | 761 | 158.9 |
| A | 1 | 162 | 28995 | 177.68 | 779 | 761 | 158.9 |
| A | 1 | 161 | 7299 | 41.14 | 779 | 761 | 158.9 |
| B | 4 | 239 | 1203553 | 8272.18 | 770 | 755 | 145.4 |
| B | 0 | 219 | 58271 | 395.56 | 770 | 755 | 145.4 |
| B | 11 | 51 | 37874 | 255.28 | 770 | 755 | 145.4 |
| C | 14 | 234 | 28433 | 153.97 | 776 | 780 | 179.6 |
| C | 13 | 61 | 5713 | 27.47 | 776 | 780 | 179.6 |
| C | 3 | 202 | 1963 | 6.59 | 776 | 780 | 179.6 |
| D | 8 | 195 | 528270 | 2890.16 | 763 | 742 | 182.5 |
| D | 2 | 16 | 250752 | 1369.73 | 763 | 742 | 182.5 |
| D | 1 | 52 | 178699 | 974.97 | 763 | 742 | 182.5 |

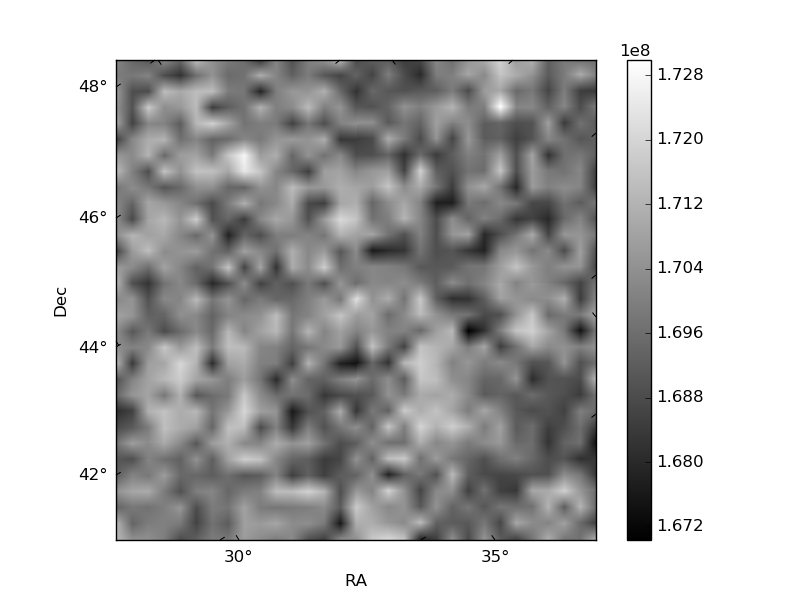

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

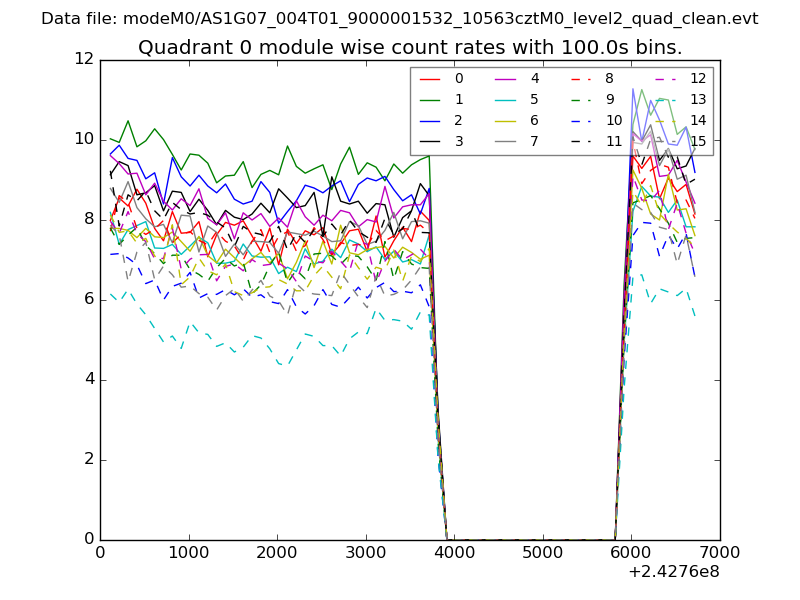

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

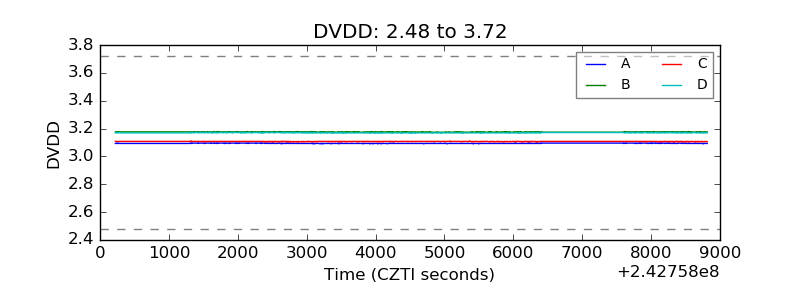

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

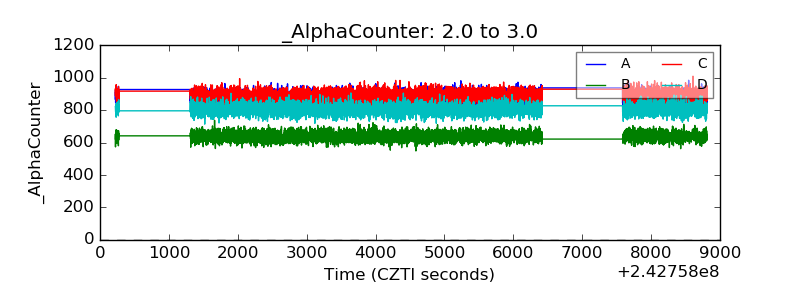

| Alpha Counter |  |
| _CPM_Rate |  |

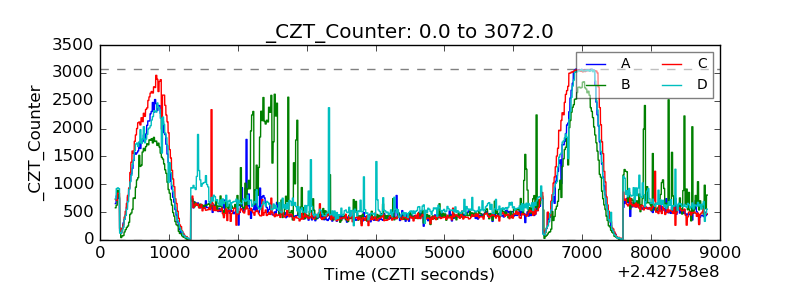

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

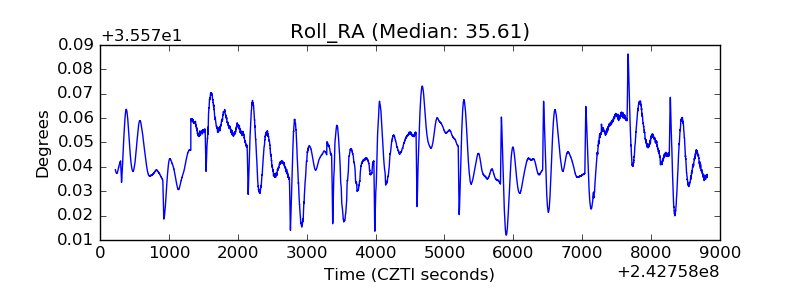

| _Roll_RA |  |

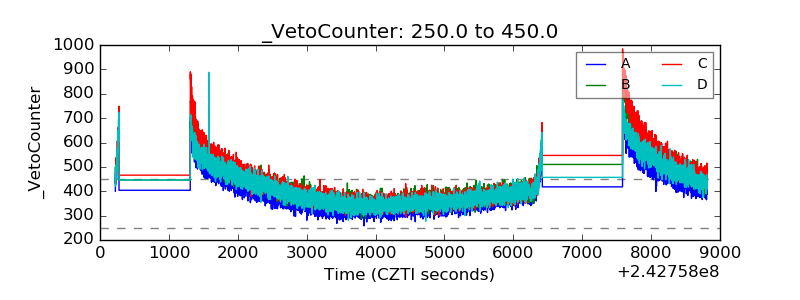

| Veto Counter |  |
