| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_004T01_9000001532_10565cztM0_level2.evt | modeM0/AS1G07_004T01_9000001532_10565cztM0_level2_quad_clean.evt |
| Size (bytes) | 500,299,200 | 105,361,920 |
| Size | 477.1 MB | 100.5 MB |
| Events in quadrant A | 3,178,557 | 675,390 |
| Events in quadrant B | 4,270,013 | 691,849 |
| Events in quadrant C | 3,177,051 | 710,904 |
| Events in quadrant D | 4,081,658 | 656,369 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13809 | 3 |
| B | 0 | 16977 | 2 |
| C | 0 | 13775 | 2 |
| D | 0 | 16523 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6549 | 64 | 0.977248% |
| B | 6549 | 364 | 5.558100% |
| C | 6549 | 66 | 1.007787% |
| D | 6549 | 167 | 2.550008% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9099 | 6552 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9099 | 6552 | 189 | 189 | 2.08% | 2.88% |  |
| C | 9099 | 6552 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9099 | 6552 | 75 | 75 | 0.82% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 23058 | 136.49 | 809 | 793 | 163.1 |
| A | 13 | 251 | 8531 | 47.44 | 809 | 793 | 163.1 |
| A | 13 | 253 | 7506 | 41.15 | 809 | 793 | 163.1 |
| B | 4 | 239 | 972960 | 6451.53 | 811 | 793 | 150.7 |
| B | 0 | 219 | 67320 | 441.49 | 811 | 793 | 150.7 |
| B | 0 | 214 | 47361 | 309.04 | 811 | 793 | 150.7 |
| C | 14 | 234 | 7349 | 35.08 | 812 | 818 | 186.2 |
| C | 13 | 61 | 5963 | 27.63 | 812 | 818 | 186.2 |
| C | 4 | 175 | 4028 | 17.24 | 812 | 818 | 186.2 |
| D | 2 | 16 | 566861 | 2990.62 | 792 | 771 | 189.3 |
| D | 8 | 195 | 394943 | 2082.39 | 792 | 771 | 189.3 |
| D | 1 | 52 | 36307 | 187.73 | 792 | 771 | 189.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

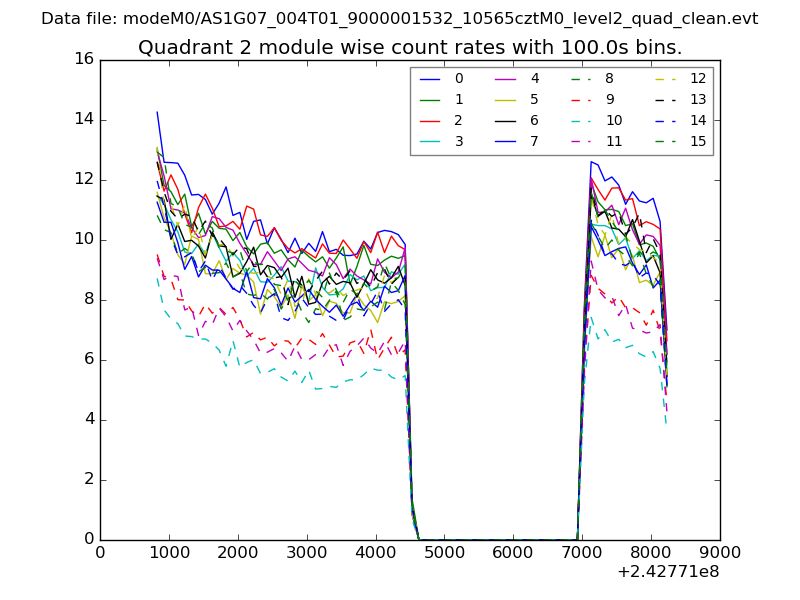

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

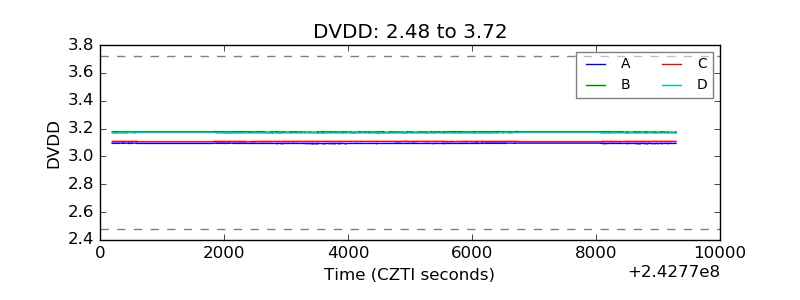

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

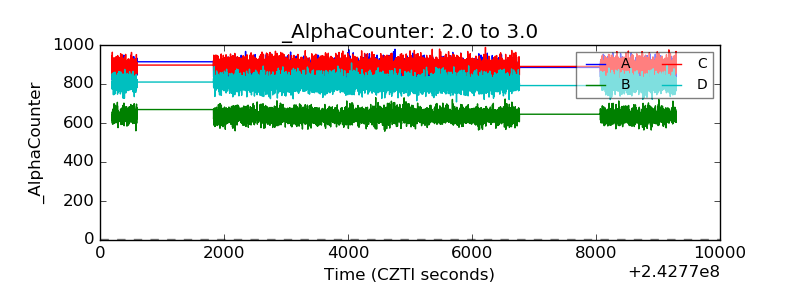

| Alpha Counter |  |

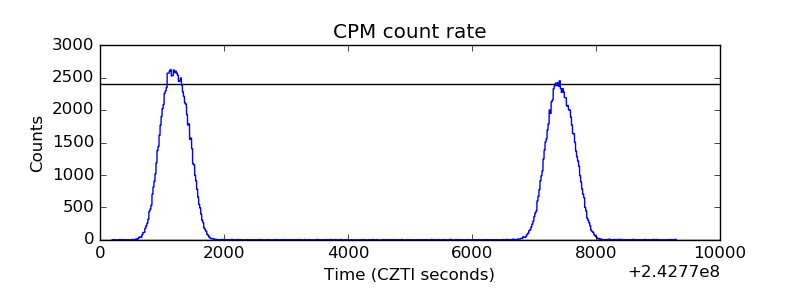

| _CPM_Rate |  |

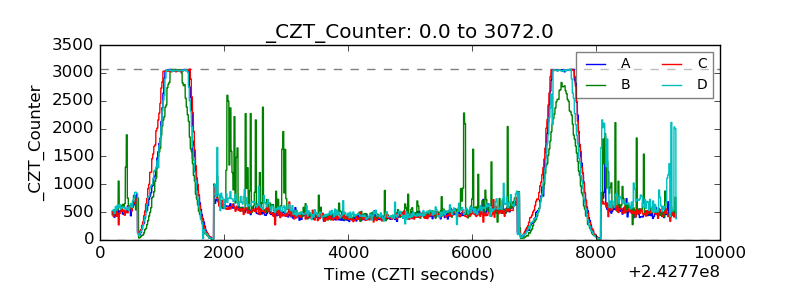

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

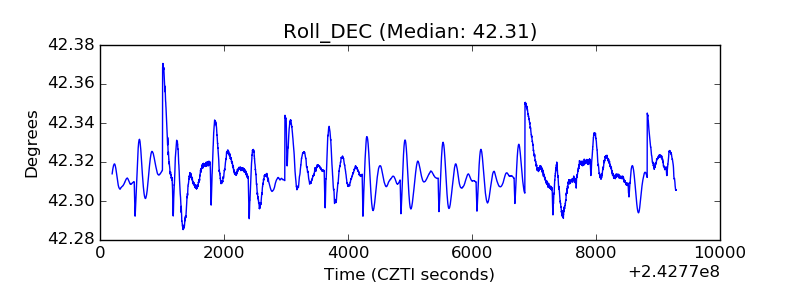

| _ROLL_ROT |  |
| _Roll_DEC |  |

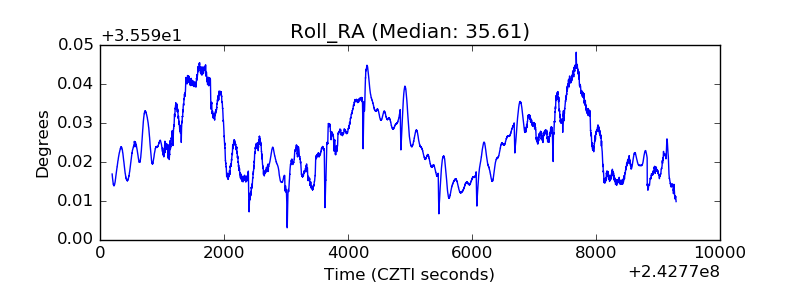

| _Roll_RA |  |
| Veto Counter |  |
