| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_191T01_9000001536_10589cztM0_level2.evt | modeM0/AS1T01_191T01_9000001536_10589cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,316,160 | 98,755,200 |
| Size | 559.2 MB | 94.2 MB |
| Events in quadrant A | 3,260,711 | 653,584 |
| Events in quadrant B | 5,679,638 | 608,574 |
| Events in quadrant C | 2,972,936 | 657,492 |
| Events in quadrant D | 5,399,966 | 614,582 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13930 | 2 |
| B | 0 | 21150 | 1 |
| C | 0 | 13311 | 1 |
| D | 0 | 20244 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6543 | 58 | 0.886444% |
| B | 6543 | 841 | 12.853431% |
| C | 6543 | 21 | 0.320954% |
| D | 6543 | 578 | 8.833868% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7418 | 6544 | 16 | 16 | 0.22% | 0.24% |  |
| B | 7418 | 6544 | 671 | 671 | 9.05% | 10.25% |  |
| C | 7418 | 6544 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7418 | 6544 | 500 | 500 | 6.74% | 7.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 198423 | 1218.12 | 785 | 770 | 162.3 |
| A | 1 | 162 | 18790 | 111.06 | 785 | 770 | 162.3 |
| A | 0 | 226 | 7115 | 39.1 | 785 | 770 | 162.3 |
| B | 4 | 239 | 2457530 | 16760.67 | 758 | 743 | 146.6 |
| B | 0 | 219 | 102791 | 696.19 | 758 | 743 | 146.6 |
| B | 11 | 51 | 68636 | 463.18 | 758 | 743 | 146.6 |
| C | 4 | 175 | 9277 | 47.77 | 759 | 767 | 178.1 |
| C | 13 | 61 | 5761 | 28.03 | 759 | 767 | 178.1 |
| C | 14 | 234 | 4459 | 20.72 | 759 | 767 | 178.1 |
| D | 1 | 52 | 1605572 | 8865.9 | 735 | 715 | 181.0 |
| D | 8 | 195 | 336967 | 1857.6 | 735 | 715 | 181.0 |
| D | 5 | 222 | 195793 | 1077.69 | 735 | 715 | 181.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

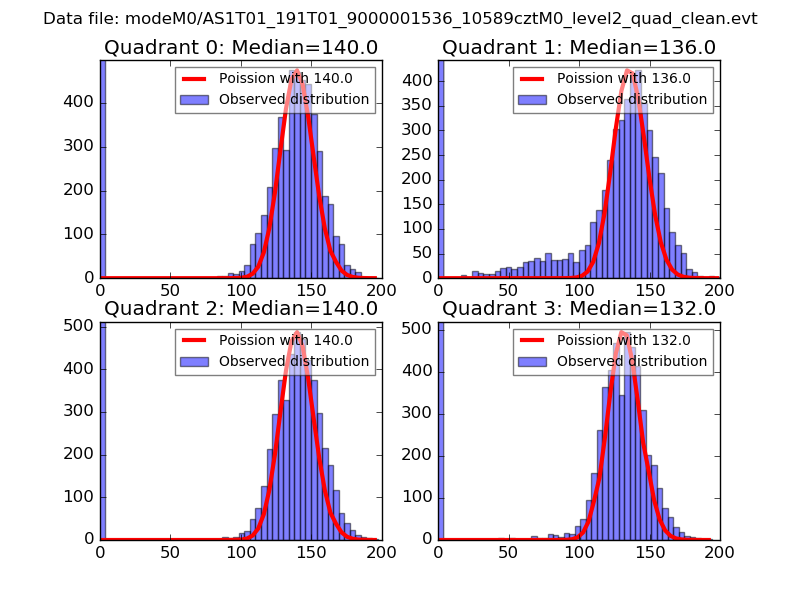

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

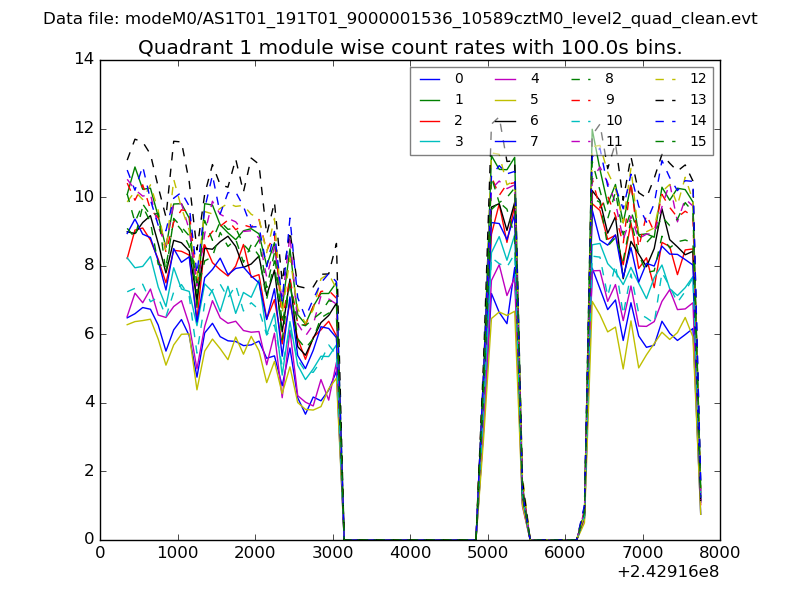

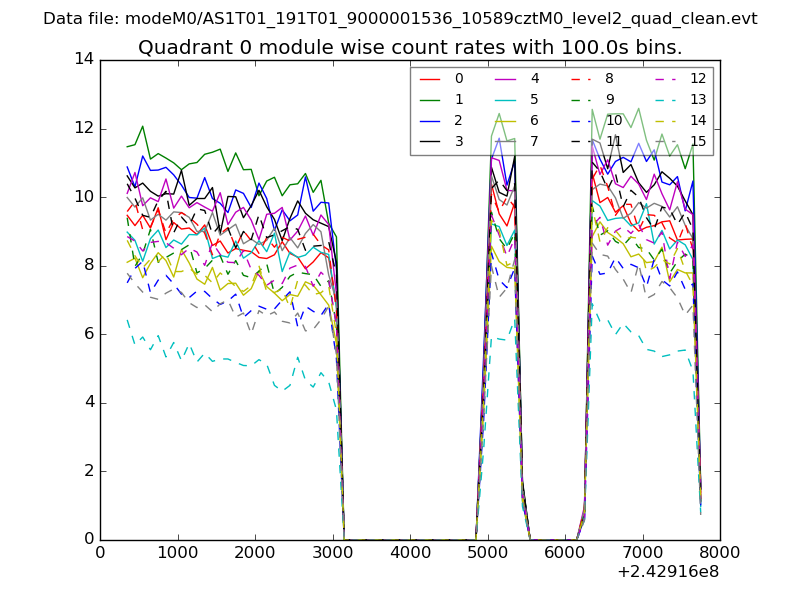

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

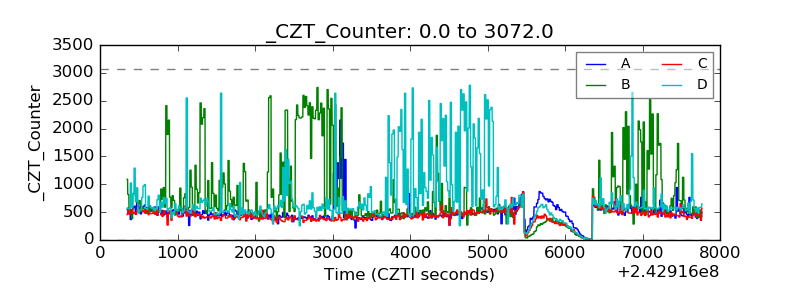

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

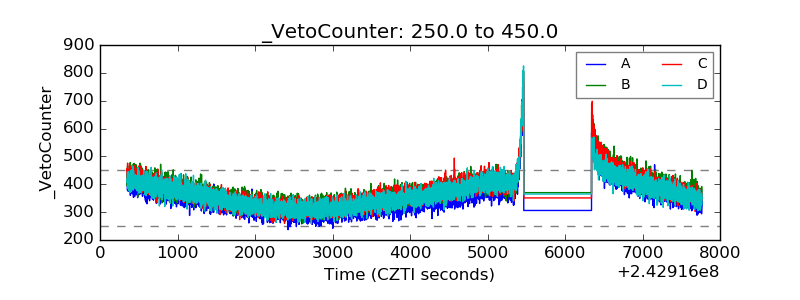

| Veto Counter |  |
