| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_191T01_9000001536_10593cztM0_level2.evt | modeM0/AS1T01_191T01_9000001536_10593cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,957,120 | 84,127,680 |
| Size | 390.0 MB | 80.2 MB |
| Events in quadrant A | 2,596,108 | 556,167 |
| Events in quadrant B | 3,941,408 | 537,758 |
| Events in quadrant C | 2,634,666 | 553,356 |
| Events in quadrant D | 2,842,722 | 519,020 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11289 | 2 |
| B | 0 | 15309 | 1 |
| C | 0 | 11430 | 1 |
| D | 0 | 12158 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5449 | 17 | 0.311984% |
| B | 5449 | 379 | 6.955405% |
| C | 5449 | 11 | 0.201872% |
| D | 5449 | 23 | 0.422096% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6719 | 5450 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6719 | 5450 | 259 | 259 | 3.85% | 4.75% |  |
| C | 6719 | 5450 | 7 | 7 | 0.10% | 0.13% |  |
| D | 6719 | 5450 | 7 | 7 | 0.10% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 10910 | 74.48 | 667 | 655 | 137.7 |
| A | 15 | 239 | 6159 | 39.98 | 667 | 655 | 137.7 |
| A | 0 | 226 | 5968 | 38.59 | 667 | 655 | 137.7 |
| B | 4 | 239 | 1291959 | 10310.58 | 655 | 643 | 125.2 |
| B | 11 | 51 | 41848 | 329.0 | 655 | 643 | 125.2 |
| B | 0 | 214 | 29673 | 231.79 | 655 | 643 | 125.2 |
| C | 15 | 48 | 110236 | 736.41 | 642 | 651 | 148.8 |
| C | 4 | 175 | 11458 | 72.62 | 642 | 651 | 148.8 |
| C | 14 | 234 | 8429 | 52.27 | 642 | 651 | 148.8 |
| D | 8 | 195 | 131128 | 862.69 | 629 | 614 | 151.3 |
| D | 2 | 16 | 125047 | 822.49 | 629 | 614 | 151.3 |
| D | 5 | 222 | 70269 | 460.41 | 629 | 614 | 151.3 |

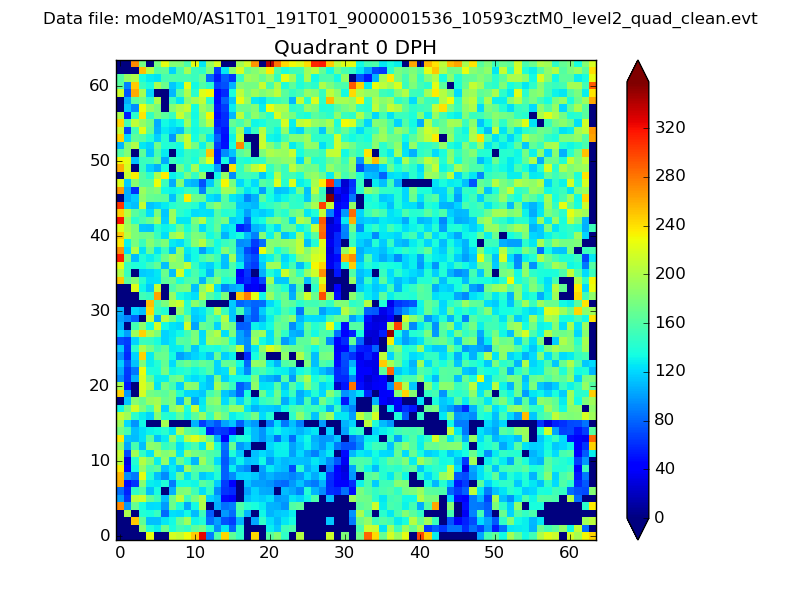

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

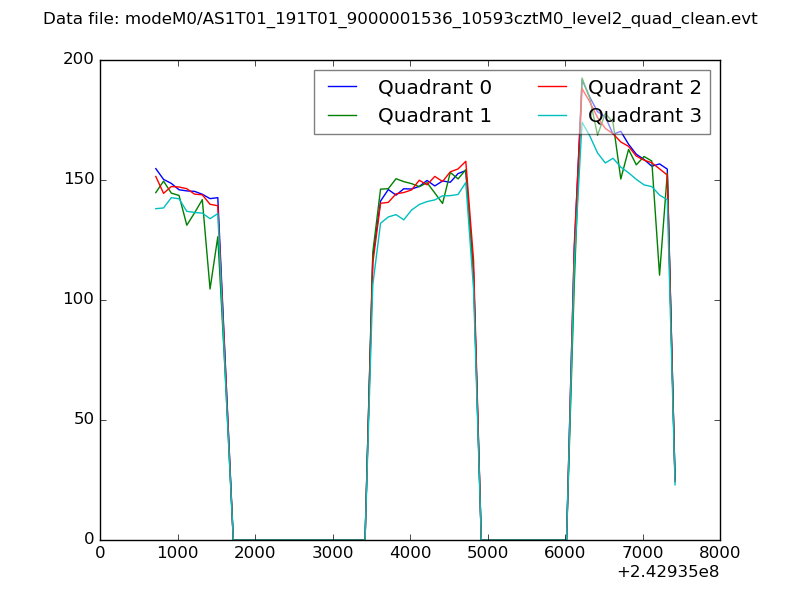

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

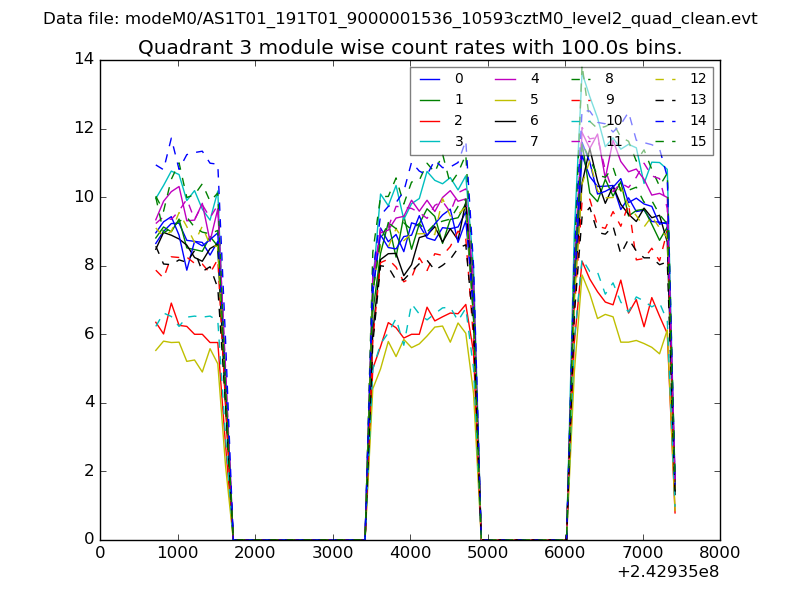

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

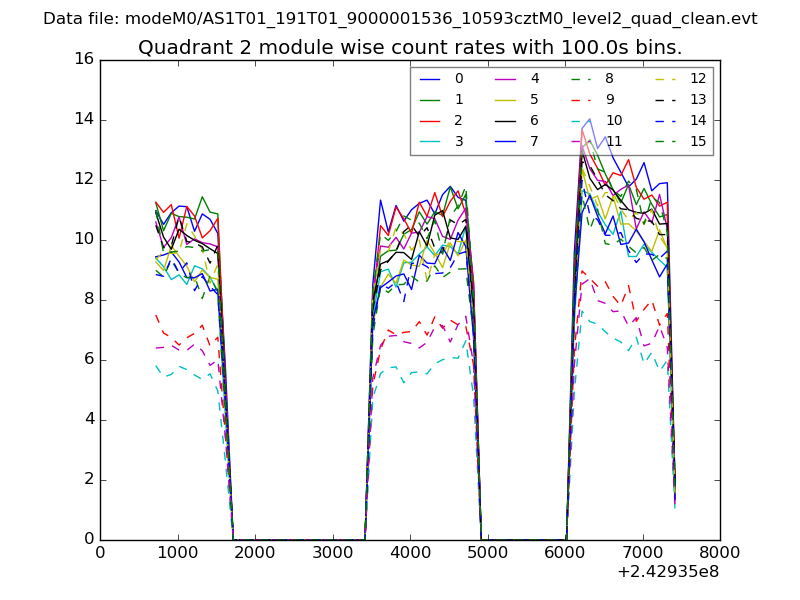

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

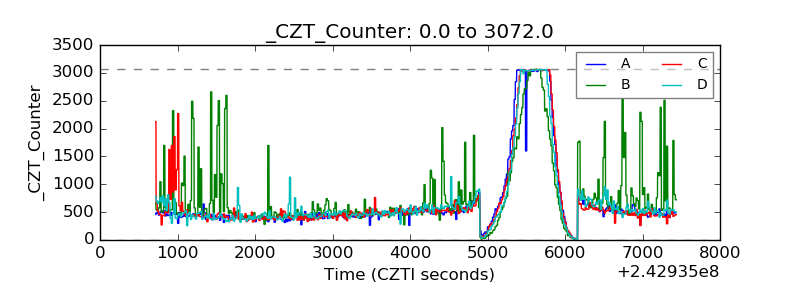

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

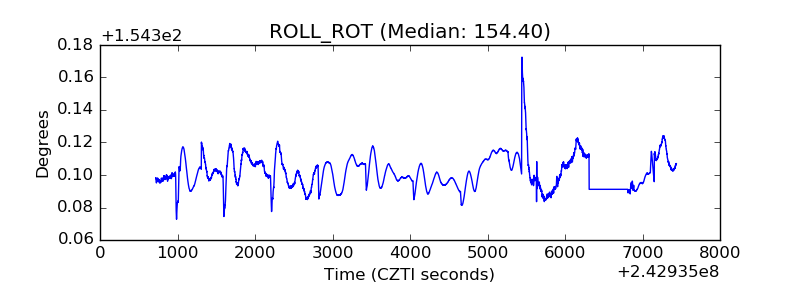

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
