| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_191T01_9000001536_10615cztM0_level2.evt | modeM0/AS1T01_191T01_9000001536_10615cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,731,520 | 112,320,000 |
| Size | 507.1 MB | 107.1 MB |
| Events in quadrant A | 3,306,693 | 744,201 |
| Events in quadrant B | 4,627,522 | 733,705 |
| Events in quadrant C | 3,470,142 | 742,630 |
| Events in quadrant D | 4,229,742 | 699,296 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14220 | 2 |
| B | 0 | 18093 | 1 |
| C | 0 | 14829 | 1 |
| D | 0 | 16981 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6918 | 145 | 2.095981% |
| B | 6918 | 410 | 5.926568% |
| C | 6918 | 177 | 2.558543% |
| D | 6918 | 141 | 2.038161% |

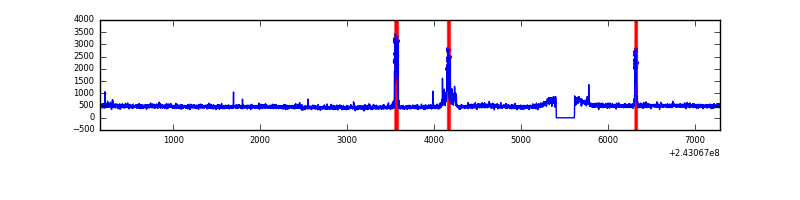

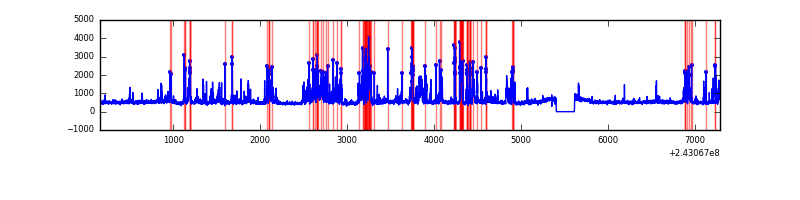

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7128 | 6919 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7128 | 6919 | 150 | 150 | 2.10% | 2.17% |  |
| C | 7128 | 6919 | 59 | 59 | 0.83% | 0.85% |  |
| D | 7128 | 6919 | 21 | 21 | 0.29% | 0.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 18149 | 97.97 | 841 | 826 | 176.8 |
| A | 1 | 162 | 15219 | 81.4 | 841 | 826 | 176.8 |
| A | 4 | 2 | 11853 | 62.37 | 841 | 826 | 176.8 |
| B | 4 | 239 | 1196217 | 7373.34 | 829 | 814 | 162.1 |
| B | 0 | 219 | 94357 | 576.98 | 829 | 814 | 162.1 |
| B | 0 | 214 | 47407 | 287.39 | 829 | 814 | 162.1 |
| C | 4 | 254 | 243993 | 1273.88 | 817 | 826 | 190.9 |
| C | 4 | 175 | 16286 | 80.99 | 817 | 826 | 190.9 |
| C | 8 | 128 | 10488 | 50.62 | 817 | 826 | 190.9 |
| D | 8 | 195 | 483998 | 2404.75 | 813 | 791 | 200.9 |
| D | 2 | 16 | 339322 | 1684.75 | 813 | 791 | 200.9 |
| D | 7 | 71 | 86789 | 427.98 | 813 | 791 | 200.9 |

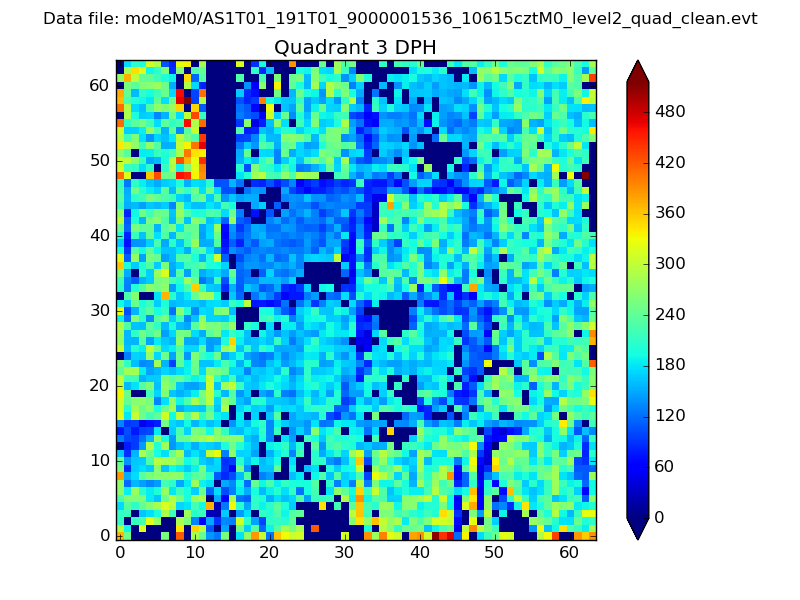

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

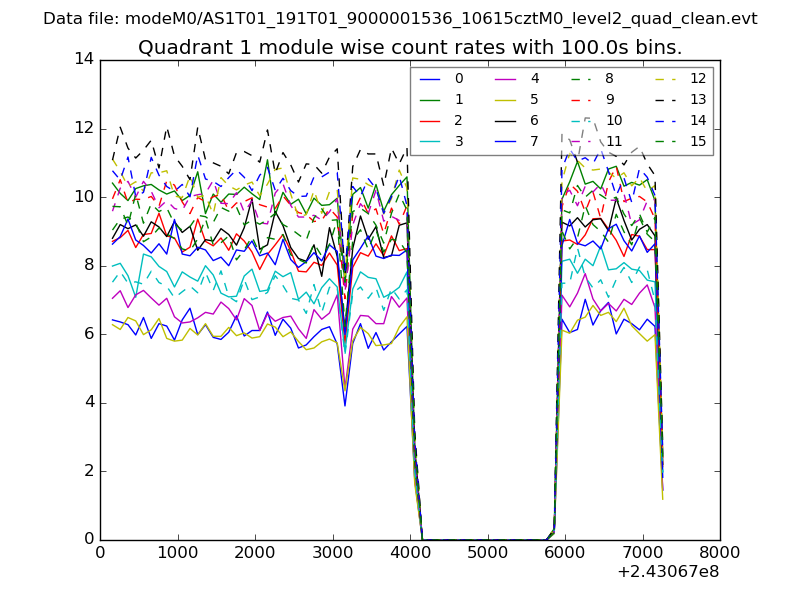

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

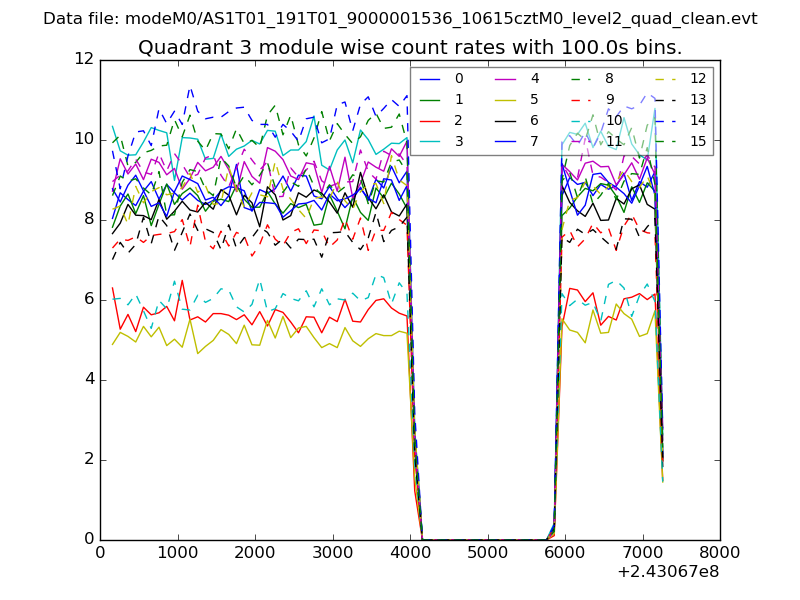

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

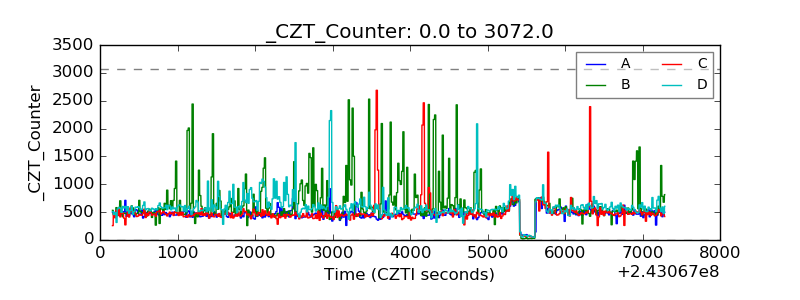

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

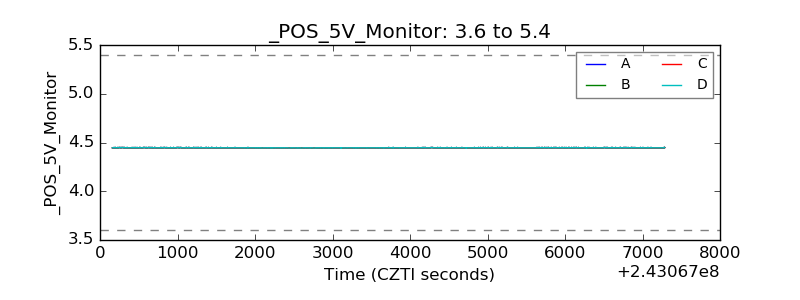

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
