| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_191T01_9000001536_10619cztM0_level2.evt | modeM0/AS1T01_191T01_9000001536_10619cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,116,480 | 91,673,280 |
| Size | 444.5 MB | 87.4 MB |
| Events in quadrant A | 2,924,483 | 604,741 |
| Events in quadrant B | 4,055,208 | 589,806 |
| Events in quadrant C | 3,011,157 | 598,479 |
| Events in quadrant D | 3,725,164 | 570,993 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12523 | 2 |
| B | 0 | 15867 | 1 |
| C | 0 | 12965 | 1 |
| D | 0 | 15059 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5898 | 30 | 0.508647% |
| B | 5898 | 314 | 5.323839% |
| C | 5898 | 27 | 0.457782% |
| D | 5898 | 32 | 0.542557% |

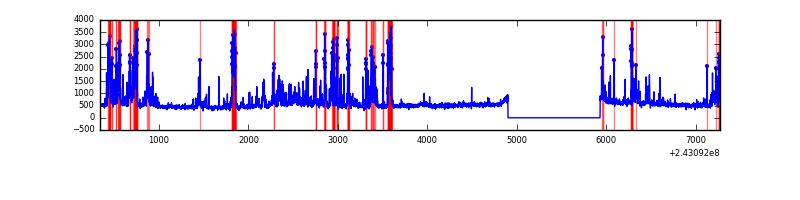

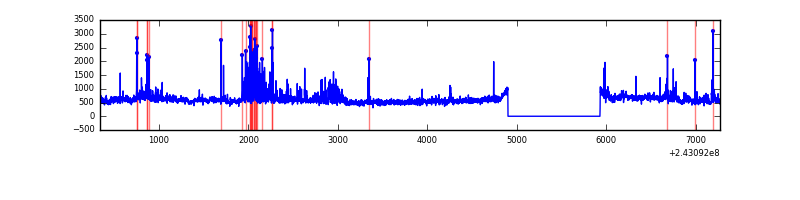

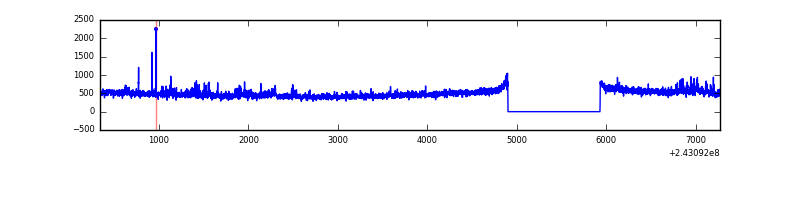

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6928 | 5899 | 1 | 1 | 0.01% | 0.02% |  |
| B | 6928 | 5899 | 179 | 179 | 2.58% | 3.03% |  |
| C | 6928 | 5899 | 12 | 12 | 0.17% | 0.20% |  |
| D | 6928 | 5899 | 27 | 27 | 0.39% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 91772 | 610.56 | 713 | 701 | 149.2 |
| A | 1 | 162 | 39837 | 262.38 | 713 | 701 | 149.2 |
| A | 1 | 178 | 14050 | 89.49 | 713 | 701 | 149.2 |
| B | 4 | 239 | 1087143 | 8009.99 | 700 | 685 | 135.6 |
| B | 0 | 219 | 157598 | 1156.85 | 700 | 685 | 135.6 |
| B | 0 | 214 | 22309 | 159.42 | 700 | 685 | 135.6 |
| C | 4 | 254 | 331964 | 2061.27 | 683 | 690 | 160.7 |
| C | 13 | 61 | 5045 | 27.1 | 683 | 690 | 160.7 |
| C | 8 | 128 | 4815 | 25.67 | 683 | 690 | 160.7 |
| D | 8 | 195 | 549074 | 3289.57 | 680 | 662 | 166.7 |
| D | 2 | 16 | 242541 | 1450.88 | 680 | 662 | 166.7 |
| D | 1 | 52 | 217985 | 1303.58 | 680 | 662 | 166.7 |

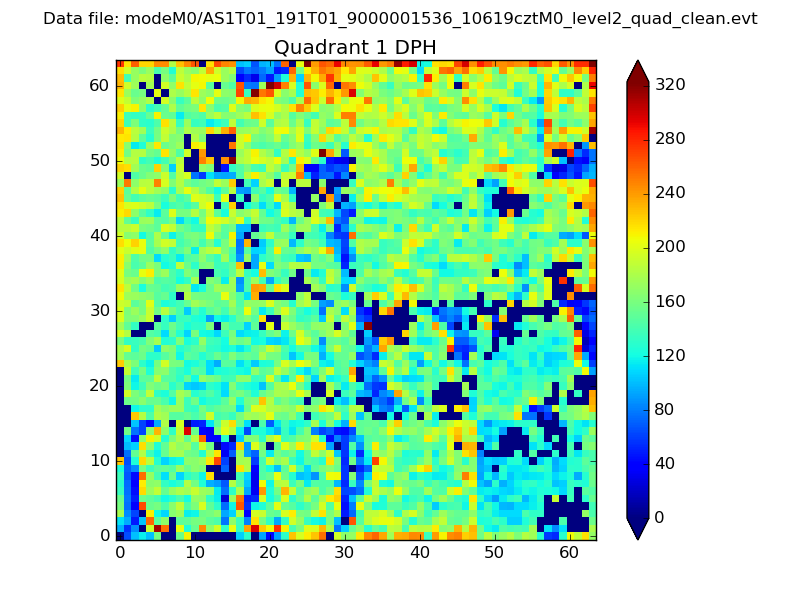

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

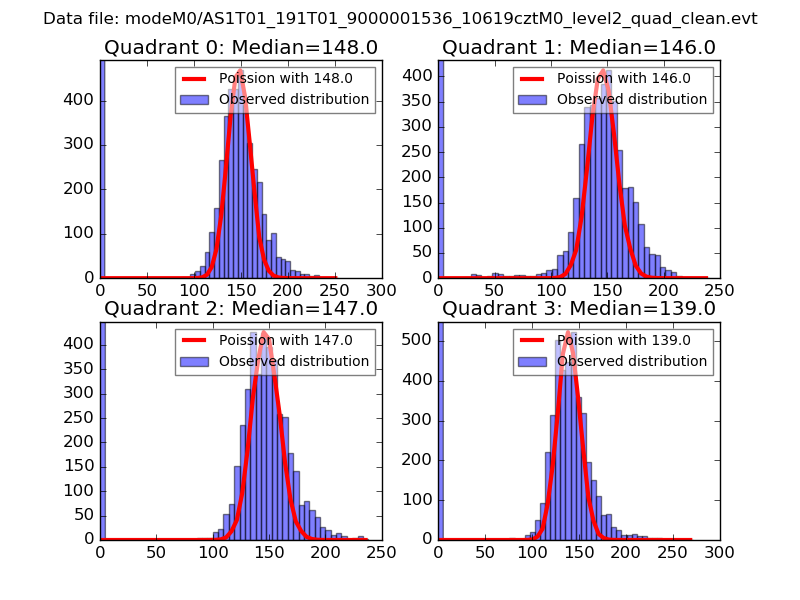

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

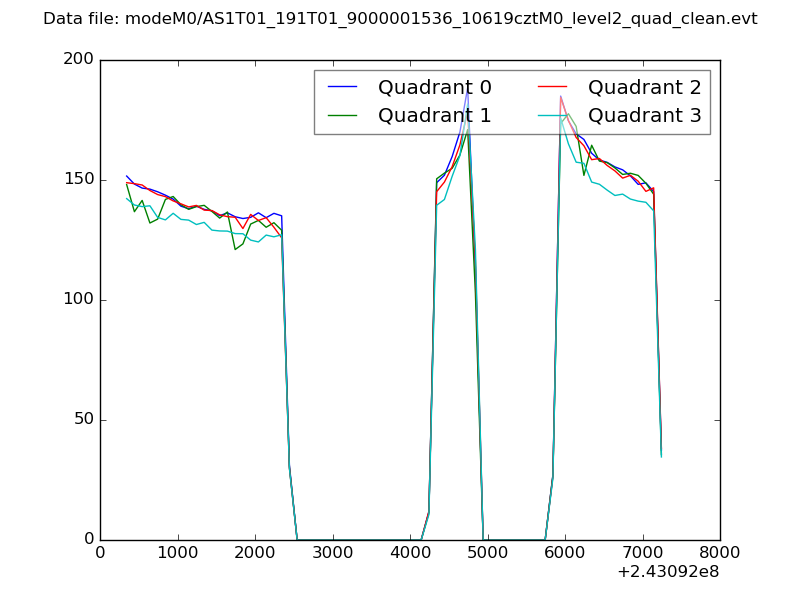

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

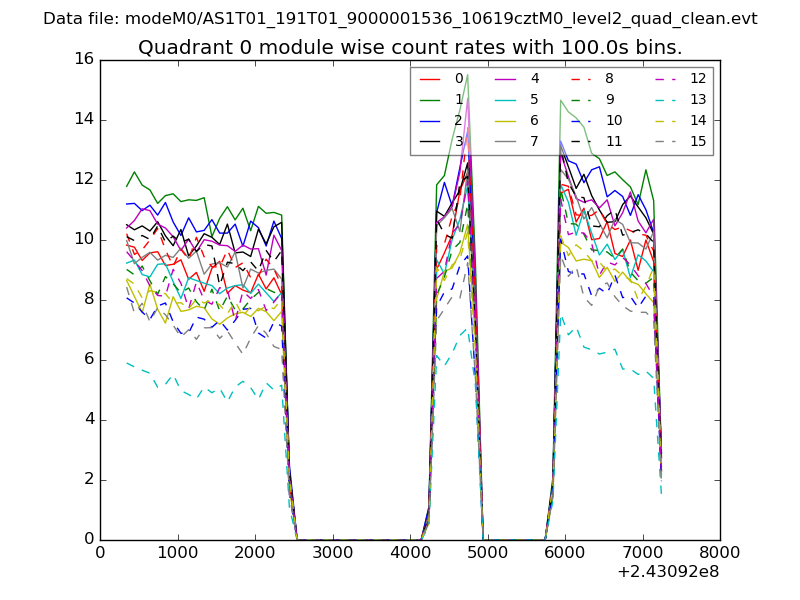

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

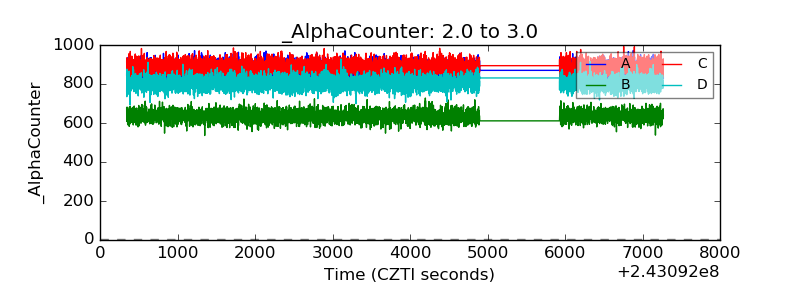

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
