| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_191T01_9000001536_10640cztM0_level2.evt | modeM0/AS1T01_191T01_9000001536_10640cztM0_level2_quad_clean.evt |
| Size (bytes) | 487,370,880 | 77,592,960 |
| Size | 464.8 MB | 74.0 MB |
| Events in quadrant A | 2,929,725 | 494,317 |
| Events in quadrant B | 3,770,200 | 488,575 |
| Events in quadrant C | 3,999,811 | 472,507 |
| Events in quadrant D | 3,644,445 | 466,281 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12741 | 2 |
| B | 0 | 15135 | 1 |
| C | 0 | 16088 | 1 |
| D | 0 | 14662 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6122 | 27 | 0.441032% |
| B | 6122 | 168 | 2.744201% |
| C | 6122 | 337 | 5.504737% |
| D | 6122 | 67 | 1.094414% |

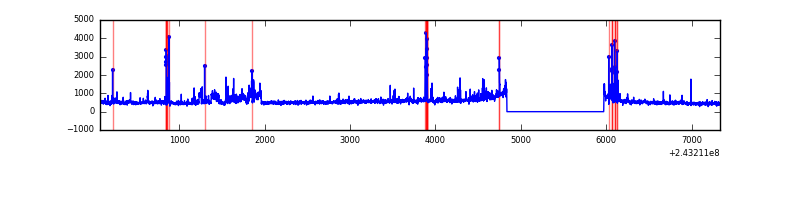

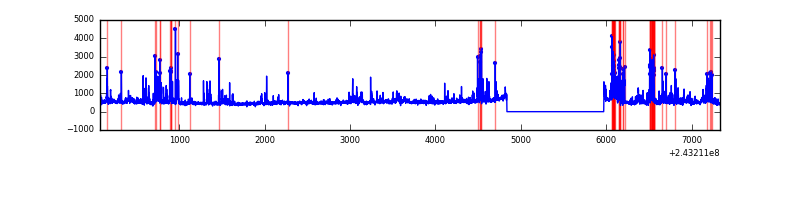

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7257 | 6123 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7257 | 6123 | 74 | 74 | 1.02% | 1.21% |  |
| C | 7257 | 6123 | 282 | 282 | 3.89% | 4.61% |  |
| D | 7257 | 6123 | 30 | 30 | 0.41% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 23738 | 150.18 | 743 | 732 | 153.2 |
| A | 15 | 174 | 16133 | 100.54 | 743 | 732 | 153.2 |
| A | 3 | 1 | 9133 | 54.84 | 743 | 732 | 153.2 |
| B | 4 | 239 | 705884 | 4999.05 | 741 | 727 | 141.1 |
| B | 0 | 214 | 84625 | 594.78 | 741 | 727 | 141.1 |
| B | 3 | 189 | 42116 | 293.42 | 741 | 727 | 141.1 |
| C | 4 | 254 | 1218088 | 7441.96 | 710 | 719 | 163.6 |
| C | 14 | 234 | 8332 | 46.54 | 710 | 719 | 163.6 |
| C | 13 | 61 | 5267 | 27.8 | 710 | 719 | 163.6 |
| D | 8 | 195 | 328828 | 1912.41 | 713 | 696 | 171.6 |
| D | 1 | 52 | 301702 | 1754.32 | 713 | 696 | 171.6 |
| D | 2 | 16 | 95769 | 554.1 | 713 | 696 | 171.6 |

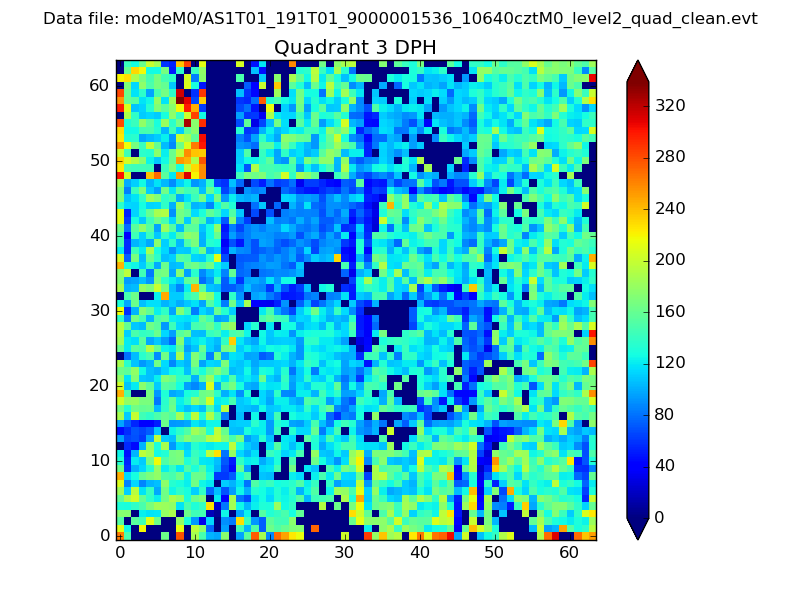

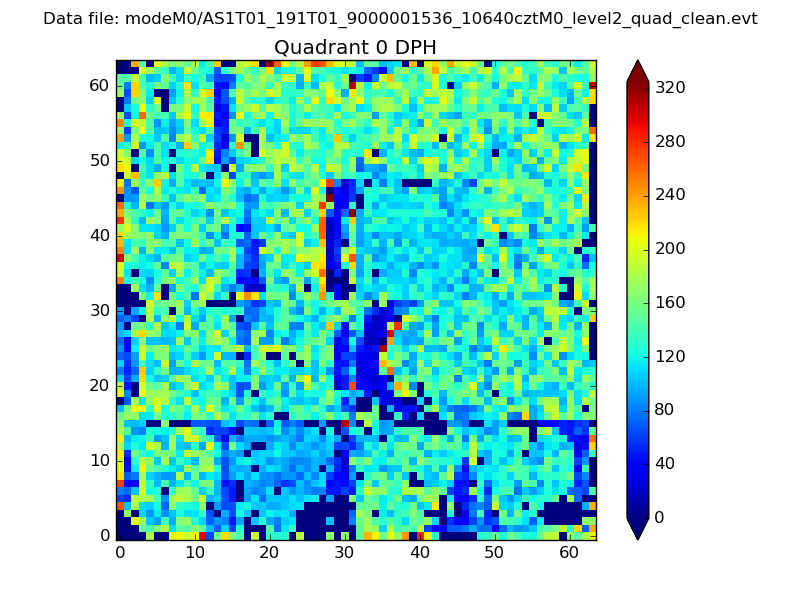

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

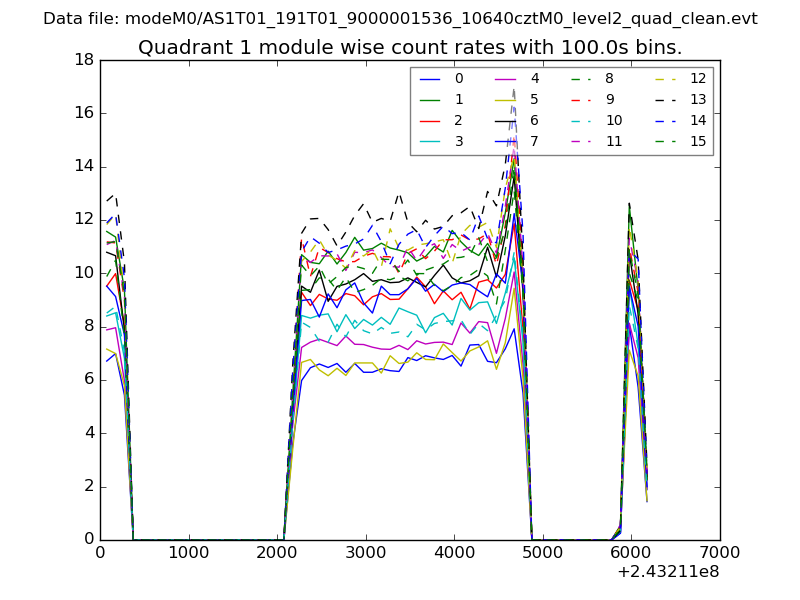

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

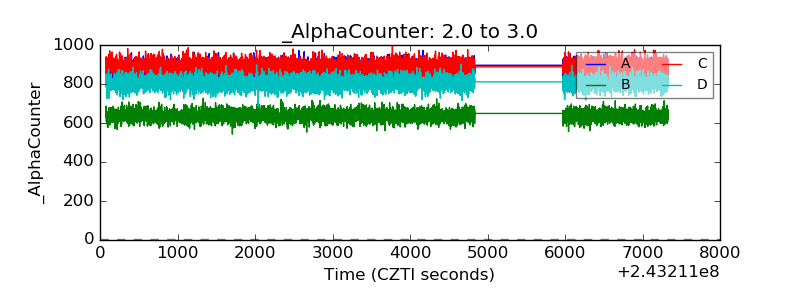

| Alpha Counter |  |

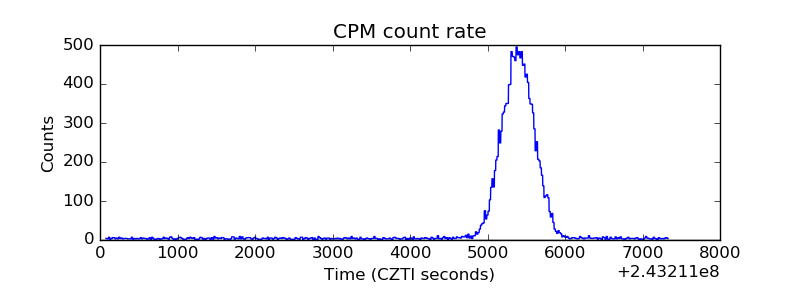

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
