| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_097T01_9000001540_10662cztM0_level2.evt | modeM0/AS1A03_097T01_9000001540_10662cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,099,448,640 | 162,080,640 |
| Size | 1.0 GB | 154.6 MB |
| Events in quadrant A | 5,805,825 | 1,053,808 |
| Events in quadrant B | 8,240,840 | 1,041,188 |
| Events in quadrant C | 6,646,746 | 1,024,464 |
| Events in quadrant D | 11,767,828 | 932,566 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25601 | 4 |
| B | 0 | 32470 | 3 |
| C | 0 | 28171 | 3 |
| D | 0 | 43446 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 252 | 0 |
| B | 0 | 252 | 0 |
| C | 0 | 252 | 0 |
| D | 0 | 252 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12384 | 151 | 1.219315% |
| B | 12384 | 558 | 4.505814% |
| C | 12384 | 403 | 3.254199% |
| D | 12384 | 1229 | 9.924096% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

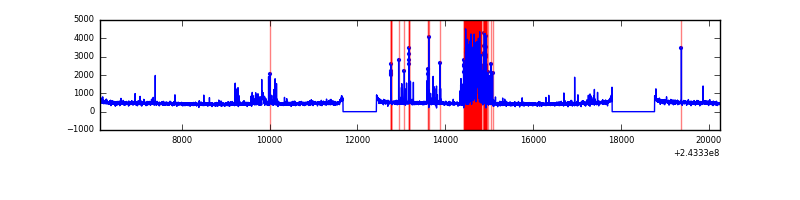

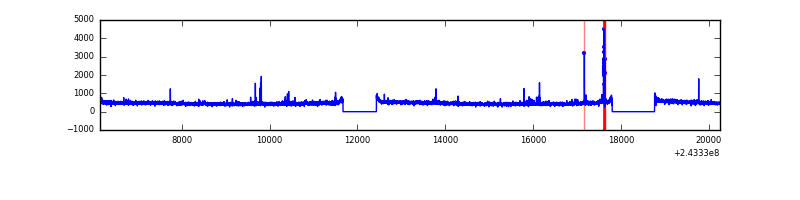

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14109 | 12385 | 21 | 21 | 0.15% | 0.17% |  |
| B | 14109 | 12385 | 318 | 318 | 2.25% | 2.57% |  |
| C | 14109 | 12386 | 262 | 262 | 1.86% | 2.12% |  |
| D | 14109 | 12385 | 1082 | 1082 | 7.67% | 8.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 78167 | 260.6 | 1453 | 1422 | 294.5 |
| A | 4 | 2 | 71993 | 239.64 | 1453 | 1422 | 294.5 |
| A | 1 | 162 | 27749 | 89.4 | 1453 | 1422 | 294.5 |
| B | 4 | 239 | 1895218 | 6930.96 | 1436 | 1403 | 273.2 |
| B | 15 | 204 | 261198 | 950.79 | 1436 | 1403 | 273.2 |
| B | 4 | 81 | 224123 | 815.11 | 1436 | 1403 | 273.2 |
| C | 4 | 254 | 1125800 | 3482.35 | 1394 | 1401 | 322.9 |
| C | 4 | 175 | 60318 | 182.47 | 1394 | 1401 | 322.9 |
| C | 14 | 234 | 16098 | 45.52 | 1394 | 1401 | 322.9 |
| D | 1 | 20 | 3015583 | 9168.6 | 1363 | 1325 | 328.8 |
| D | 12 | 233 | 2061661 | 6267.02 | 1363 | 1325 | 328.8 |
| D | 8 | 195 | 595168 | 1806.32 | 1363 | 1325 | 328.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

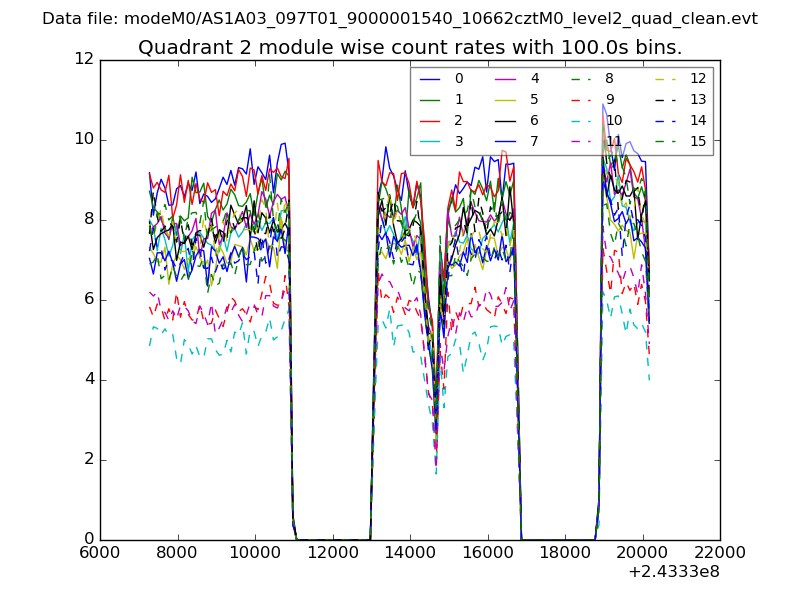

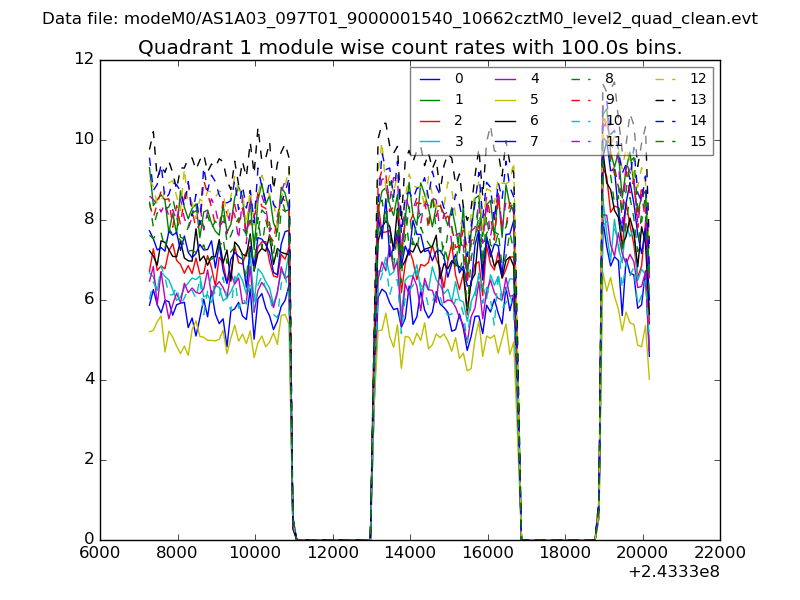

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

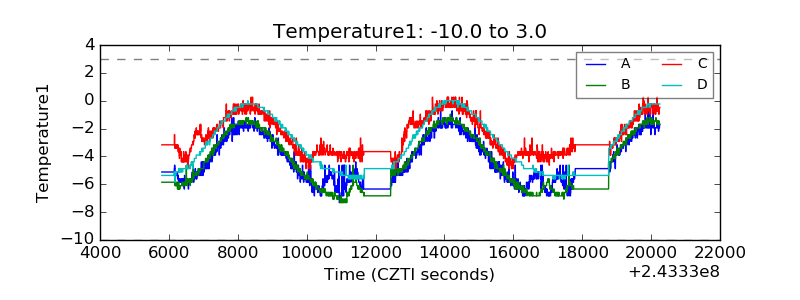

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

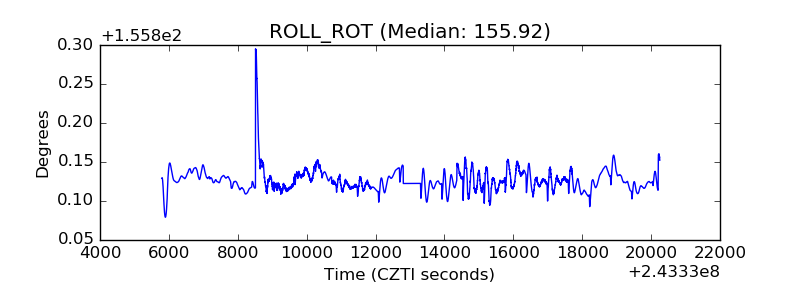

| _ROLL_ROT |  |

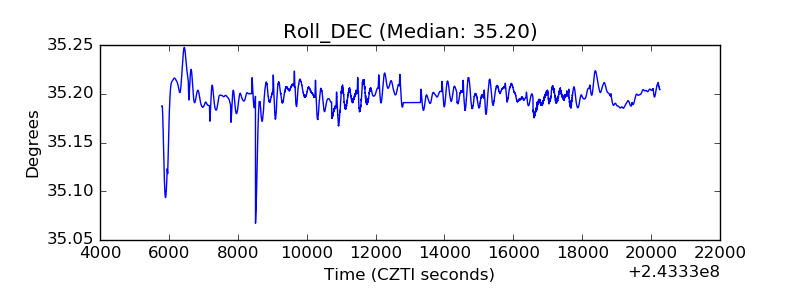

| _Roll_DEC |  |

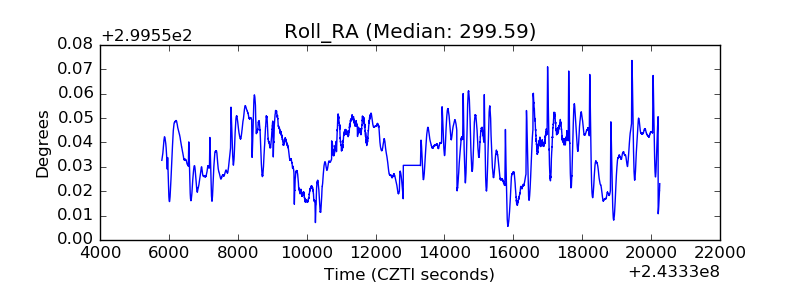

| _Roll_RA |  |
| Veto Counter |  |
