| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_097T01_9000001540_10664cztM0_level2.evt | modeM0/AS1A03_097T01_9000001540_10664cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,751,360 | 88,660,800 |
| Size | 469.0 MB | 84.6 MB |
| Events in quadrant A | 2,702,957 | 586,573 |
| Events in quadrant B | 3,872,613 | 575,625 |
| Events in quadrant C | 2,774,676 | 579,935 |
| Events in quadrant D | 5,150,654 | 538,572 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12021 | 2 |
| B | 0 | 15414 | 1 |
| C | 0 | 12288 | 1 |
| D | 0 | 19179 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5779 | 71 | 1.228586% |
| B | 5779 | 288 | 4.983561% |
| C | 5779 | 61 | 1.055546% |
| D | 5779 | 201 | 3.478110% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6844 | 5779 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6844 | 5780 | 148 | 148 | 2.16% | 2.56% |  |
| C | 6844 | 5780 | 3 | 3 | 0.04% | 0.05% |  |
| D | 6844 | 5779 | 124 | 124 | 1.81% | 2.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 15706 | 106.86 | 688 | 674 | 140.7 |
| A | 1 | 162 | 13944 | 94.33 | 688 | 674 | 140.7 |
| A | 4 | 2 | 8765 | 57.52 | 688 | 674 | 140.7 |
| B | 4 | 239 | 1072989 | 8355.76 | 676 | 662 | 128.3 |
| B | 15 | 204 | 51248 | 394.17 | 676 | 662 | 128.3 |
| B | 0 | 219 | 41782 | 320.41 | 676 | 662 | 128.3 |
| C | 4 | 254 | 102077 | 656.06 | 669 | 673 | 154.6 |
| C | 4 | 175 | 47601 | 303.61 | 669 | 673 | 154.6 |
| C | 14 | 234 | 9091 | 54.46 | 669 | 673 | 154.6 |
| D | 1 | 20 | 955389 | 5956.93 | 663 | 644 | 160.3 |
| D | 2 | 16 | 558584 | 3481.15 | 663 | 644 | 160.3 |
| D | 8 | 195 | 503889 | 3139.89 | 663 | 644 | 160.3 |

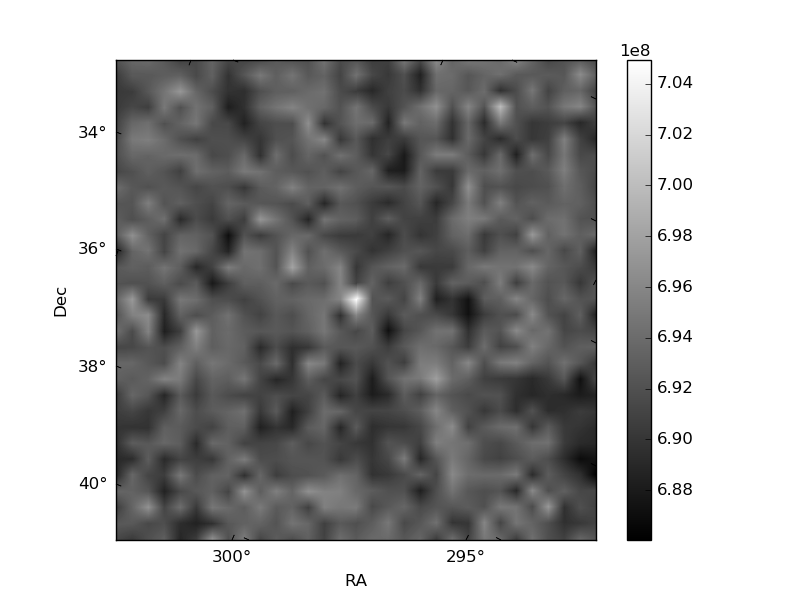

Histogram calculated using DETX and DETY for each event in the final _common_clean file

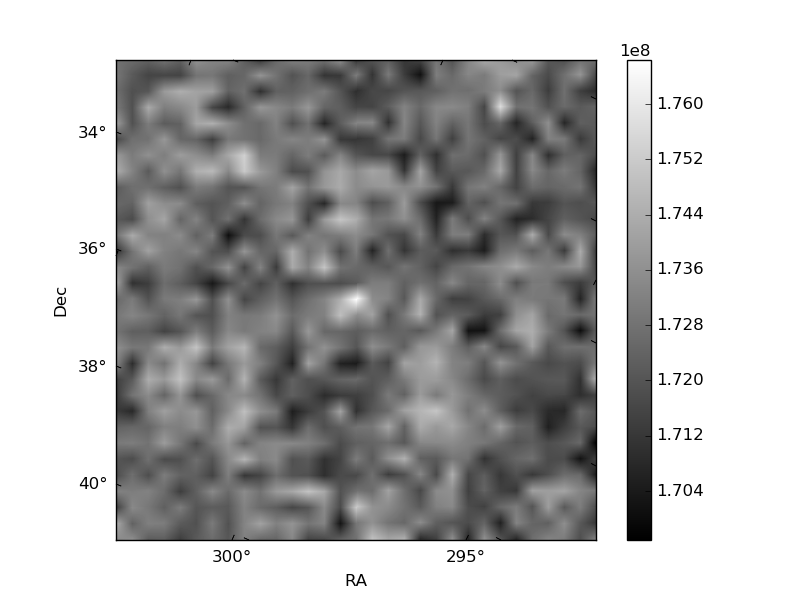

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

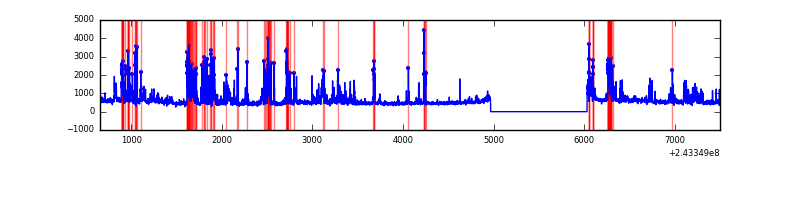

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

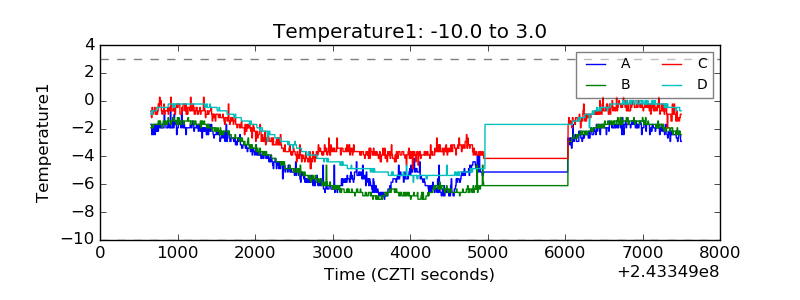

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

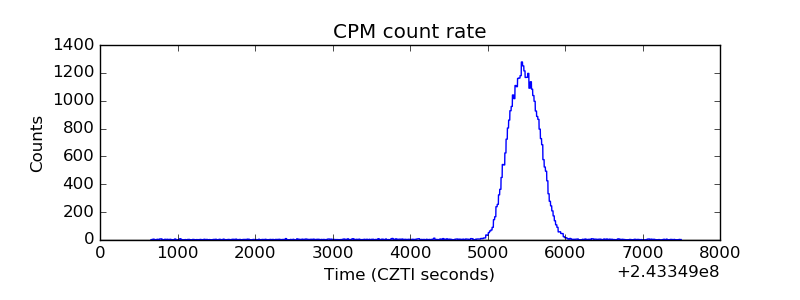

| _CPM_Rate |  |

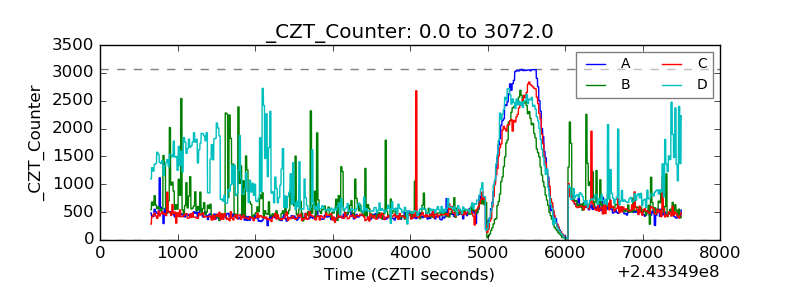

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

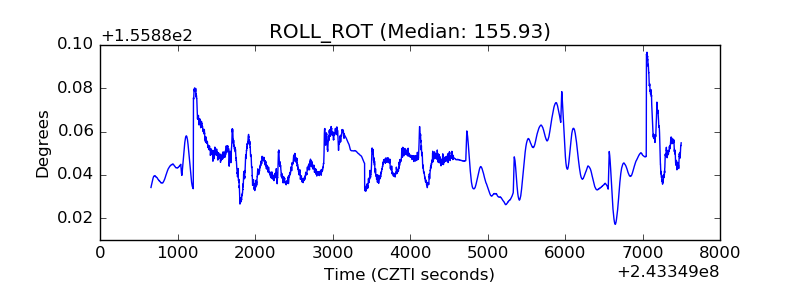

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

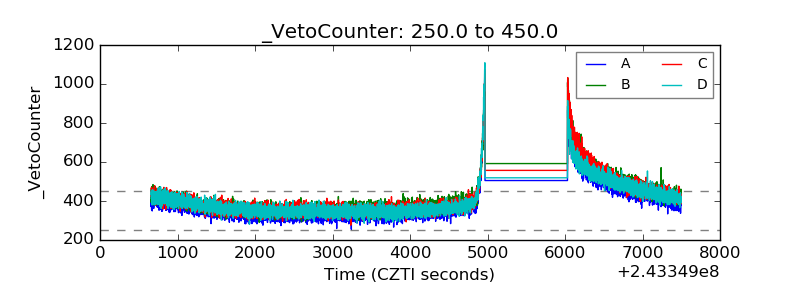

| Veto Counter |  |
