| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_097T01_9000001540_10665cztM0_level2.evt | modeM0/AS1A03_097T01_9000001540_10665cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,208,320 | 86,463,360 |
| Size | 466.5 MB | 82.5 MB |
| Events in quadrant A | 2,739,024 | 570,414 |
| Events in quadrant B | 3,940,543 | 560,572 |
| Events in quadrant C | 2,964,265 | 563,577 |
| Events in quadrant D | 4,783,231 | 522,997 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12063 | 2 |
| B | 0 | 15494 | 1 |
| C | 0 | 12678 | 1 |
| D | 0 | 18118 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5740 | 64 | 1.114983% |
| B | 5740 | 290 | 5.052265% |
| C | 5740 | 75 | 1.306620% |
| D | 5740 | 273 | 4.756098% |

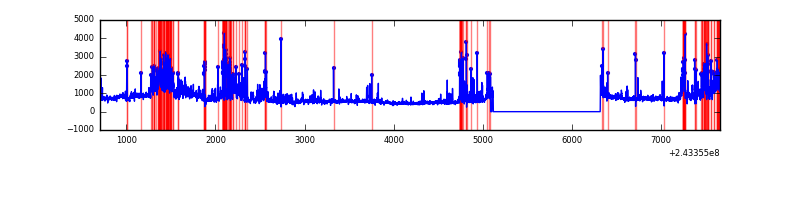

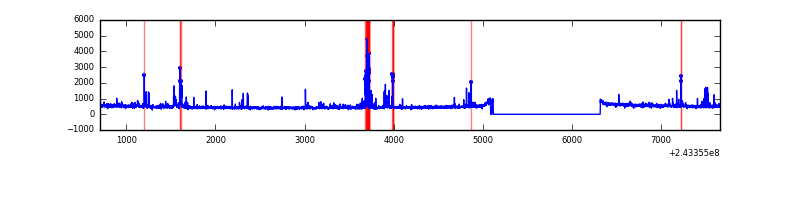

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6955 | 5742 | 4 | 4 | 0.06% | 0.07% |  |
| B | 6955 | 5742 | 181 | 181 | 2.60% | 3.15% |  |
| C | 6955 | 5742 | 31 | 31 | 0.45% | 0.54% |  |
| D | 6955 | 5741 | 212 | 212 | 3.05% | 3.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 43837 | 308.08 | 692 | 677 | 140.1 |
| A | 1 | 162 | 13288 | 90.02 | 692 | 677 | 140.1 |
| A | 14 | 254 | 8970 | 59.2 | 692 | 677 | 140.1 |
| B | 4 | 239 | 1172072 | 9193.41 | 682 | 666 | 127.4 |
| B | 11 | 51 | 34713 | 267.2 | 682 | 666 | 127.4 |
| B | 0 | 214 | 33393 | 256.84 | 682 | 666 | 127.4 |
| C | 4 | 254 | 264618 | 1698.05 | 675 | 679 | 155.4 |
| C | 4 | 175 | 43211 | 273.63 | 675 | 679 | 155.4 |
| C | 14 | 234 | 10607 | 63.87 | 675 | 679 | 155.4 |
| D | 8 | 195 | 469507 | 2933.8 | 661 | 644 | 159.8 |
| D | 10 | 199 | 459841 | 2873.32 | 661 | 644 | 159.8 |
| D | 2 | 16 | 373992 | 2336.14 | 661 | 644 | 159.8 |

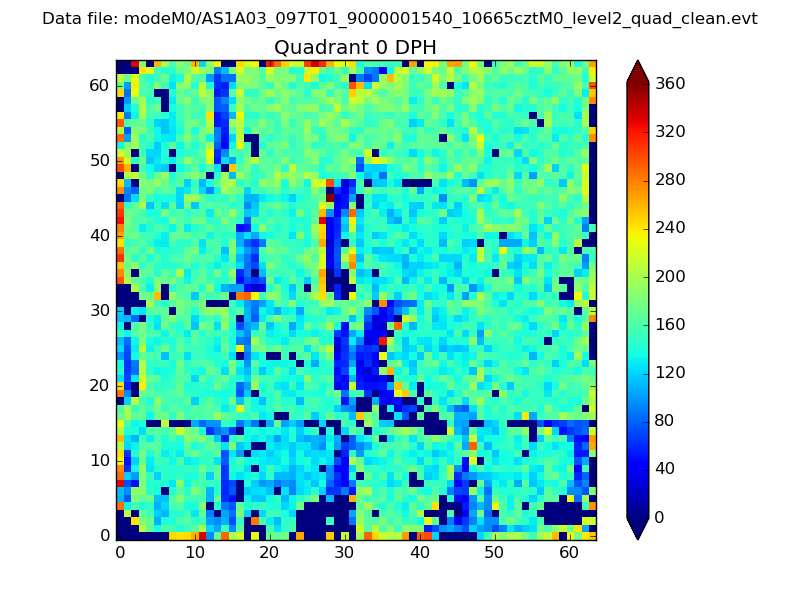

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

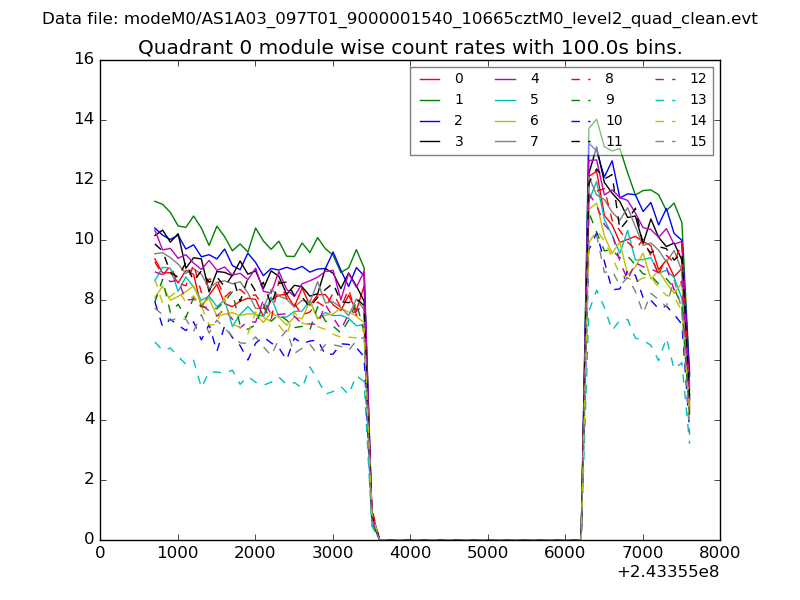

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

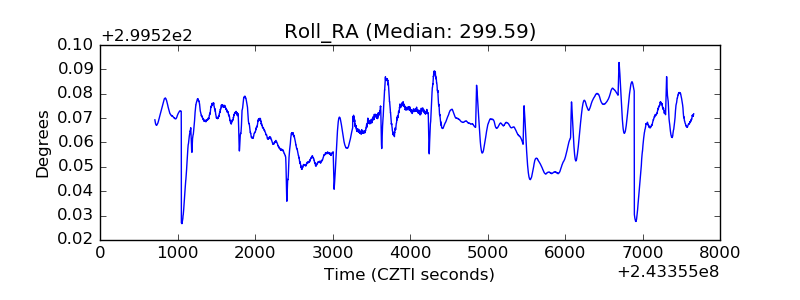

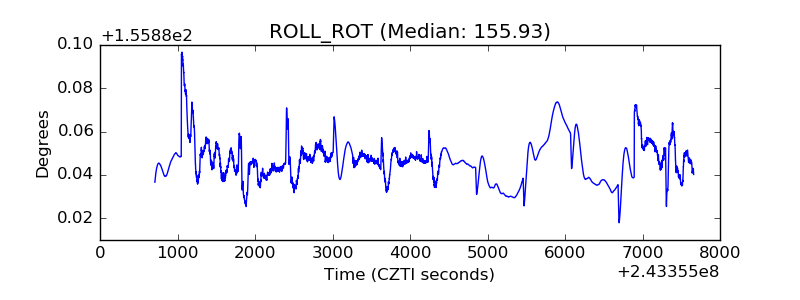

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
