| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_097T01_9000001540_10667cztM0_level2.evt | modeM0/AS1A03_097T01_9000001540_10667cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,015,680 | 87,099,840 |
| Size | 564.6 MB | 83.1 MB |
| Events in quadrant A | 3,012,273 | 586,512 |
| Events in quadrant B | 4,259,901 | 581,117 |
| Events in quadrant C | 3,540,544 | 580,618 |
| Events in quadrant D | 6,700,604 | 460,015 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12967 | 2 |
| B | 0 | 16712 | 1 |
| C | 0 | 14524 | 1 |
| D | 0 | 24033 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6144 | 24 | 0.390625% |
| B | 6144 | 312 | 5.078125% |
| C | 6144 | 102 | 1.660156% |
| D | 6144 | 1312 | 21.354167% |

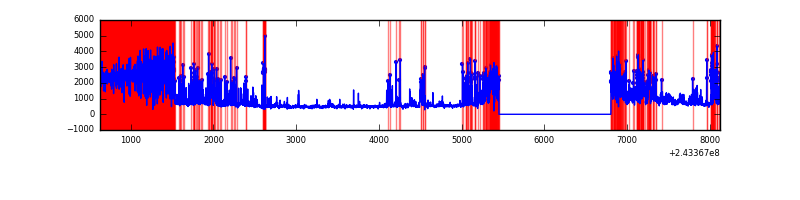

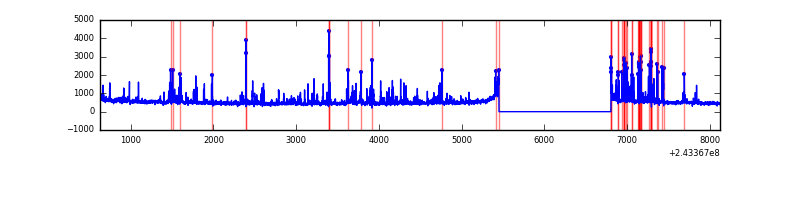

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7499 | 6145 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7499 | 6145 | 179 | 179 | 2.39% | 2.91% |  |
| C | 7499 | 6145 | 54 | 54 | 0.72% | 0.88% |  |
| D | 7499 | 6144 | 1087 | 1087 | 14.50% | 17.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 25734 | 161.78 | 761 | 746 | 154.4 |
| A | 3 | 1 | 17651 | 109.45 | 761 | 746 | 154.4 |
| A | 11 | 29 | 17365 | 107.6 | 761 | 746 | 154.4 |
| B | 4 | 239 | 992407 | 7039.8 | 757 | 741 | 140.9 |
| B | 4 | 81 | 217543 | 1539.07 | 757 | 741 | 140.9 |
| B | 15 | 204 | 44594 | 311.31 | 757 | 741 | 140.9 |
| C | 4 | 254 | 589034 | 3454.69 | 743 | 751 | 170.3 |
| C | 4 | 175 | 36973 | 212.71 | 743 | 751 | 170.3 |
| C | 4 | 238 | 6803 | 35.54 | 743 | 751 | 170.3 |
| D | 1 | 20 | 1887574 | 11331.32 | 660 | 648 | 166.5 |
| D | 4 | 95 | 760680 | 4564.13 | 660 | 648 | 166.5 |
| D | 8 | 195 | 621198 | 3726.51 | 660 | 648 | 166.5 |

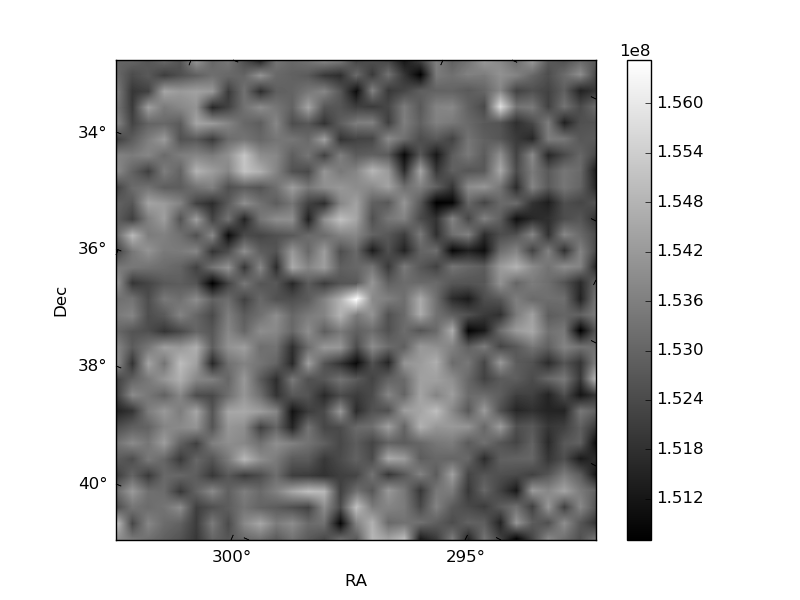

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

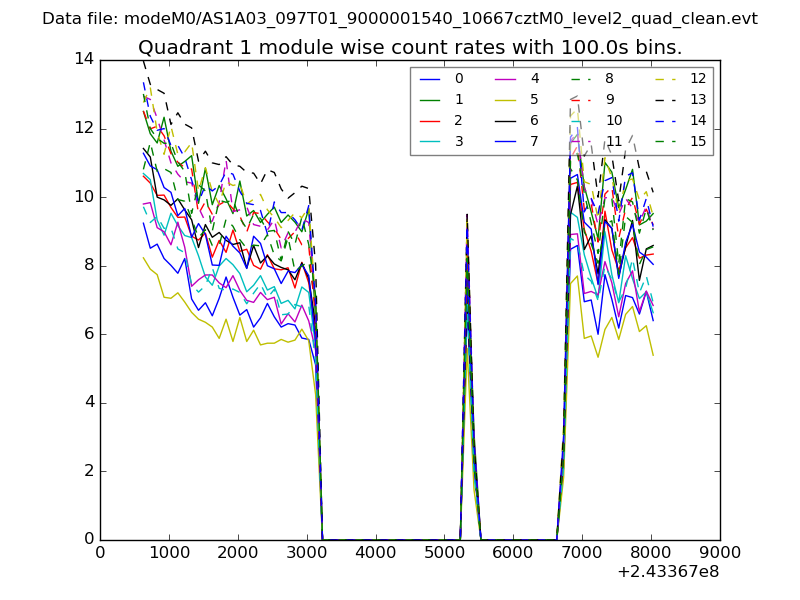

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

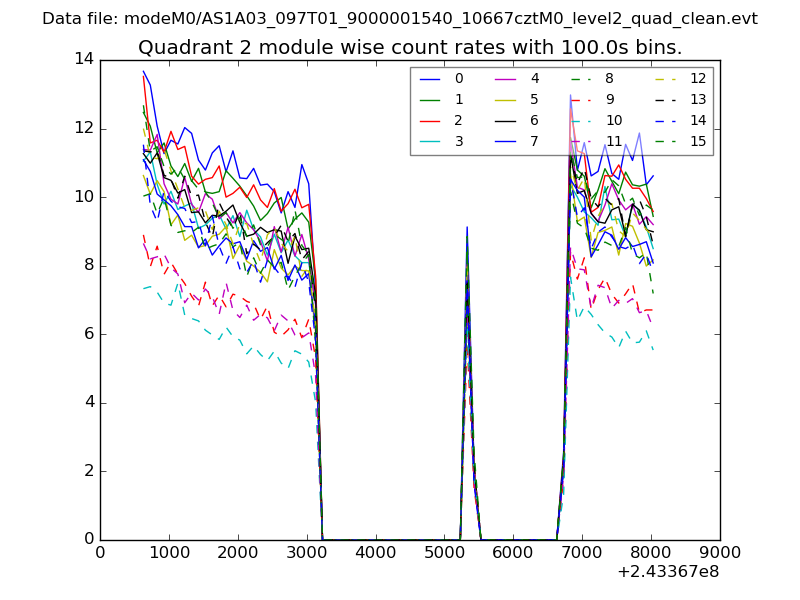

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

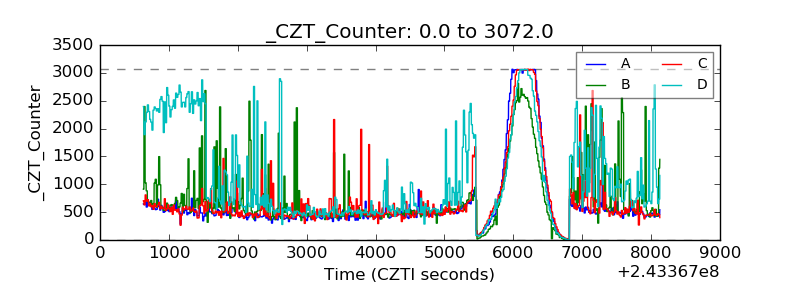

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

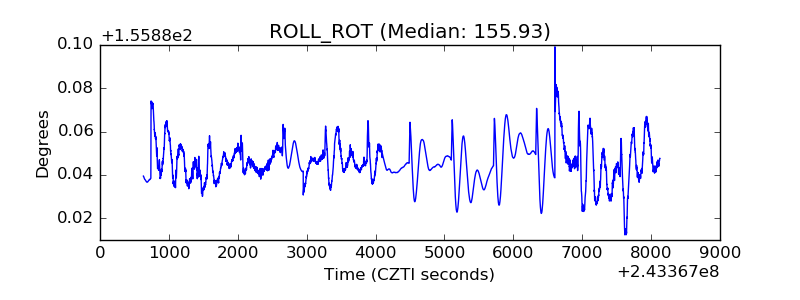

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

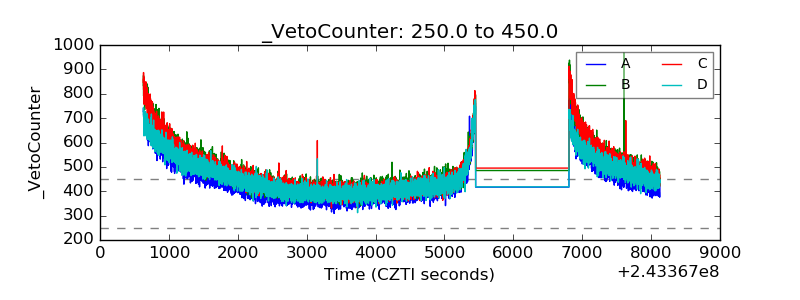

| Veto Counter |  |
