| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_097T01_9000001540_10694cztM0_level2.evt | modeM0/AS1A03_097T01_9000001540_10694cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,904,960 | 100,143,360 |
| Size | 532.1 MB | 95.5 MB |
| Events in quadrant A | 3,129,993 | 669,562 |
| Events in quadrant B | 3,961,006 | 670,304 |
| Events in quadrant C | 2,917,981 | 663,077 |
| Events in quadrant D | 6,464,436 | 594,021 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13447 | 2 |
| B | 0 | 15793 | 1 |
| C | 0 | 12884 | 1 |
| D | 0 | 23615 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6236 | 80 | 1.282874% |
| B | 6236 | 232 | 3.720334% |
| C | 6236 | 40 | 0.641437% |
| D | 6236 | 681 | 10.920462% |

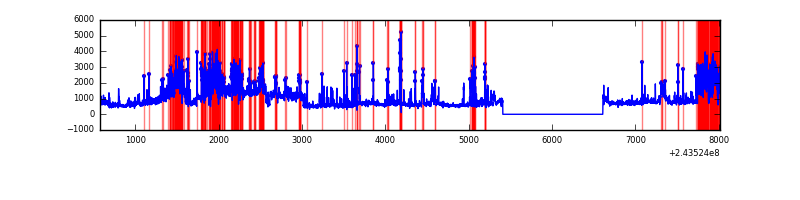

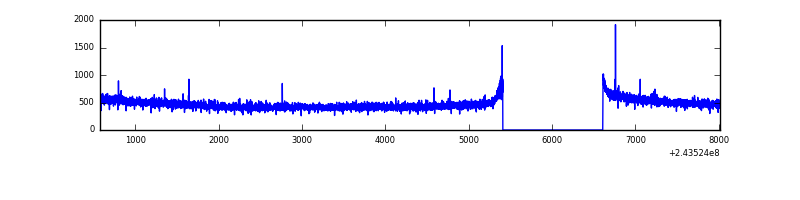

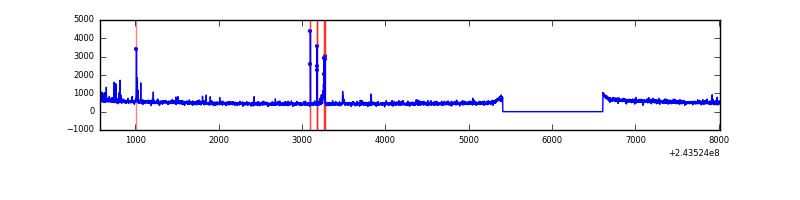

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7436 | 6237 | 10 | 10 | 0.13% | 0.16% |  |
| B | 7436 | 6237 | 115 | 115 | 1.55% | 1.84% |  |
| C | 7436 | 6237 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7435 | 6235 | 549 | 549 | 7.38% | 8.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 66670 | 425.42 | 768 | 752 | 154.9 |
| A | 8 | 5 | 43189 | 273.88 | 768 | 752 | 154.9 |
| A | 1 | 162 | 26308 | 164.93 | 768 | 752 | 154.9 |
| B | 4 | 239 | 827534 | 5793.12 | 762 | 744 | 142.7 |
| B | 0 | 197 | 35990 | 246.96 | 762 | 744 | 142.7 |
| B | 0 | 168 | 31631 | 216.42 | 762 | 744 | 142.7 |
| C | 13 | 61 | 5482 | 27.6 | 746 | 751 | 171.4 |
| C | 14 | 234 | 5241 | 26.19 | 746 | 751 | 171.4 |
| C | 8 | 222 | 2480 | 10.09 | 746 | 751 | 171.4 |
| D | 2 | 16 | 1334267 | 7744.96 | 719 | 700 | 172.2 |
| D | 10 | 199 | 976603 | 5667.75 | 719 | 700 | 172.2 |
| D | 1 | 52 | 462046 | 2679.36 | 719 | 700 | 172.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

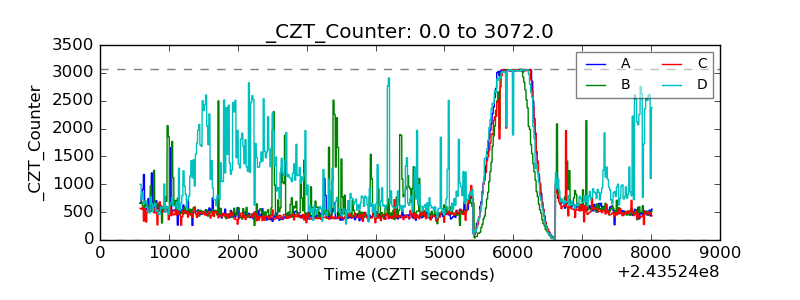

| CZT Counter |  |

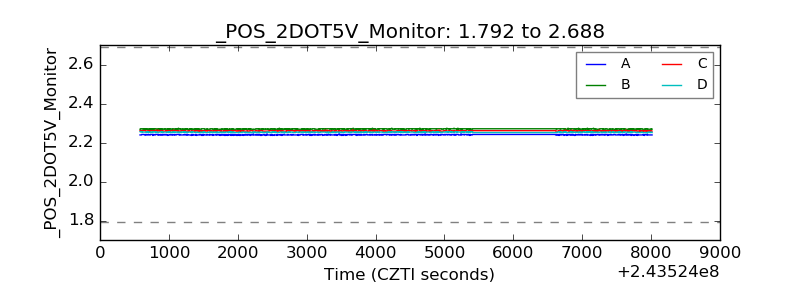

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

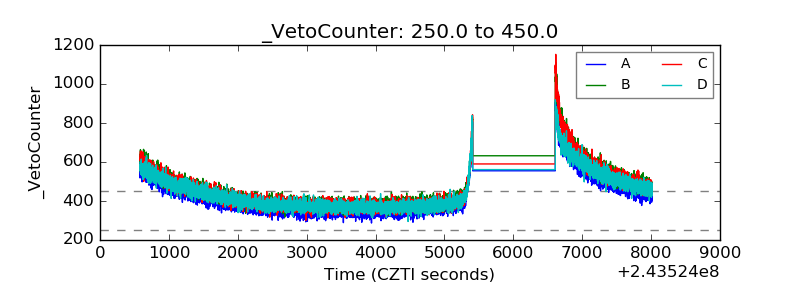

| Veto Counter |  |
