| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_097T01_9000001540_10695cztM0_level2.evt | modeM0/AS1A03_097T01_9000001540_10695cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,320,000 | 92,125,440 |
| Size | 519.1 MB | 87.9 MB |
| Events in quadrant A | 2,992,692 | 613,569 |
| Events in quadrant B | 3,988,328 | 610,425 |
| Events in quadrant C | 2,880,866 | 608,119 |
| Events in quadrant D | 6,214,388 | 536,363 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12808 | 2 |
| B | 0 | 15647 | 1 |
| C | 0 | 12497 | 1 |
| D | 0 | 22835 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6025 | 83 | 1.377593% |
| B | 6025 | 307 | 5.095436% |
| C | 6025 | 71 | 1.178423% |
| D | 6025 | 644 | 10.688797% |

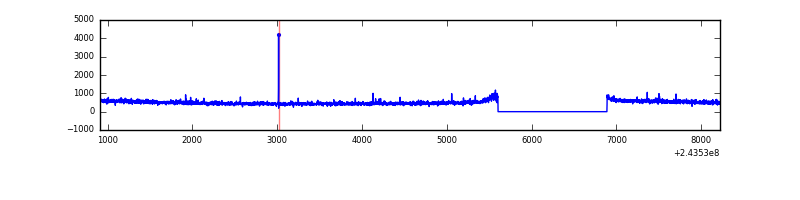

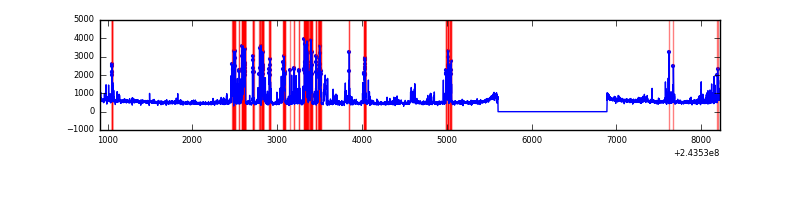

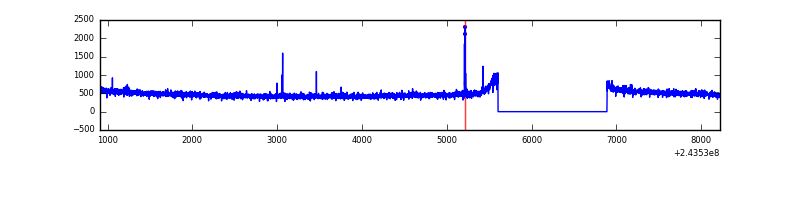

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7310 | 6025 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7310 | 6026 | 186 | 186 | 2.54% | 3.09% |  |
| C | 7310 | 6026 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7310 | 6025 | 513 | 513 | 7.02% | 8.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 30908 | 199.88 | 751 | 738 | 150.9 |
| A | 14 | 254 | 11669 | 72.42 | 751 | 738 | 150.9 |
| A | 1 | 178 | 11383 | 70.52 | 751 | 738 | 150.9 |
| B | 4 | 239 | 956360 | 6953.7 | 743 | 729 | 137.4 |
| B | 15 | 204 | 32513 | 231.28 | 743 | 729 | 137.4 |
| B | 0 | 219 | 31529 | 224.12 | 743 | 729 | 137.4 |
| C | 14 | 234 | 16900 | 95.06 | 734 | 738 | 170.0 |
| C | 13 | 61 | 5533 | 28.2 | 734 | 738 | 170.0 |
| C | 8 | 222 | 2485 | 10.27 | 734 | 738 | 170.0 |
| D | 10 | 199 | 1407407 | 8364.55 | 704 | 685 | 168.2 |
| D | 2 | 16 | 1187623 | 7057.68 | 704 | 685 | 168.2 |
| D | 8 | 195 | 553330 | 3286.1 | 704 | 685 | 168.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

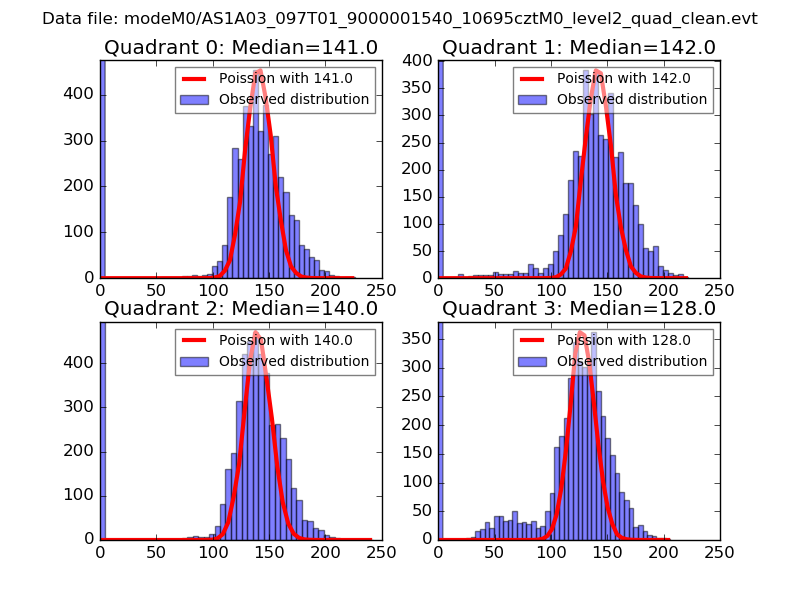

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

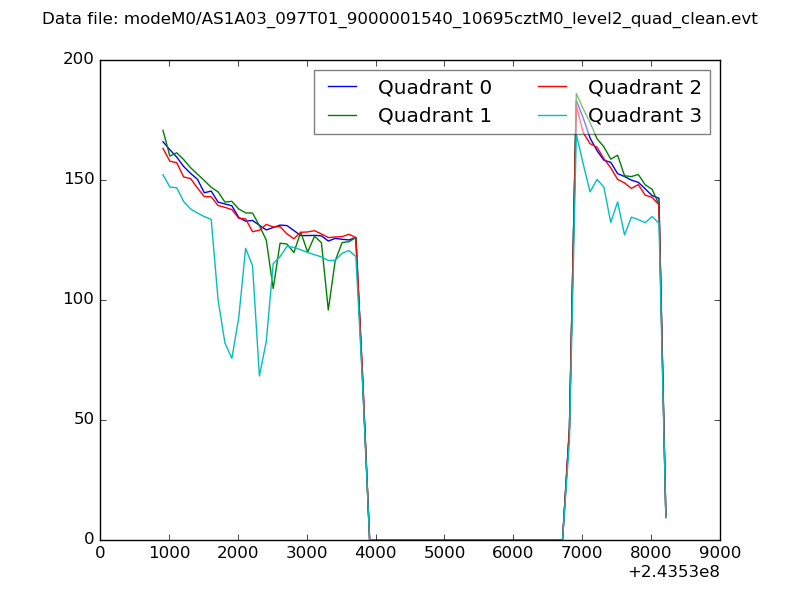

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

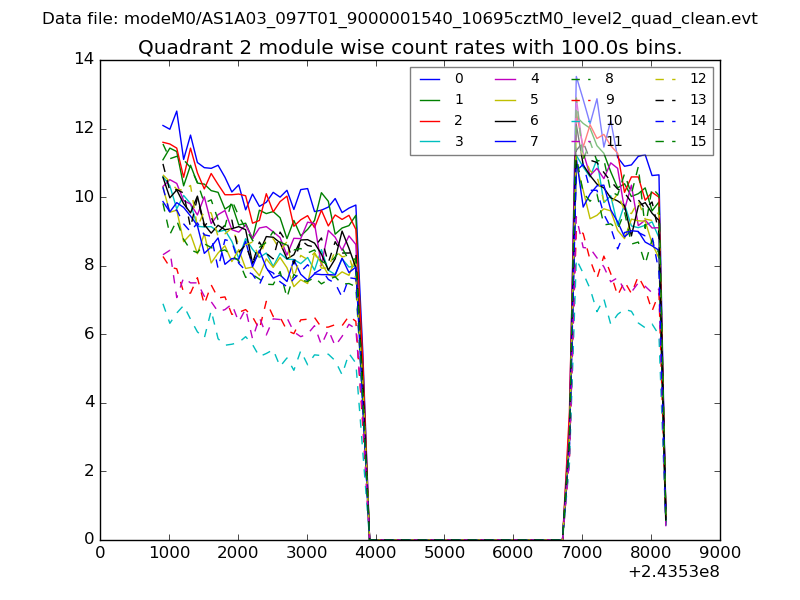

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

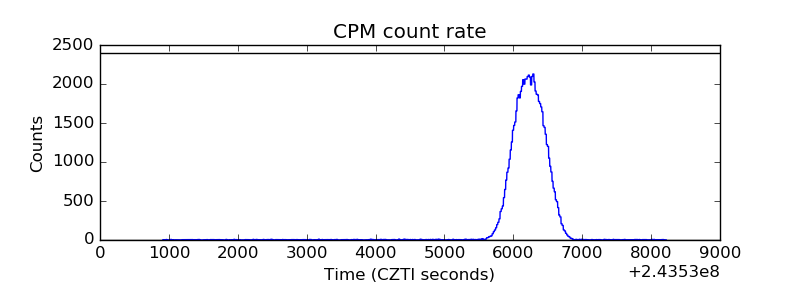

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
