| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_097T01_9000001540_10696cztM0_level2.evt | modeM0/AS1A03_097T01_9000001540_10696cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,003,520 | 91,552,320 |
| Size | 514.0 MB | 87.3 MB |
| Events in quadrant A | 3,129,998 | 600,339 |
| Events in quadrant B | 4,303,554 | 598,104 |
| Events in quadrant C | 2,956,663 | 600,091 |
| Events in quadrant D | 5,517,036 | 544,630 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13255 | 3 |
| B | 0 | 16765 | 2 |
| C | 0 | 12792 | 2 |
| D | 0 | 20728 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6145 | 44 | 0.716029% |
| B | 6145 | 323 | 5.256306% |
| C | 6145 | 38 | 0.618389% |
| D | 6145 | 345 | 5.614321% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7505 | 6147 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7505 | 6147 | 227 | 227 | 3.02% | 3.69% |  |
| C | 7505 | 6147 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7505 | 6147 | 263 | 263 | 3.50% | 4.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 41699 | 265.93 | 770 | 756 | 154.0 |
| A | 1 | 162 | 29065 | 183.87 | 770 | 756 | 154.0 |
| A | 14 | 254 | 22744 | 142.81 | 770 | 756 | 154.0 |
| B | 4 | 239 | 1178683 | 8363.49 | 764 | 748 | 140.8 |
| B | 0 | 85 | 38229 | 266.12 | 764 | 748 | 140.8 |
| B | 15 | 204 | 35864 | 249.33 | 764 | 748 | 140.8 |
| C | 14 | 234 | 8460 | 44.51 | 755 | 760 | 173.0 |
| C | 13 | 61 | 5649 | 28.26 | 755 | 760 | 173.0 |
| C | 8 | 222 | 2202 | 8.33 | 755 | 760 | 173.0 |
| D | 10 | 199 | 783547 | 4462.85 | 734 | 715 | 175.4 |
| D | 2 | 16 | 644710 | 3671.36 | 734 | 715 | 175.4 |
| D | 8 | 195 | 466235 | 2653.89 | 734 | 715 | 175.4 |

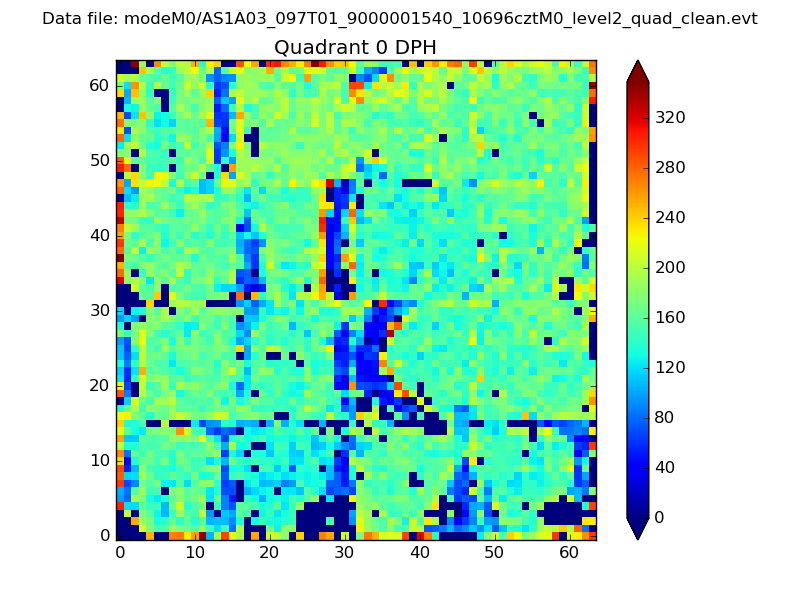

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

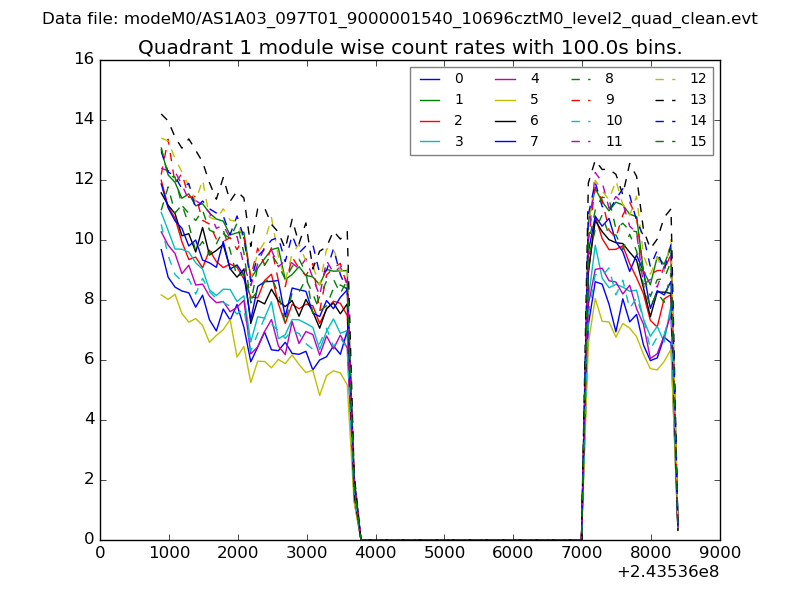

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

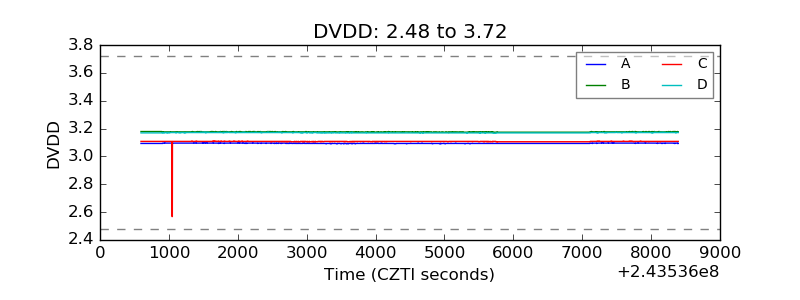

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

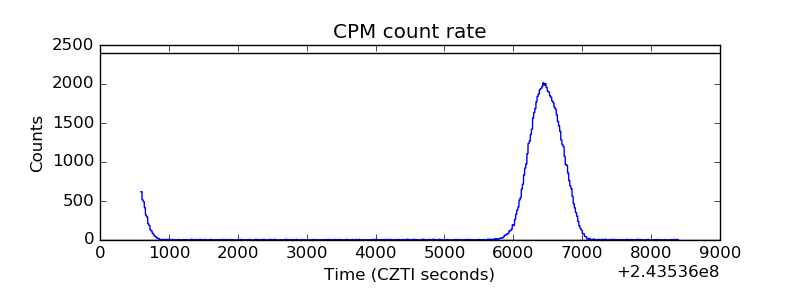

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

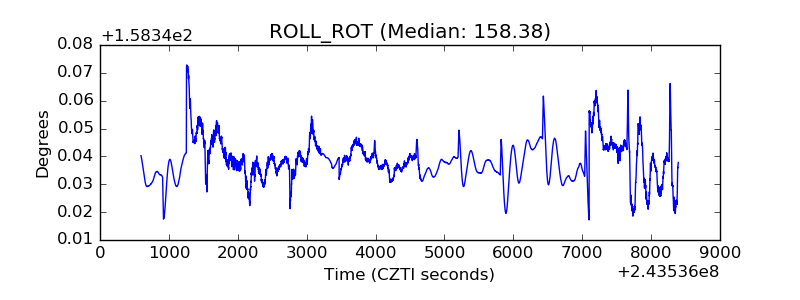

| _ROLL_ROT |  |
| _Roll_DEC |  |

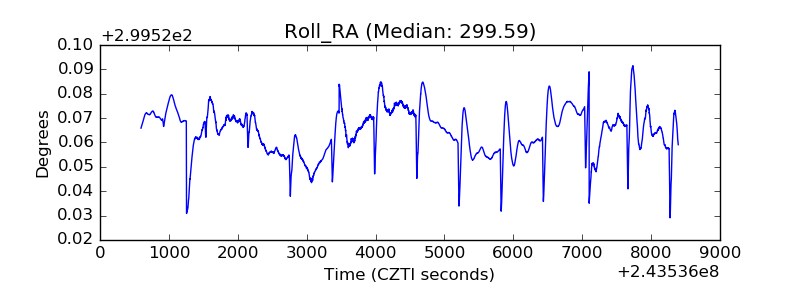

| _Roll_RA |  |
