| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_053T01_9000001542_10716cztM0_level2.evt | modeM0/AS1A03_053T01_9000001542_10716cztM0_level2_quad_clean.evt |
| Size (bytes) | 597,646,080 | 77,472,000 |
| Size | 570.0 MB | 73.9 MB |
| Events in quadrant A | 3,586,471 | 471,843 |
| Events in quadrant B | 5,910,205 | 443,200 |
| Events in quadrant C | 3,464,861 | 468,742 |
| Events in quadrant D | 4,624,866 | 435,304 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15859 | 7 |
| B | 0 | 22616 | 16 |
| C | 0 | 15787 | 2 |
| D | 0 | 19213 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7563 | 208 | 2.750231% |
| B | 7560 | 871 | 11.521164% |
| C | 7565 | 163 | 2.154660% |
| D | 7563 | 330 | 4.363348% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

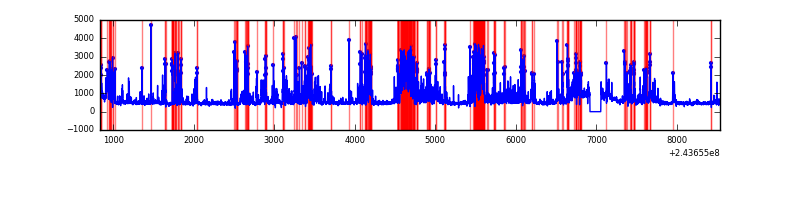

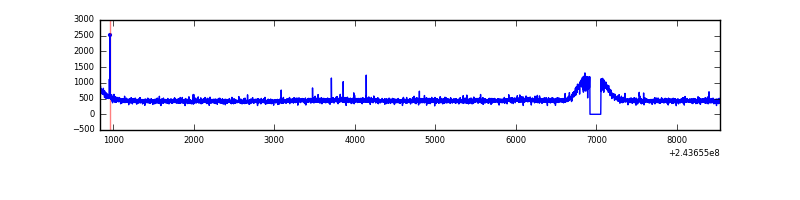

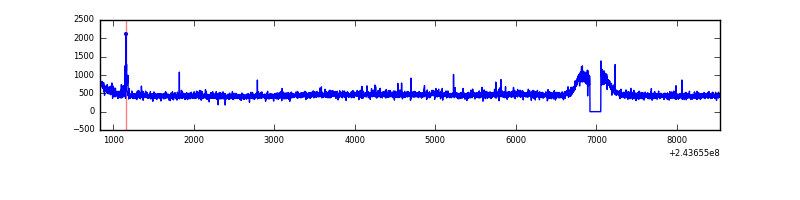

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7700 | 7566 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7700 | 7566 | 405 | 405 | 5.26% | 5.35% |  |
| C | 7700 | 7566 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7700 | 7566 | 172 | 172 | 2.23% | 2.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 31529 | 163.89 | 904 | 885 | 187.0 |
| A | 14 | 254 | 25542 | 131.87 | 904 | 885 | 187.0 |
| A | 15 | 174 | 14940 | 75.17 | 904 | 885 | 187.0 |
| B | 4 | 239 | 2278358 | 13425.76 | 874 | 854 | 169.6 |
| B | 0 | 214 | 66907 | 389.38 | 874 | 854 | 169.6 |
| B | 4 | 81 | 46343 | 268.16 | 874 | 854 | 169.6 |
| C | 8 | 128 | 11689 | 52.07 | 879 | 884 | 207.5 |
| C | 8 | 112 | 6737 | 28.21 | 879 | 884 | 207.5 |
| C | 13 | 61 | 6692 | 27.99 | 879 | 884 | 207.5 |
| D | 10 | 199 | 521687 | 2440.58 | 864 | 838 | 213.4 |
| D | 7 | 71 | 255711 | 1194.28 | 864 | 838 | 213.4 |
| D | 1 | 52 | 175220 | 817.11 | 864 | 838 | 213.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

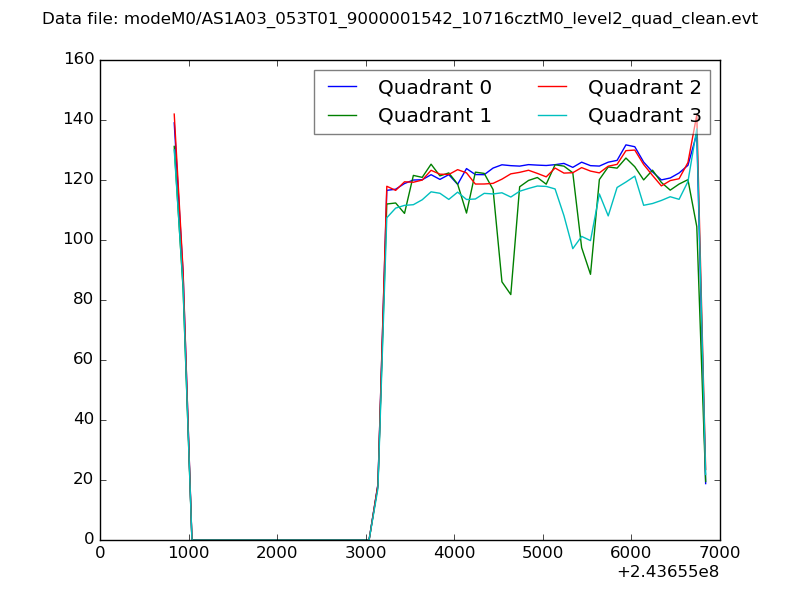

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

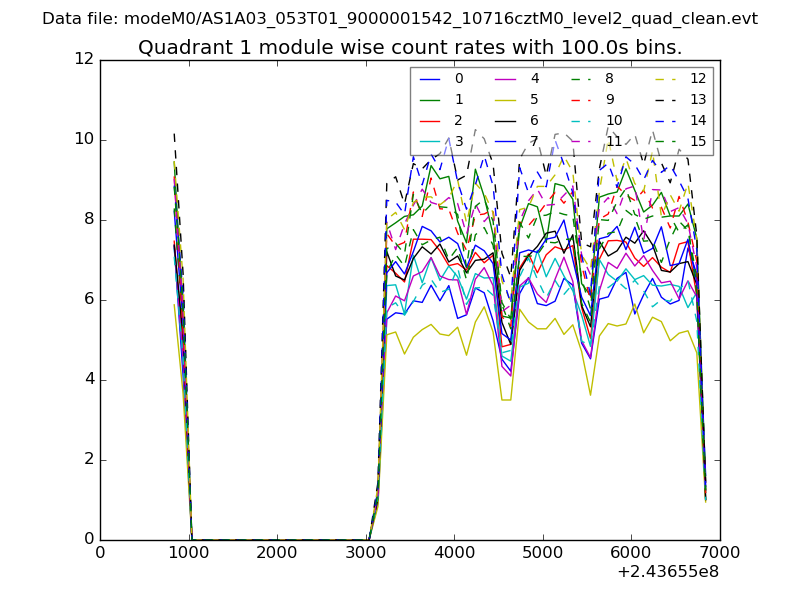

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

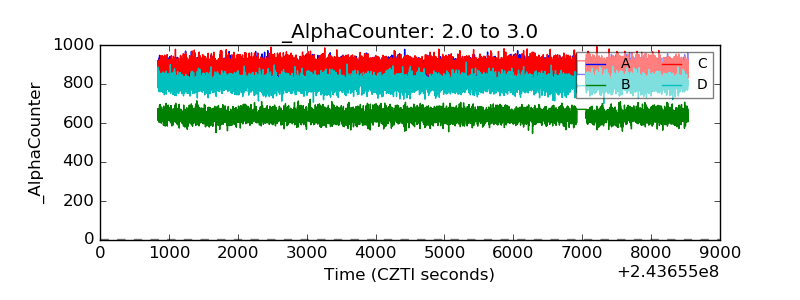

| Alpha Counter |  |

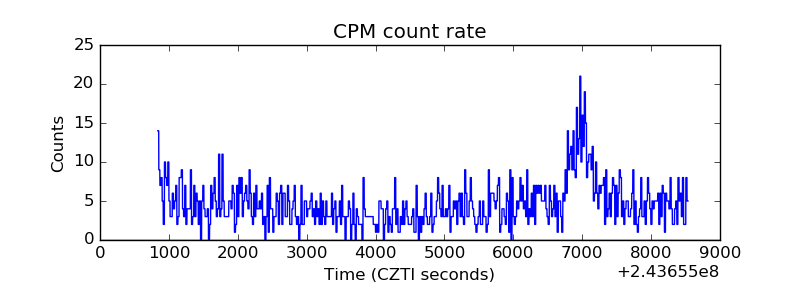

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

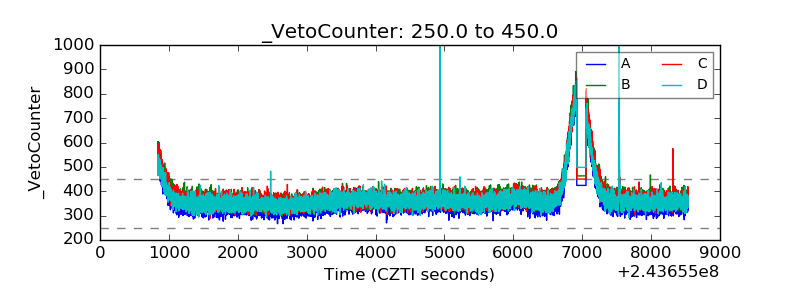

| Veto Counter |  |
