| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_078T01_9000001546_10733cztM0_level2.evt | modeM0/AS1A03_078T01_9000001546_10733cztM0_level2_quad_clean.evt |
| Size (bytes) | 975,300,480 | 131,169,600 |
| Size | 930.1 MB | 125.1 MB |
| Events in quadrant A | 7,950,090 | 792,175 |
| Events in quadrant B | 7,061,138 | 813,568 |
| Events in quadrant C | 5,386,615 | 812,806 |
| Events in quadrant D | 8,314,636 | 709,851 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31834 | 10 |
| B | 0 | 28890 | 10 |
| C | 0 | 24718 | 8 |
| D | 0 | 33162 | 9 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 248 | 0 |
| B | 0 | 248 | 0 |
| C | 0 | 248 | 0 |
| D | 0 | 248 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12197 | 333 | 2.730180% |
| B | 12195 | 464 | 3.804838% |
| C | 12196 | 87 | 0.713349% |
| D | 12196 | 1050 | 8.609380% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13399 | 12200 | 91 | 91 | 0.68% | 0.75% |  |
| B | 13399 | 12199 | 207 | 207 | 1.54% | 1.70% |  |
| C | 13399 | 12201 | 4 | 4 | 0.03% | 0.03% |  |
| D | 13399 | 12200 | 752 | 752 | 5.61% | 6.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 2181813 | 7641.16 | 1407 | 1376 | 285.4 |
| A | 15 | 174 | 93909 | 324.27 | 1407 | 1376 | 285.4 |
| A | 13 | 251 | 80606 | 277.65 | 1407 | 1376 | 285.4 |
| B | 4 | 239 | 1238620 | 4524.52 | 1405 | 1370 | 273.5 |
| B | 4 | 81 | 147583 | 534.69 | 1405 | 1370 | 273.5 |
| B | 15 | 204 | 63134 | 225.87 | 1405 | 1370 | 273.5 |
| C | 14 | 234 | 31128 | 93.12 | 1372 | 1375 | 319.5 |
| C | 13 | 61 | 10189 | 27.59 | 1372 | 1375 | 319.5 |
| C | 8 | 222 | 5058 | 11.53 | 1372 | 1375 | 319.5 |
| D | 1 | 52 | 2830520 | 9047.68 | 1289 | 1252 | 312.7 |
| D | 10 | 172 | 140954 | 446.75 | 1289 | 1252 | 312.7 |
| D | 4 | 95 | 92259 | 291.03 | 1289 | 1252 | 312.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

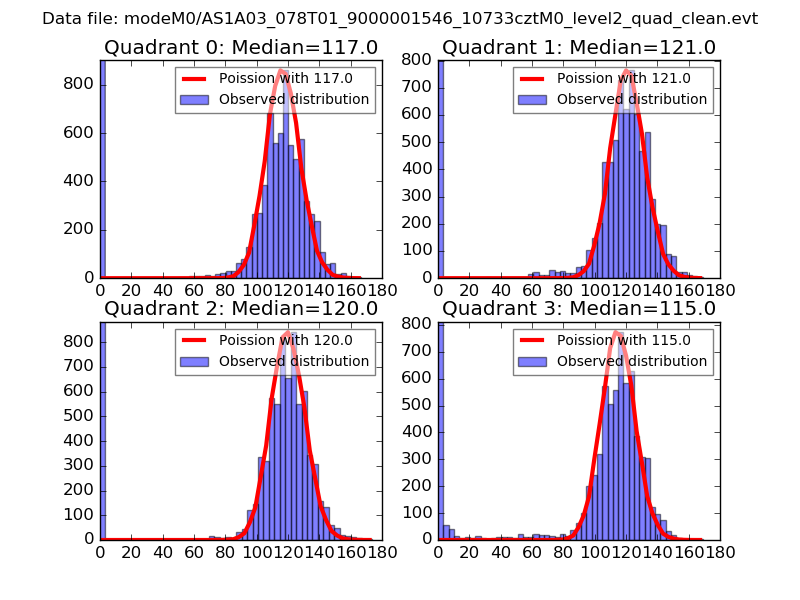

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

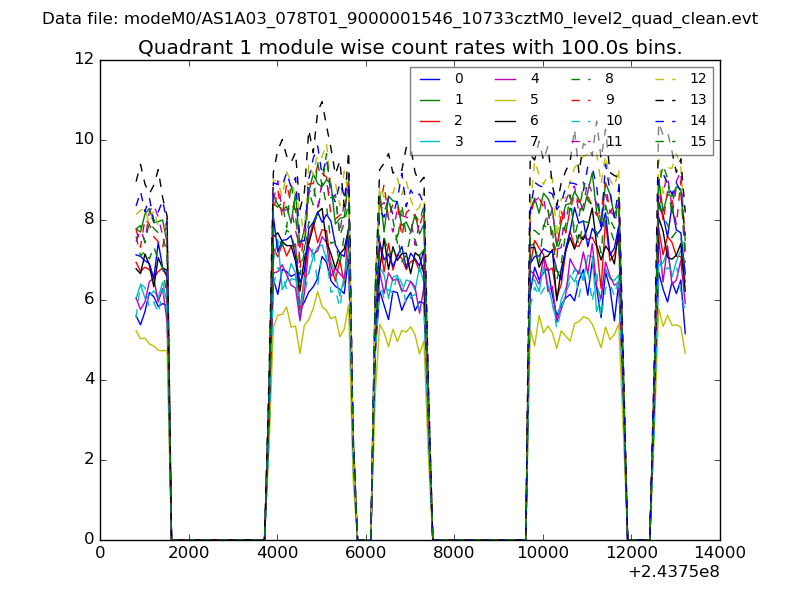

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

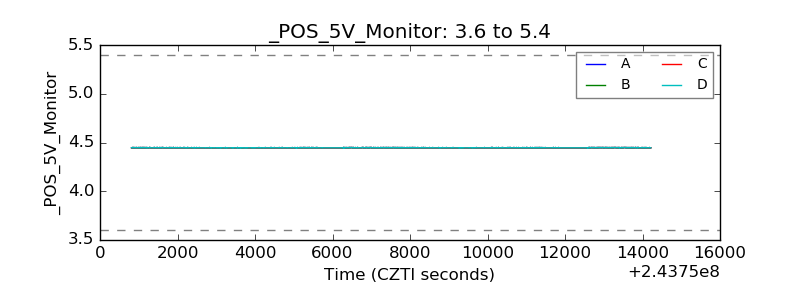

| +5 Volts monitor |  |
| _ROLL_ROT |  |

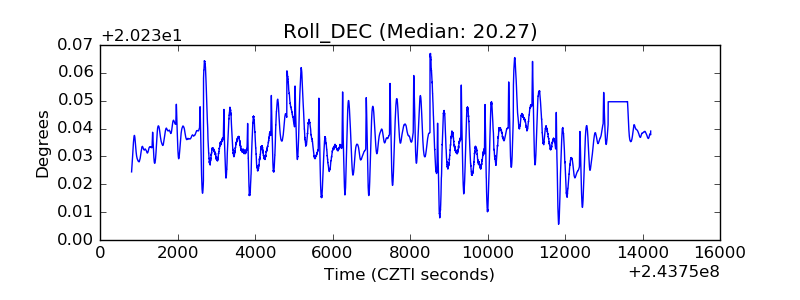

| _Roll_DEC |  |

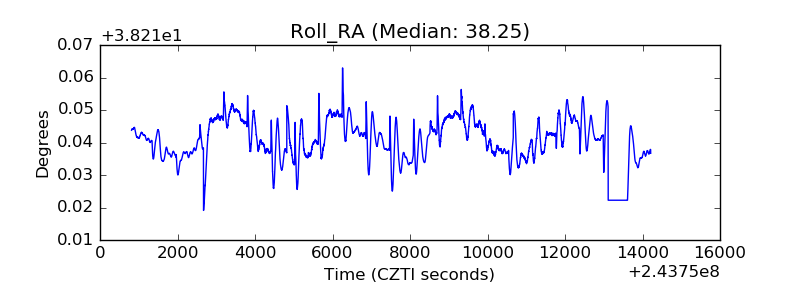

| _Roll_RA |  |

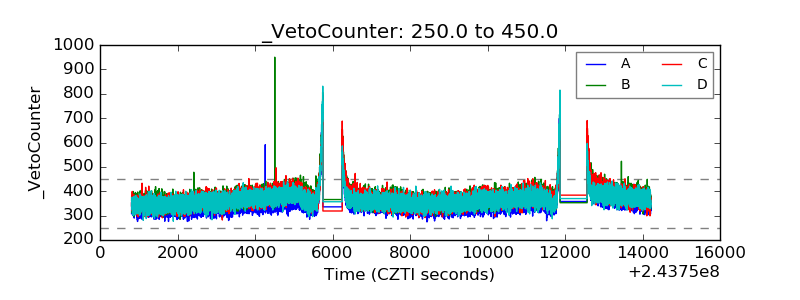

| Veto Counter |  |
