| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_078T01_9000001546_10743cztM0_level2.evt | modeM0/AS1A03_078T01_9000001546_10743cztM0_level2_quad_clean.evt |
| Size (bytes) | 680,561,280 | 94,841,280 |
| Size | 649.0 MB | 90.4 MB |
| Events in quadrant A | 4,593,377 | 587,509 |
| Events in quadrant B | 4,610,359 | 606,736 |
| Events in quadrant C | 3,363,349 | 615,938 |
| Events in quadrant D | 7,549,586 | 553,052 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18673 | 3 |
| B | 0 | 18638 | 2 |
| C | 0 | 15176 | 2 |
| D | 0 | 27614 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7301 | 473 | 6.478565% |
| B | 7301 | 410 | 5.615669% |
| C | 7301 | 46 | 0.630051% |
| D | 7301 | 974 | 13.340638% |

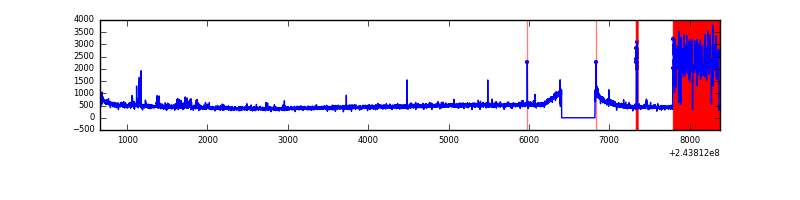

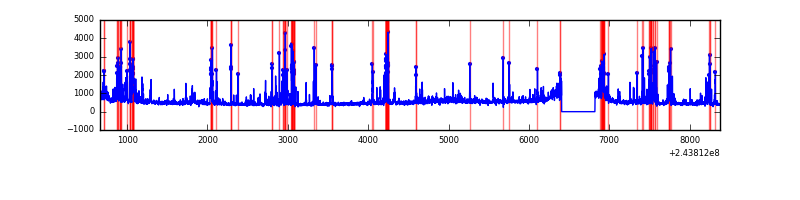

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

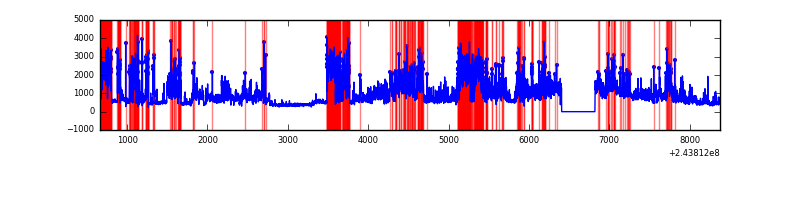

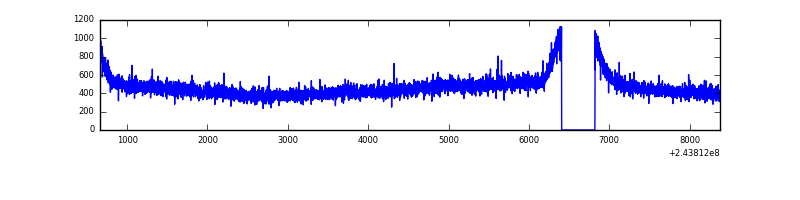

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7716 | 7302 | 479 | 479 | 6.21% | 6.56% |  |
| B | 7716 | 7301 | 143 | 143 | 1.85% | 1.96% |  |
| C | 7716 | 7302 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7716 | 7302 | 730 | 730 | 9.46% | 10.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1158407 | 6520.87 | 865 | 847 | 177.5 |
| A | 14 | 254 | 77427 | 431.4 | 865 | 847 | 177.5 |
| A | 13 | 251 | 13592 | 71.8 | 865 | 847 | 177.5 |
| B | 4 | 239 | 954250 | 5629.02 | 873 | 851 | 169.4 |
| B | 0 | 214 | 101183 | 592.37 | 873 | 851 | 169.4 |
| B | 3 | 189 | 58842 | 342.39 | 873 | 851 | 169.4 |
| C | 13 | 61 | 6254 | 26.48 | 862 | 867 | 203.4 |
| C | 8 | 222 | 2768 | 9.35 | 862 | 867 | 203.4 |
| C | 3 | 202 | 2117 | 6.14 | 862 | 867 | 203.4 |
| D | 2 | 16 | 2917040 | 14836.74 | 808 | 784 | 196.6 |
| D | 1 | 52 | 785525 | 3992.45 | 808 | 784 | 196.6 |
| D | 10 | 172 | 472622 | 2400.52 | 808 | 784 | 196.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

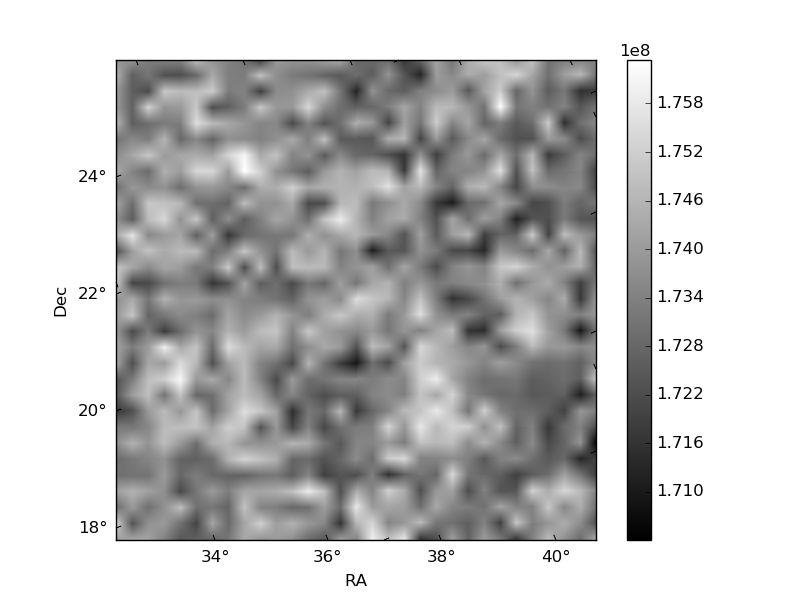

| Plot type | Count rate plots | Images |
|---|---|---|

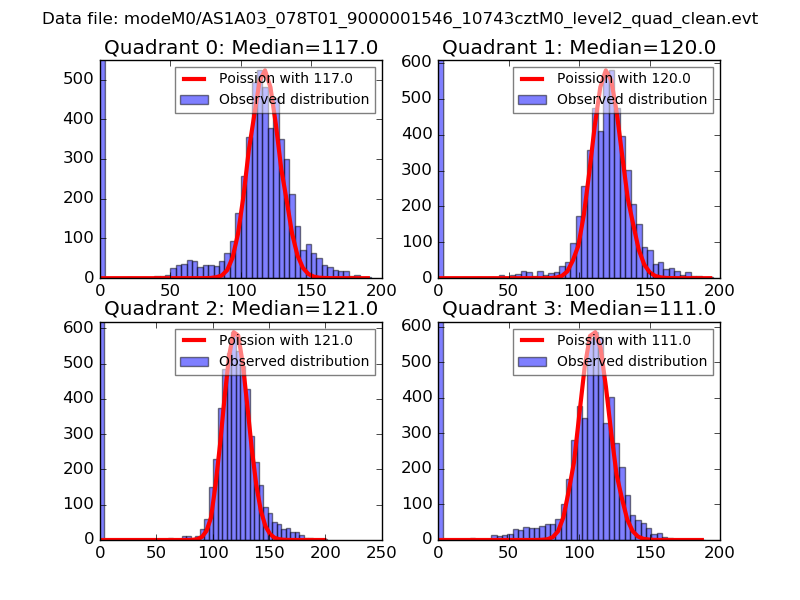

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

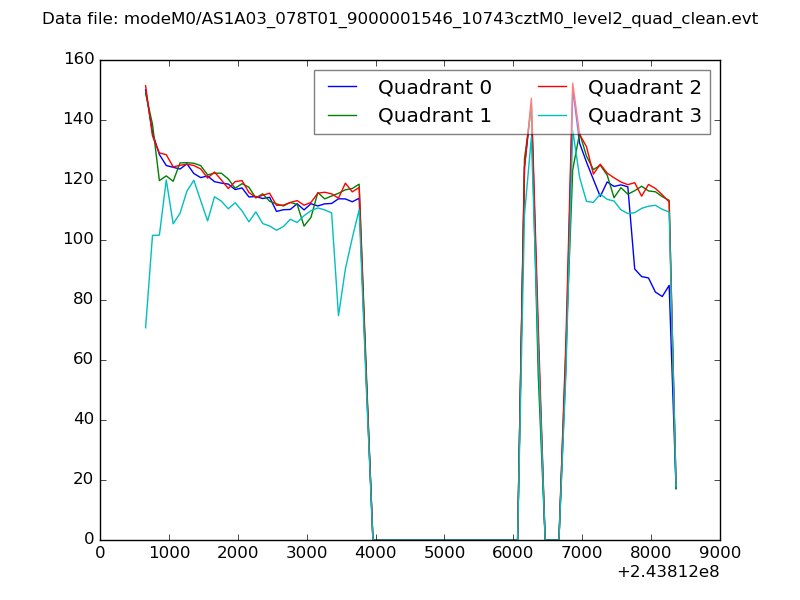

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

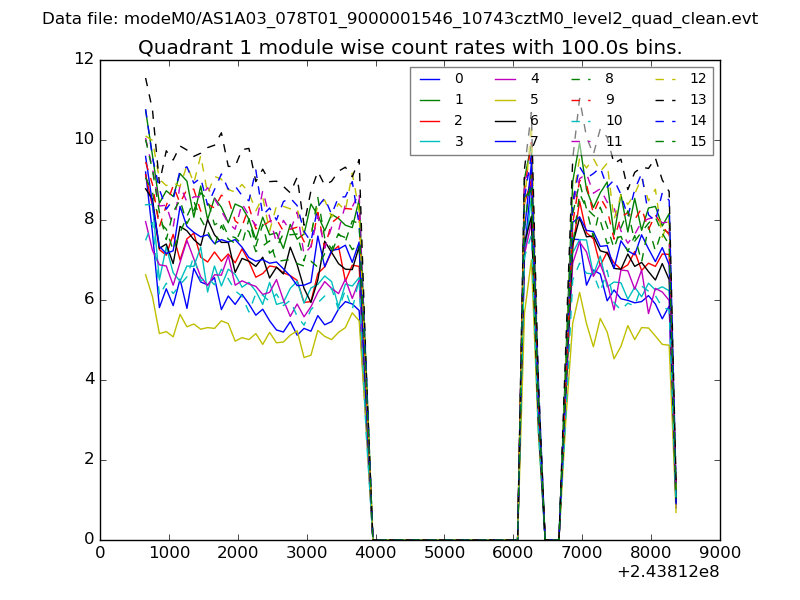

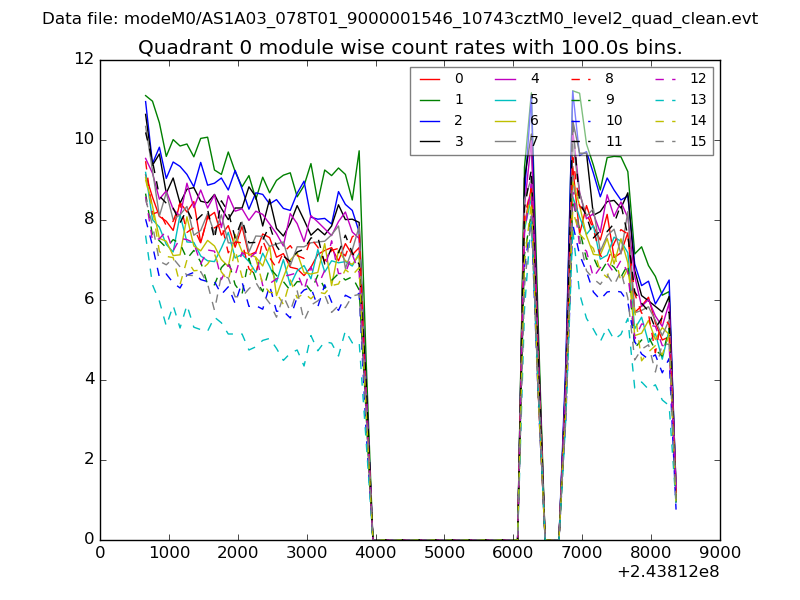

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

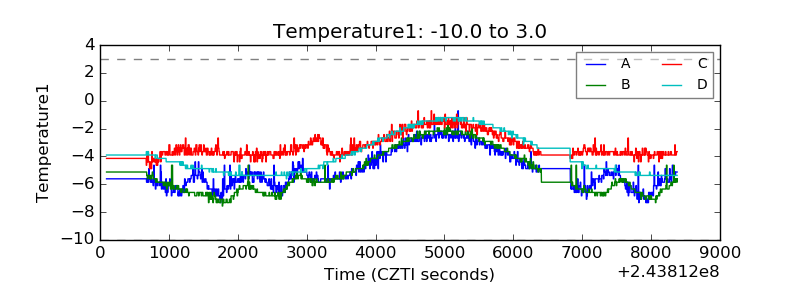

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

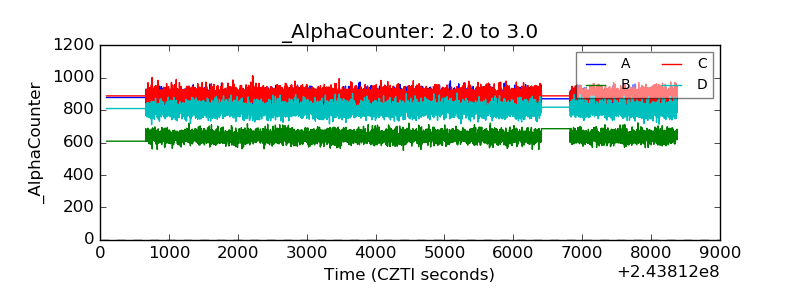

| Alpha Counter |  |

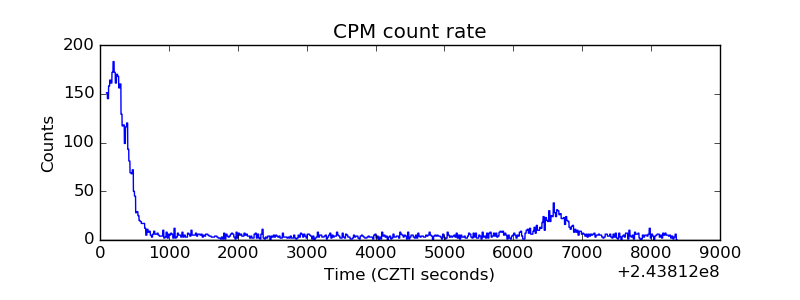

| _CPM_Rate |  |

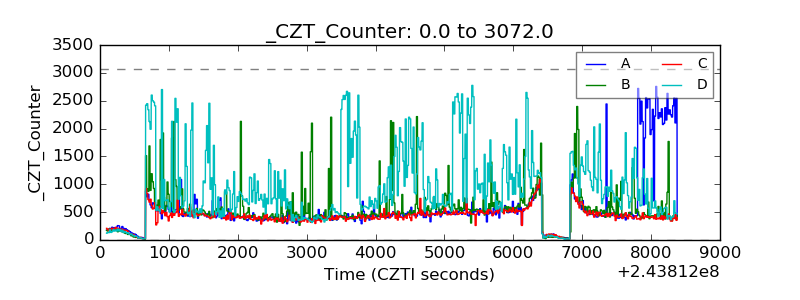

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

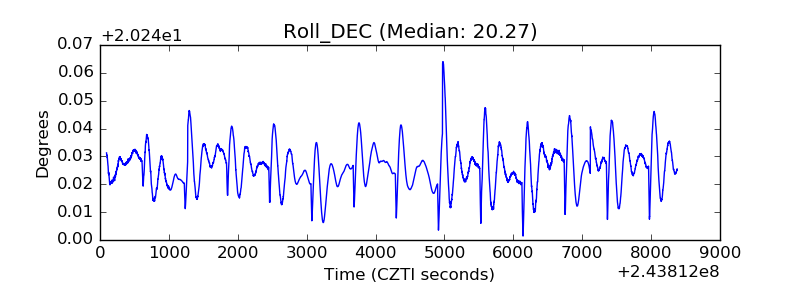

| _Roll_DEC |  |

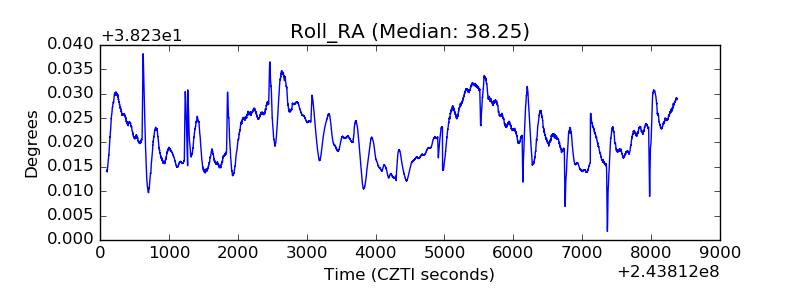

| _Roll_RA |  |
| Veto Counter |  |
