| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_078T01_9000001546_10744cztM0_level2.evt | modeM0/AS1A03_078T01_9000001546_10744cztM0_level2_quad_clean.evt |
| Size (bytes) | 817,560,000 | 100,546,560 |
| Size | 779.7 MB | 95.9 MB |
| Events in quadrant A | 6,488,537 | 619,884 |
| Events in quadrant B | 4,624,216 | 665,748 |
| Events in quadrant C | 3,586,243 | 670,708 |
| Events in quadrant D | 9,535,422 | 546,997 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24722 | 4 |
| B | 0 | 19069 | 3 |
| C | 0 | 16238 | 3 |
| D | 0 | 33671 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7769 | 1051 | 13.528125% |
| B | 7769 | 424 | 5.457588% |
| C | 7769 | 67 | 0.862402% |
| D | 7769 | 2268 | 29.192946% |

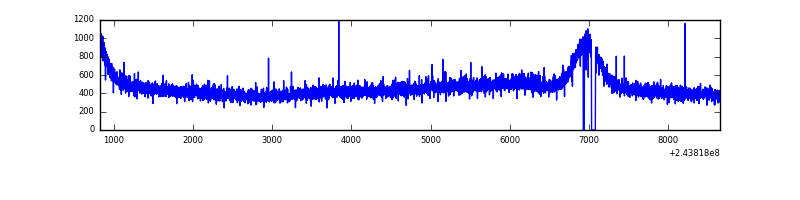

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

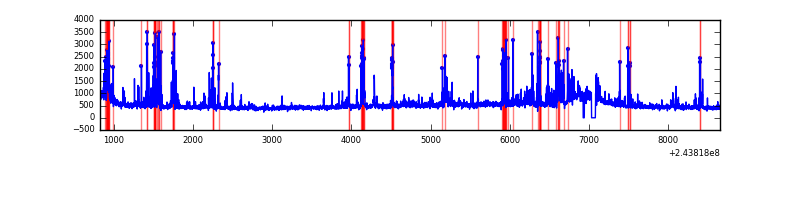

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7834 | 7771 | 1019 | 1019 | 13.01% | 13.11% |  |
| B | 7834 | 7771 | 109 | 109 | 1.39% | 1.40% |  |
| C | 7834 | 7771 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7834 | 7770 | 1903 | 1903 | 24.29% | 24.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 2861400 | 15249.1 | 908 | 888 | 187.6 |
| A | 15 | 223 | 39986 | 208.43 | 908 | 888 | 187.6 |
| A | 14 | 254 | 35919 | 186.75 | 908 | 888 | 187.6 |
| B | 4 | 239 | 748603 | 4096.34 | 935 | 913 | 182.5 |
| B | 3 | 189 | 81127 | 439.47 | 935 | 913 | 182.5 |
| B | 0 | 214 | 72975 | 394.8 | 935 | 913 | 182.5 |
| C | 13 | 61 | 6877 | 27.62 | 918 | 924 | 215.6 |
| C | 1 | 3 | 3772 | 13.21 | 918 | 924 | 215.6 |
| C | 8 | 222 | 2774 | 8.58 | 918 | 924 | 215.6 |
| D | 2 | 16 | 4947909 | 26393.33 | 775 | 753 | 187.4 |
| D | 12 | 233 | 760927 | 4055.57 | 775 | 753 | 187.4 |
| D | 13 | 249 | 317753 | 1691.21 | 775 | 753 | 187.4 |

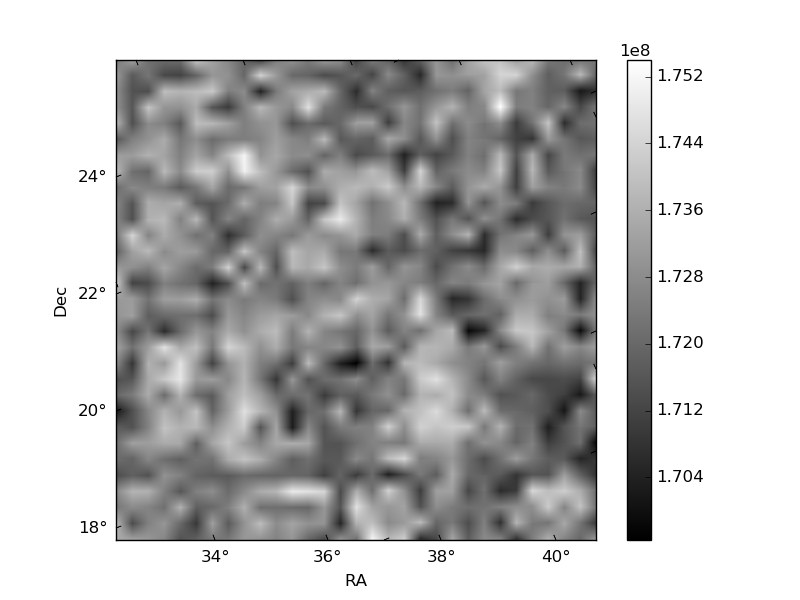

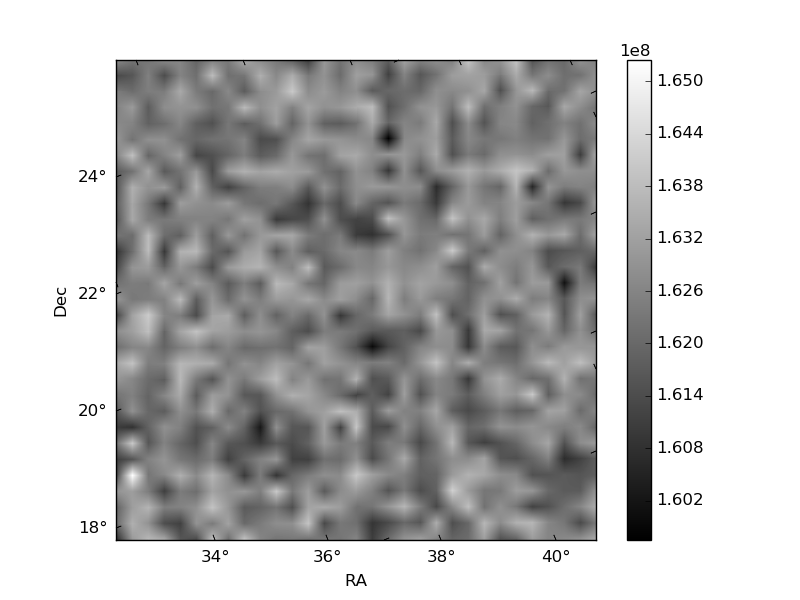

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

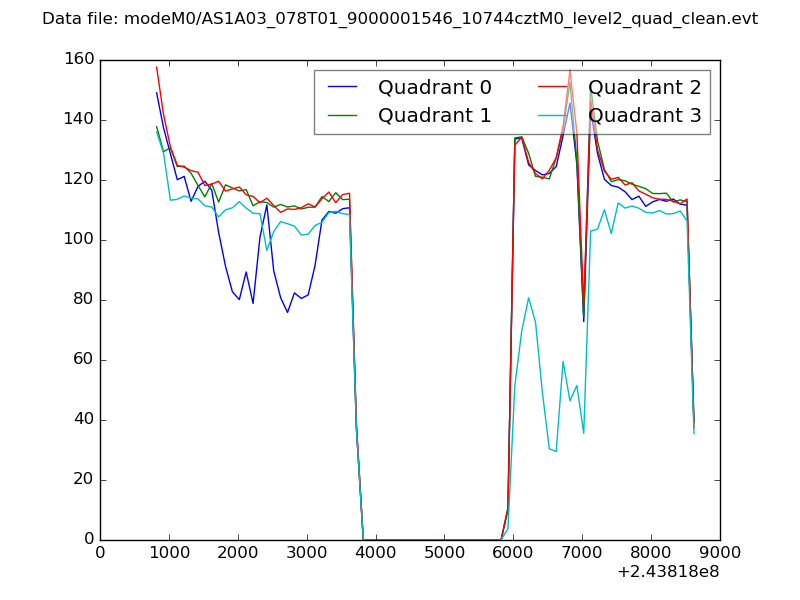

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

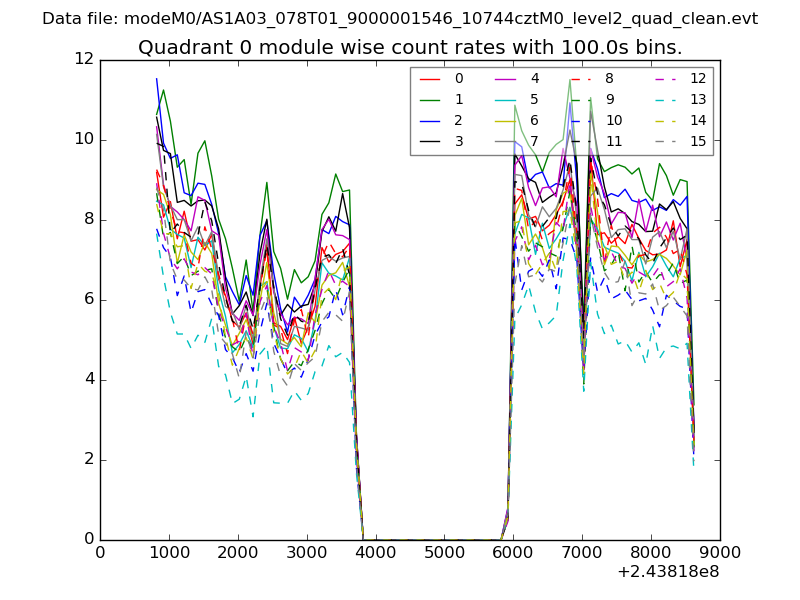

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

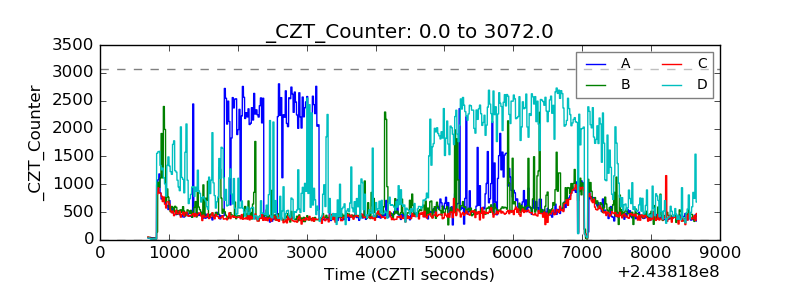

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

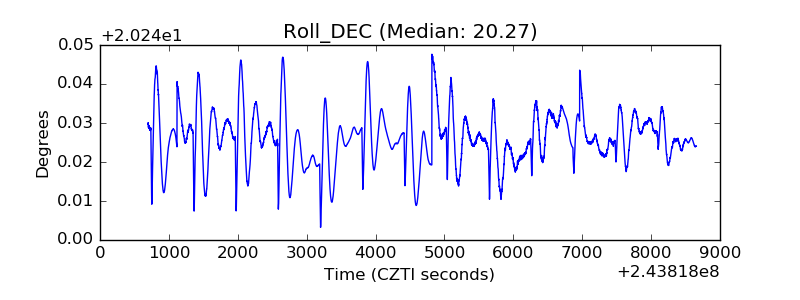

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
