| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_084T01_9000001544_10720cztM0_level2.evt | modeM0/AS1A03_084T01_9000001544_10720cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,596,800 | 95,025,600 |
| Size | 497.4 MB | 90.6 MB |
| Events in quadrant A | 3,067,233 | 625,582 |
| Events in quadrant B | 4,716,473 | 620,499 |
| Events in quadrant C | 2,877,139 | 613,465 |
| Events in quadrant D | 4,699,920 | 569,928 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13420 | 2 |
| B | 0 | 18274 | 1 |
| C | 0 | 13056 | 1 |
| D | 0 | 18115 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6418 | 81 | 1.262075% |
| B | 6418 | 394 | 6.138984% |
| C | 6418 | 37 | 0.576504% |
| D | 6418 | 299 | 4.658772% |

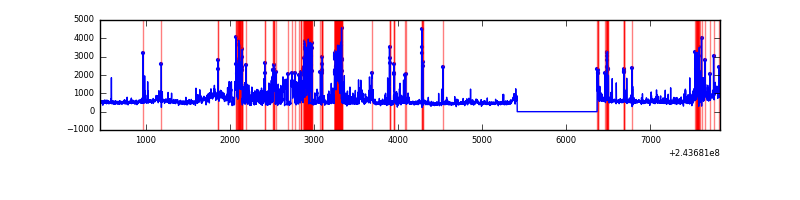

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7368 | 6419 | 7 | 7 | 0.10% | 0.11% |  |
| B | 7368 | 6418 | 252 | 252 | 3.42% | 3.93% |  |
| C | 7368 | 6419 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7368 | 6419 | 235 | 235 | 3.19% | 3.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 45660 | 285.56 | 764 | 746 | 157.3 |
| A | 15 | 174 | 36710 | 228.66 | 764 | 746 | 157.3 |
| A | 1 | 162 | 14193 | 85.5 | 764 | 746 | 157.3 |
| B | 4 | 239 | 718219 | 4950.7 | 753 | 736 | 144.9 |
| B | 4 | 81 | 679348 | 4682.48 | 753 | 736 | 144.9 |
| B | 0 | 85 | 173282 | 1190.58 | 753 | 736 | 144.9 |
| C | 14 | 234 | 9544 | 51.27 | 734 | 735 | 171.8 |
| C | 13 | 61 | 5467 | 27.54 | 734 | 735 | 171.8 |
| C | 12 | 4 | 2753 | 11.75 | 734 | 735 | 171.8 |
| D | 10 | 199 | 749583 | 4290.25 | 725 | 705 | 174.6 |
| D | 2 | 16 | 527747 | 3019.37 | 725 | 705 | 174.6 |
| D | 1 | 52 | 165105 | 941.83 | 725 | 705 | 174.6 |

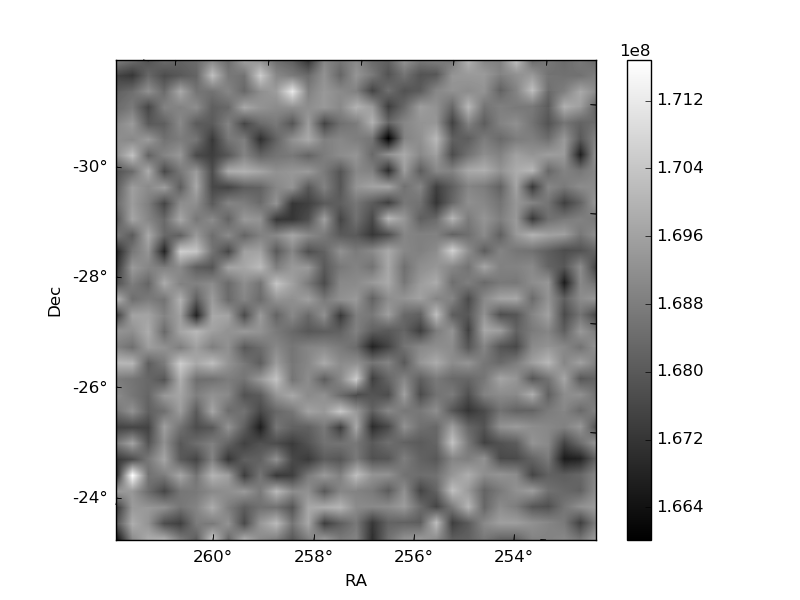

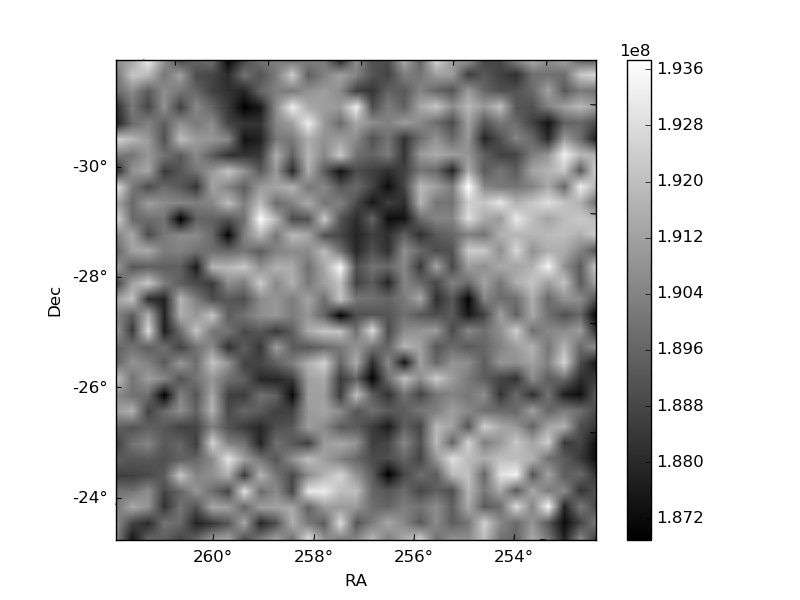

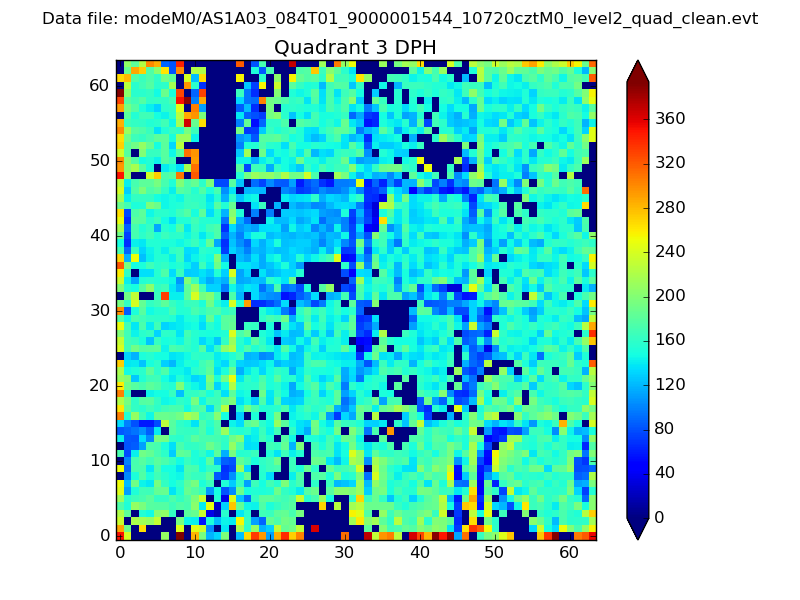

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

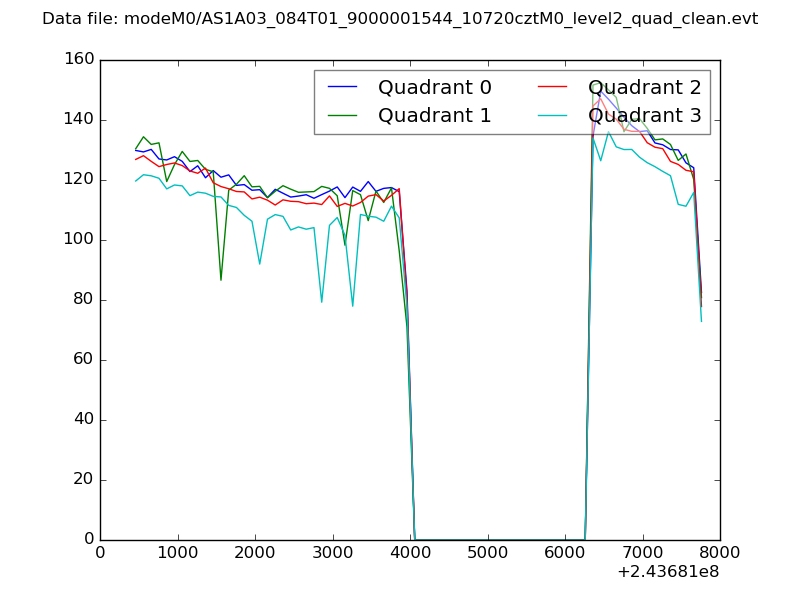

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

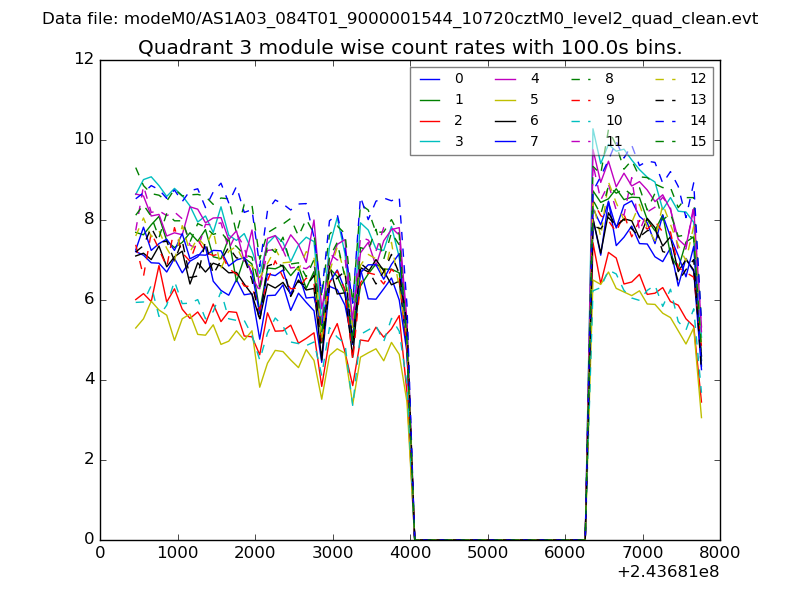

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

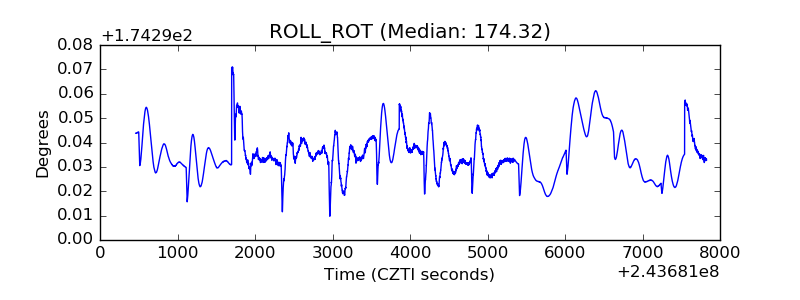

| _ROLL_ROT |  |
| _Roll_DEC |  |

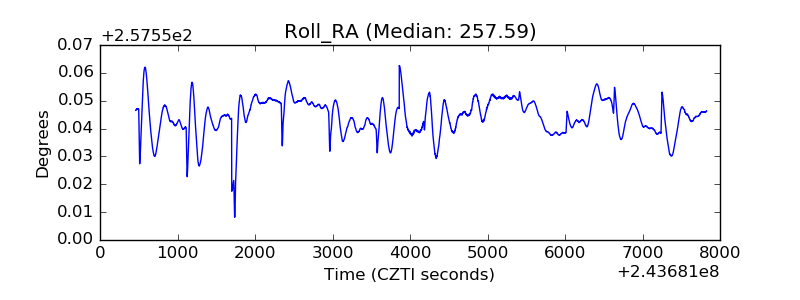

| _Roll_RA |  |
| Veto Counter |  |
