| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_084T01_9000001544_10722cztM0_level2.evt | modeM0/AS1A03_084T01_9000001544_10722cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,820,800 | 98,447,040 |
| Size | 541.5 MB | 93.9 MB |
| Events in quadrant A | 3,217,021 | 651,914 |
| Events in quadrant B | 5,111,250 | 640,584 |
| Events in quadrant C | 3,027,175 | 636,967 |
| Events in quadrant D | 5,390,153 | 587,869 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14068 | 2 |
| B | 0 | 19722 | 1 |
| C | 0 | 13668 | 1 |
| D | 0 | 20389 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6659 | 52 | 0.780898% |
| B | 6659 | 397 | 5.961856% |
| C | 6659 | 25 | 0.375432% |
| D | 6659 | 341 | 5.120889% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

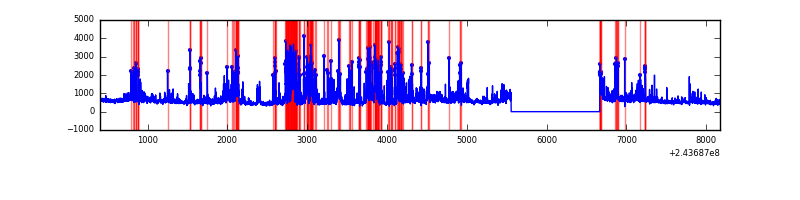

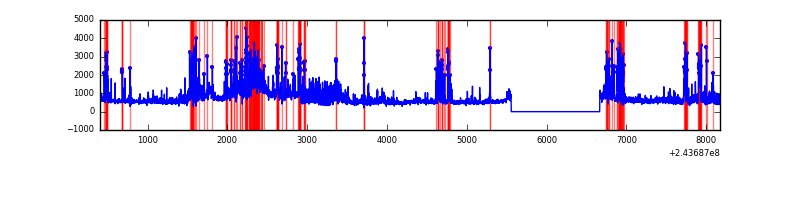

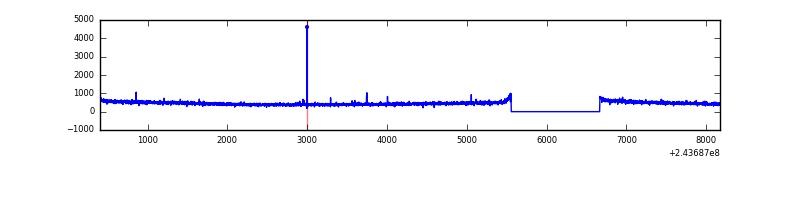

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7769 | 6660 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7769 | 6660 | 263 | 263 | 3.39% | 3.95% |  |
| C | 7769 | 6660 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7769 | 6660 | 275 | 275 | 3.54% | 4.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 32508 | 190.09 | 812 | 793 | 166.8 |
| A | 13 | 251 | 15297 | 86.93 | 812 | 793 | 166.8 |
| A | 1 | 162 | 15284 | 86.85 | 812 | 793 | 166.8 |
| B | 4 | 239 | 1211440 | 7962.55 | 795 | 779 | 152.0 |
| B | 4 | 81 | 572707 | 3761.59 | 795 | 779 | 152.0 |
| B | 0 | 214 | 72002 | 468.44 | 795 | 779 | 152.0 |
| C | 14 | 234 | 9330 | 47.96 | 772 | 776 | 178.4 |
| C | 13 | 61 | 5664 | 27.4 | 772 | 776 | 178.4 |
| C | 12 | 4 | 3484 | 15.18 | 772 | 776 | 178.4 |
| D | 2 | 16 | 727693 | 3977.63 | 763 | 743 | 182.8 |
| D | 5 | 222 | 496489 | 2712.56 | 763 | 743 | 182.8 |
| D | 10 | 199 | 495096 | 2704.94 | 763 | 743 | 182.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

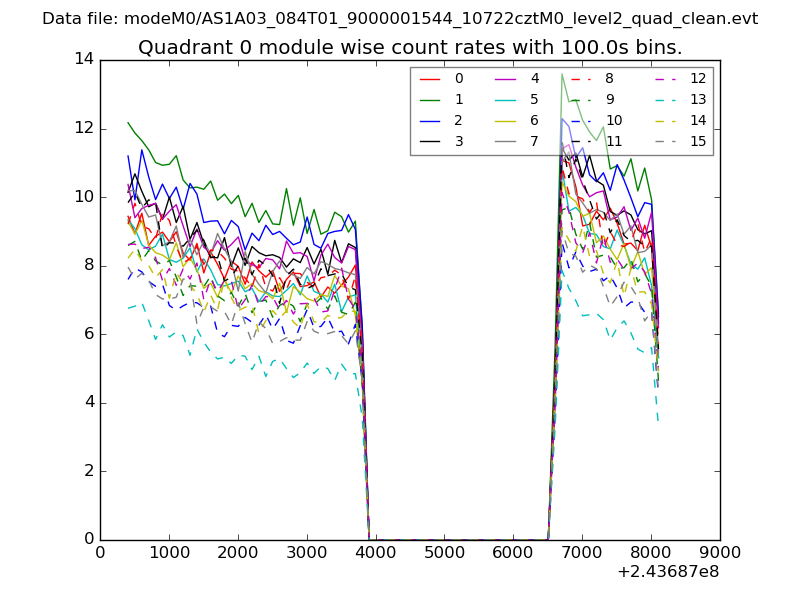

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

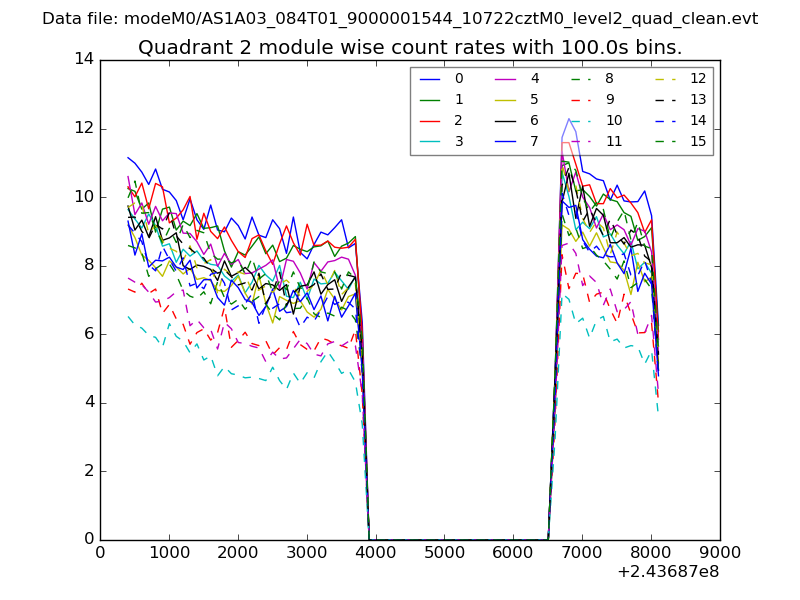

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

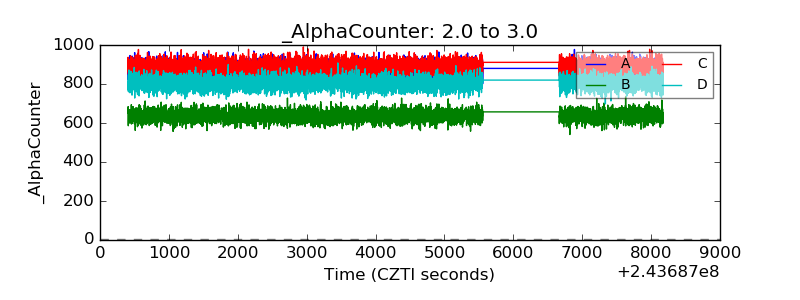

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

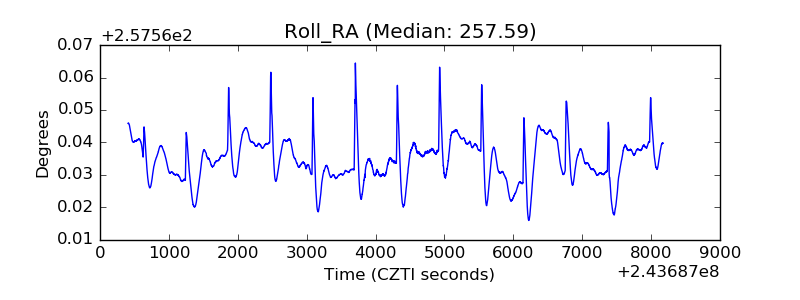

| _Roll_RA |  |

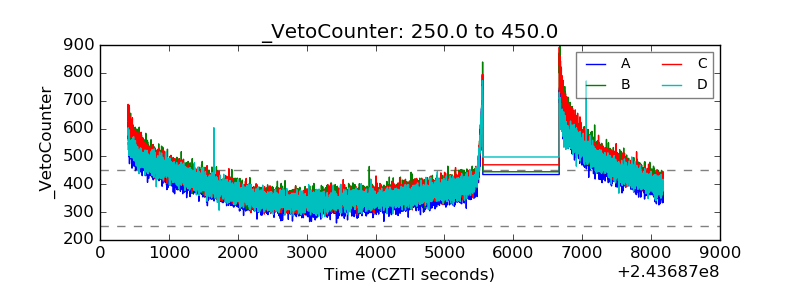

| Veto Counter |  |
