| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_051T01_9000001550_10756cztM0_level2.evt | modeM0/AS1G07_051T01_9000001550_10756cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,027,520 | 92,001,600 |
| Size | 525.5 MB | 87.7 MB |
| Events in quadrant A | 3,359,783 | 587,236 |
| Events in quadrant B | 4,954,996 | 579,397 |
| Events in quadrant C | 3,189,153 | 592,834 |
| Events in quadrant D | 4,723,302 | 553,201 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14538 | 3 |
| B | 0 | 19252 | 2 |
| C | 0 | 14195 | 2 |
| D | 0 | 18529 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6791 | 123 | 1.811221% |
| B | 6791 | 485 | 7.141805% |
| C | 6791 | 76 | 1.119128% |
| D | 6791 | 310 | 4.564865% |

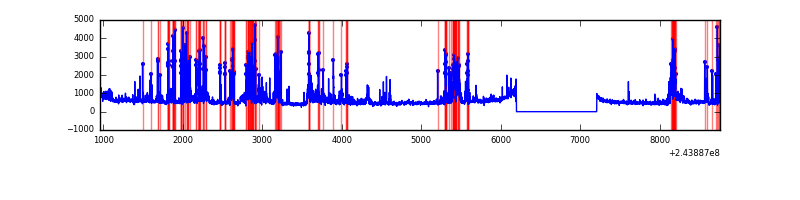

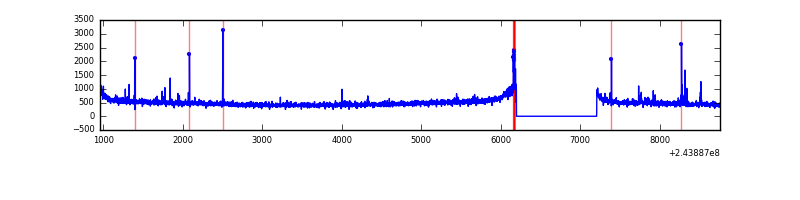

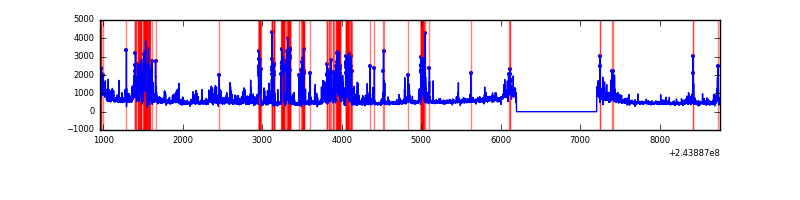

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7801 | 6792 | 15 | 15 | 0.19% | 0.22% |  |
| B | 7801 | 6792 | 248 | 248 | 3.18% | 3.65% |  |
| C | 7801 | 6792 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7801 | 6792 | 207 | 207 | 2.65% | 3.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 55588 | 320.7 | 840 | 824 | 170.8 |
| A | 15 | 239 | 24541 | 138.89 | 840 | 824 | 170.8 |
| A | 15 | 174 | 17212 | 95.97 | 840 | 824 | 170.8 |
| B | 4 | 239 | 839220 | 5259.46 | 826 | 806 | 159.4 |
| B | 0 | 85 | 669197 | 4192.89 | 826 | 806 | 159.4 |
| B | 4 | 81 | 111792 | 696.23 | 826 | 806 | 159.4 |
| C | 13 | 61 | 6135 | 27.89 | 817 | 823 | 190.4 |
| C | 14 | 234 | 4086 | 17.13 | 817 | 823 | 190.4 |
| C | 3 | 202 | 2024 | 6.31 | 817 | 823 | 190.4 |
| D | 10 | 157 | 990803 | 5121.54 | 801 | 781 | 193.3 |
| D | 1 | 52 | 277344 | 1430.7 | 801 | 781 | 193.3 |
| D | 13 | 249 | 126254 | 649.09 | 801 | 781 | 193.3 |

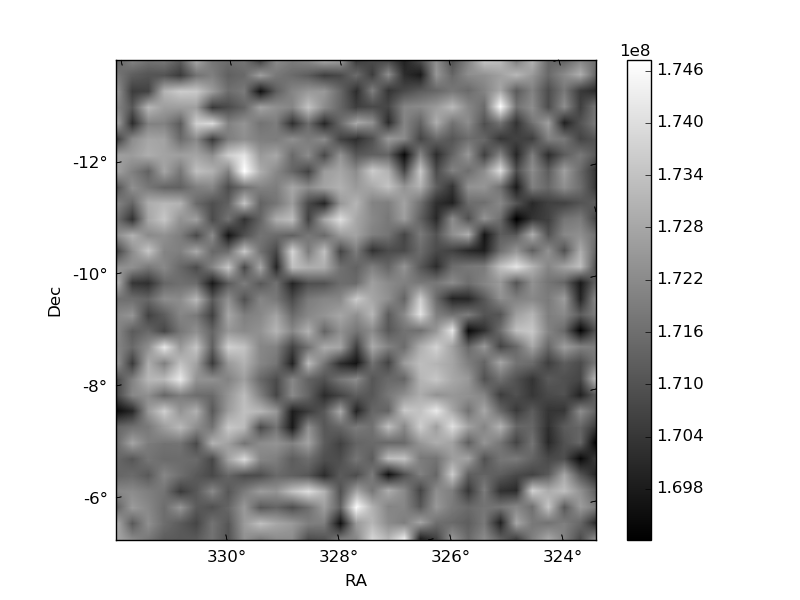

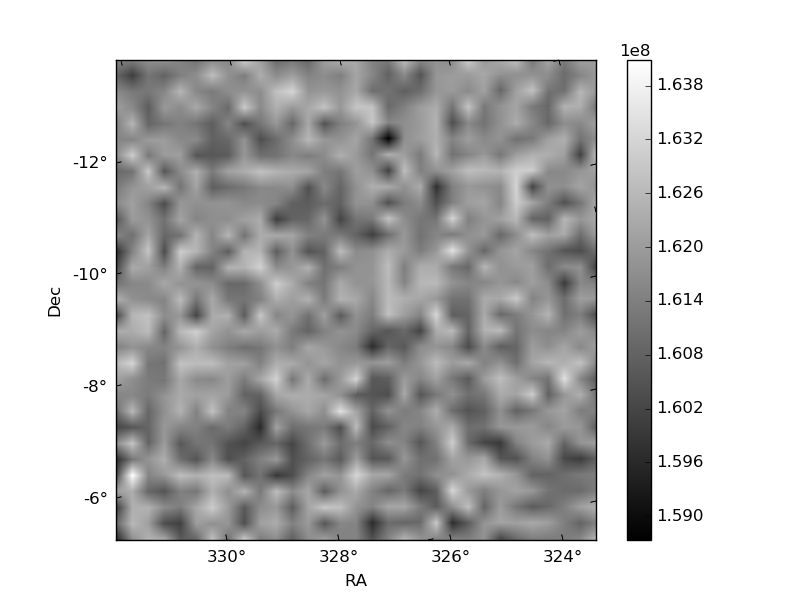

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

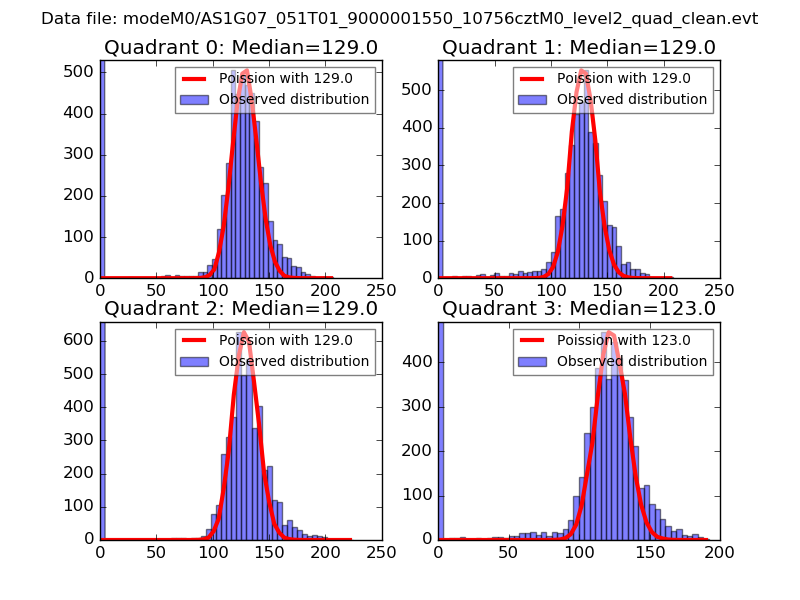

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

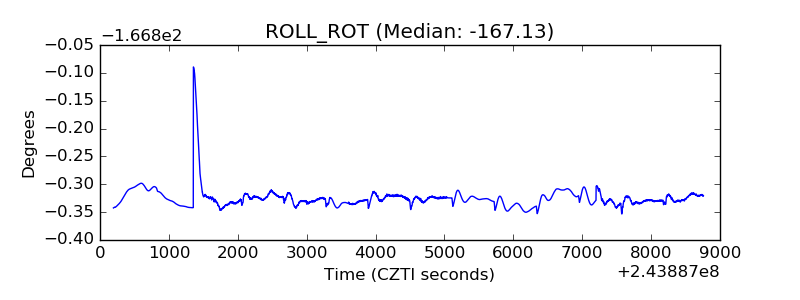

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

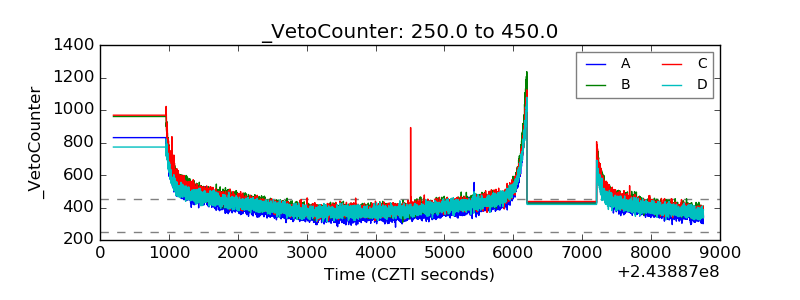

| Veto Counter |  |
