| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_051T01_9000001550_10757cztM0_level2.evt | modeM0/AS1G07_051T01_9000001550_10757cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,149,440 | 91,823,040 |
| Size | 519.9 MB | 87.6 MB |
| Events in quadrant A | 3,309,867 | 584,383 |
| Events in quadrant B | 4,959,960 | 577,811 |
| Events in quadrant C | 3,119,381 | 586,655 |
| Events in quadrant D | 4,652,646 | 550,621 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14567 | 3 |
| B | 0 | 19401 | 2 |
| C | 0 | 14151 | 2 |
| D | 0 | 18529 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6911 | 46 | 0.665606% |
| B | 6911 | 432 | 6.250904% |
| C | 6911 | 16 | 0.231515% |
| D | 6911 | 189 | 2.734771% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7646 | 6912 | 5 | 5 | 0.07% | 0.07% |  |
| B | 7646 | 6912 | 258 | 258 | 3.37% | 3.73% |  |
| C | 7646 | 6912 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7646 | 6912 | 148 | 148 | 1.94% | 2.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 46491 | 268.72 | 825 | 808 | 170.0 |
| A | 15 | 239 | 21890 | 124.01 | 825 | 808 | 170.0 |
| A | 13 | 248 | 20938 | 118.41 | 825 | 808 | 170.0 |
| B | 4 | 239 | 1249770 | 7969.56 | 812 | 792 | 156.7 |
| B | 0 | 85 | 267861 | 1704.13 | 812 | 792 | 156.7 |
| B | 4 | 81 | 117684 | 745.87 | 812 | 792 | 156.7 |
| C | 13 | 61 | 5929 | 27.47 | 799 | 803 | 186.6 |
| C | 1 | 0 | 2973 | 11.63 | 799 | 803 | 186.6 |
| C | 14 | 225 | 2701 | 10.17 | 799 | 803 | 186.6 |
| D | 5 | 222 | 628511 | 3291.03 | 784 | 761 | 190.7 |
| D | 10 | 157 | 304309 | 1591.37 | 784 | 761 | 190.7 |
| D | 13 | 249 | 245863 | 1284.97 | 784 | 761 | 190.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

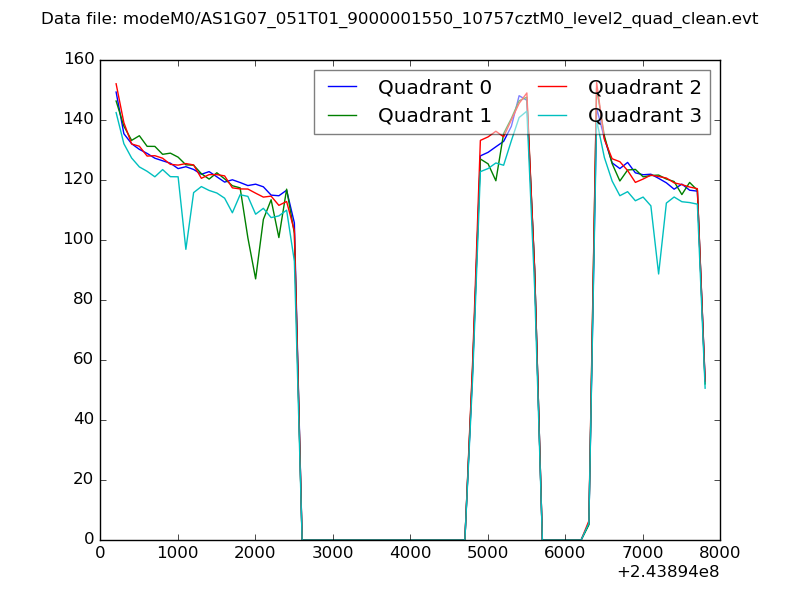

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

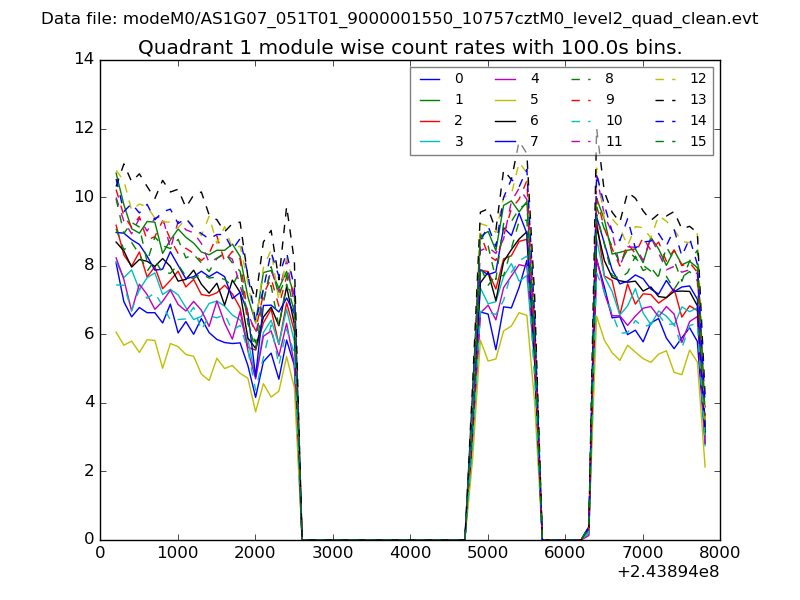

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

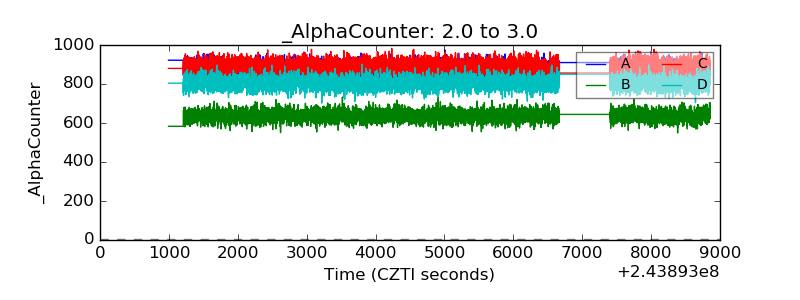

| Alpha Counter |  |

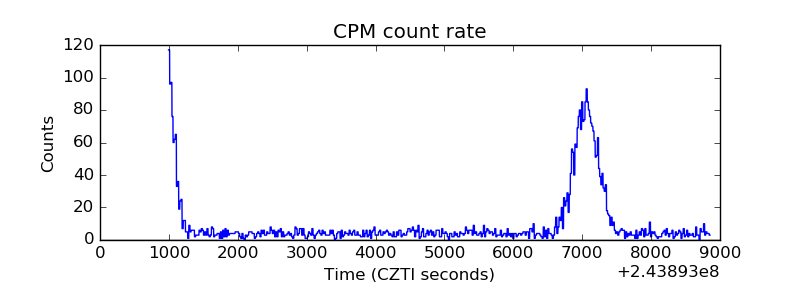

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

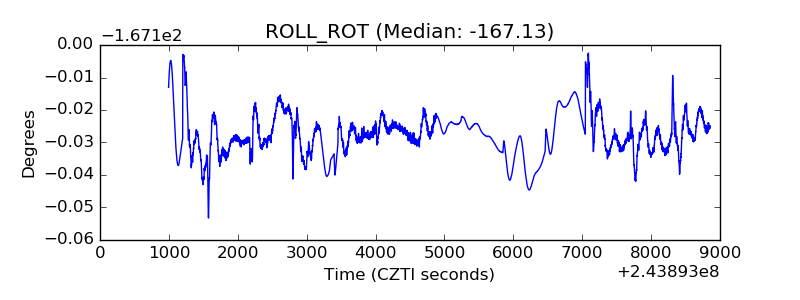

| _ROLL_ROT |  |

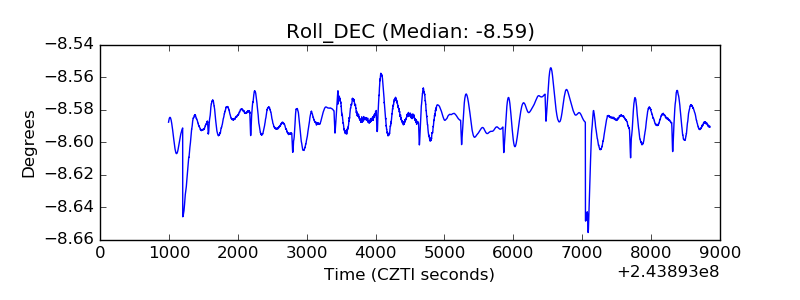

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
