| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_032T01_9000001554_10770cztM0_level2.evt | modeM0/AS1G07_032T01_9000001554_10770cztM0_level2_quad_clean.evt |
| Size (bytes) | 209,689,920 | 34,338,240 |
| Size | 200.0 MB | 32.7 MB |
| Events in quadrant A | 1,783,057 | 214,610 |
| Events in quadrant B | 1,450,126 | 221,876 |
| Events in quadrant C | 1,250,685 | 219,044 |
| Events in quadrant D | 1,698,705 | 208,011 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 50 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6931 | 2 |
| B | 0 | 5885 | 1 |
| C | 0 | 5363 | 1 |
| D | 0 | 6640 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2448 | 132 | 5.392157% |
| B | 2448 | 126 | 5.147059% |
| C | 2448 | 44 | 1.797386% |
| D | 2448 | 86 | 3.513072% |

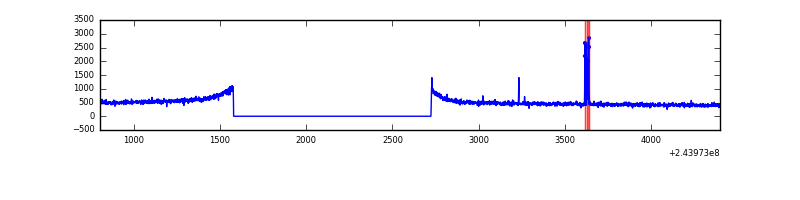

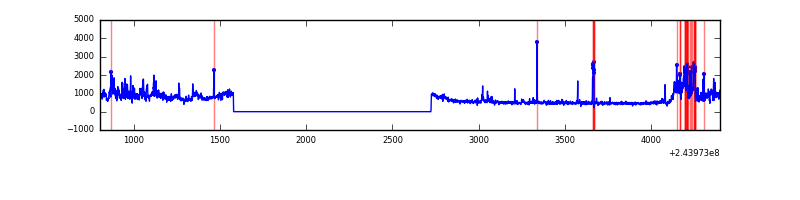

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3593 | 2449 | 38 | 38 | 1.06% | 1.55% |  |
| B | 3593 | 2449 | 12 | 12 | 0.33% | 0.49% |  |
| C | 3593 | 2449 | 7 | 7 | 0.19% | 0.29% |  |
| D | 3593 | 2449 | 32 | 32 | 0.89% | 1.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 487373 | 7215.67 | 324 | 318 | 67.5 |
| A | 15 | 223 | 24420 | 357.07 | 324 | 318 | 67.5 |
| A | 15 | 174 | 8002 | 113.84 | 324 | 318 | 67.5 |
| B | 4 | 239 | 110973 | 1704.61 | 325 | 318 | 64.9 |
| B | 4 | 81 | 27344 | 416.32 | 325 | 318 | 64.9 |
| B | 0 | 85 | 13729 | 206.59 | 325 | 318 | 64.9 |
| C | 14 | 234 | 24198 | 319.1 | 314 | 316 | 74.8 |
| C | 13 | 61 | 2306 | 26.59 | 314 | 316 | 74.8 |
| C | 5 | 207 | 1510 | 15.95 | 314 | 316 | 74.8 |
| D | 13 | 249 | 179946 | 2367.24 | 310 | 302 | 75.9 |
| D | 1 | 52 | 179221 | 2357.69 | 310 | 302 | 75.9 |
| D | 8 | 195 | 103928 | 1365.52 | 310 | 302 | 75.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

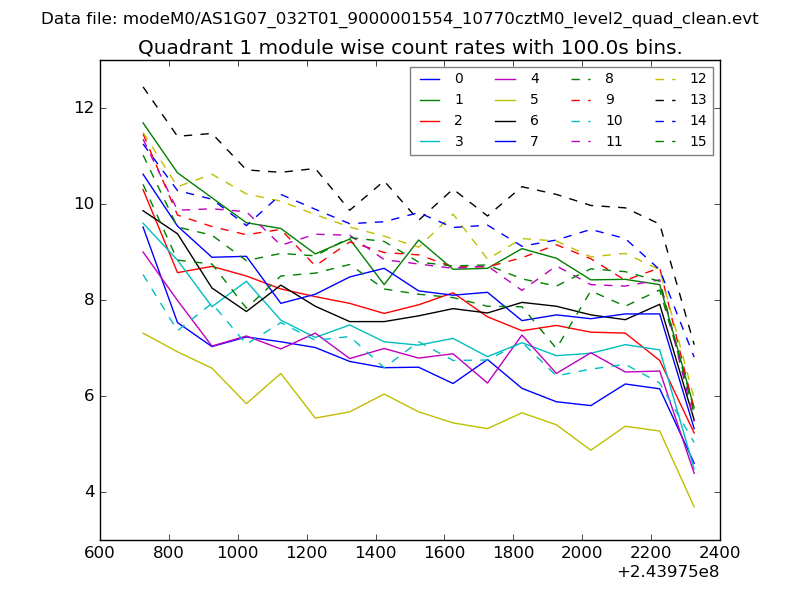

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

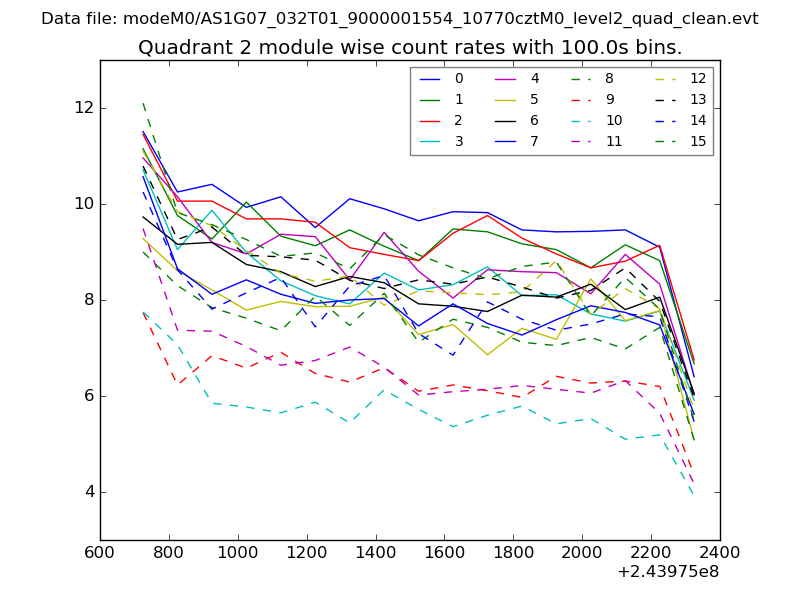

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

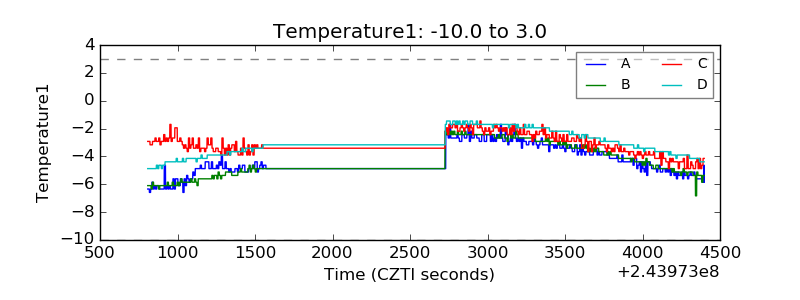

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

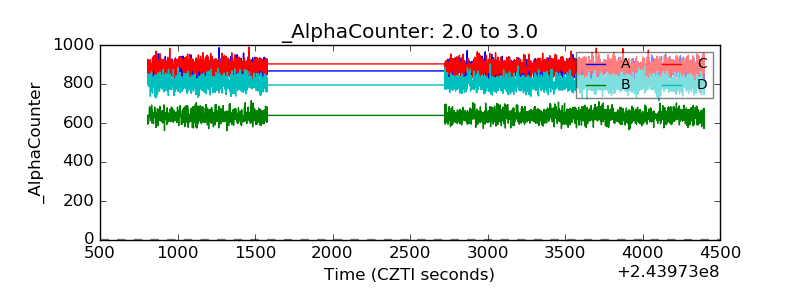

| Alpha Counter |  |
| _CPM_Rate |  |

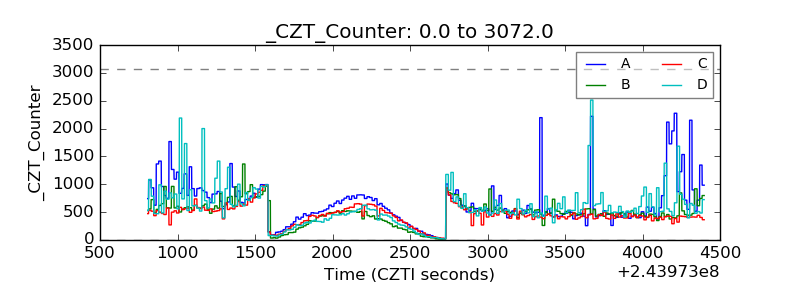

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

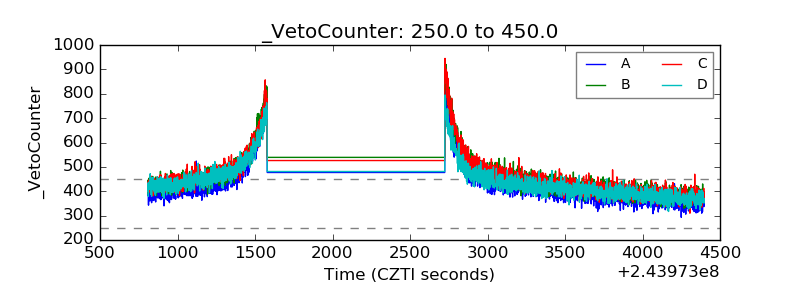

| Veto Counter |  |
