| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_062T01_9000001560_10785cztM0_level2.evt | modeM0/AS1G07_062T01_9000001560_10785cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,847,040 | 121,512,960 |
| Size | 545.4 MB | 115.9 MB |
| Events in quadrant A | 3,116,603 | 822,313 |
| Events in quadrant B | 5,138,393 | 807,558 |
| Events in quadrant C | 2,939,468 | 838,539 |
| Events in quadrant D | 5,684,025 | 758,785 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13776 | 2 |
| B | 0 | 19755 | 1 |
| C | 0 | 13265 | 1 |
| D | 0 | 21245 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6496 | 82 | 1.262315% |
| B | 6496 | 654 | 10.067734% |
| C | 6496 | 52 | 0.800493% |
| D | 6496 | 638 | 9.821429% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7551 | 6498 | 19 | 19 | 0.25% | 0.29% |  |
| B | 7551 | 6498 | 381 | 381 | 5.05% | 5.86% |  |
| C | 7551 | 6498 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7551 | 6498 | 450 | 450 | 5.96% | 6.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 147237 | 956.68 | 757 | 741 | 153.1 |
| A | 1 | 162 | 21176 | 133.45 | 757 | 741 | 153.1 |
| A | 1 | 161 | 7939 | 47.01 | 757 | 741 | 153.1 |
| B | 4 | 239 | 2083303 | 15212.19 | 740 | 723 | 136.9 |
| B | 0 | 219 | 79437 | 574.96 | 740 | 723 | 136.9 |
| B | 15 | 204 | 38523 | 276.11 | 740 | 723 | 136.9 |
| C | 14 | 234 | 8577 | 45.42 | 749 | 752 | 172.3 |
| C | 0 | 207 | 6055 | 30.78 | 749 | 752 | 172.3 |
| C | 13 | 61 | 5714 | 28.8 | 749 | 752 | 172.3 |
| D | 10 | 199 | 891827 | 5212.45 | 718 | 698 | 171.0 |
| D | 13 | 104 | 803113 | 4693.54 | 718 | 698 | 171.0 |
| D | 8 | 195 | 522188 | 3050.33 | 718 | 698 | 171.0 |

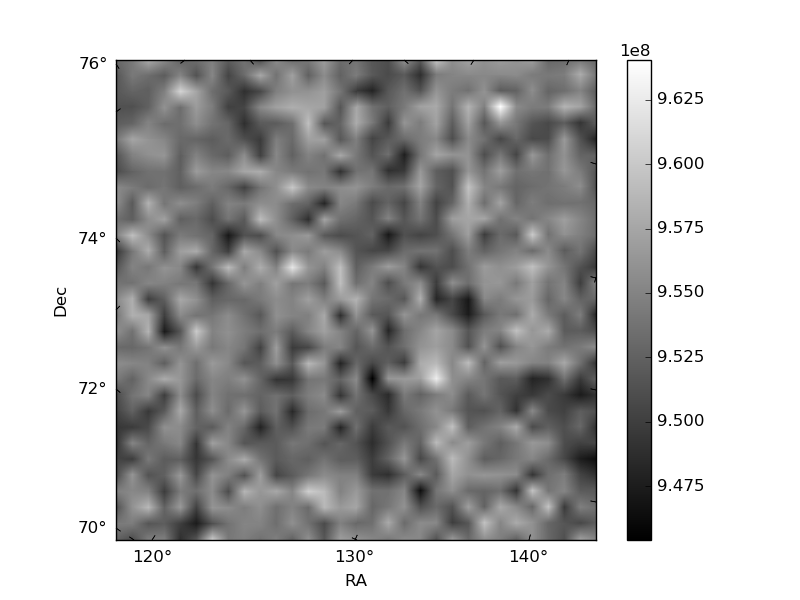

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

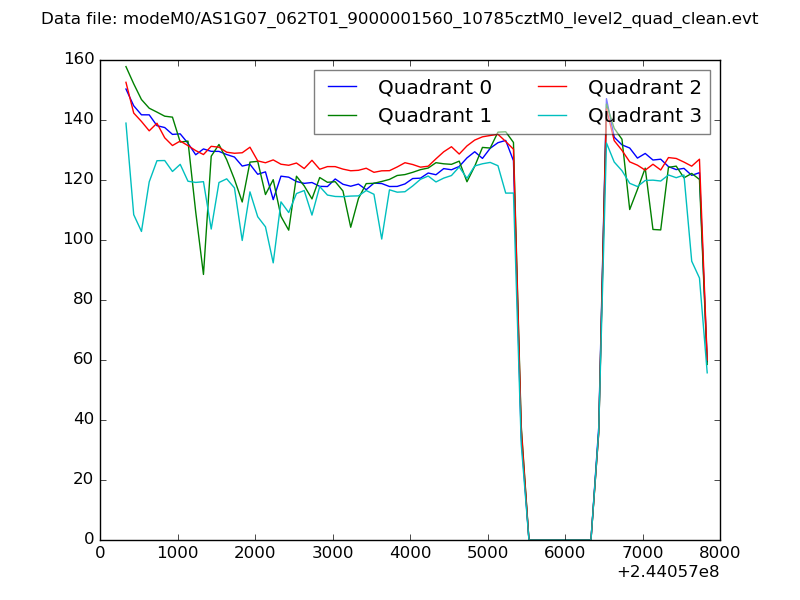

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

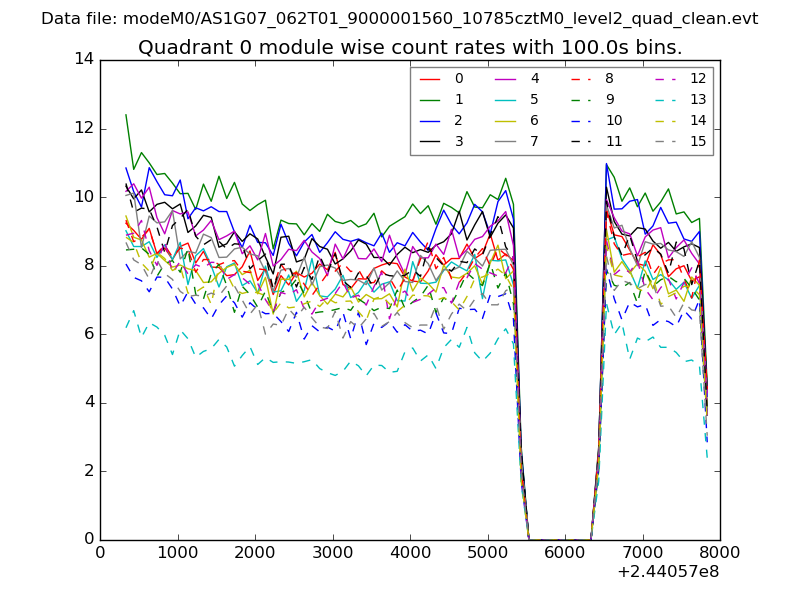

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

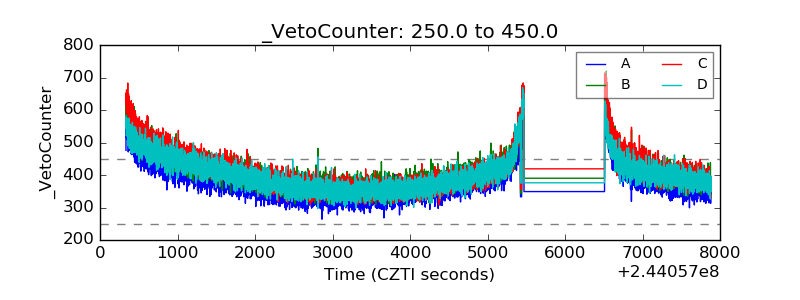

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

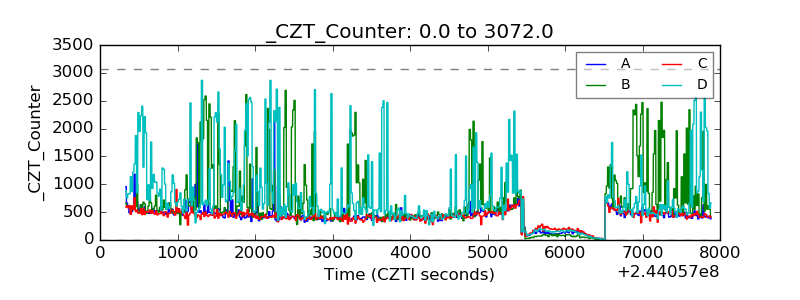

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
