| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_062T01_9000001560_10788cztM0_level2.evt | modeM0/AS1G07_062T01_9000001560_10788cztM0_level2_quad_clean.evt |
| Size (bytes) | 705,070,080 | 146,430,720 |
| Size | 672.4 MB | 139.6 MB |
| Events in quadrant A | 3,932,862 | 979,314 |
| Events in quadrant B | 6,716,041 | 945,149 |
| Events in quadrant C | 3,688,235 | 1,005,818 |
| Events in quadrant D | 6,452,020 | 925,851 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17812 | 3 |
| B | 0 | 25848 | 2 |
| C | 0 | 17118 | 2 |
| D | 0 | 24995 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8328 | 99 | 1.188761% |
| B | 8328 | 1153 | 13.844861% |
| C | 8328 | 32 | 0.384246% |
| D | 8328 | 467 | 5.607589% |

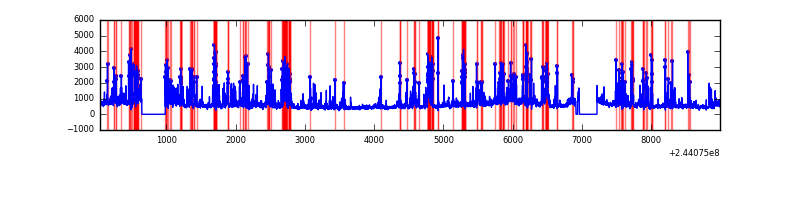

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8948 | 8331 | 38 | 38 | 0.42% | 0.46% |  |
| B | 8948 | 8331 | 552 | 552 | 6.17% | 6.63% |  |
| C | 8948 | 8331 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8948 | 8331 | 319 | 319 | 3.57% | 3.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 236741 | 1220.22 | 948 | 928 | 193.3 |
| A | 13 | 248 | 26342 | 131.51 | 948 | 928 | 193.3 |
| A | 11 | 29 | 10064 | 47.27 | 948 | 928 | 193.3 |
| B | 4 | 239 | 2963555 | 17044.94 | 916 | 893 | 173.8 |
| B | 15 | 204 | 49417 | 279.17 | 916 | 893 | 173.8 |
| B | 0 | 219 | 32552 | 182.14 | 916 | 893 | 173.8 |
| C | 0 | 207 | 16048 | 69.51 | 939 | 943 | 217.3 |
| C | 13 | 61 | 7114 | 28.4 | 939 | 943 | 217.3 |
| C | 8 | 222 | 4739 | 17.47 | 939 | 943 | 217.3 |
| D | 13 | 138 | 712993 | 3216.16 | 909 | 879 | 221.4 |
| D | 8 | 195 | 612100 | 2760.5 | 909 | 879 | 221.4 |
| D | 12 | 233 | 424223 | 1911.97 | 909 | 879 | 221.4 |

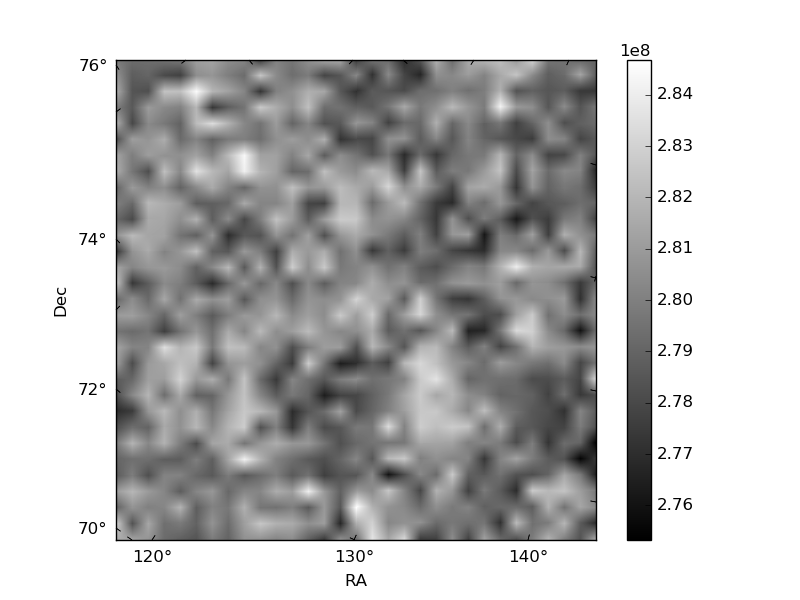

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

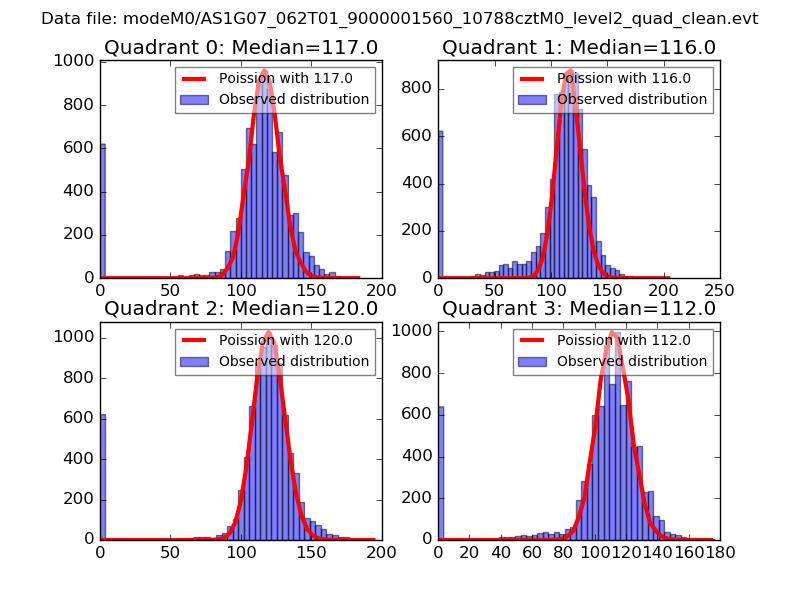

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

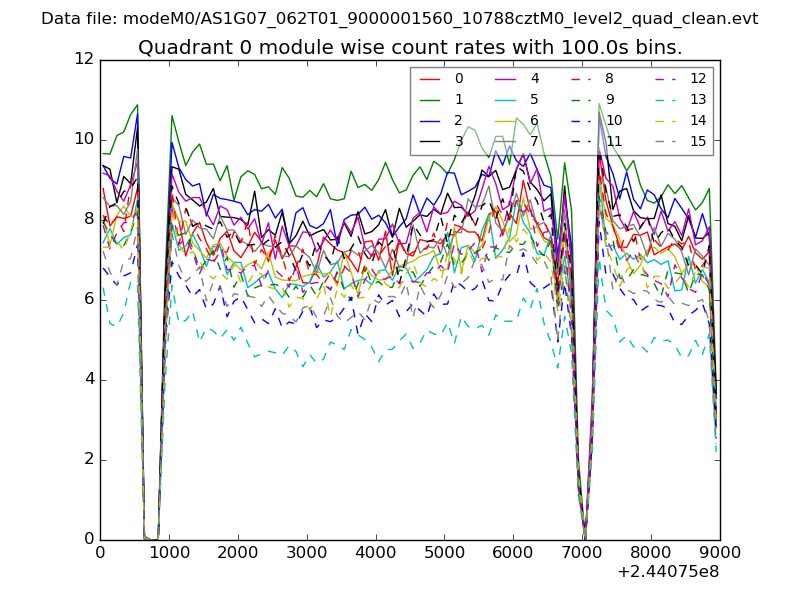

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

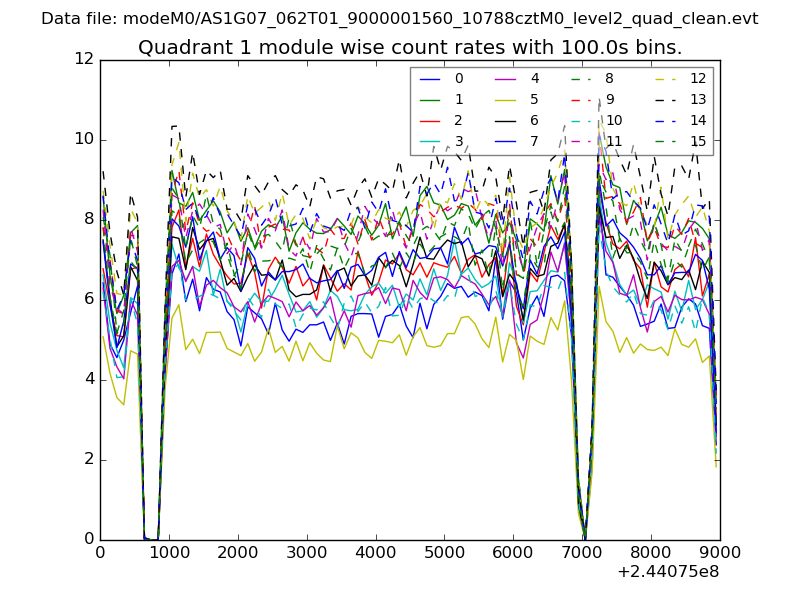

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

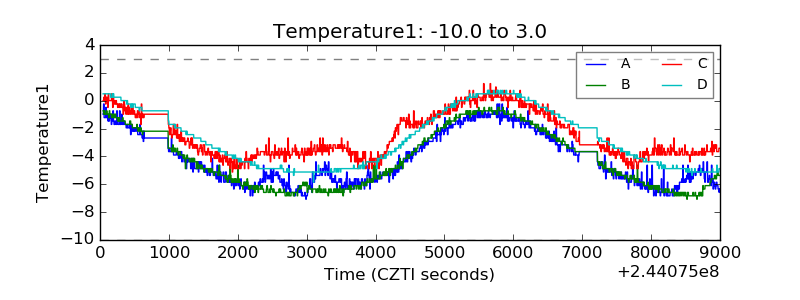

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

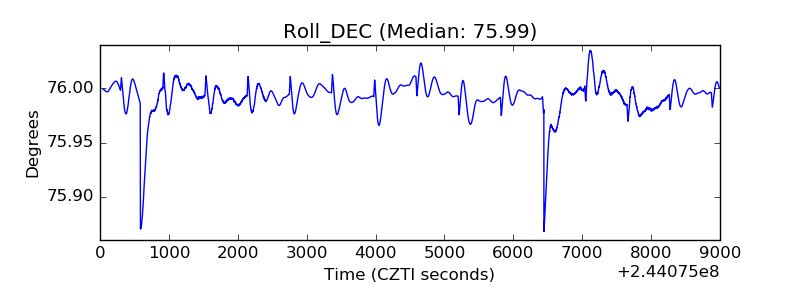

| _Roll_DEC |  |

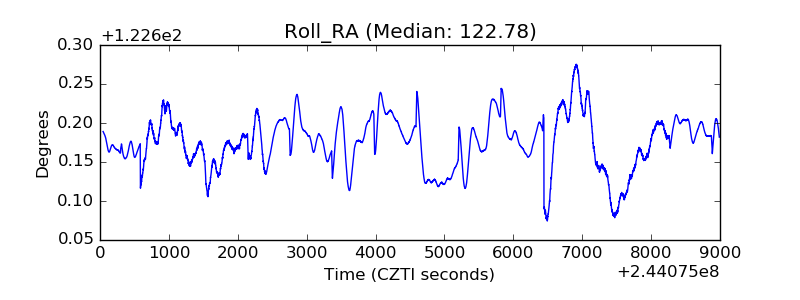

| _Roll_RA |  |
| Veto Counter |  |
