| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_062T01_9000001560_10791cztM0_level2.evt | modeM0/AS1G07_062T01_9000001560_10791cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,509,891,840 | 329,794,560 |
| Size | 1.4 GB | 314.5 MB |
| Events in quadrant A | 9,740,557 | 2,177,651 |
| Events in quadrant B | 13,655,686 | 2,156,551 |
| Events in quadrant C | 8,316,709 | 2,254,438 |
| Events in quadrant D | 12,733,823 | 2,093,550 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42509 | 7 |
| B | 0 | 53650 | 4 |
| C | 0 | 38913 | 4 |
| D | 0 | 50794 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 388 | 0 |
| B | 0 | 388 | 0 |
| C | 0 | 388 | 0 |
| D | 0 | 388 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18960 | 497 | 2.621308% |
| B | 18961 | 1697 | 8.949950% |
| C | 18961 | 103 | 0.543220% |
| D | 18961 | 820 | 4.324666% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20966 | 18966 | 322 | 322 | 1.54% | 1.70% |  |
| B | 20966 | 18965 | 1036 | 1036 | 4.94% | 5.46% |  |
| C | 20966 | 18966 | 38 | 38 | 0.18% | 0.20% |  |
| D | 20966 | 18966 | 591 | 591 | 2.82% | 3.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 254 | 787097 | 1829.66 | 2117 | 2069 | 429.1 |
| A | 15 | 174 | 695684 | 1616.6 | 2117 | 2069 | 429.1 |
| A | 8 | 15 | 44340 | 98.52 | 2117 | 2069 | 429.1 |
| B | 4 | 239 | 5130028 | 13143.88 | 2081 | 2030 | 390.1 |
| B | 11 | 51 | 100072 | 251.3 | 2081 | 2030 | 390.1 |
| B | 0 | 214 | 88662 | 222.05 | 2081 | 2030 | 390.1 |
| C | 14 | 234 | 129752 | 265.34 | 2088 | 2094 | 481.1 |
| C | 0 | 207 | 36715 | 71.96 | 2088 | 2094 | 481.1 |
| C | 13 | 61 | 15831 | 28.55 | 2088 | 2094 | 481.1 |
| D | 10 | 199 | 1136554 | 2329.23 | 2037 | 1973 | 487.1 |
| D | 8 | 195 | 1087611 | 2228.76 | 2037 | 1973 | 487.1 |
| D | 13 | 138 | 792668 | 1623.25 | 2037 | 1973 | 487.1 |

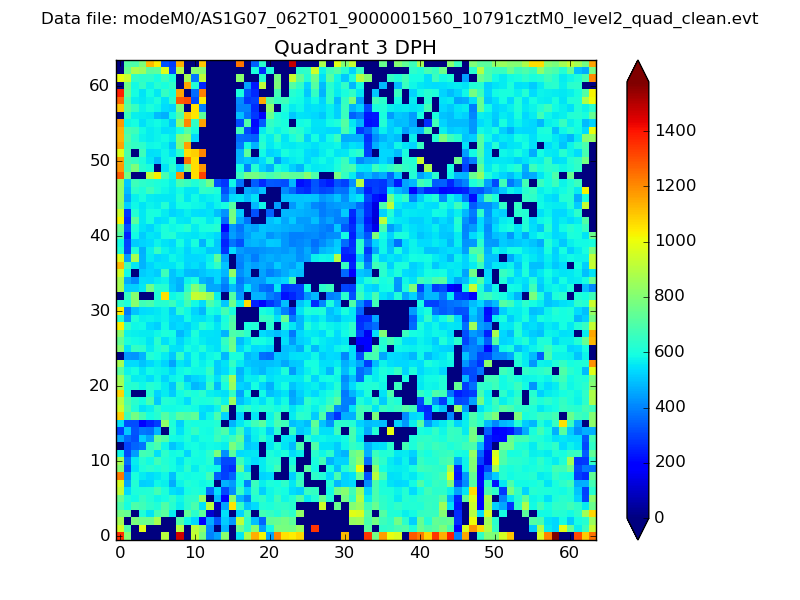

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

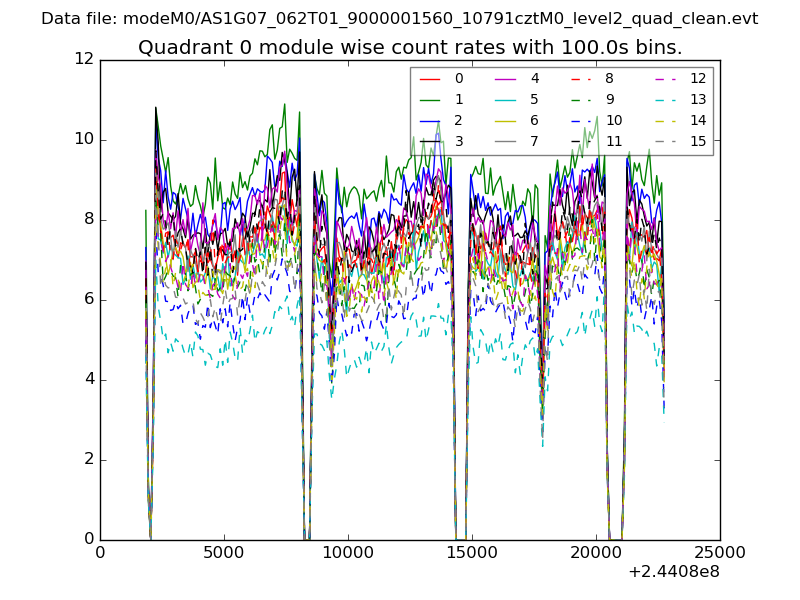

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

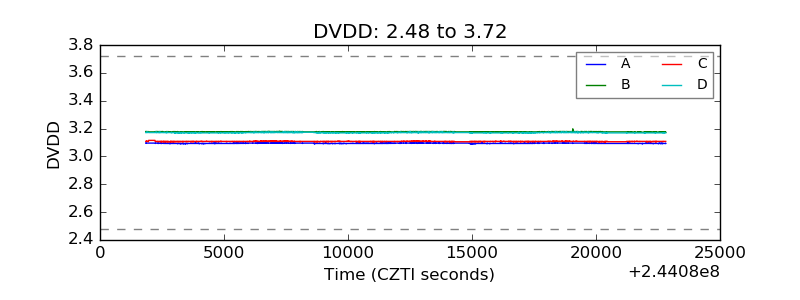

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

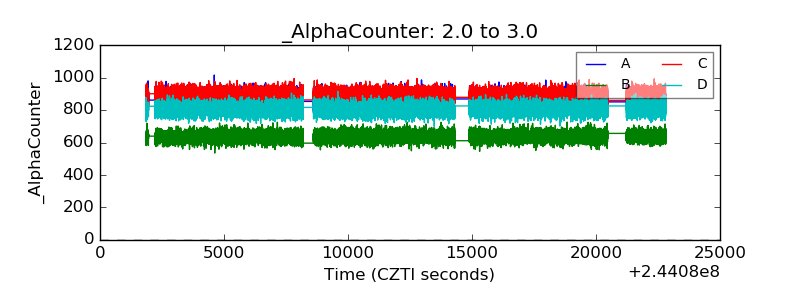

| Alpha Counter |  |

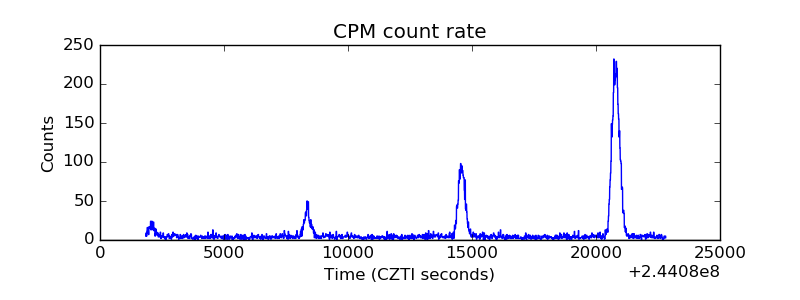

| _CPM_Rate |  |

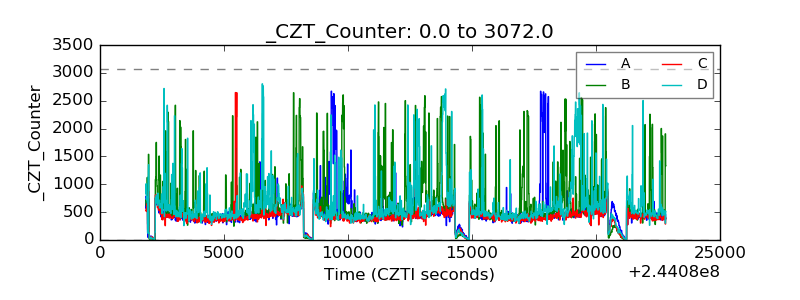

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
