| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_086T01_9000001568_10826cztM0_level2.evt | modeM0/AS1A03_086T01_9000001568_10826cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,369,600 | 65,128,320 |
| Size | 595.4 MB | 62.1 MB |
| Events in quadrant A | 5,923,027 | 368,044 |
| Events in quadrant B | 4,716,528 | 391,520 |
| Events in quadrant C | 3,208,694 | 395,452 |
| Events in quadrant D | 4,630,562 | 372,491 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22054 | 2 |
| B | 0 | 18147 | 1 |
| C | 0 | 13268 | 1 |
| D | 0 | 18150 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6359 | 651 | 10.237459% |
| B | 6359 | 492 | 7.737066% |
| C | 6359 | 80 | 1.258059% |
| D | 6359 | 206 | 3.239503% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 6359 | 445 | 445 | 5.85% | 7.00% |  |
| B | 7609 | 6360 | 258 | 258 | 3.39% | 4.06% |  |
| C | 7609 | 6359 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7609 | 6359 | 99 | 99 | 1.30% | 1.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2696169 | 16617.41 | 810 | 796 | 162.2 |
| A | 13 | 251 | 65560 | 399.28 | 810 | 796 | 162.2 |
| A | 15 | 174 | 21323 | 126.55 | 810 | 796 | 162.2 |
| B | 4 | 239 | 1342353 | 8700.2 | 821 | 806 | 154.2 |
| B | 10 | 245 | 78615 | 504.61 | 821 | 806 | 154.2 |
| B | 4 | 173 | 25597 | 160.77 | 821 | 806 | 154.2 |
| C | 13 | 61 | 6080 | 28.0 | 821 | 828 | 187.6 |
| C | 5 | 207 | 4290 | 18.46 | 821 | 828 | 187.6 |
| C | 12 | 4 | 2535 | 9.1 | 821 | 828 | 187.6 |
| D | 8 | 195 | 568875 | 2896.62 | 816 | 797 | 196.1 |
| D | 5 | 222 | 522016 | 2657.69 | 816 | 797 | 196.1 |
| D | 9 | 85 | 110085 | 557.26 | 816 | 797 | 196.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

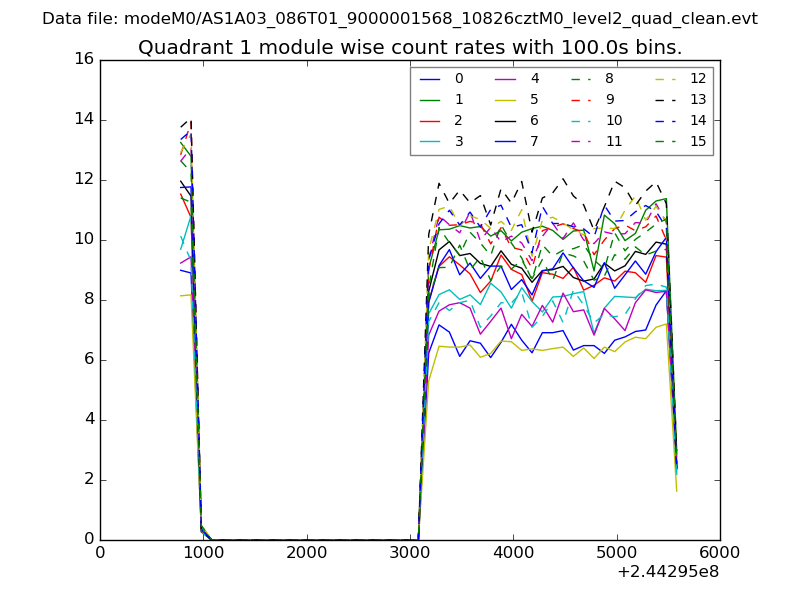

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

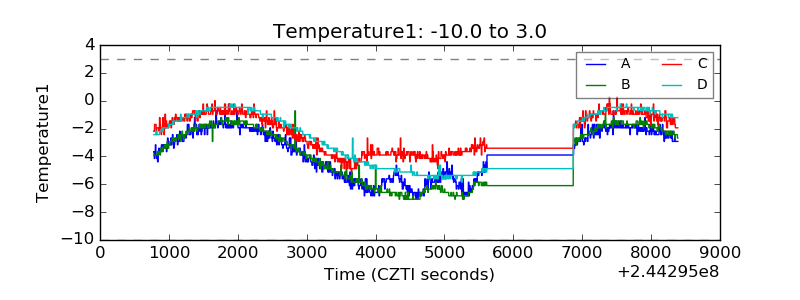

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

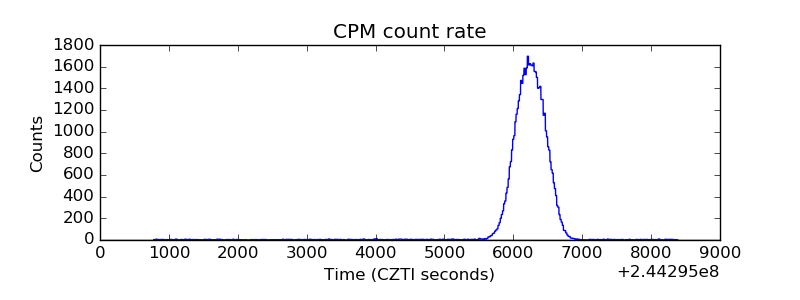

| _CPM_Rate |  |

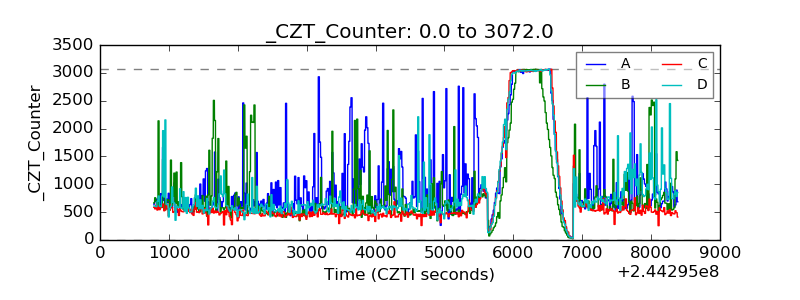

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

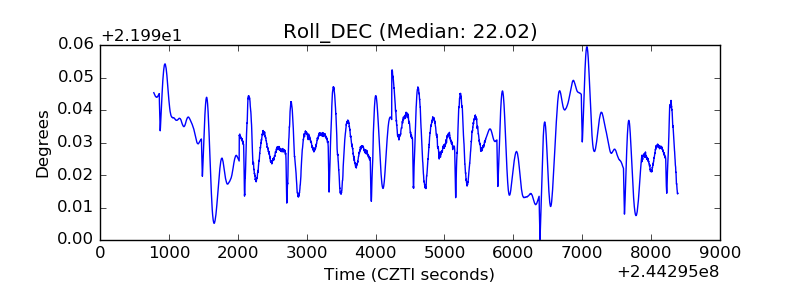

| _Roll_DEC |  |

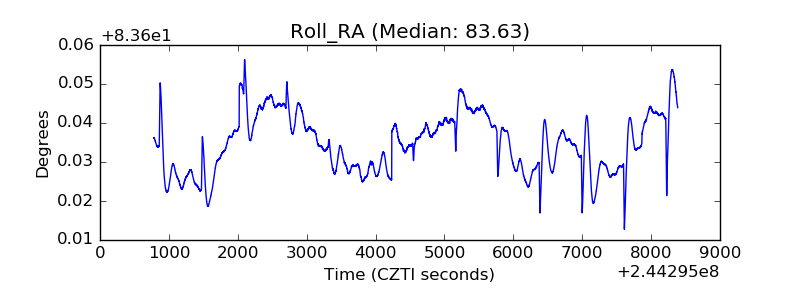

| _Roll_RA |  |
| Veto Counter |  |
