| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_053T01_9000001566_10815cztM0_level2.evt | modeM0/AS1G07_053T01_9000001566_10815cztM0_level2_quad_clean.evt |
| Size (bytes) | 701,305,920 | 94,420,800 |
| Size | 668.8 MB | 90.0 MB |
| Events in quadrant A | 6,815,050 | 578,359 |
| Events in quadrant B | 5,633,841 | 605,047 |
| Events in quadrant C | 3,176,627 | 622,229 |
| Events in quadrant D | 5,138,426 | 563,543 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25133 | 3 |
| B | 0 | 21539 | 2 |
| C | 0 | 14518 | 2 |
| D | 0 | 20016 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7032 | 984 | 13.993174% |
| B | 7032 | 653 | 9.286121% |
| C | 7032 | 35 | 0.497725% |
| D | 7032 | 469 | 6.669511% |

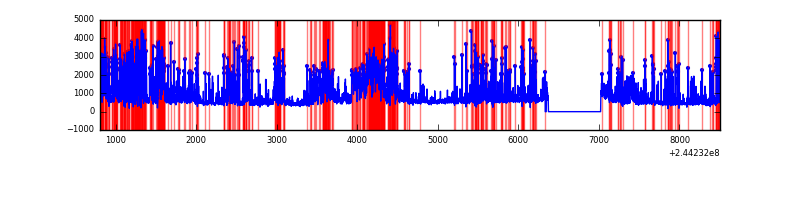

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7697 | 7034 | 698 | 698 | 9.07% | 9.92% |  |
| B | 7697 | 7034 | 365 | 365 | 4.74% | 5.19% |  |
| C | 7697 | 7034 | 13 | 13 | 0.17% | 0.18% |  |
| D | 7697 | 7034 | 384 | 384 | 4.99% | 5.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 3646460 | 23057.68 | 778 | 764 | 158.1 |
| A | 15 | 174 | 65971 | 412.41 | 778 | 764 | 158.1 |
| A | 13 | 251 | 39297 | 243.71 | 778 | 764 | 158.1 |
| B | 4 | 239 | 2023269 | 13271.75 | 805 | 787 | 152.4 |
| B | 0 | 219 | 320216 | 2096.13 | 805 | 787 | 152.4 |
| B | 15 | 204 | 60355 | 390.89 | 805 | 787 | 152.4 |
| C | 14 | 234 | 54269 | 288.08 | 793 | 798 | 185.6 |
| C | 0 | 207 | 24796 | 129.29 | 793 | 798 | 185.6 |
| C | 13 | 61 | 5947 | 27.74 | 793 | 798 | 185.6 |
| D | 2 | 14 | 506098 | 2703.76 | 765 | 742 | 186.9 |
| D | 10 | 199 | 419836 | 2242.24 | 765 | 742 | 186.9 |
| D | 1 | 52 | 289630 | 1545.61 | 765 | 742 | 186.9 |

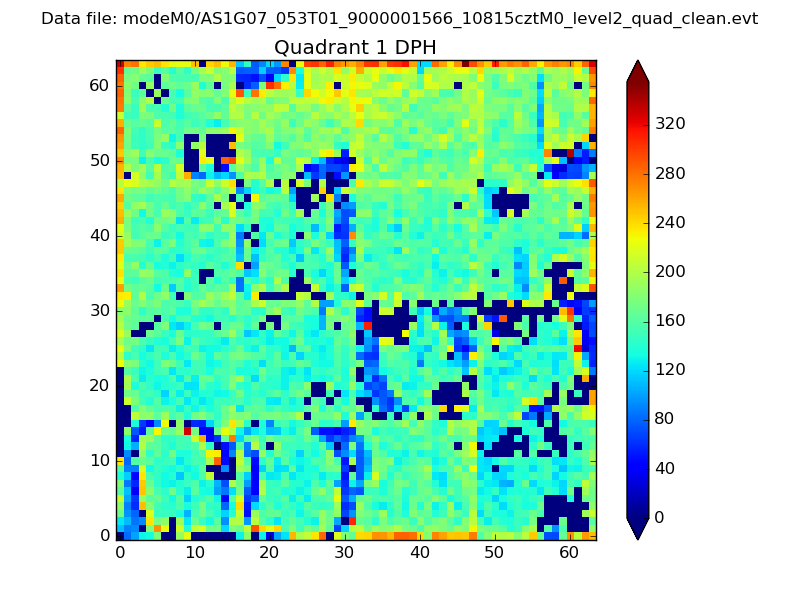

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

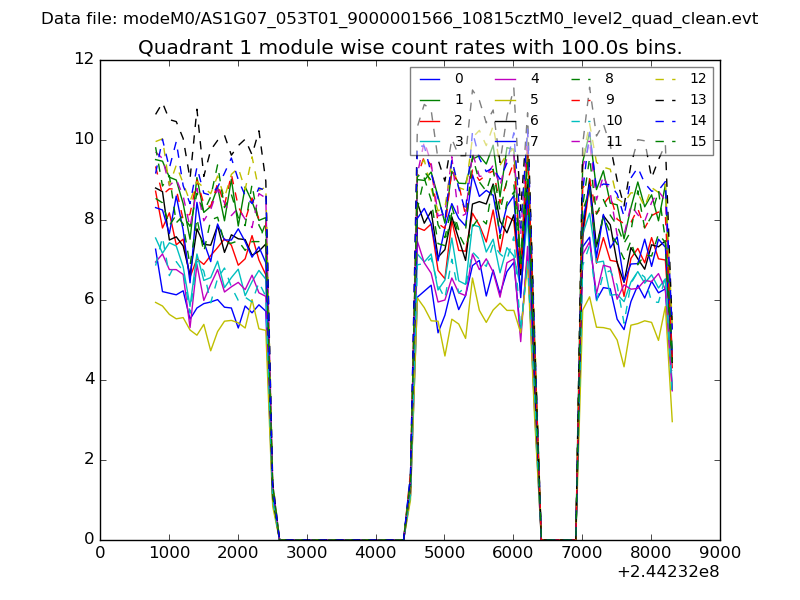

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

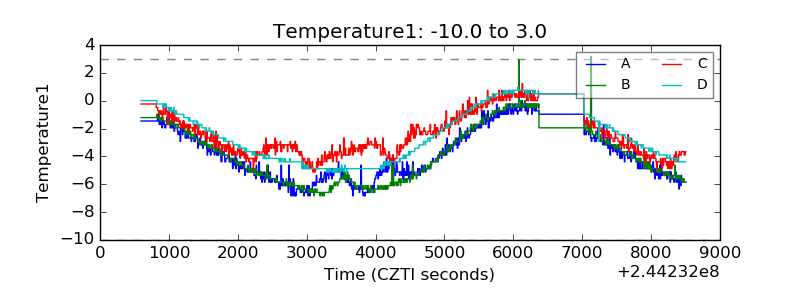

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
