| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_118T01_9000001570_10864cztM0_level2.evt | modeM0/AS1A03_118T01_9000001570_10864cztM0_level2_quad_clean.evt |
| Size (bytes) | 754,110,720 | 132,664,320 |
| Size | 719.2 MB | 126.5 MB |
| Events in quadrant A | 6,963,101 | 822,817 |
| Events in quadrant B | 5,977,248 | 844,429 |
| Events in quadrant C | 4,310,292 | 867,619 |
| Events in quadrant D | 4,944,090 | 823,496 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 192 | 0 |
| B | 0 | 192 | 0 |
| C | 0 | 192 | 0 |
| D | 0 | 192 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27334 | 3 |
| B | 0 | 23954 | 2 |
| C | 0 | 19431 | 2 |
| D | 0 | 21319 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9515 | 453 | 4.760904% |
| B | 9515 | 490 | 5.149764% |
| C | 9515 | 103 | 1.082501% |
| D | 9515 | 189 | 1.986337% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11040 | 9516 | 231 | 231 | 2.09% | 2.43% |  |
| B | 11040 | 9515 | 235 | 235 | 2.13% | 2.47% |  |
| C | 11040 | 9516 | 2 | 2 | 0.02% | 0.02% |  |
| D | 11040 | 9515 | 90 | 90 | 0.82% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2390794 | 10735.9 | 1096 | 1073 | 222.6 |
| A | 5 | 112 | 120086 | 534.67 | 1096 | 1073 | 222.6 |
| A | 15 | 223 | 79301 | 351.44 | 1096 | 1073 | 222.6 |
| B | 4 | 239 | 1430343 | 6745.22 | 1106 | 1078 | 211.9 |
| B | 15 | 204 | 85764 | 399.66 | 1106 | 1078 | 211.9 |
| B | 0 | 197 | 50409 | 232.81 | 1106 | 1078 | 211.9 |
| C | 8 | 208 | 25604 | 96.82 | 1091 | 1096 | 253.1 |
| C | 14 | 234 | 21934 | 82.33 | 1091 | 1096 | 253.1 |
| C | 13 | 61 | 8107 | 27.7 | 1091 | 1096 | 253.1 |
| D | 7 | 71 | 295847 | 1136.81 | 1080 | 1051 | 259.3 |
| D | 1 | 52 | 226534 | 869.52 | 1080 | 1051 | 259.3 |
| D | 13 | 104 | 57851 | 219.04 | 1080 | 1051 | 259.3 |

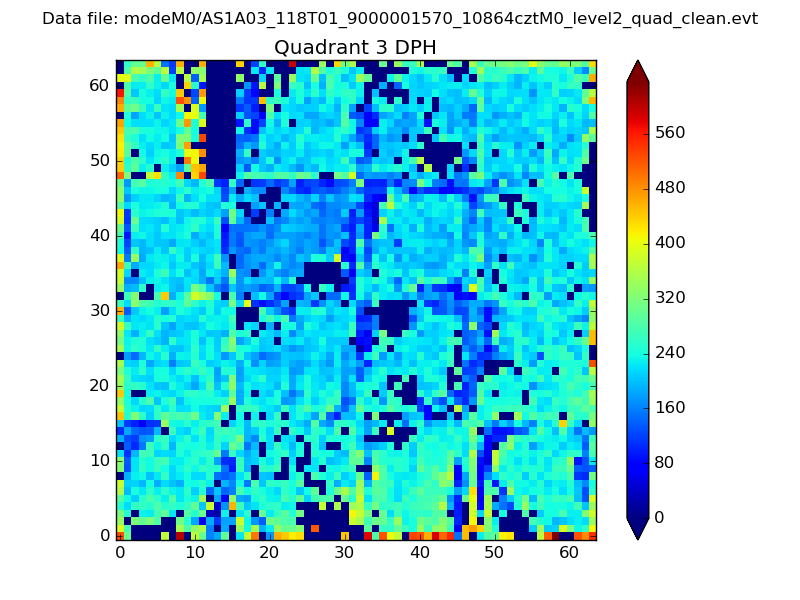

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

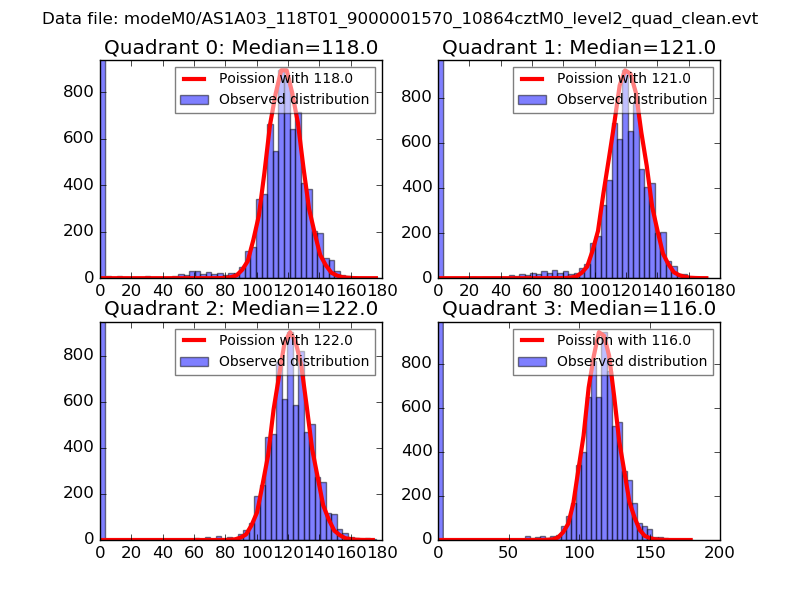

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

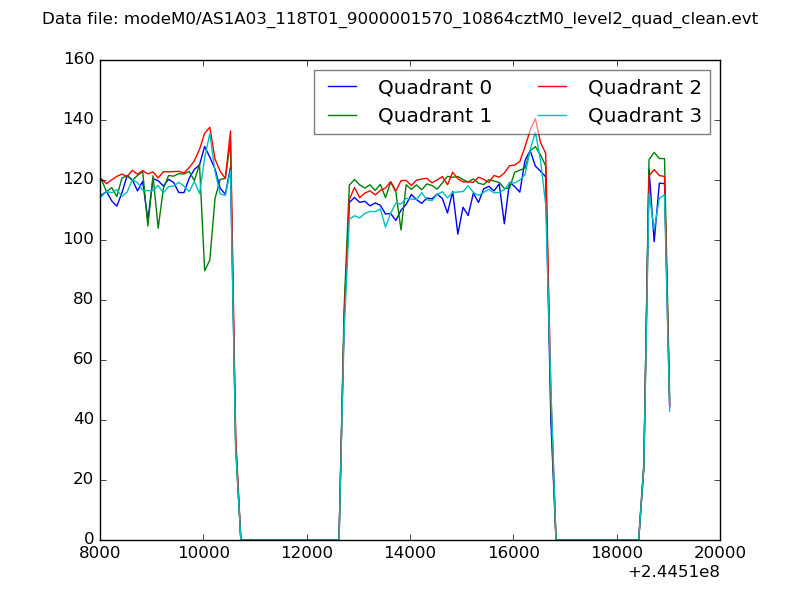

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

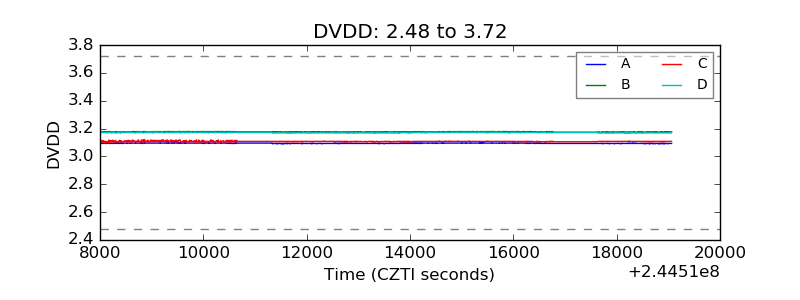

| D_VDD |  |
| Temperature 1 |  |

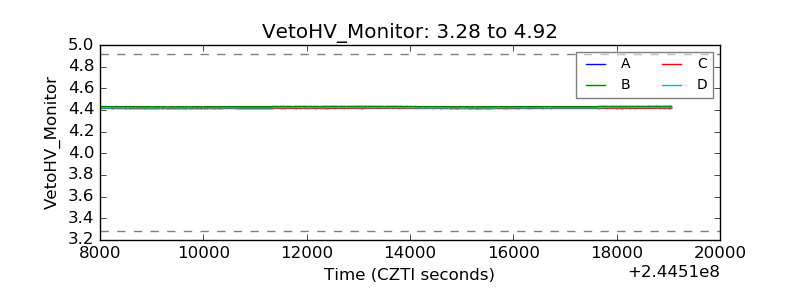

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

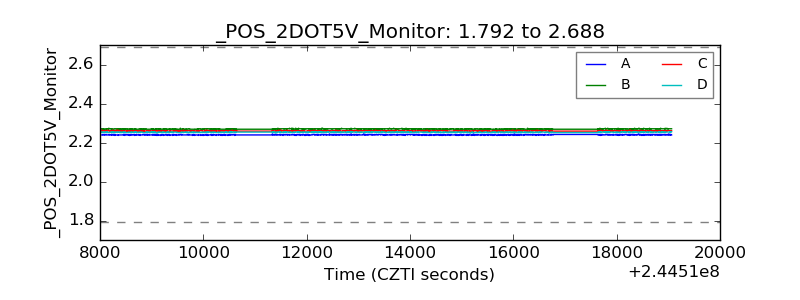

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

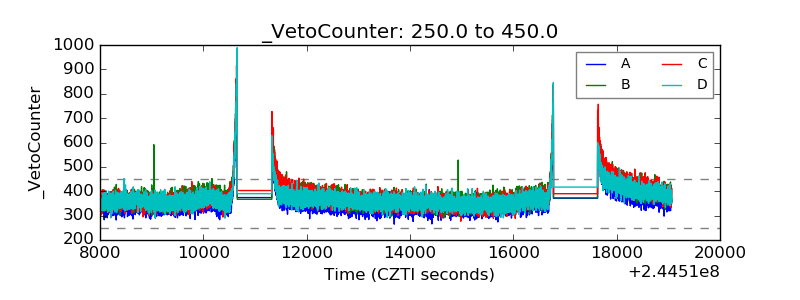

| Veto Counter |  |
