| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_118T01_9000001570_10871cztM0_level2.evt | modeM0/AS1A03_118T01_9000001570_10871cztM0_level2_quad_clean.evt |
| Size (bytes) | 649,068,480 | 90,633,600 |
| Size | 619.0 MB | 86.4 MB |
| Events in quadrant A | 5,239,436 | 578,970 |
| Events in quadrant B | 3,997,405 | 598,498 |
| Events in quadrant C | 2,902,429 | 601,914 |
| Events in quadrant D | 7,087,364 | 521,043 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19992 | 2 |
| B | 0 | 15981 | 1 |
| C | 0 | 13134 | 1 |
| D | 0 | 25178 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6357 | 463 | 7.283310% |
| B | 6357 | 312 | 4.907975% |
| C | 6357 | 62 | 0.975303% |
| D | 6357 | 1490 | 23.438729% |

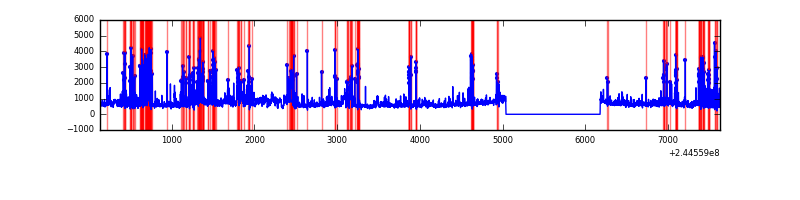

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7497 | 6358 | 278 | 278 | 3.71% | 4.37% |  |
| B | 7497 | 6358 | 163 | 163 | 2.17% | 2.56% |  |
| C | 7497 | 6358 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7497 | 6358 | 1425 | 1425 | 19.01% | 22.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2044380 | 13327.6 | 752 | 735 | 153.3 |
| A | 15 | 223 | 173799 | 1128.63 | 752 | 735 | 153.3 |
| A | 15 | 239 | 59711 | 384.61 | 752 | 735 | 153.3 |
| B | 4 | 239 | 968267 | 6664.87 | 760 | 742 | 145.2 |
| B | 0 | 214 | 18629 | 123.22 | 760 | 742 | 145.2 |
| B | 0 | 219 | 17579 | 115.98 | 760 | 742 | 145.2 |
| C | 8 | 208 | 7775 | 41.43 | 736 | 740 | 169.8 |
| C | 1 | 3 | 6273 | 32.59 | 736 | 740 | 169.8 |
| C | 13 | 61 | 5559 | 28.38 | 736 | 740 | 169.8 |
| D | 1 | 52 | 3818889 | 25017.78 | 627 | 608 | 152.6 |
| D | 8 | 195 | 312681 | 2044.73 | 627 | 608 | 152.6 |
| D | 10 | 199 | 298361 | 1950.91 | 627 | 608 | 152.6 |

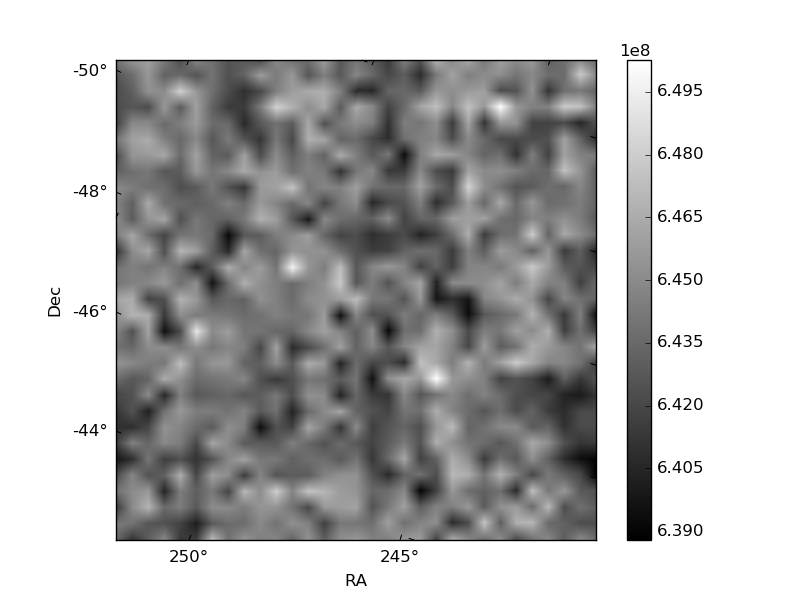

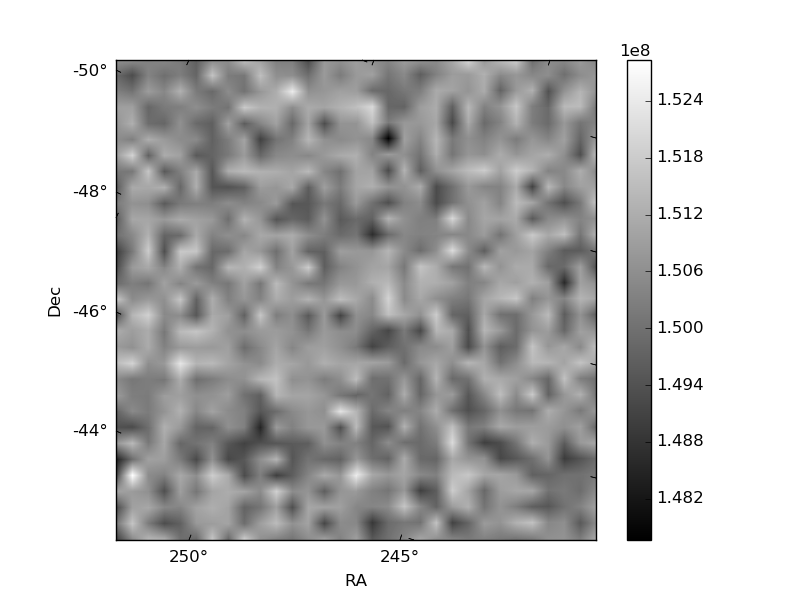

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

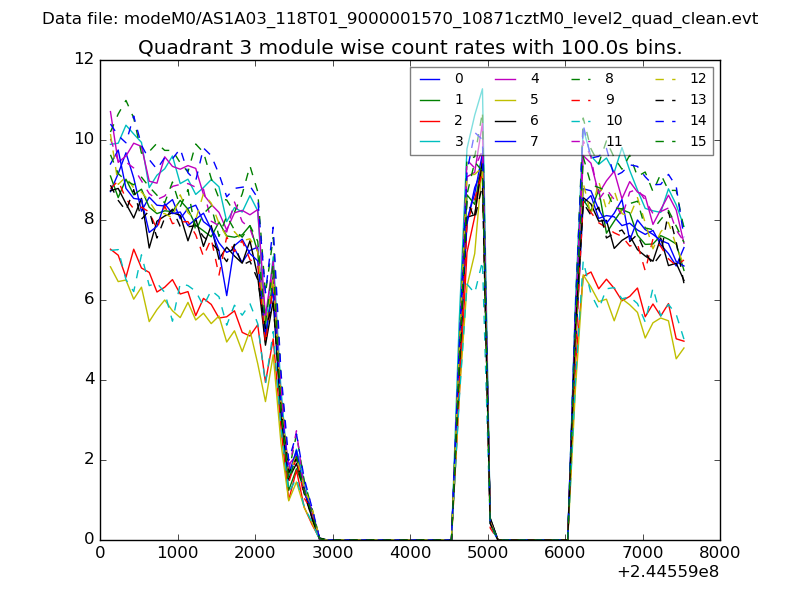

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

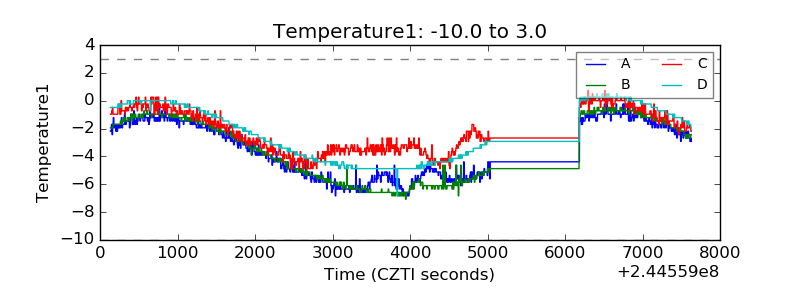

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

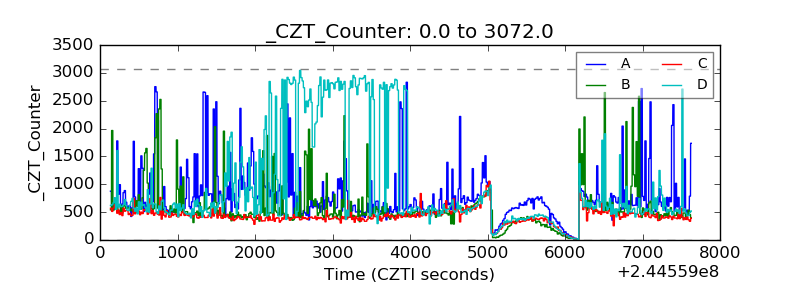

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

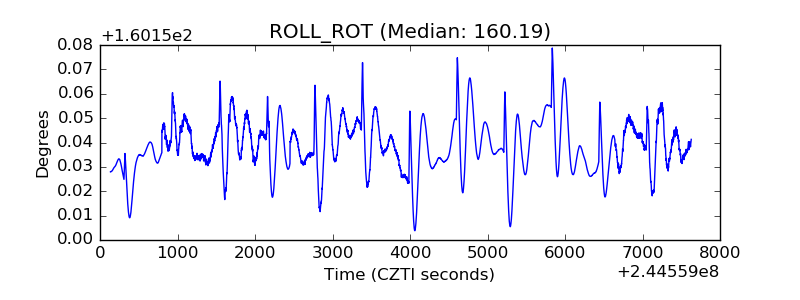

| _ROLL_ROT |  |
| _Roll_DEC |  |

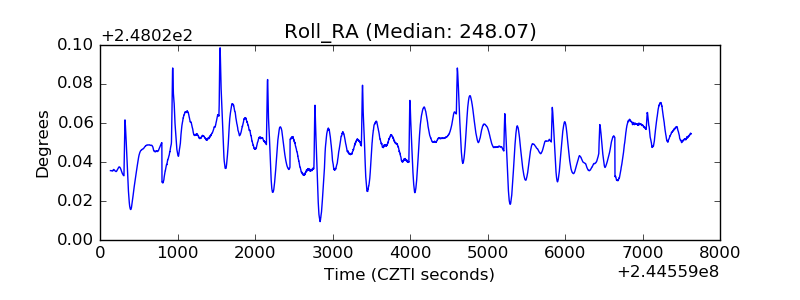

| _Roll_RA |  |
| Veto Counter |  |
