| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_055T01_9000001574_10884cztM0_level2.evt | modeM0/AS1A04_055T01_9000001574_10884cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,927,360 | 104,045,760 |
| Size | 507.3 MB | 99.2 MB |
| Events in quadrant A | 4,094,313 | 685,172 |
| Events in quadrant B | 4,179,501 | 687,223 |
| Events in quadrant C | 3,679,275 | 680,036 |
| Events in quadrant D | 3,735,000 | 664,720 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16238 | 2 |
| B | 0 | 16424 | 1 |
| C | 0 | 15116 | 1 |
| D | 0 | 14922 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6215 | 314 | 5.052293% |
| B | 6215 | 320 | 5.148833% |
| C | 6215 | 271 | 4.360418% |
| D | 6215 | 109 | 1.753821% |

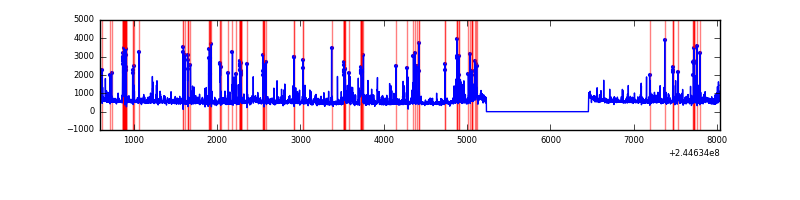

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7440 | 6215 | 132 | 132 | 1.77% | 2.12% |  |
| B | 7440 | 6215 | 147 | 147 | 1.98% | 2.37% |  |
| C | 7440 | 6216 | 154 | 154 | 2.07% | 2.48% |  |
| D | 7440 | 6216 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 901250 | 5806.6 | 770 | 754 | 155.1 |
| A | 15 | 223 | 126925 | 813.58 | 770 | 754 | 155.1 |
| A | 15 | 239 | 55657 | 354.03 | 770 | 754 | 155.1 |
| B | 4 | 239 | 1099281 | 7649.53 | 762 | 745 | 143.6 |
| B | 0 | 219 | 39665 | 271.02 | 762 | 745 | 143.6 |
| B | 0 | 214 | 23916 | 161.35 | 762 | 745 | 143.6 |
| C | 4 | 254 | 760942 | 4528.25 | 731 | 734 | 167.9 |
| C | 0 | 207 | 56446 | 331.85 | 731 | 734 | 167.9 |
| C | 13 | 61 | 5472 | 28.22 | 731 | 734 | 167.9 |
| D | 8 | 195 | 308725 | 1738.26 | 752 | 732 | 177.2 |
| D | 1 | 52 | 289948 | 1632.28 | 752 | 732 | 177.2 |
| D | 5 | 222 | 85052 | 475.89 | 752 | 732 | 177.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

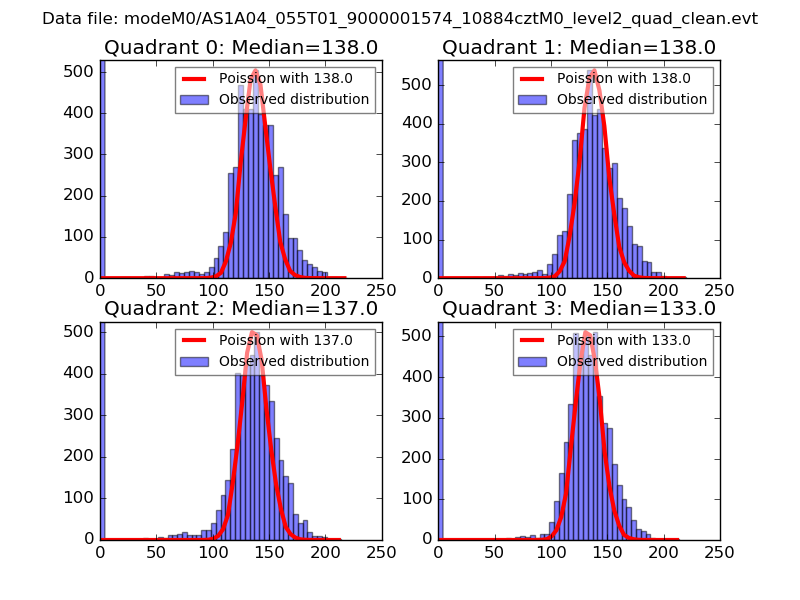

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

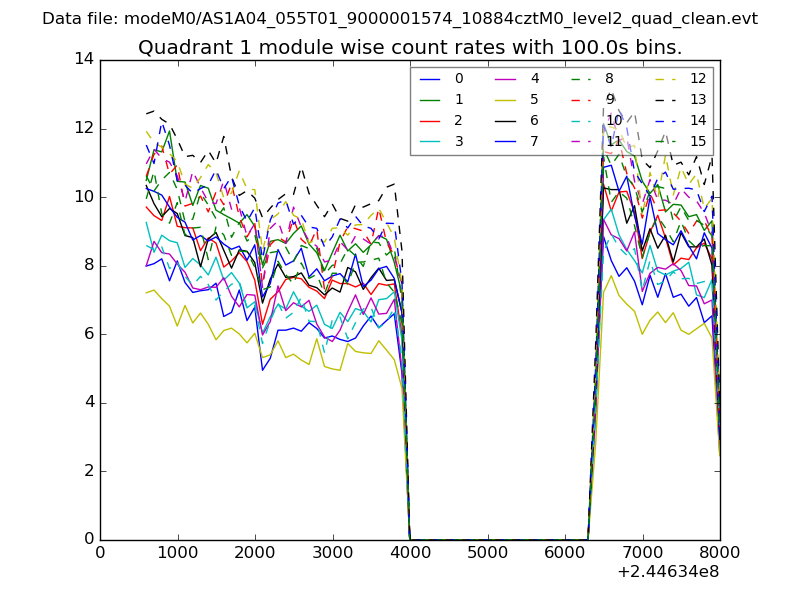

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

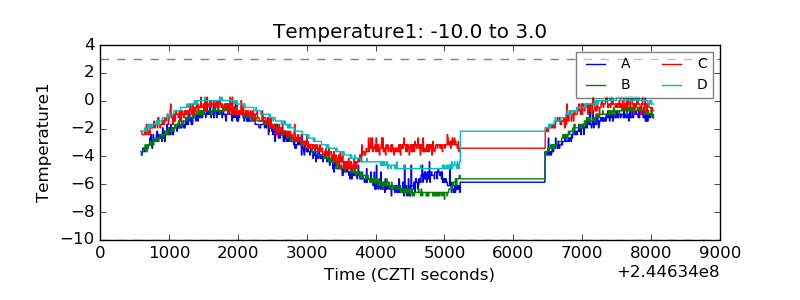

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

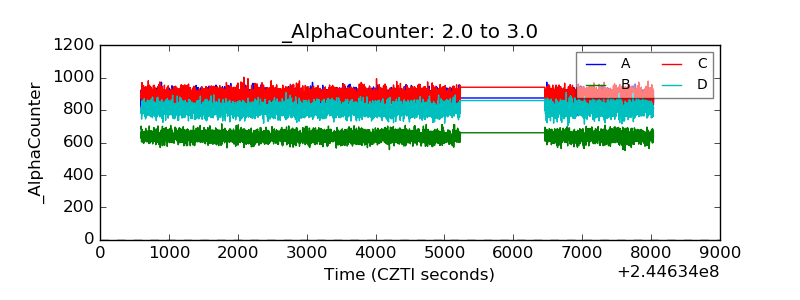

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

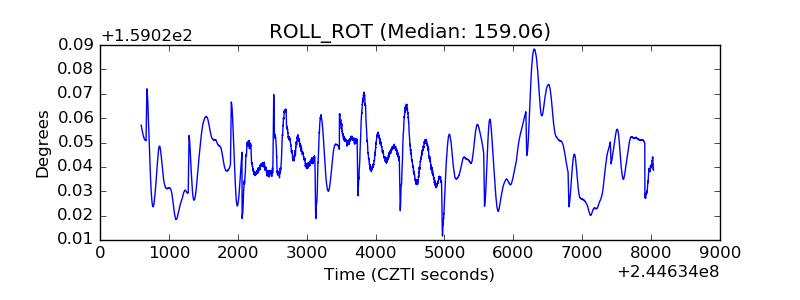

| _ROLL_ROT |  |
| _Roll_DEC |  |

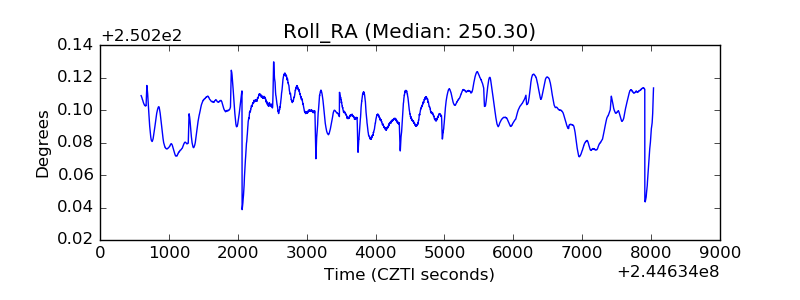

| _Roll_RA |  |
| Veto Counter |  |
