| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_109T01_9000001578_10919cztM0_level2.evt | modeM0/AS1A04_109T01_9000001578_10919cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,273,920 | 102,044,160 |
| Size | 536.2 MB | 97.3 MB |
| Events in quadrant A | 4,625,324 | 636,117 |
| Events in quadrant B | 4,880,238 | 644,870 |
| Events in quadrant C | 3,288,854 | 659,586 |
| Events in quadrant D | 3,722,350 | 624,867 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 2 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18845 | 37 |
| B | 0 | 19567 | 17 |
| C | 0 | 15388 | 31 |
| D | 0 | 16474 | 18 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7541 | 233 | 3.089776% |
| B | 7544 | 369 | 4.891304% |
| C | 7537 | 19 | 0.252090% |
| D | 7543 | 101 | 1.338990% |

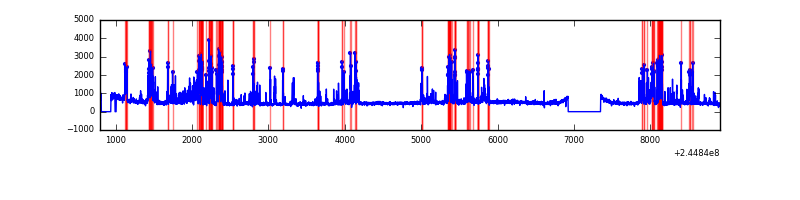

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8115 | 7553 | 125 | 125 | 1.54% | 1.65% |  |
| B | 8115 | 7553 | 199 | 199 | 2.45% | 2.63% |  |
| C | 8115 | 7553 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8115 | 7552 | 27 | 27 | 0.33% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 481186 | 2731.85 | 859 | 842 | 175.8 |
| A | 15 | 223 | 373947 | 2121.95 | 859 | 842 | 175.8 |
| A | 8 | 5 | 319494 | 1812.26 | 859 | 842 | 175.8 |
| B | 4 | 239 | 1409197 | 8424.71 | 864 | 842 | 167.2 |
| B | 0 | 214 | 31095 | 180.97 | 864 | 842 | 167.2 |
| B | 11 | 51 | 24800 | 143.32 | 864 | 842 | 167.2 |
| C | 0 | 207 | 8477 | 39.16 | 840 | 844 | 194.9 |
| C | 13 | 61 | 6212 | 27.54 | 840 | 844 | 194.9 |
| C | 8 | 222 | 5709 | 24.96 | 840 | 844 | 194.9 |
| D | 1 | 52 | 308445 | 1521.21 | 831 | 805 | 202.2 |
| D | 13 | 138 | 41657 | 202.0 | 831 | 805 | 202.2 |
| D | 2 | 234 | 31548 | 152.02 | 831 | 805 | 202.2 |

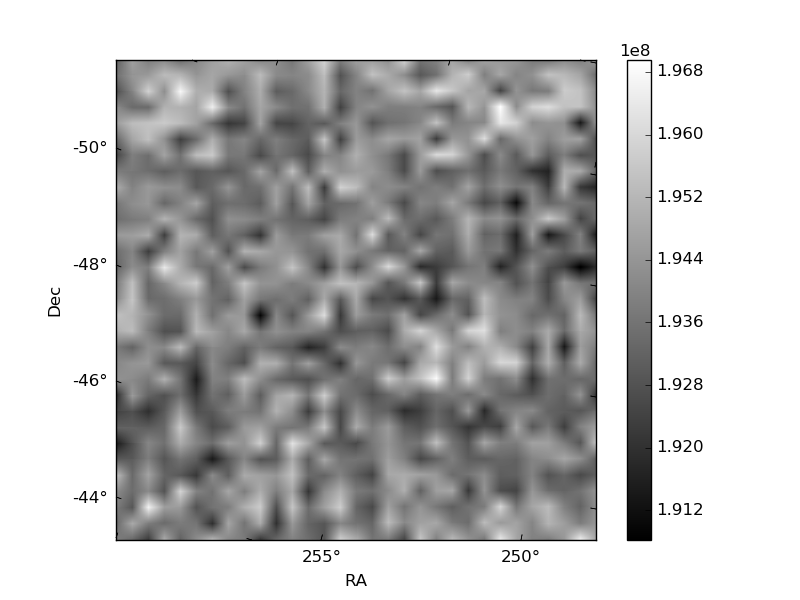

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

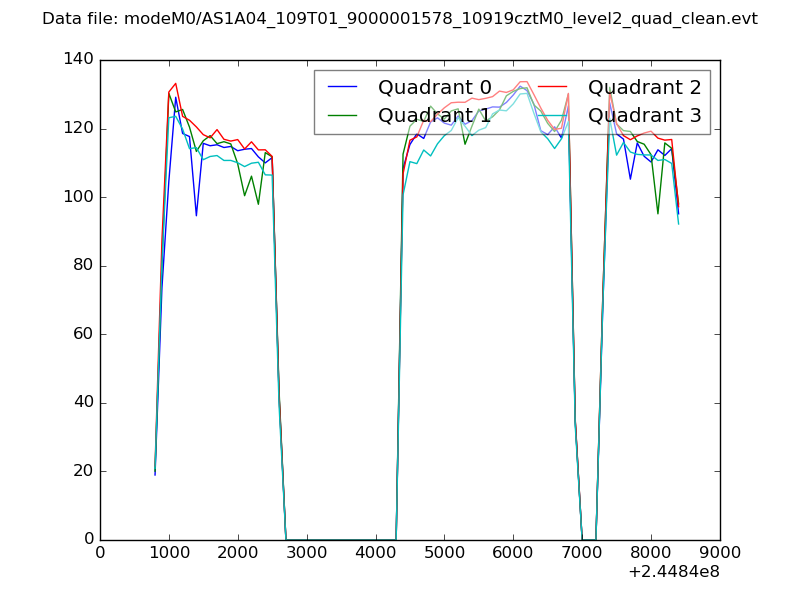

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

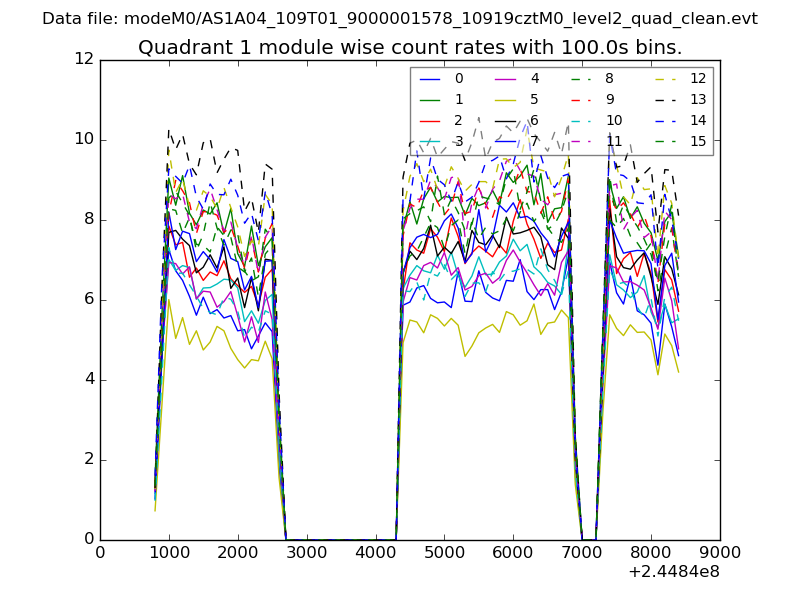

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

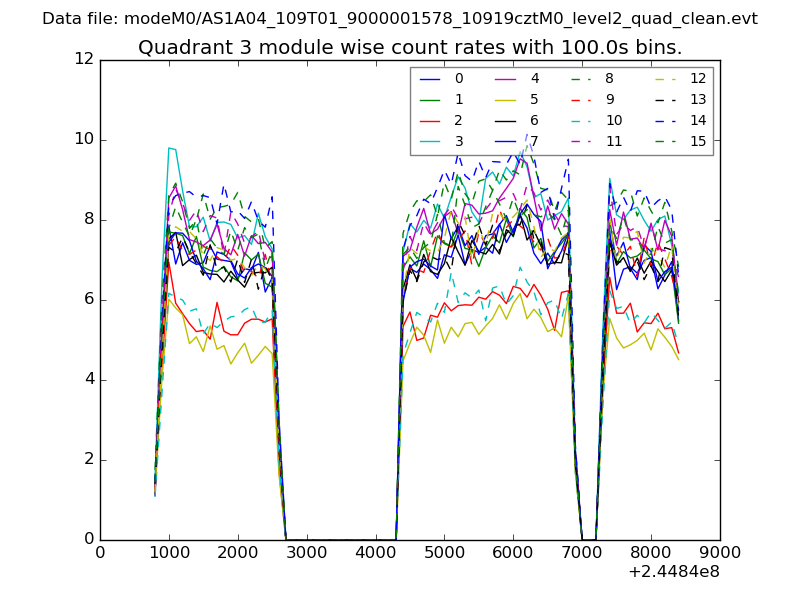

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

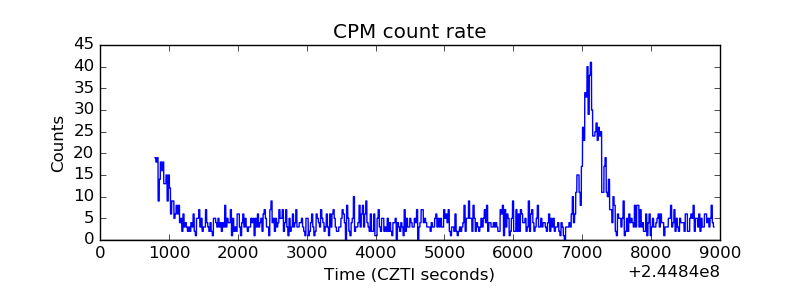

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

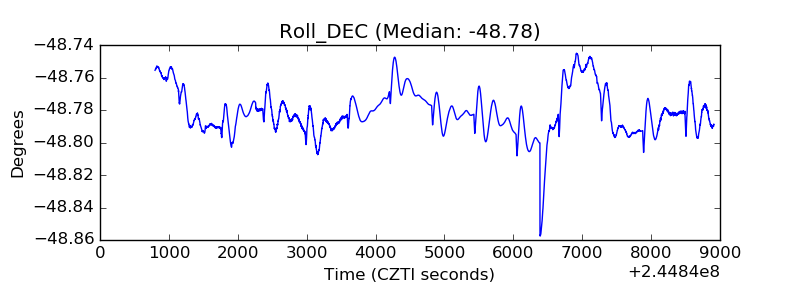

| _Roll_DEC |  |
| _Roll_RA |  |

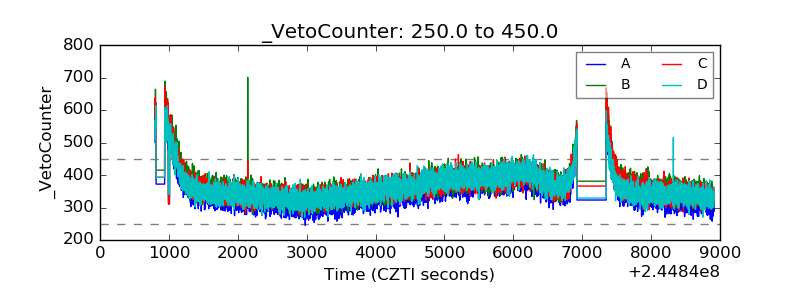

| Veto Counter |  |
