| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_039T01_9000001582_10931cztM0_level2.evt | modeM0/AS1G08_039T01_9000001582_10931cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,308,800 | 91,552,320 |
| Size | 505.7 MB | 87.3 MB |
| Events in quadrant A | 4,093,688 | 575,236 |
| Events in quadrant B | 4,617,144 | 584,666 |
| Events in quadrant C | 3,038,616 | 584,562 |
| Events in quadrant D | 3,847,918 | 552,093 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16722 | 2 |
| B | 0 | 18133 | 1 |
| C | 0 | 13945 | 1 |
| D | 0 | 15976 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6828 | 259 | 3.793204% |
| B | 6828 | 332 | 4.862332% |
| C | 6828 | 10 | 0.146456% |
| D | 6828 | 90 | 1.318102% |

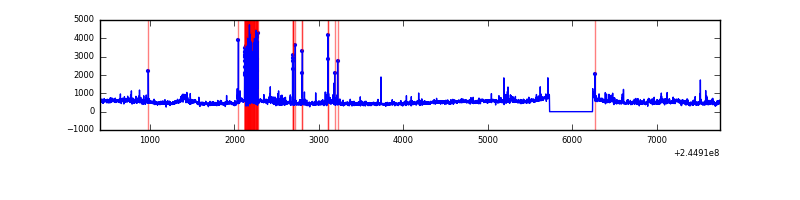

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7338 | 6829 | 175 | 175 | 2.38% | 2.56% |  |
| B | 7338 | 6829 | 200 | 200 | 2.73% | 2.93% |  |
| C | 7338 | 6829 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7338 | 6829 | 77 | 77 | 1.05% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 653007 | 3970.96 | 795 | 778 | 164.2 |
| A | 15 | 239 | 150486 | 911.46 | 795 | 778 | 164.2 |
| A | 8 | 5 | 110386 | 667.32 | 795 | 778 | 164.2 |
| B | 4 | 239 | 1141593 | 7460.53 | 800 | 782 | 152.9 |
| B | 15 | 204 | 200697 | 1307.38 | 800 | 782 | 152.9 |
| B | 4 | 81 | 64427 | 416.22 | 800 | 782 | 152.9 |
| C | 7 | 205 | 6976 | 34.48 | 775 | 779 | 179.7 |
| C | 13 | 61 | 5888 | 28.42 | 775 | 779 | 179.7 |
| C | 14 | 234 | 4498 | 20.69 | 775 | 779 | 179.7 |
| D | 8 | 195 | 405738 | 2151.54 | 771 | 748 | 188.2 |
| D | 13 | 152 | 236668 | 1253.34 | 771 | 748 | 188.2 |
| D | 5 | 222 | 77403 | 407.24 | 771 | 748 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

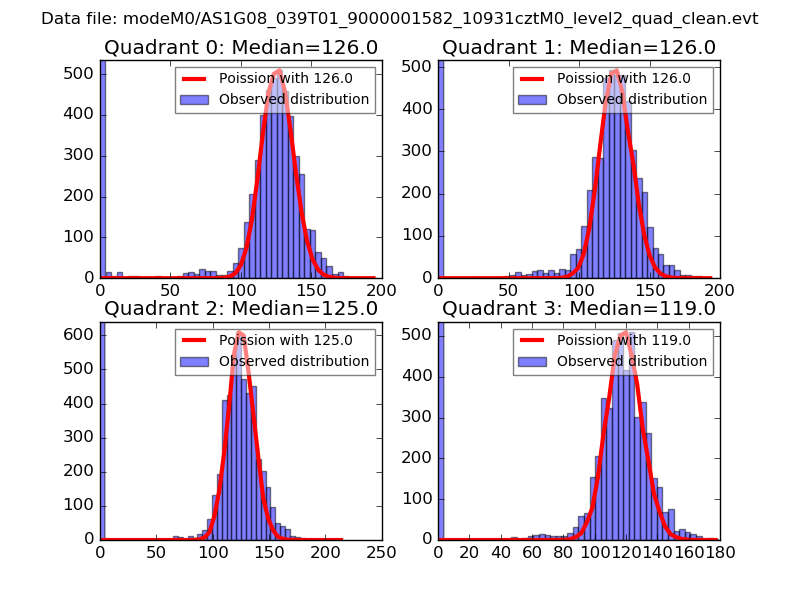

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

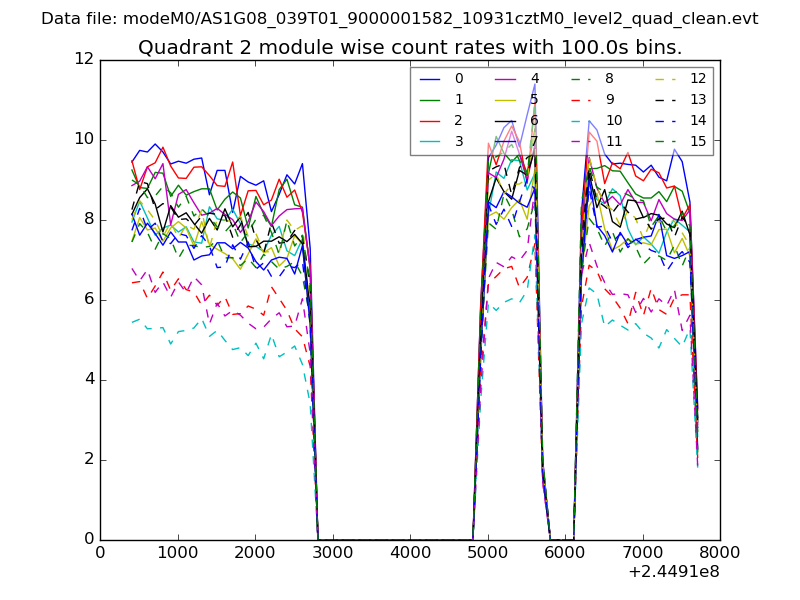

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

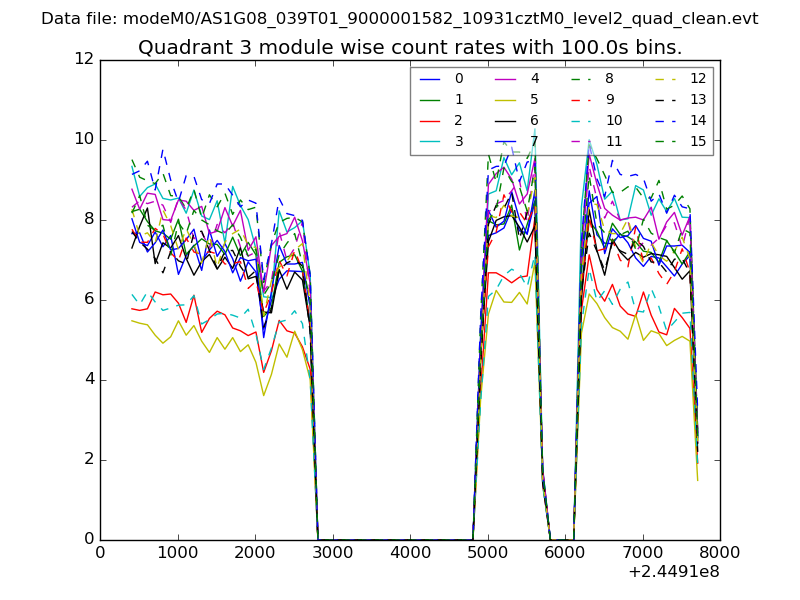

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

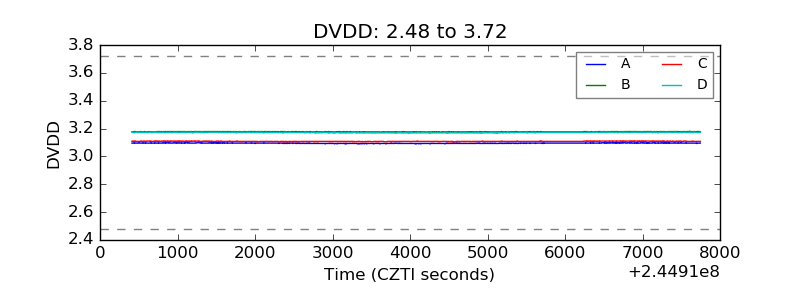

| D_VDD |  |

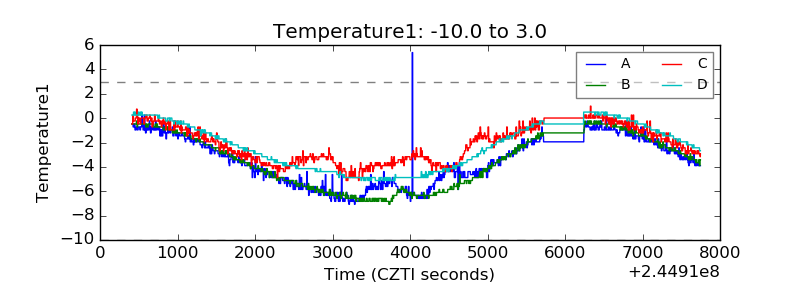

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

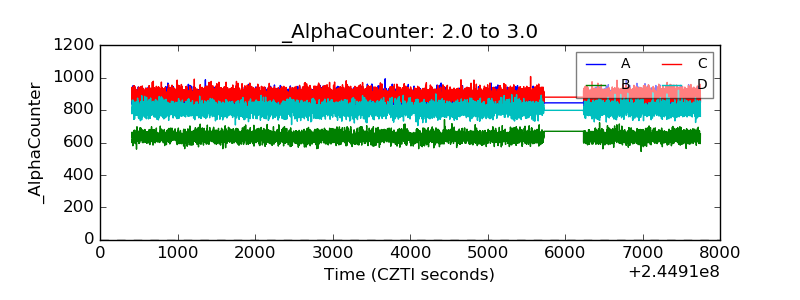

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

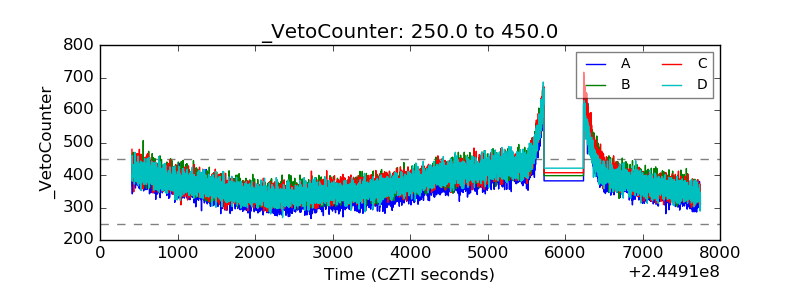

| Veto Counter |  |
