| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_037T01_9000001588_10945cztM0_level2.evt | modeM0/AS1G08_037T01_9000001588_10945cztM0_level2_quad_clean.evt |
| Size (bytes) | 265,032,000 | 38,263,680 |
| Size | 252.8 MB | 36.5 MB |
| Events in quadrant A | 2,498,340 | 228,422 |
| Events in quadrant B | 1,885,670 | 237,996 |
| Events in quadrant C | 1,605,430 | 236,527 |
| Events in quadrant D | 1,813,832 | 223,147 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9564 | 2 |
| B | 0 | 7593 | 1 |
| C | 0 | 6916 | 1 |
| D | 0 | 7472 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3263 | 216 | 6.619675% |
| B | 3263 | 125 | 3.830831% |
| C | 3263 | 33 | 1.011339% |
| D | 3263 | 37 | 1.133926% |

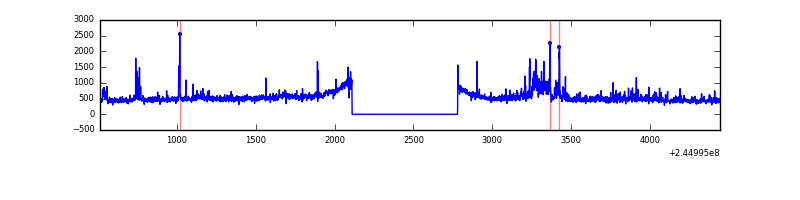

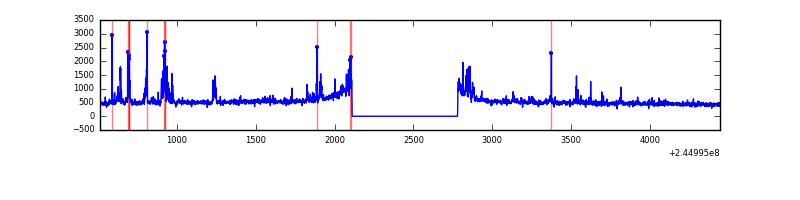

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3933 | 3264 | 107 | 107 | 2.72% | 3.28% |  |
| B | 3933 | 3264 | 13 | 13 | 0.33% | 0.40% |  |
| C | 3933 | 3264 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3933 | 3264 | 3 | 3 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 583081 | 6525.73 | 423 | 414 | 89.3 |
| A | 14 | 238 | 200695 | 2243.1 | 423 | 414 | 89.3 |
| A | 8 | 15 | 24699 | 271.99 | 423 | 414 | 89.3 |
| B | 4 | 239 | 186359 | 2225.64 | 423 | 413 | 83.5 |
| B | 11 | 51 | 13994 | 162.55 | 423 | 413 | 83.5 |
| B | 0 | 214 | 10796 | 124.28 | 423 | 413 | 83.5 |
| C | 13 | 61 | 3065 | 27.1 | 411 | 412 | 97.9 |
| C | 8 | 222 | 1593 | 12.06 | 411 | 412 | 97.9 |
| C | 3 | 202 | 1060 | 6.62 | 411 | 412 | 97.9 |
| D | 1 | 52 | 54984 | 535.52 | 411 | 399 | 101.9 |
| D | 13 | 152 | 52038 | 506.62 | 411 | 399 | 101.9 |
| D | 5 | 222 | 40555 | 393.96 | 411 | 399 | 101.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

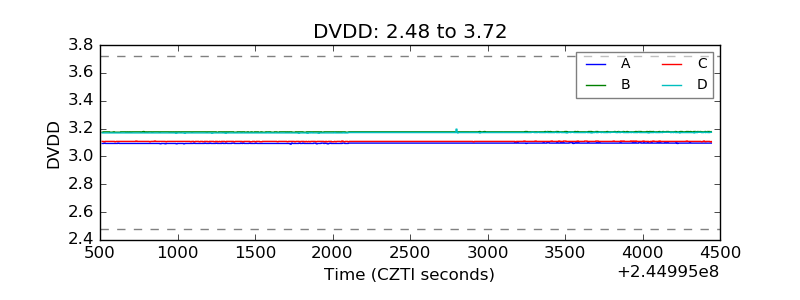

| D_VDD |  |
| Temperature 1 |  |

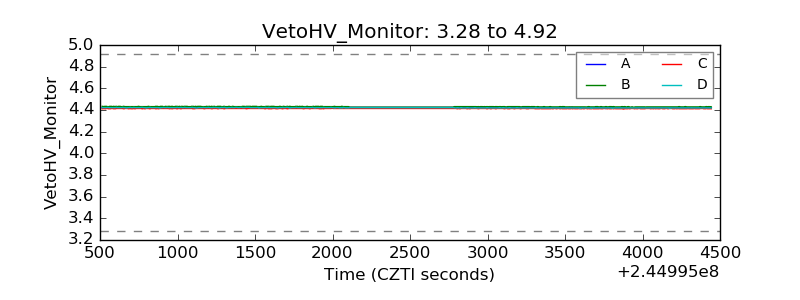

| Veto HV Monitor |  |
| Veto LLD |  |

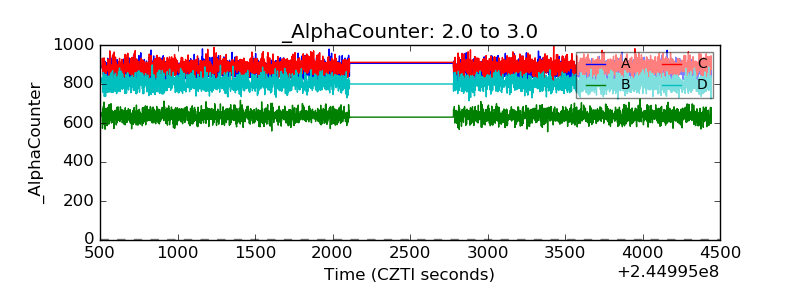

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
