| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_037T01_9000001588_10947cztM0_level2.evt | modeM0/AS1G08_037T01_9000001588_10947cztM0_level2_quad_clean.evt |
| Size (bytes) | 652,521,600 | 94,409,280 |
| Size | 622.3 MB | 90.0 MB |
| Events in quadrant A | 6,773,518 | 577,894 |
| Events in quadrant B | 4,530,640 | 613,969 |
| Events in quadrant C | 3,242,427 | 608,661 |
| Events in quadrant D | 4,728,310 | 557,032 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25208 | 2 |
| B | 0 | 18217 | 1 |
| C | 0 | 14812 | 1 |
| D | 0 | 19106 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7202 | 674 | 9.358512% |
| B | 7202 | 281 | 3.901694% |
| C | 7202 | 44 | 0.610941% |
| D | 7202 | 402 | 5.581783% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7262 | 7202 | 432 | 432 | 5.95% | 6.00% |  |
| B | 7262 | 7203 | 136 | 136 | 1.87% | 1.89% |  |
| C | 7262 | 7203 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7262 | 7203 | 247 | 247 | 3.40% | 3.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 2113517 | 12375.41 | 824 | 804 | 170.7 |
| A | 8 | 15 | 736866 | 4311.55 | 824 | 804 | 170.7 |
| A | 14 | 238 | 442254 | 2585.83 | 824 | 804 | 170.7 |
| B | 4 | 239 | 988310 | 6006.21 | 850 | 829 | 164.4 |
| B | 4 | 81 | 46440 | 277.42 | 850 | 829 | 164.4 |
| B | 0 | 219 | 42959 | 256.25 | 850 | 829 | 164.4 |
| C | 8 | 128 | 8515 | 39.71 | 825 | 827 | 193.6 |
| C | 13 | 61 | 6291 | 28.22 | 825 | 827 | 193.6 |
| C | 8 | 112 | 5780 | 25.58 | 825 | 827 | 193.6 |
| D | 1 | 52 | 660107 | 3354.61 | 801 | 776 | 196.5 |
| D | 13 | 152 | 624494 | 3173.42 | 801 | 776 | 196.5 |
| D | 5 | 222 | 150591 | 762.24 | 801 | 776 | 196.5 |

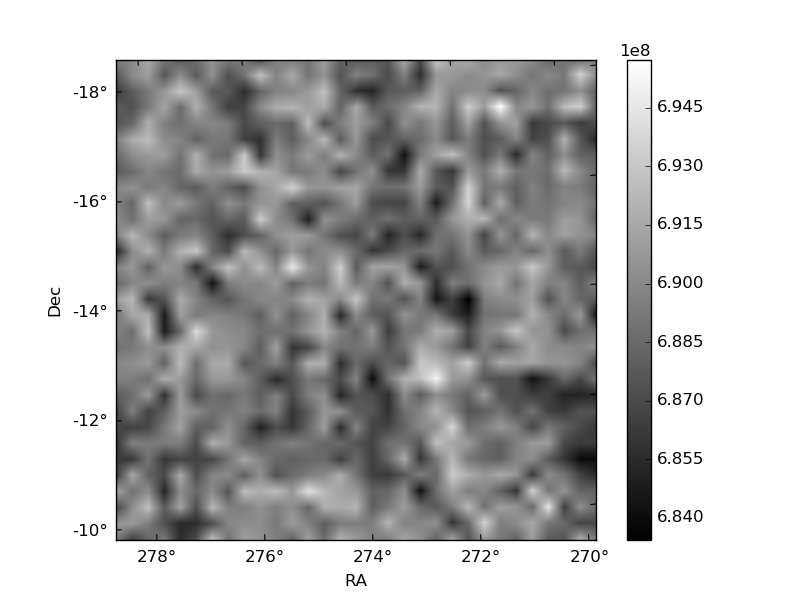

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

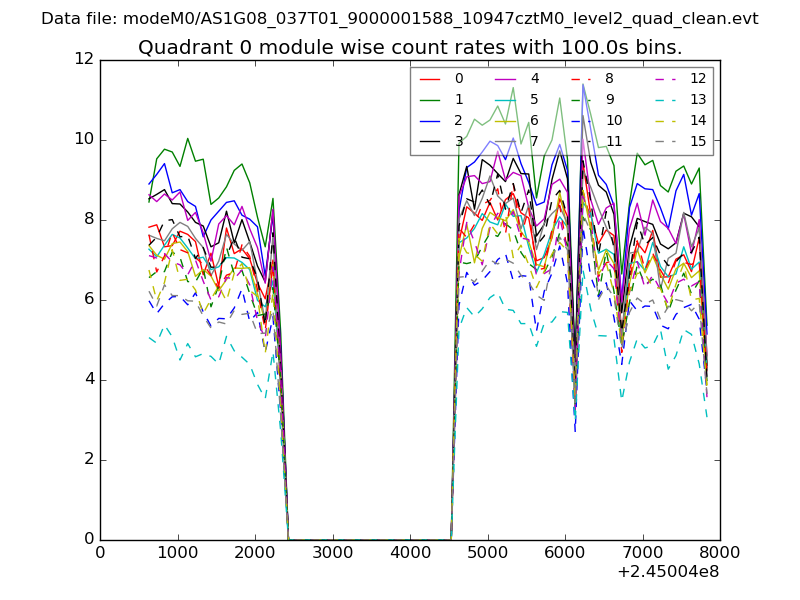

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

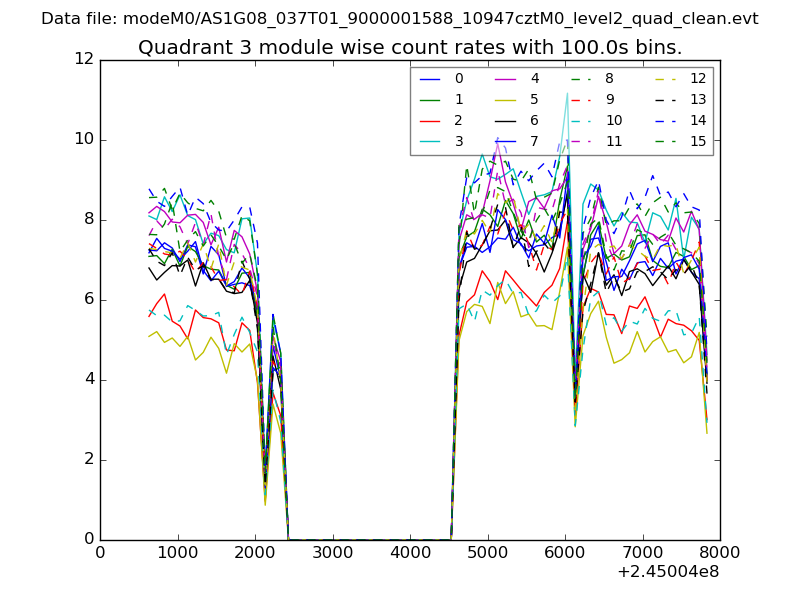

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

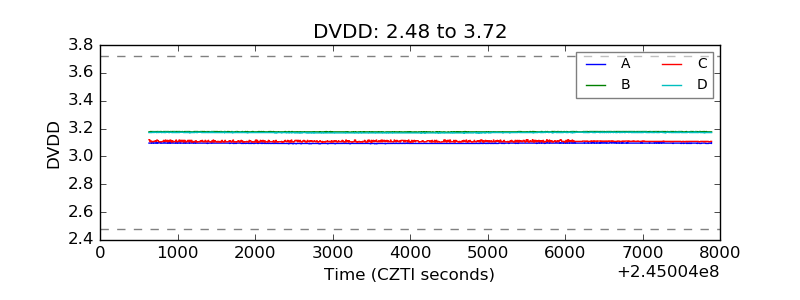

| D_VDD |  |

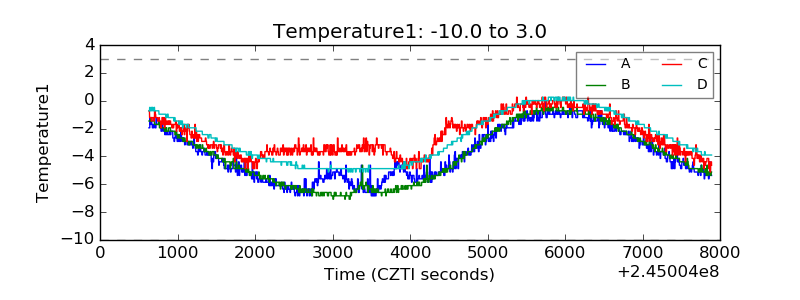

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

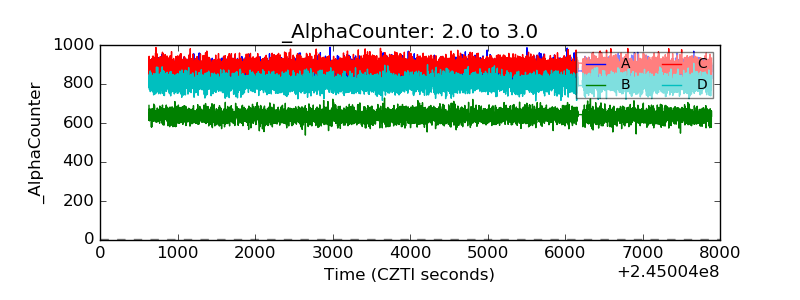

| Alpha Counter |  |
| _CPM_Rate |  |

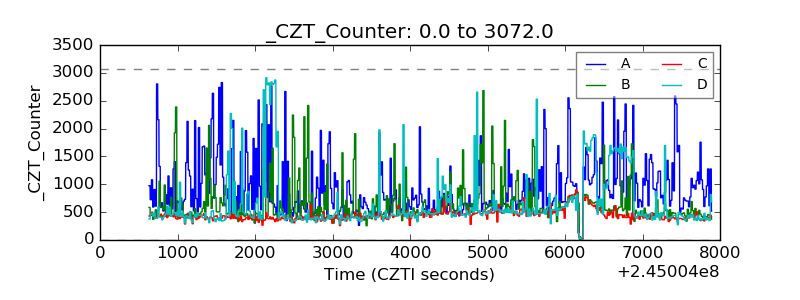

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

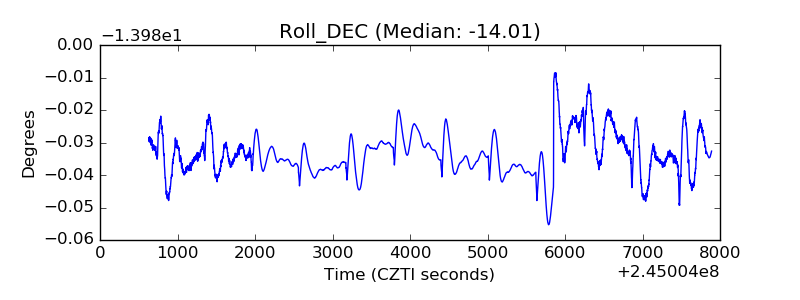

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
