| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_193T01_9000001590_10961cztM0_level2.evt | modeM0/AS1T01_193T01_9000001590_10961cztM0_level2_quad_clean.evt |
| Size (bytes) | 632,687,040 | 120,507,840 |
| Size | 603.4 MB | 114.9 MB |
| Events in quadrant A | 5,302,257 | 782,865 |
| Events in quadrant B | 4,657,800 | 802,210 |
| Events in quadrant C | 3,478,101 | 803,105 |
| Events in quadrant D | 5,201,970 | 726,857 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20972 | 10 |
| B | 0 | 18894 | 8 |
| C | 0 | 15772 | 1 |
| D | 0 | 20730 | 25 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7688 | 358 | 4.656608% |
| B | 7689 | 298 | 3.875667% |
| C | 7691 | 48 | 0.624106% |
| D | 7687 | 675 | 8.781059% |

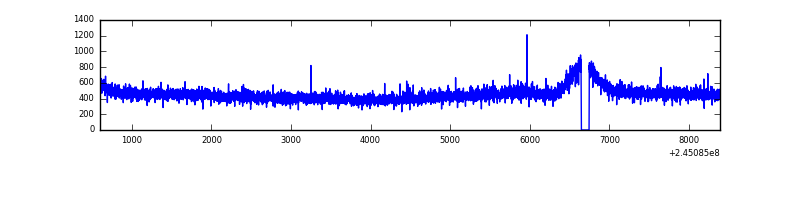

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7791 | 7692 | 179 | 179 | 2.30% | 2.33% |  |
| B | 7791 | 7691 | 153 | 153 | 1.96% | 1.99% |  |
| C | 7791 | 7692 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7791 | 7691 | 511 | 511 | 6.56% | 6.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1761950 | 9610.03 | 894 | 874 | 183.3 |
| A | 8 | 15 | 28235 | 149.31 | 894 | 874 | 183.3 |
| A | 4 | 2 | 24852 | 130.85 | 894 | 874 | 183.3 |
| B | 4 | 239 | 896247 | 5153.9 | 906 | 884 | 173.7 |
| B | 4 | 173 | 48051 | 271.5 | 906 | 884 | 173.7 |
| B | 0 | 214 | 37908 | 213.12 | 906 | 884 | 173.7 |
| C | 13 | 61 | 6698 | 28.49 | 889 | 893 | 203.7 |
| C | 8 | 128 | 3616 | 13.37 | 889 | 893 | 203.7 |
| C | 14 | 234 | 2903 | 9.87 | 889 | 893 | 203.7 |
| D | 10 | 253 | 1554379 | 7599.2 | 843 | 820 | 204.4 |
| D | 14 | 34 | 104698 | 508.12 | 843 | 820 | 204.4 |
| D | 5 | 222 | 77806 | 376.58 | 843 | 820 | 204.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

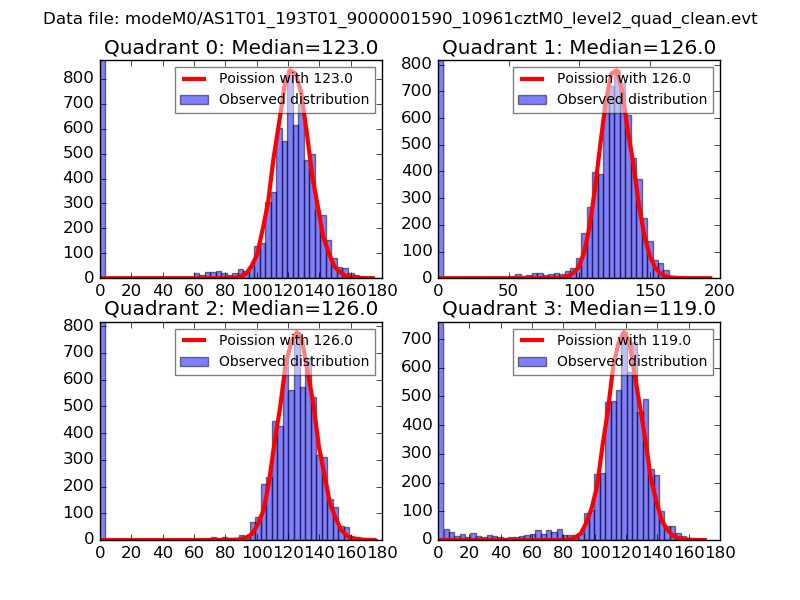

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

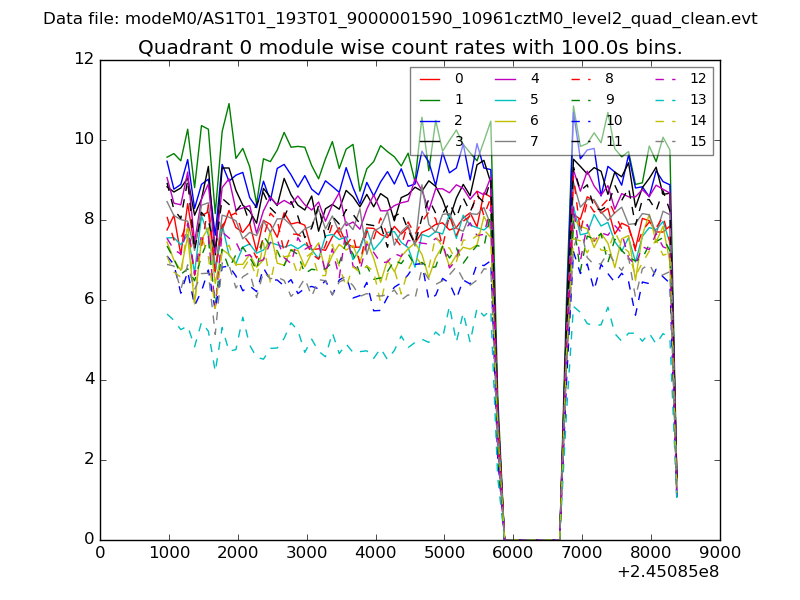

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

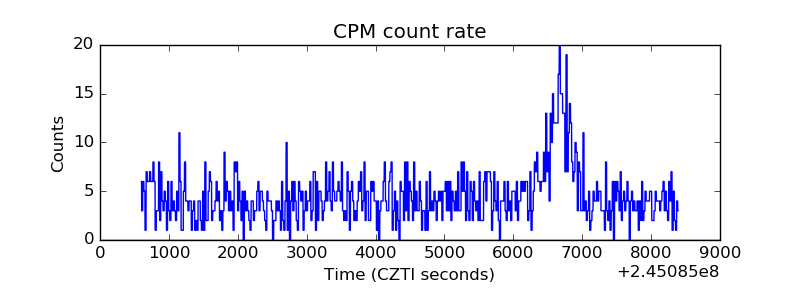

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

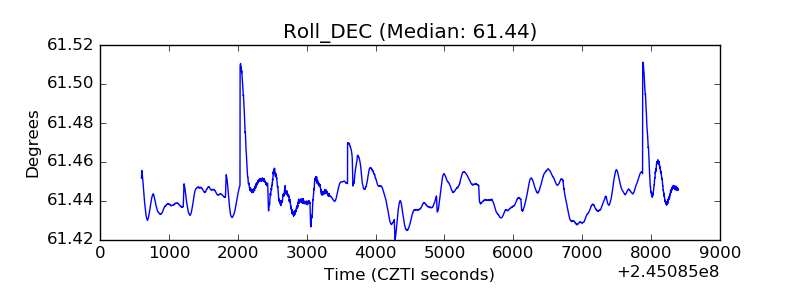

| _Roll_DEC |  |
| _Roll_RA |  |

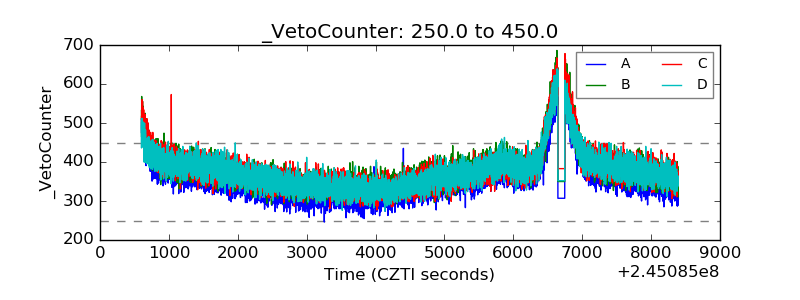

| Veto Counter |  |
