| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_027T06_9000001594_10975cztM0_level2.evt | modeM0/AS1G08_027T06_9000001594_10975cztM0_level2_quad_clean.evt |
| Size (bytes) | 643,135,680 | 99,126,720 |
| Size | 613.3 MB | 94.5 MB |
| Events in quadrant A | 6,522,960 | 620,962 |
| Events in quadrant B | 5,000,546 | 638,615 |
| Events in quadrant C | 3,326,898 | 636,842 |
| Events in quadrant D | 4,129,988 | 594,015 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24658 | 2 |
| B | 0 | 19715 | 3 |
| C | 0 | 15187 | 1 |
| D | 0 | 17475 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7345 | 476 | 6.480599% |
| B | 7344 | 493 | 6.712963% |
| C | 7345 | 35 | 0.476515% |
| D | 7345 | 270 | 3.675970% |

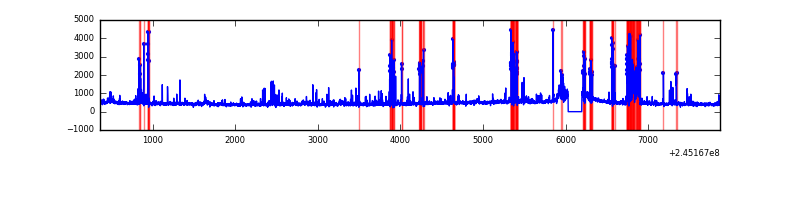

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7510 | 7346 | 283 | 283 | 3.77% | 3.85% |  |
| B | 7509 | 7345 | 271 | 271 | 3.61% | 3.69% |  |
| C | 7510 | 7346 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7510 | 7346 | 187 | 187 | 2.49% | 2.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 946740 | 5342.53 | 863 | 845 | 177.0 |
| A | 8 | 15 | 934679 | 5274.41 | 863 | 845 | 177.0 |
| A | 15 | 223 | 551534 | 3110.36 | 863 | 845 | 177.0 |
| B | 4 | 239 | 1359743 | 8070.92 | 872 | 852 | 168.4 |
| B | 15 | 204 | 53450 | 312.4 | 872 | 852 | 168.4 |
| B | 0 | 214 | 42485 | 247.27 | 872 | 852 | 168.4 |
| C | 1 | 3 | 7595 | 33.99 | 849 | 850 | 198.5 |
| C | 13 | 61 | 6506 | 28.5 | 849 | 850 | 198.5 |
| C | 8 | 222 | 5256 | 22.2 | 849 | 850 | 198.5 |
| D | 1 | 52 | 548950 | 2714.4 | 829 | 803 | 201.9 |
| D | 13 | 152 | 253955 | 1253.6 | 829 | 803 | 201.9 |
| D | 10 | 253 | 48199 | 234.7 | 829 | 803 | 201.9 |

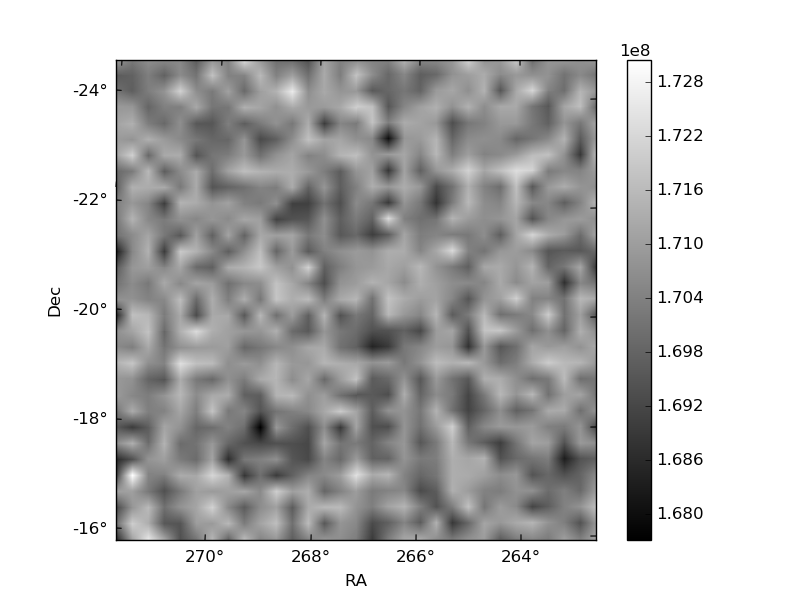

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

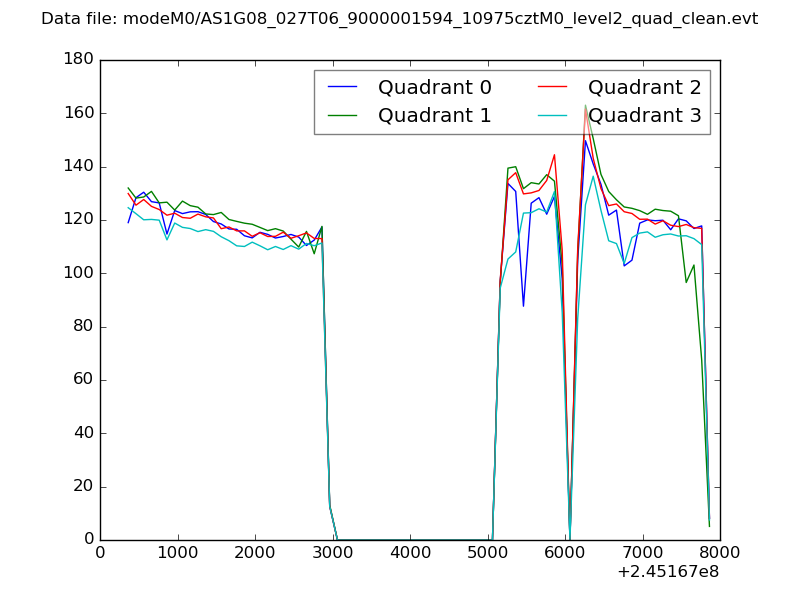

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

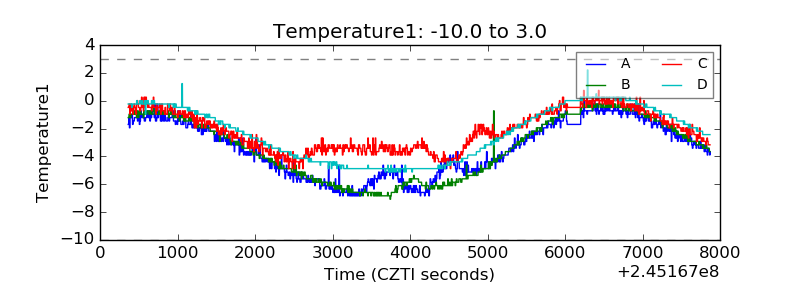

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

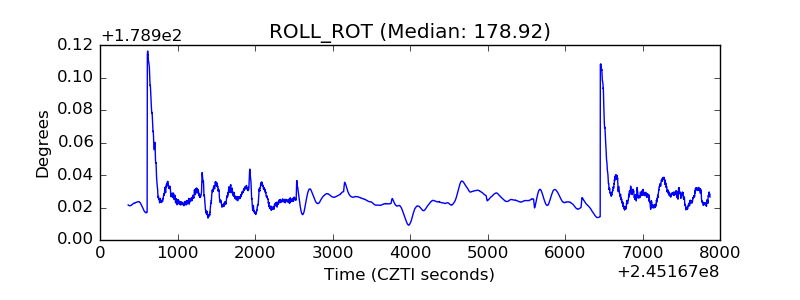

| _ROLL_ROT |  |
| _Roll_DEC |  |

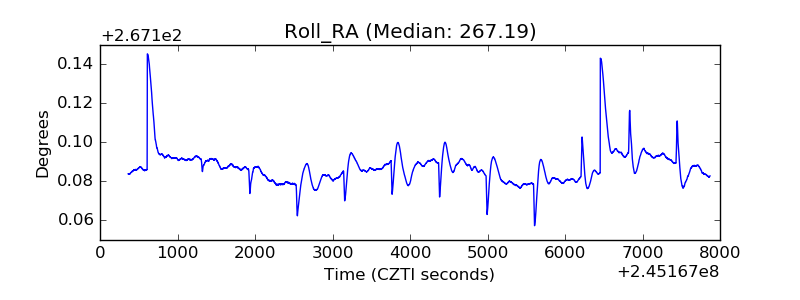

| _Roll_RA |  |

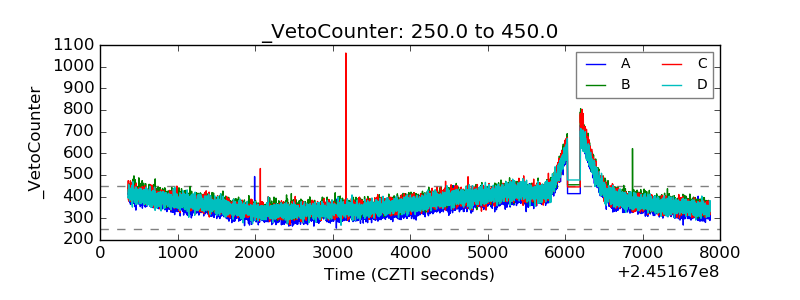

| Veto Counter |  |
