| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_027T06_9000001594_10977cztM0_level2.evt | modeM0/AS1G08_027T06_9000001594_10977cztM0_level2_quad_clean.evt |
| Size (bytes) | 646,735,680 | 95,996,160 |
| Size | 616.8 MB | 91.5 MB |
| Events in quadrant A | 6,176,425 | 579,001 |
| Events in quadrant B | 5,475,551 | 610,430 |
| Events in quadrant C | 3,201,654 | 620,821 |
| Events in quadrant D | 4,236,390 | 586,114 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23444 | 2 |
| B | 0 | 21078 | 3 |
| C | 0 | 14824 | 3 |
| D | 0 | 17576 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7332 | 926 | 12.629569% |
| B | 7331 | 580 | 7.911608% |
| C | 7331 | 6 | 0.081844% |
| D | 7332 | 153 | 2.086743% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7742 | 7333 | 683 | 683 | 8.82% | 9.31% |  |
| B | 7742 | 7333 | 372 | 372 | 4.80% | 5.07% |  |
| C | 7742 | 7333 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7742 | 7333 | 121 | 121 | 1.56% | 1.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 1702477 | 10398.33 | 799 | 782 | 163.7 |
| A | 8 | 5 | 706885 | 4314.69 | 799 | 782 | 163.7 |
| A | 15 | 239 | 529580 | 3231.26 | 799 | 782 | 163.7 |
| B | 4 | 239 | 1972374 | 12367.24 | 830 | 811 | 159.4 |
| B | 0 | 229 | 64315 | 398.35 | 830 | 811 | 159.4 |
| B | 15 | 36 | 41168 | 253.15 | 830 | 811 | 159.4 |
| C | 0 | 207 | 16367 | 82.17 | 811 | 816 | 189.2 |
| C | 8 | 128 | 8036 | 38.15 | 811 | 816 | 189.2 |
| C | 13 | 61 | 6165 | 28.26 | 811 | 816 | 189.2 |
| D | 1 | 52 | 428143 | 1998.93 | 795 | 779 | 213.8 |
| D | 8 | 195 | 314834 | 1468.94 | 795 | 779 | 213.8 |
| D | 2 | 14 | 133534 | 620.94 | 795 | 779 | 213.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

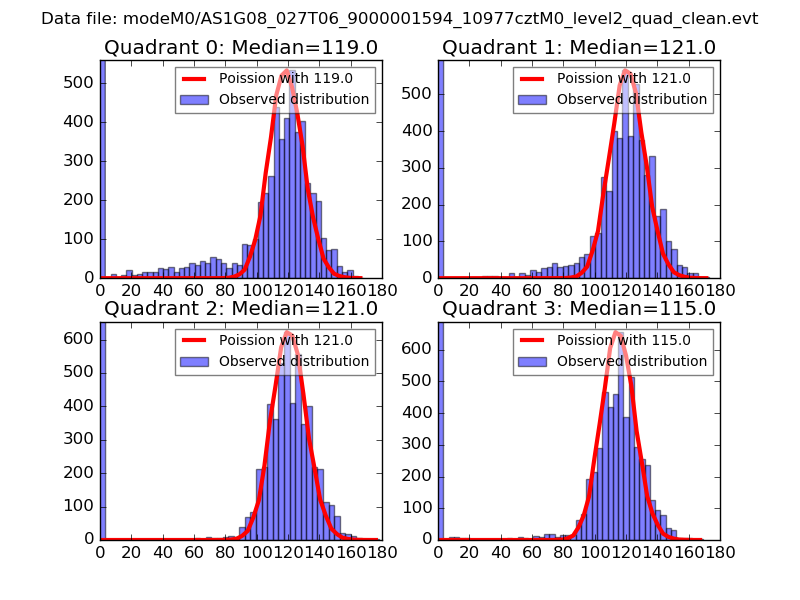

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

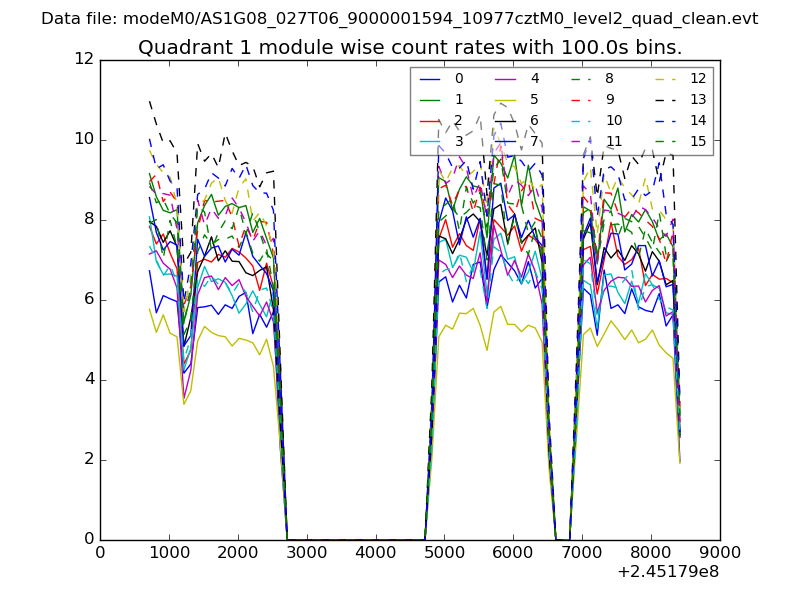

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

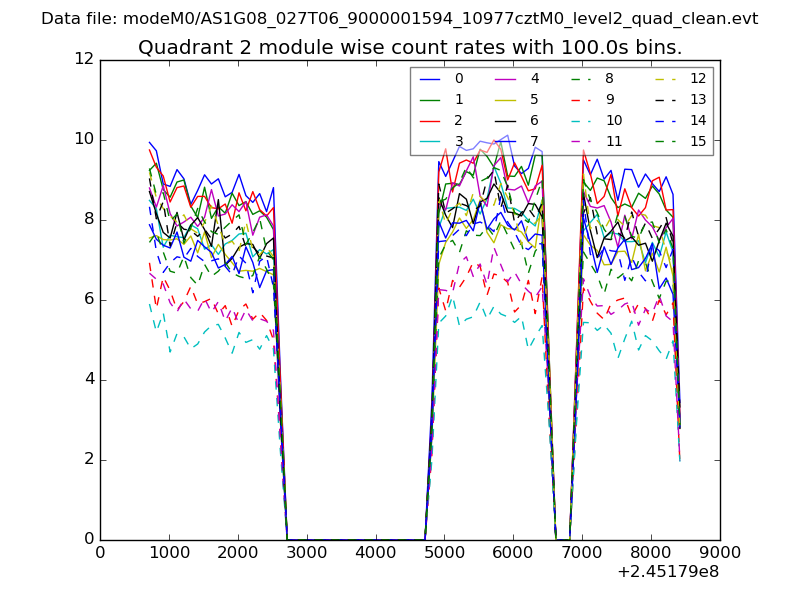

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

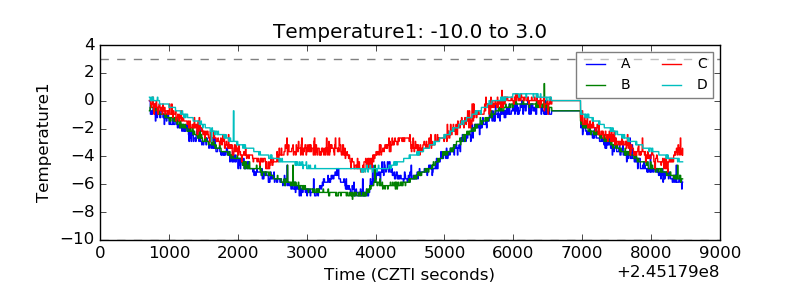

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

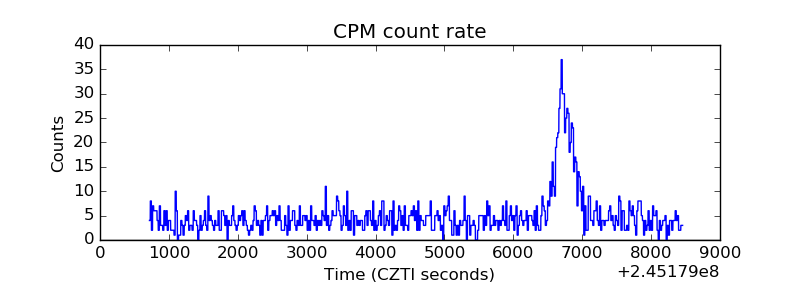

| _CPM_Rate |  |

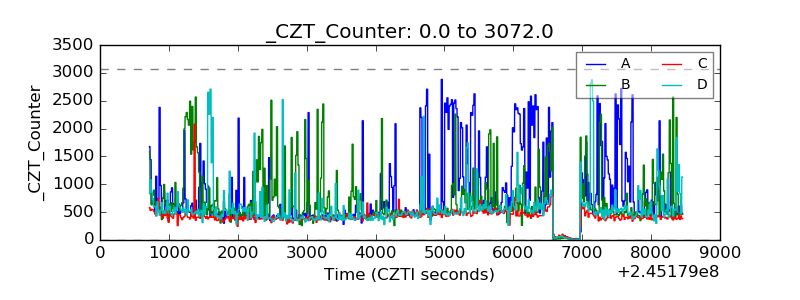

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
