| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_027T06_9000001594_10999cztM0_level2.evt | modeM0/AS1G08_027T06_9000001594_10999cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,592,320 | 82,356,480 |
| Size | 495.5 MB | 78.5 MB |
| Events in quadrant A | 3,920,904 | 524,527 |
| Events in quadrant B | 4,345,554 | 524,642 |
| Events in quadrant C | 3,148,998 | 521,961 |
| Events in quadrant D | 3,901,302 | 491,160 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15673 | 58 |
| B | 0 | 16973 | 61 |
| C | 0 | 13292 | 46 |
| D | 0 | 15606 | 47 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 2 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6182 | 176 | 2.846975% |
| B | 6183 | 374 | 6.048844% |
| C | 6183 | 52 | 0.841016% |
| D | 6183 | 175 | 2.830341% |

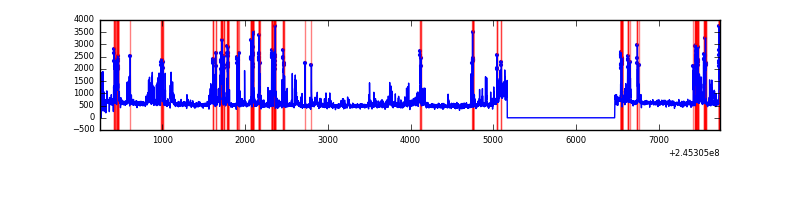

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7498 | 6197 | 84 | 84 | 1.12% | 1.36% |  |
| B | 7498 | 6197 | 186 | 186 | 2.48% | 3.00% |  |
| C | 7498 | 6197 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7498 | 6196 | 70 | 70 | 0.93% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 627915 | 3764.1 | 834 | 822 | 166.6 |
| A | 14 | 254 | 54719 | 323.51 | 834 | 822 | 166.6 |
| A | 0 | 226 | 7613 | 40.76 | 834 | 822 | 166.6 |
| B | 4 | 239 | 1004166 | 6563.95 | 823 | 808 | 152.9 |
| B | 3 | 189 | 44704 | 287.17 | 823 | 808 | 152.9 |
| B | 15 | 204 | 31543 | 201.07 | 823 | 808 | 152.9 |
| C | 13 | 61 | 6187 | 29.06 | 807 | 813 | 184.9 |
| C | 3 | 202 | 2046 | 6.67 | 807 | 813 | 184.9 |
| C | 8 | 222 | 1850 | 5.61 | 807 | 813 | 184.9 |
| D | 1 | 52 | 458934 | 2409.77 | 800 | 782 | 190.1 |
| D | 8 | 195 | 170524 | 892.8 | 800 | 782 | 190.1 |
| D | 10 | 253 | 66577 | 346.07 | 800 | 782 | 190.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

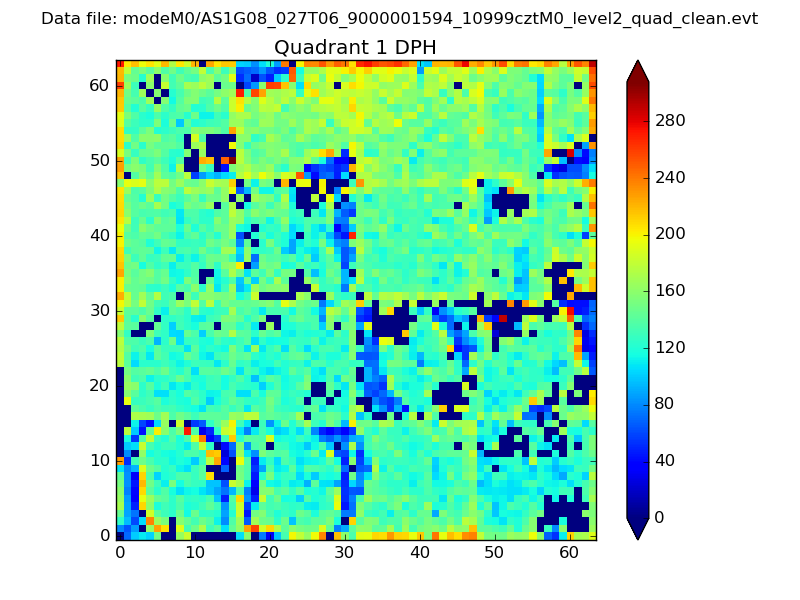

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

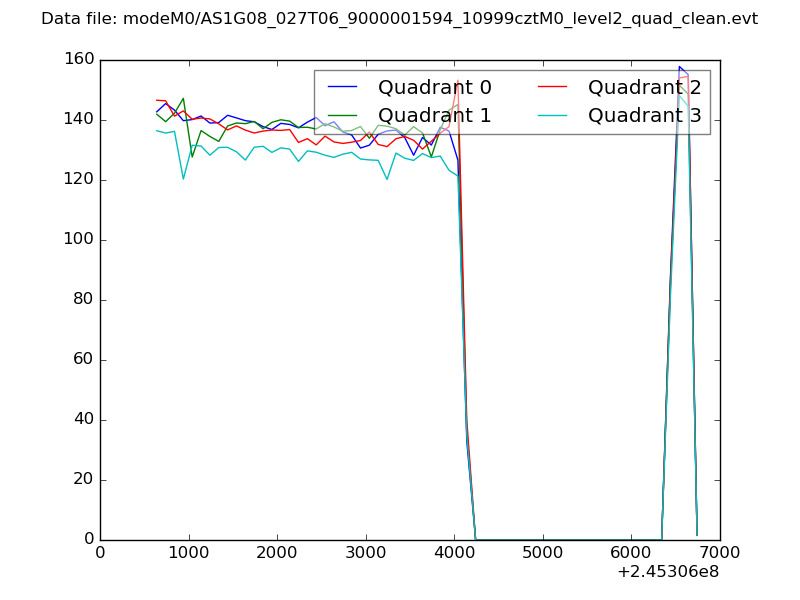

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

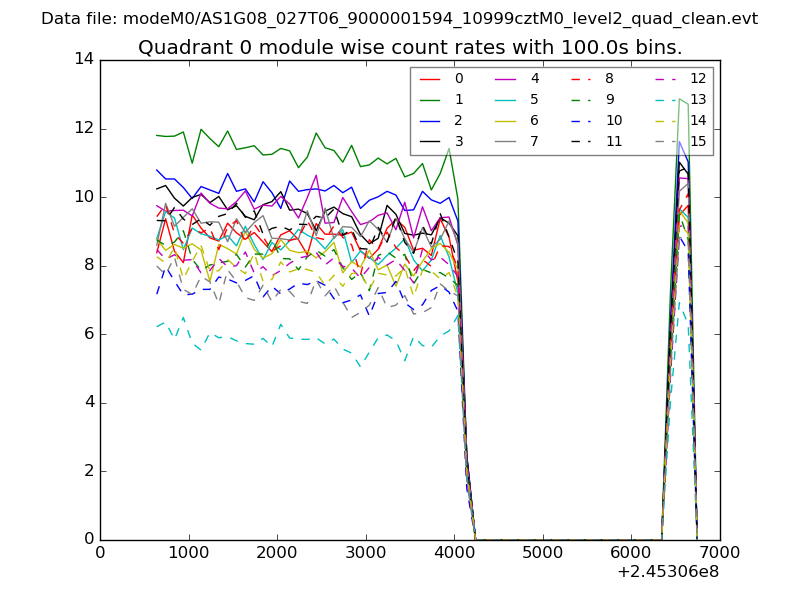

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

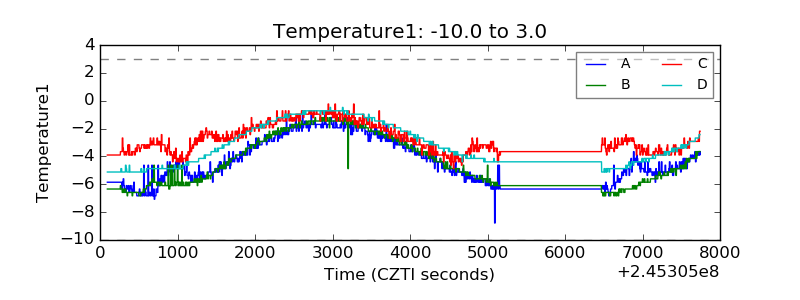

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

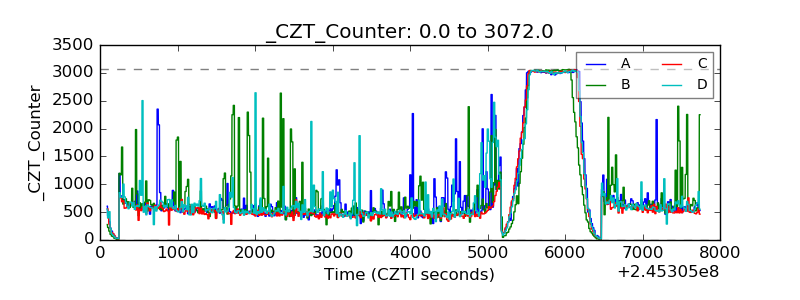

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

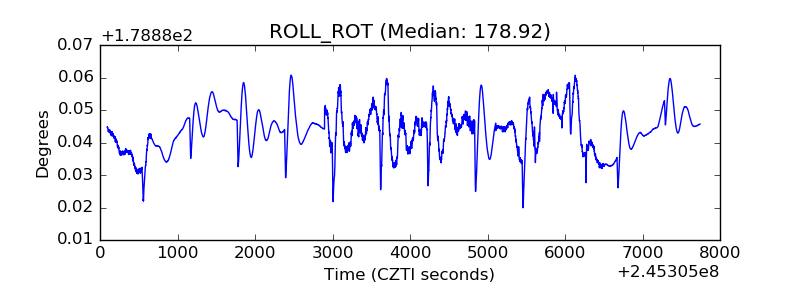

| _ROLL_ROT |  |
| _Roll_DEC |  |

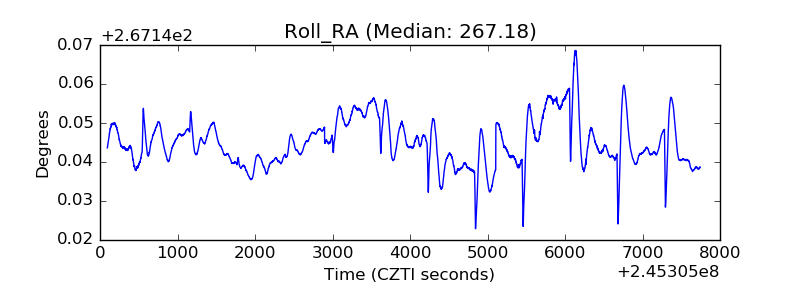

| _Roll_RA |  |
| Veto Counter |  |
