| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_027T06_9000001594_11001cztM0_level2.evt | modeM0/AS1G08_027T06_9000001594_11001cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,642,560 | 101,522,880 |
| Size | 502.2 MB | 96.8 MB |
| Events in quadrant A | 3,711,321 | 677,090 |
| Events in quadrant B | 4,447,858 | 669,505 |
| Events in quadrant C | 3,153,902 | 661,078 |
| Events in quadrant D | 4,205,173 | 623,272 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15234 | 3 |
| B | 0 | 17441 | 2 |
| C | 0 | 13400 | 2 |
| D | 0 | 16431 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6354 | 151 | 2.376456% |
| B | 6354 | 369 | 5.807365% |
| C | 6354 | 78 | 1.227573% |
| D | 6354 | 283 | 4.453887% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 6354 | 23 | 23 | 0.30% | 0.36% |  |
| B | 7594 | 6355 | 158 | 158 | 2.08% | 2.49% |  |
| C | 7594 | 6355 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7594 | 6354 | 189 | 189 | 2.49% | 2.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 235177 | 1377.5 | 847 | 831 | 170.1 |
| A | 15 | 174 | 167146 | 977.61 | 847 | 831 | 170.1 |
| A | 14 | 254 | 31903 | 182.64 | 847 | 831 | 170.1 |
| B | 4 | 239 | 1007017 | 6508.9 | 827 | 809 | 154.6 |
| B | 0 | 214 | 63237 | 403.83 | 827 | 809 | 154.6 |
| B | 0 | 219 | 43602 | 276.82 | 827 | 809 | 154.6 |
| C | 13 | 61 | 6011 | 28.13 | 806 | 814 | 184.7 |
| C | 5 | 128 | 4403 | 19.43 | 806 | 814 | 184.7 |
| C | 12 | 4 | 3434 | 14.18 | 806 | 814 | 184.7 |
| D | 1 | 52 | 649710 | 3359.0 | 804 | 783 | 193.2 |
| D | 10 | 253 | 165617 | 853.22 | 804 | 783 | 193.2 |
| D | 5 | 222 | 87557 | 449.16 | 804 | 783 | 193.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

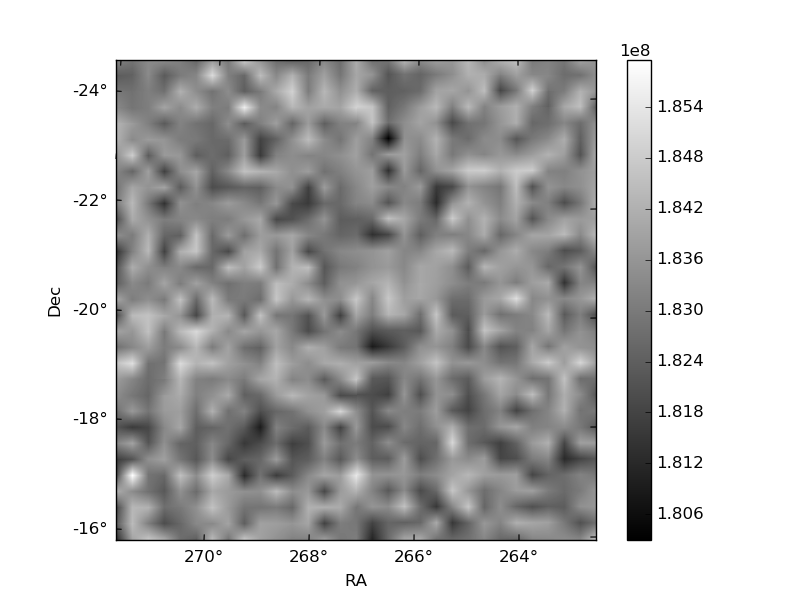

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

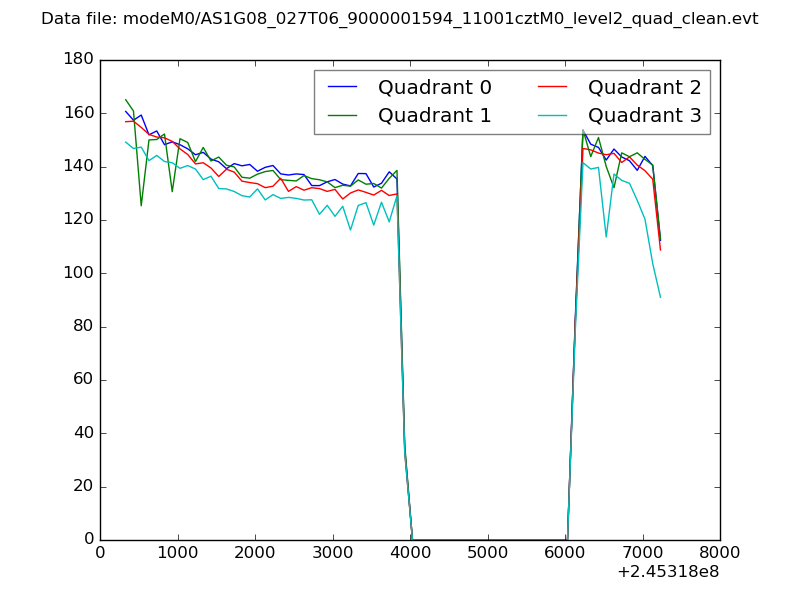

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

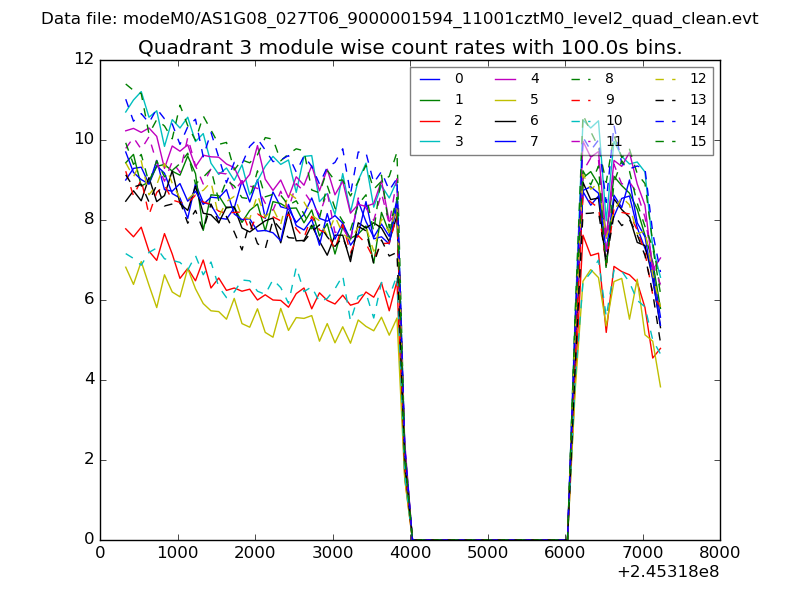

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

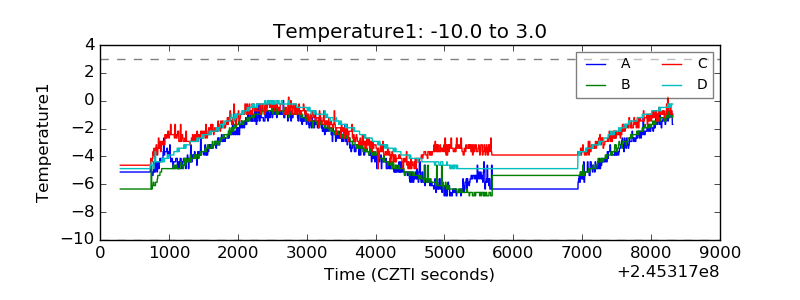

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

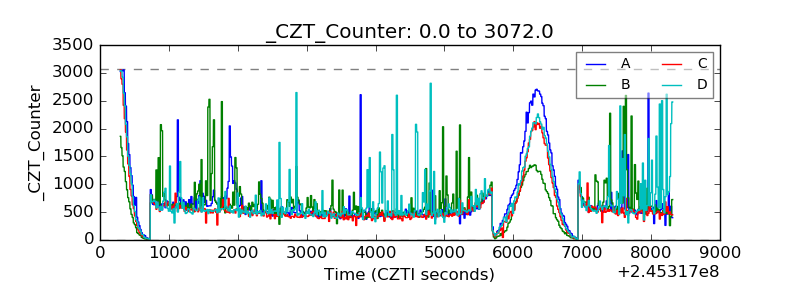

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

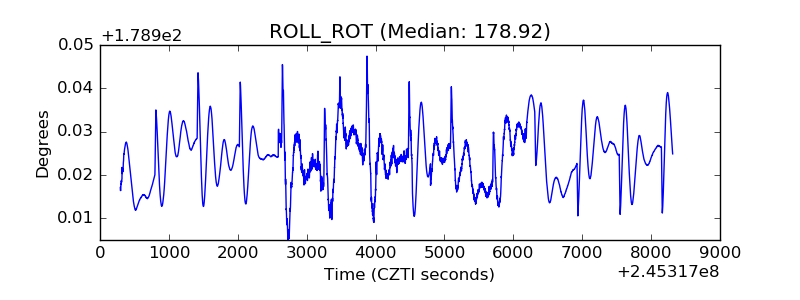

| _ROLL_ROT |  |
| _Roll_DEC |  |

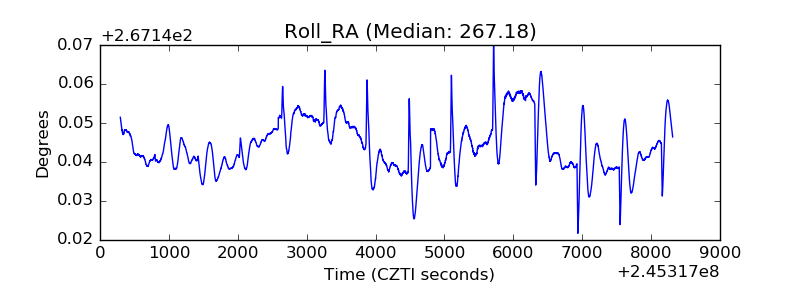

| _Roll_RA |  |

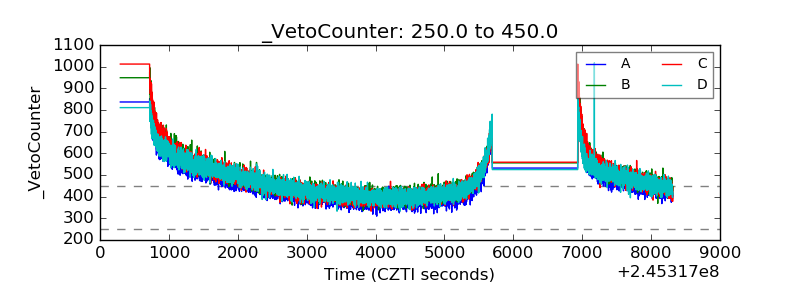

| Veto Counter |  |
