| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_027T06_9000001594_11004cztM0_level2.evt | modeM0/AS1G08_027T06_9000001594_11004cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,704,640 | 89,988,480 |
| Size | 487.0 MB | 85.8 MB |
| Events in quadrant A | 3,553,582 | 574,385 |
| Events in quadrant B | 4,672,036 | 571,479 |
| Events in quadrant C | 3,074,613 | 564,434 |
| Events in quadrant D | 3,704,231 | 540,113 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15079 | 2 |
| B | 0 | 18341 | 1 |
| C | 0 | 14040 | 1 |
| D | 0 | 15636 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6804 | 89 | 1.308054% |
| B | 6804 | 446 | 6.554968% |
| C | 6804 | 21 | 0.308642% |
| D | 6804 | 88 | 1.293357% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

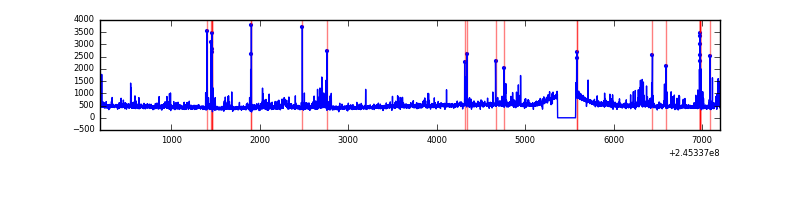

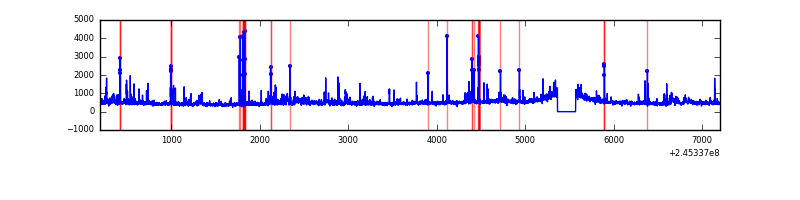

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7009 | 6805 | 23 | 23 | 0.33% | 0.34% |  |
| B | 7009 | 6805 | 212 | 212 | 3.02% | 3.12% |  |
| C | 7009 | 6805 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7009 | 6805 | 48 | 48 | 0.68% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 356293 | 2122.19 | 817 | 799 | 167.5 |
| A | 1 | 162 | 13652 | 76.73 | 817 | 799 | 167.5 |
| A | 11 | 29 | 11381 | 63.17 | 817 | 799 | 167.5 |
| B | 4 | 239 | 1313437 | 8404.77 | 807 | 788 | 156.2 |
| B | 3 | 189 | 48720 | 306.9 | 807 | 788 | 156.2 |
| B | 15 | 204 | 47570 | 299.54 | 807 | 788 | 156.2 |
| C | 13 | 61 | 5855 | 27.49 | 786 | 788 | 184.3 |
| C | 8 | 128 | 3337 | 13.83 | 786 | 788 | 184.3 |
| C | 12 | 4 | 3104 | 12.57 | 786 | 788 | 184.3 |
| D | 1 | 52 | 289422 | 1511.26 | 783 | 759 | 191.0 |
| D | 10 | 253 | 84925 | 440.64 | 783 | 759 | 191.0 |
| D | 7 | 71 | 63928 | 330.71 | 783 | 759 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

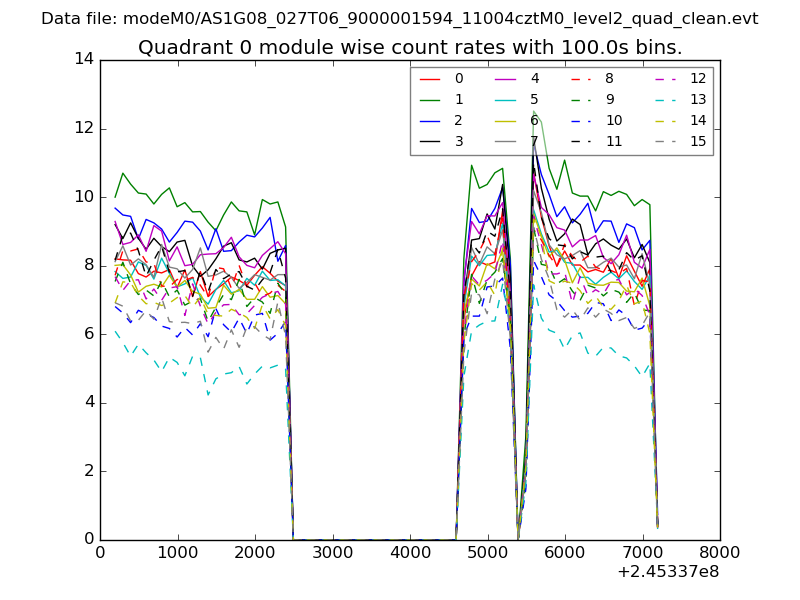

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

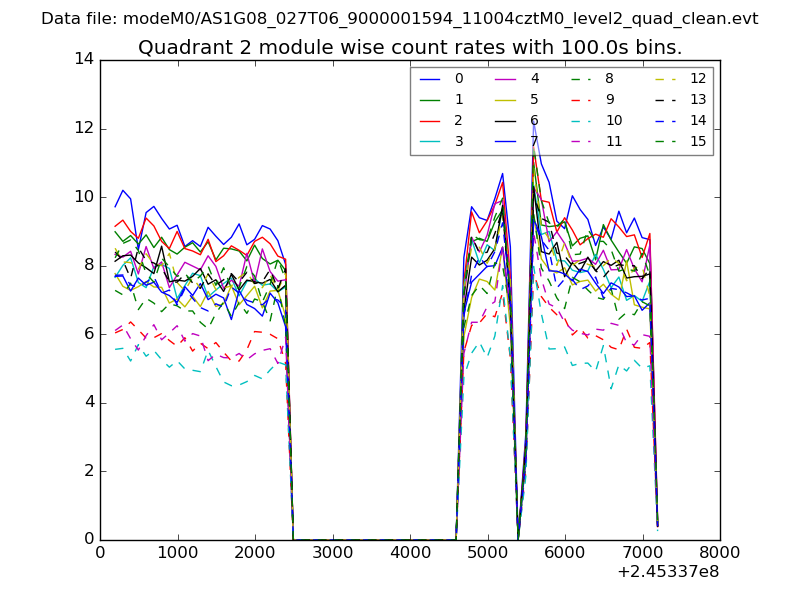

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

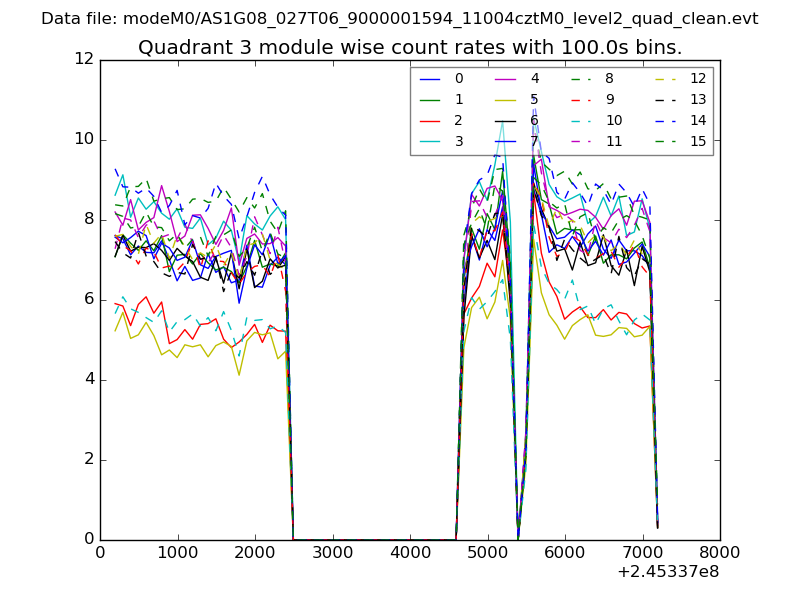

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

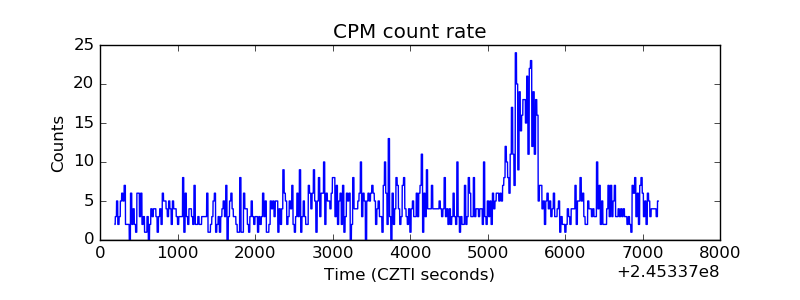

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

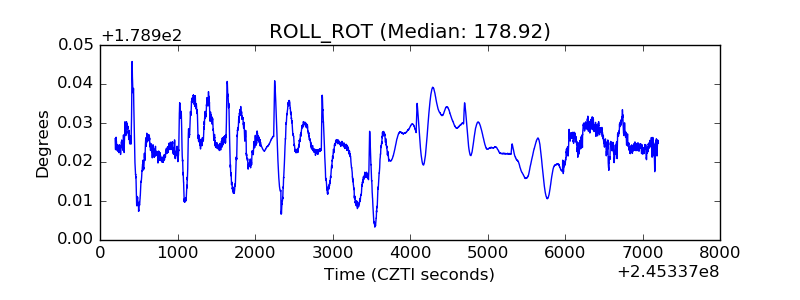

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

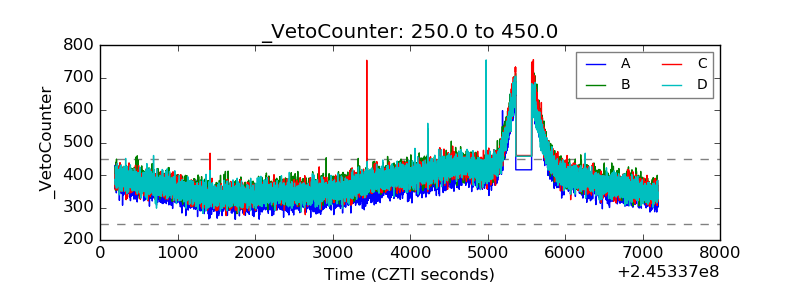

| Veto Counter |  |
