| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_030T01_9000001592_10969cztM0_level2.evt | modeM0/AS1G08_030T01_9000001592_10969cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,592,640 | 65,986,560 |
| Size | 490.8 MB | 62.9 MB |
| Events in quadrant A | 4,427,017 | 386,435 |
| Events in quadrant B | 3,907,334 | 399,899 |
| Events in quadrant C | 3,069,488 | 394,460 |
| Events in quadrant D | 3,747,851 | 371,949 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17293 | 3 |
| B | 0 | 15618 | 2 |
| C | 0 | 13219 | 2 |
| D | 0 | 15305 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6377 | 306 | 4.798495% |
| B | 6377 | 225 | 3.528305% |
| C | 6377 | 34 | 0.533166% |
| D | 6377 | 117 | 1.834719% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7592 | 6377 | 194 | 194 | 2.56% | 3.04% |  |
| B | 7592 | 6377 | 83 | 83 | 1.09% | 1.30% |  |
| C | 7592 | 6378 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7592 | 6378 | 53 | 53 | 0.70% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 1311785 | 8094.72 | 803 | 788 | 162.0 |
| A | 0 | 226 | 7369 | 40.63 | 803 | 788 | 162.0 |
| A | 11 | 29 | 6821 | 37.25 | 803 | 788 | 162.0 |
| B | 4 | 239 | 642952 | 4176.7 | 813 | 796 | 153.7 |
| B | 0 | 187 | 21686 | 135.87 | 813 | 796 | 153.7 |
| B | 15 | 204 | 19154 | 119.4 | 813 | 796 | 153.7 |
| C | 13 | 61 | 5765 | 27.31 | 787 | 794 | 182.0 |
| C | 3 | 202 | 1972 | 6.47 | 787 | 794 | 182.0 |
| C | 14 | 234 | 1896 | 6.05 | 787 | 794 | 182.0 |
| D | 1 | 52 | 571441 | 3072.34 | 775 | 757 | 185.7 |
| D | 13 | 104 | 67590 | 359.8 | 775 | 757 | 185.7 |
| D | 5 | 222 | 47188 | 249.97 | 775 | 757 | 185.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

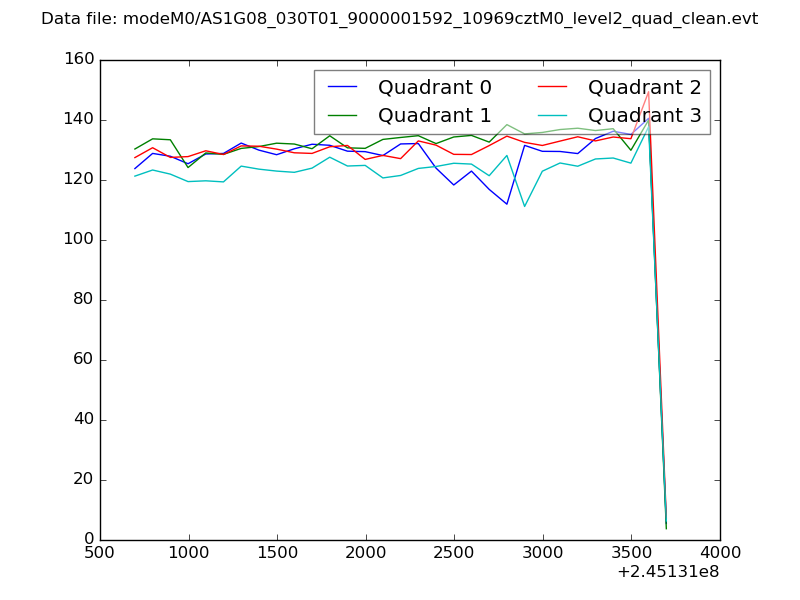

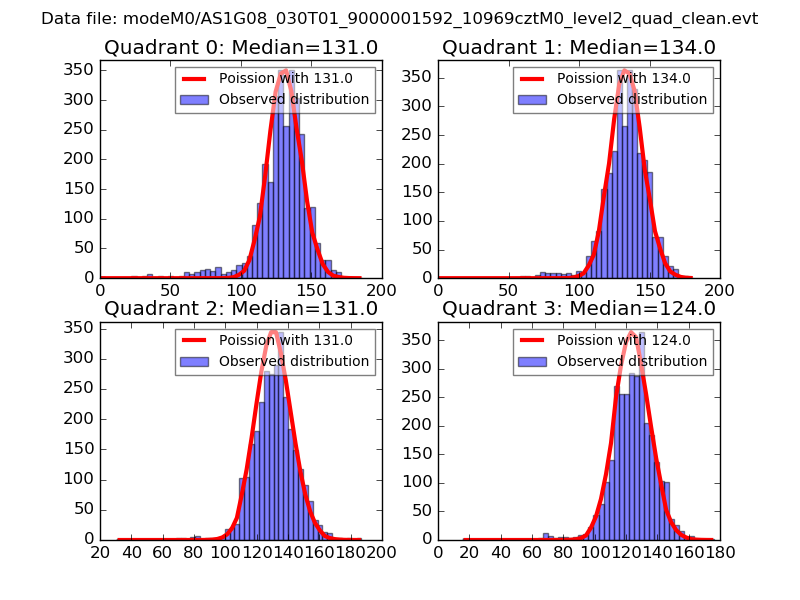

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

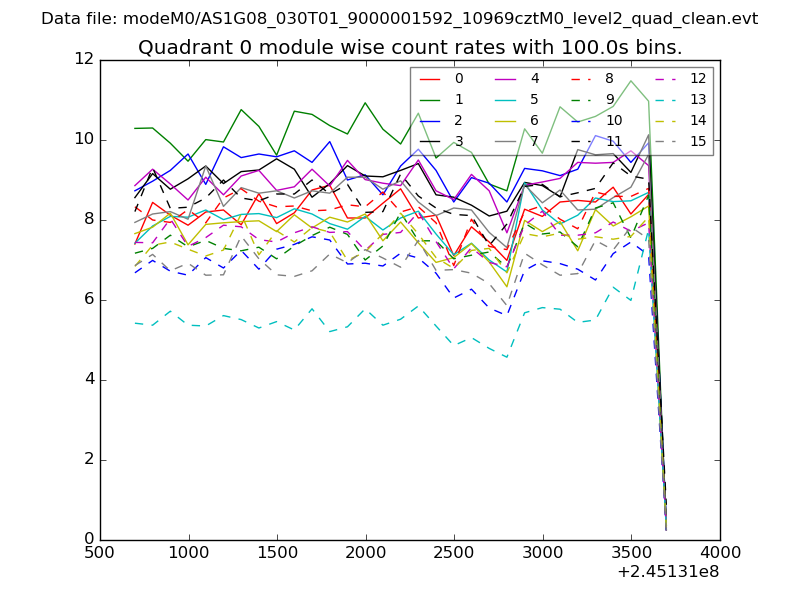

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

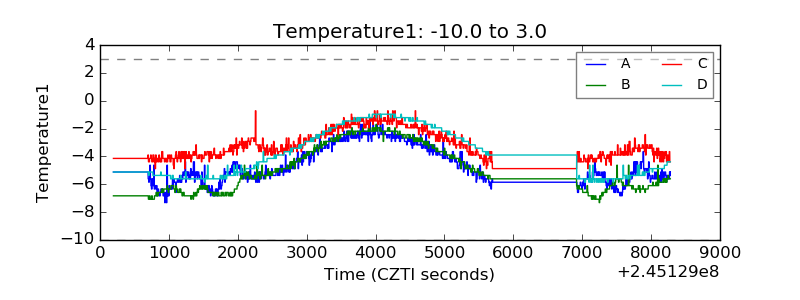

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

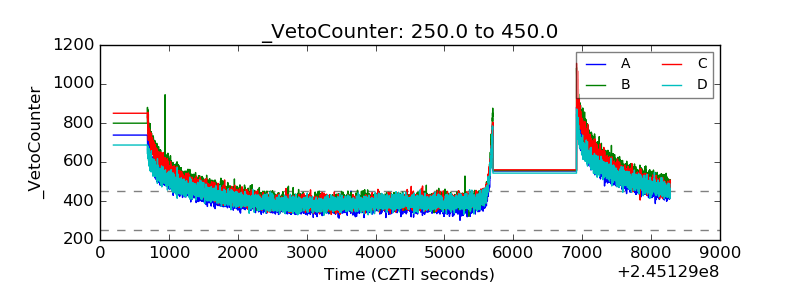

| Veto Counter |  |
