| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_016T01_9000001596_11010cztM0_level2.evt | modeM0/AS1C03_016T01_9000001596_11010cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,125,993,600 | 138,870,720 |
| Size | 1.0 GB | 132.4 MB |
| Events in quadrant A | 9,323,833 | 808,229 |
| Events in quadrant B | 7,997,093 | 862,242 |
| Events in quadrant C | 5,373,716 | 871,735 |
| Events in quadrant D | 10,577,584 | 813,892 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 250 | 2 |
| B | 0 | 250 | 0 |
| C | 0 | 250 | 0 |
| D | 0 | 250 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36297 | 55 |
| B | 0 | 32136 | 54 |
| C | 0 | 24976 | 26 |
| D | 0 | 39991 | 67 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12280 | 1312 | 10.684039% |
| B | 12277 | 655 | 5.335180% |
| C | 12280 | 34 | 0.276873% |
| D | 12278 | 1053 | 8.576315% |

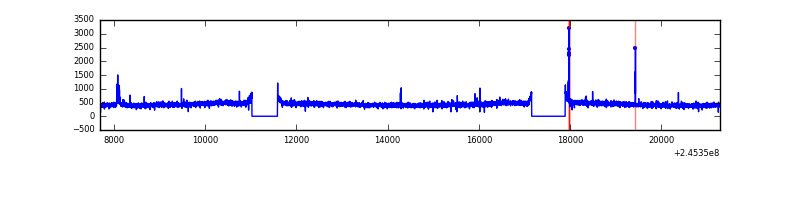

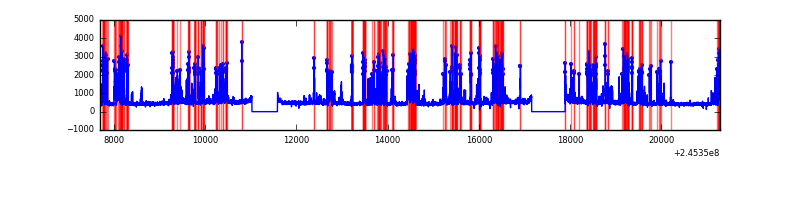

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

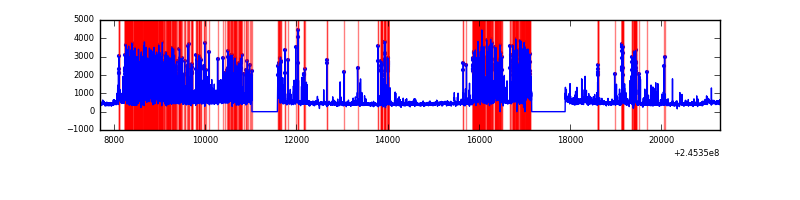

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13587 | 12291 | 902 | 902 | 6.64% | 7.34% |  |
| B | 13587 | 12294 | 415 | 415 | 3.05% | 3.38% |  |
| C | 13587 | 12294 | 5 | 5 | 0.04% | 0.04% |  |
| D | 13587 | 12292 | 890 | 890 | 6.55% | 7.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 2481743 | 9058.77 | 1346 | 1316 | 273.8 |
| A | 8 | 5 | 1586484 | 5789.19 | 1346 | 1316 | 273.8 |
| A | 15 | 174 | 56222 | 200.52 | 1346 | 1316 | 273.8 |
| B | 4 | 239 | 2429966 | 9257.86 | 1385 | 1351 | 262.3 |
| B | 0 | 214 | 68906 | 257.52 | 1385 | 1351 | 262.3 |
| B | 15 | 204 | 48398 | 179.34 | 1385 | 1351 | 262.3 |
| C | 12 | 4 | 21611 | 63.68 | 1370 | 1378 | 317.7 |
| C | 13 | 61 | 10144 | 27.59 | 1370 | 1378 | 317.7 |
| C | 14 | 234 | 9127 | 24.39 | 1370 | 1378 | 317.7 |
| D | 13 | 152 | 2221588 | 6974.68 | 1313 | 1274 | 318.3 |
| D | 1 | 52 | 901659 | 2828.38 | 1313 | 1274 | 318.3 |
| D | 8 | 195 | 889410 | 2789.91 | 1313 | 1274 | 318.3 |

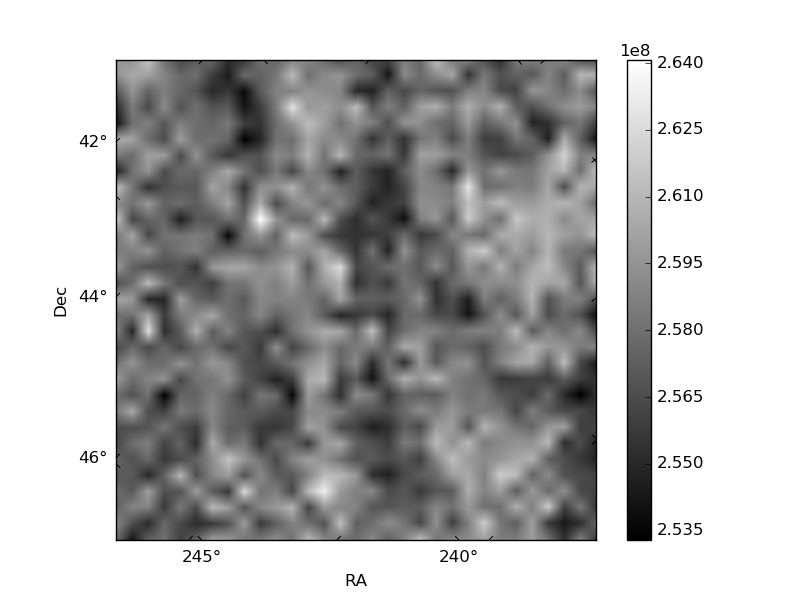

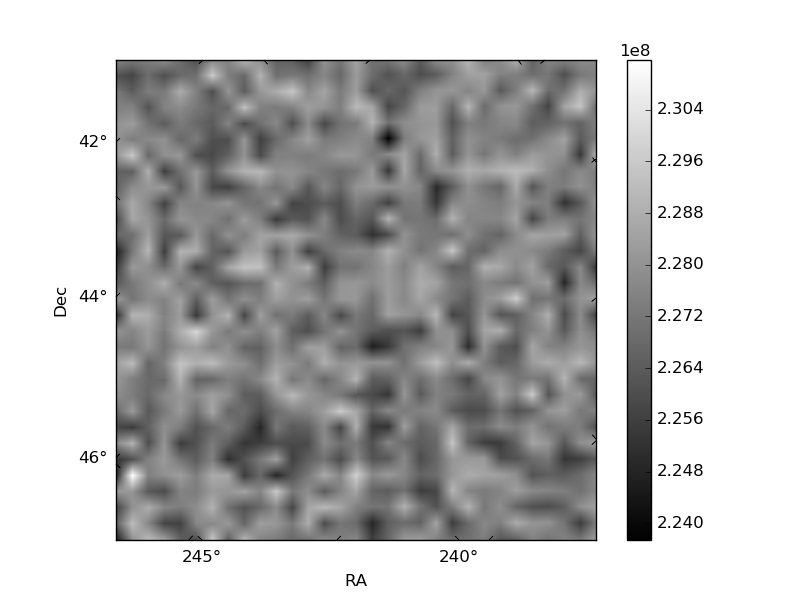

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

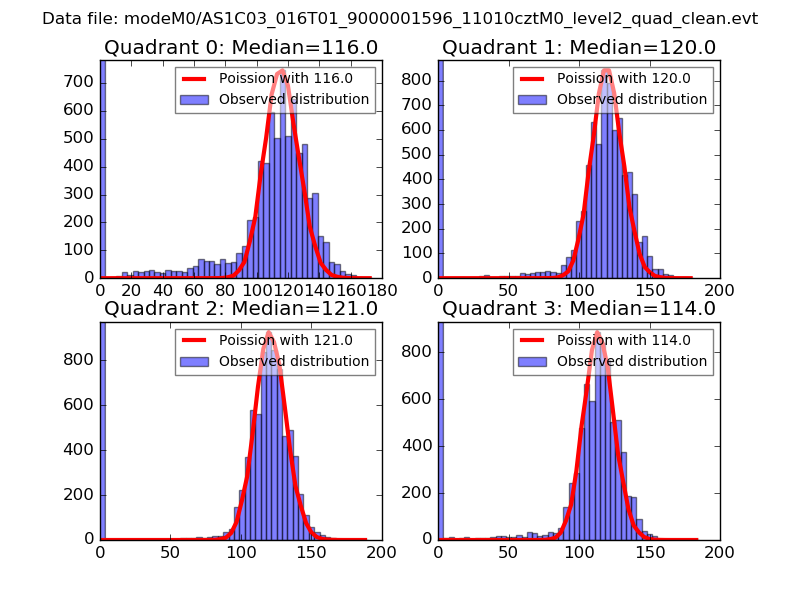

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

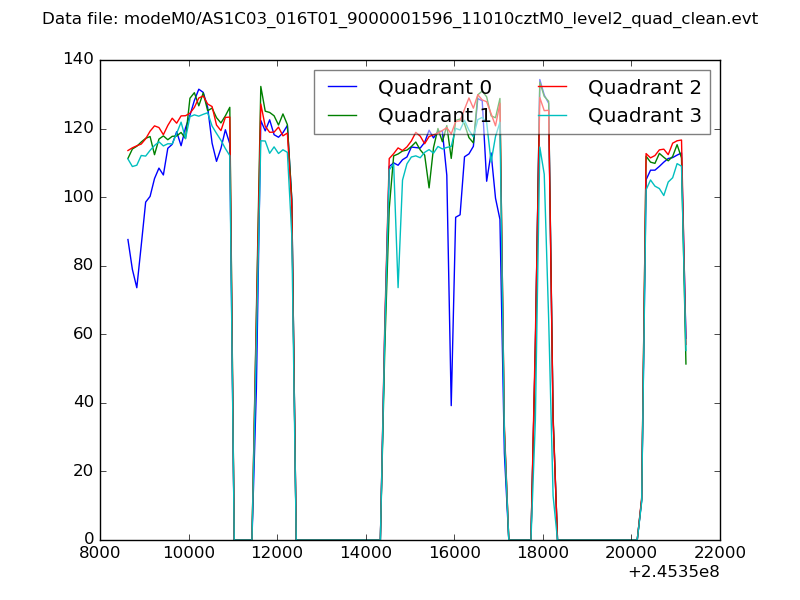

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

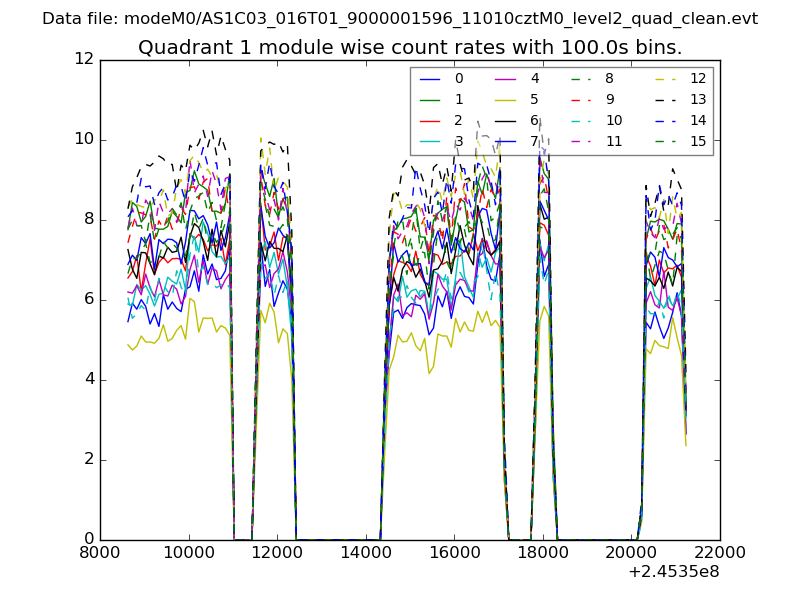

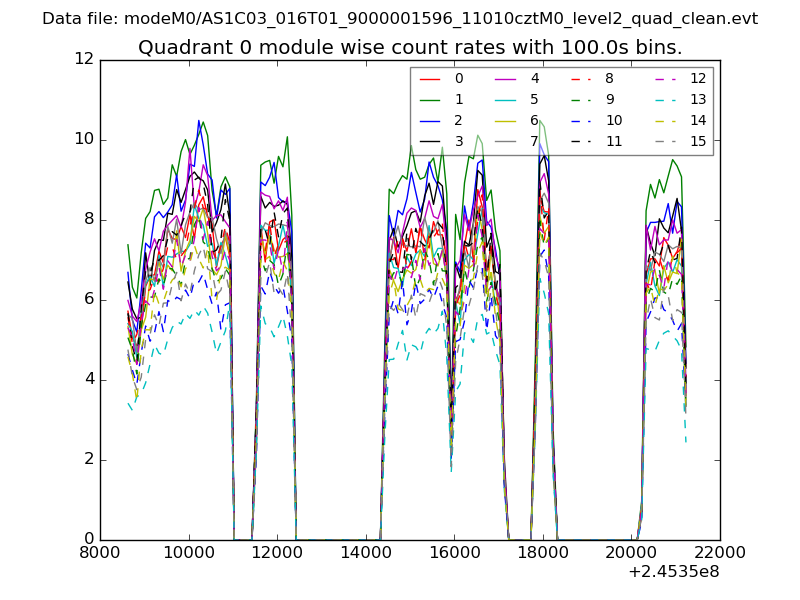

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

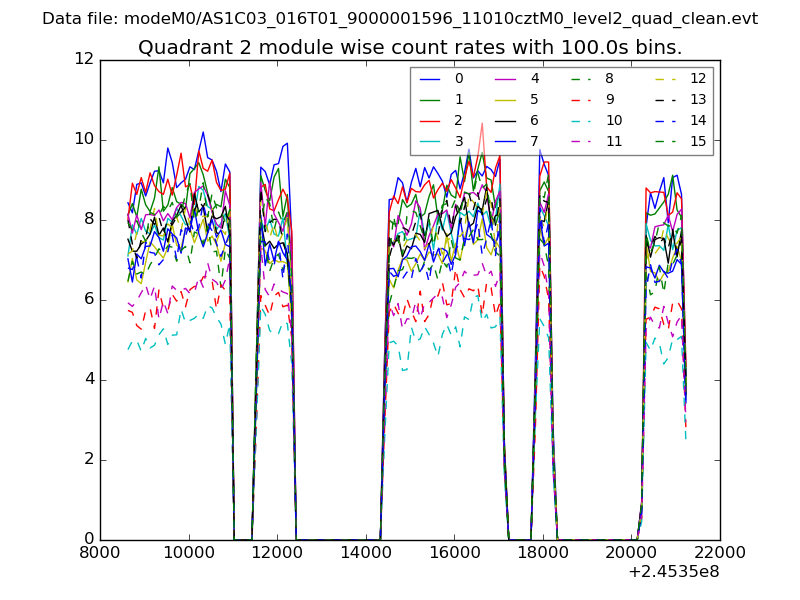

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

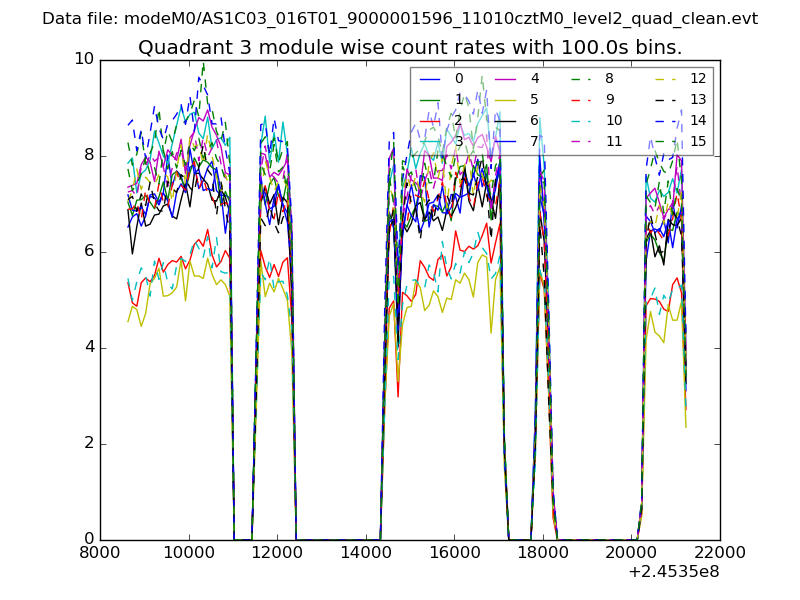

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

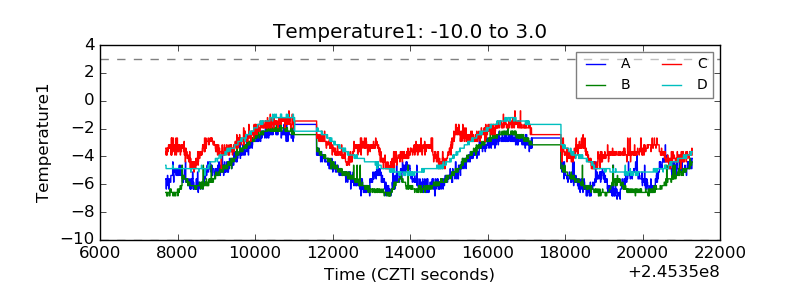

| Temperature 1 |  |
| Veto HV Monitor |  |

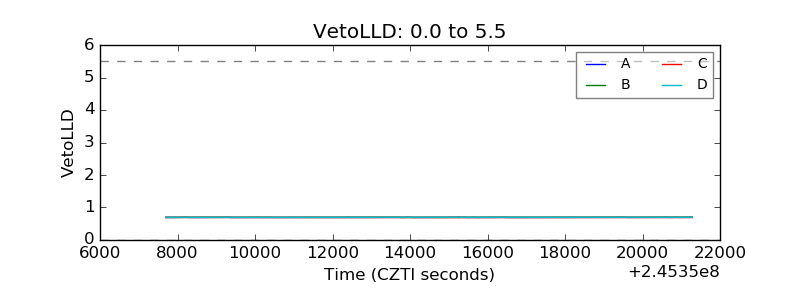

| Veto LLD |  |

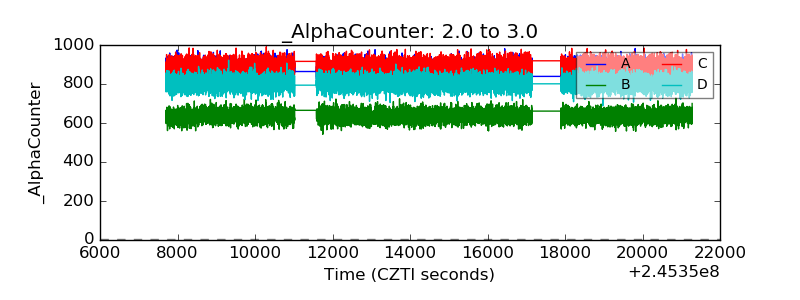

| Alpha Counter |  |

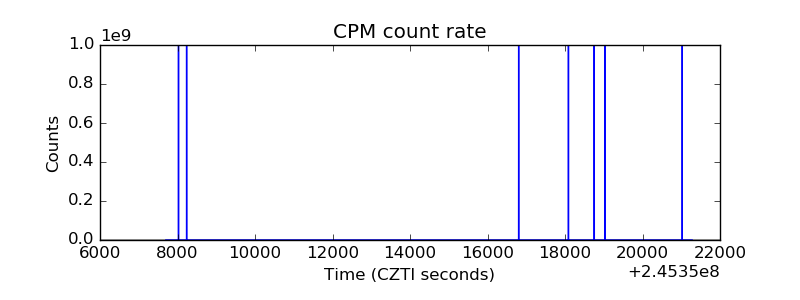

| _CPM_Rate |  |

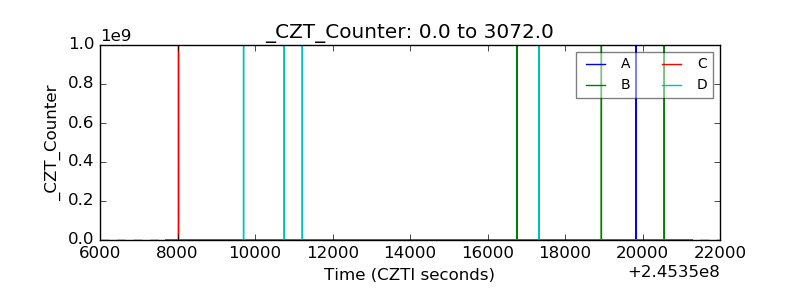

| CZT Counter |  |

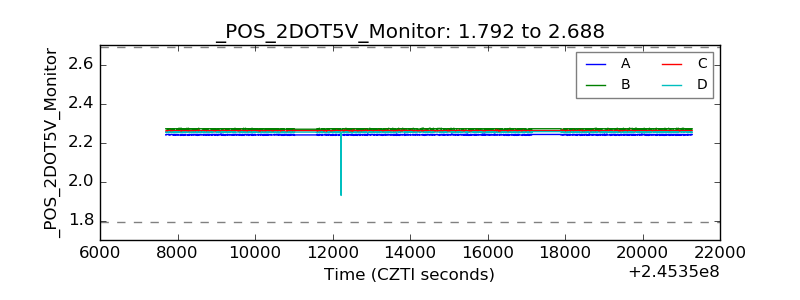

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

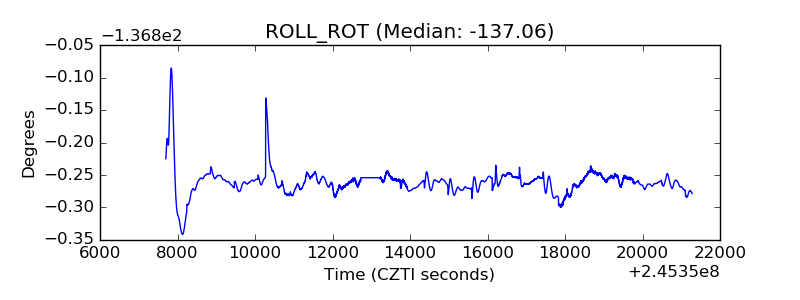

| _ROLL_ROT |  |

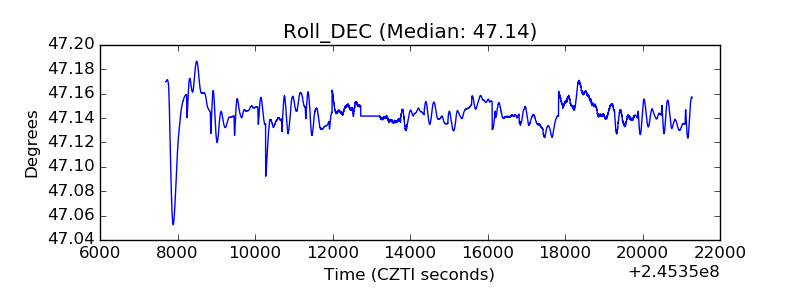

| _Roll_DEC |  |

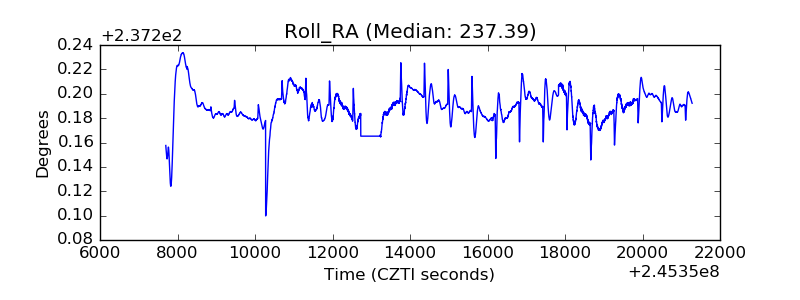

| _Roll_RA |  |

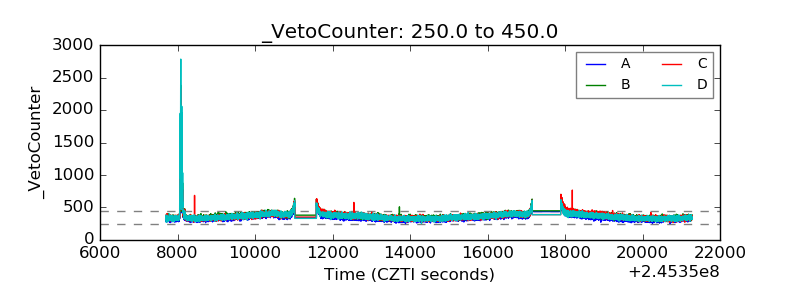

| Veto Counter |  |
