| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_046T09_9000001600_11016cztM0_level2.evt | modeM0/AS1G08_046T09_9000001600_11016cztM0_level2_quad_clean.evt |
| Size (bytes) | 605,819,520 | 94,184,640 |
| Size | 577.8 MB | 89.8 MB |
| Events in quadrant A | 6,506,744 | 560,700 |
| Events in quadrant B | 4,256,481 | 633,785 |
| Events in quadrant C | 2,941,332 | 641,310 |
| Events in quadrant D | 4,227,543 | 587,706 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25117 | 1685 |
| B | 0 | 17814 | 1161 |
| C | 0 | 13417 | 535 |
| D | 0 | 17686 | 1128 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 4 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 4 |
| D | 0 | 130 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6054 | 1110 | 18.334985% |
| B | 6134 | 378 | 6.162374% |
| C | 6183 | 25 | 0.404334% |
| D | 6111 | 254 | 4.156439% |

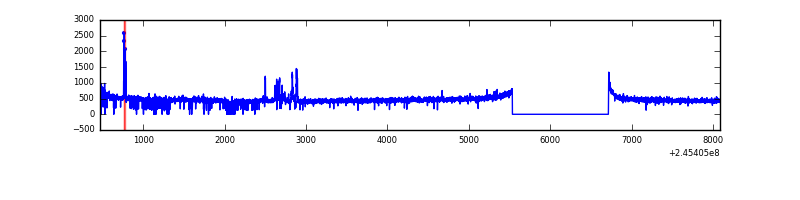

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7613 | 6267 | 843 | 843 | 11.07% | 13.45% |  |
| B | 7614 | 6323 | 229 | 229 | 3.01% | 3.62% |  |
| C | 7614 | 6365 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7615 | 6326 | 179 | 179 | 2.35% | 2.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 3016956 | 21959.93 | 686 | 672 | 137.4 |
| A | 8 | 5 | 809210 | 5886.53 | 686 | 672 | 137.4 |
| A | 15 | 174 | 15497 | 107.93 | 686 | 672 | 137.4 |
| B | 4 | 239 | 1281126 | 9111.82 | 743 | 726 | 140.5 |
| B | 4 | 81 | 28207 | 195.57 | 743 | 726 | 140.5 |
| B | 0 | 187 | 26714 | 184.94 | 743 | 726 | 140.5 |
| C | 9 | 54 | 58314 | 339.42 | 734 | 736 | 169.6 |
| C | 14 | 234 | 18916 | 107.17 | 734 | 736 | 169.6 |
| C | 13 | 61 | 5324 | 27.04 | 734 | 736 | 169.6 |
| D | 10 | 253 | 433610 | 2506.69 | 718 | 696 | 172.7 |
| D | 11 | 129 | 420382 | 2430.1 | 718 | 696 | 172.7 |
| D | 1 | 52 | 261231 | 1508.57 | 718 | 696 | 172.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

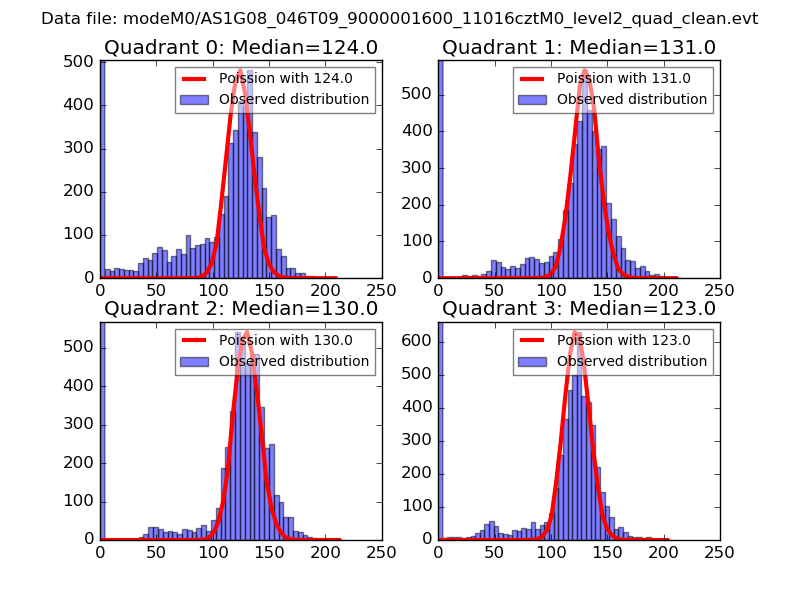

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

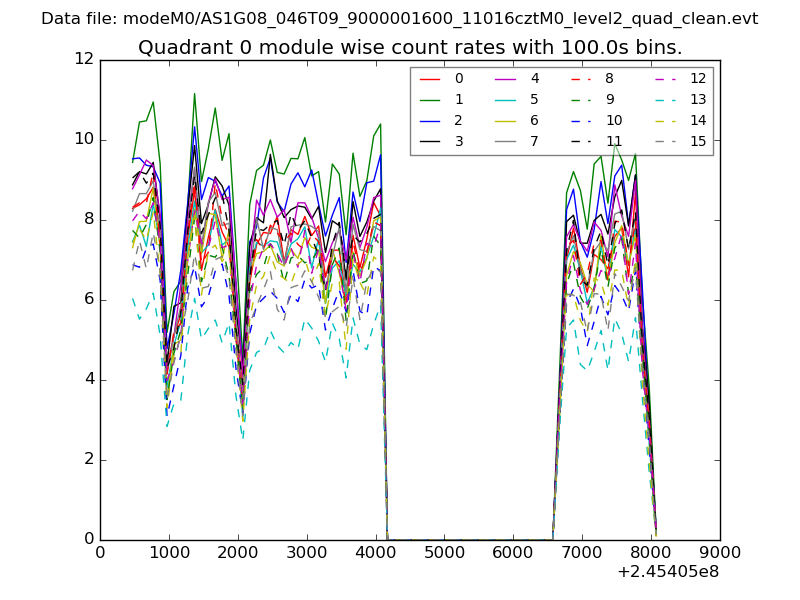

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

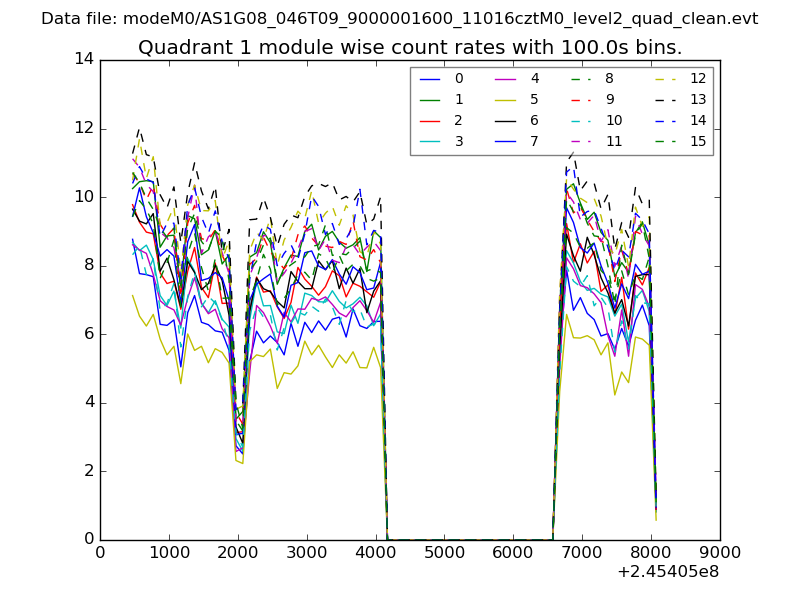

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

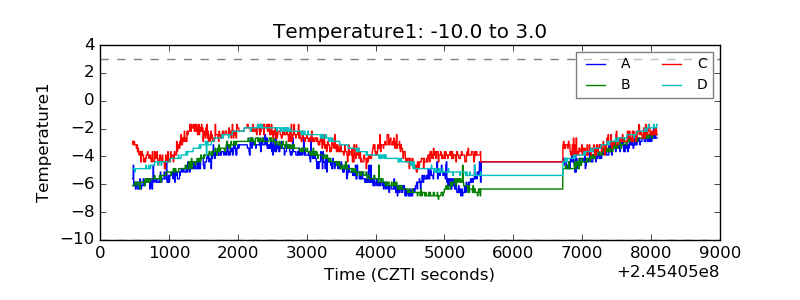

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

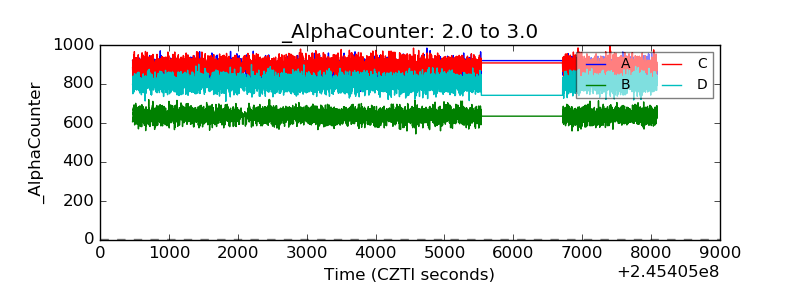

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

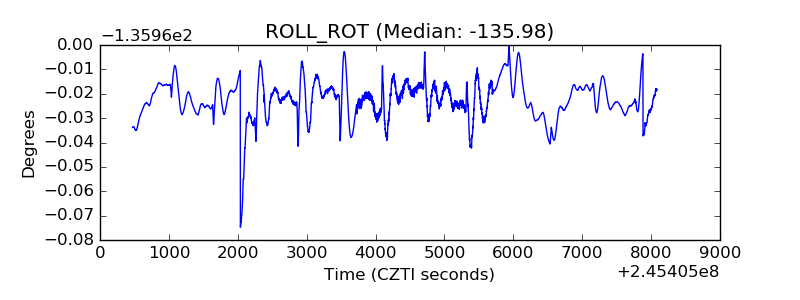

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

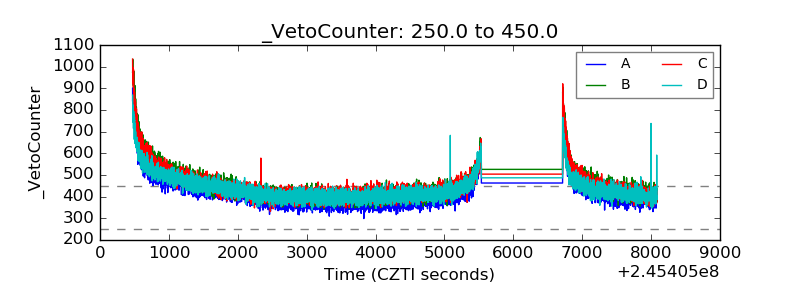

| Veto Counter |  |
