| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T03_9000001602_11030cztM0_level2.evt | modeM0/AS1A04_130T03_9000001602_11030cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,952,640 | 65,986,560 |
| Size | 491.1 MB | 62.9 MB |
| Events in quadrant A | 3,811,982 | 407,797 |
| Events in quadrant B | 4,396,141 | 395,607 |
| Events in quadrant C | 2,733,959 | 413,569 |
| Events in quadrant D | 4,272,380 | 387,727 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14878 | 2 |
| B | 0 | 16581 | 1 |
| C | 0 | 11763 | 1 |
| D | 0 | 16322 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5619 | 304 | 5.410215% |
| B | 5619 | 545 | 9.699235% |
| C | 5619 | 125 | 2.224595% |
| D | 5619 | 447 | 7.955152% |

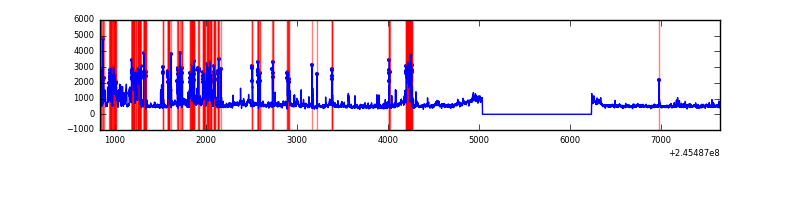

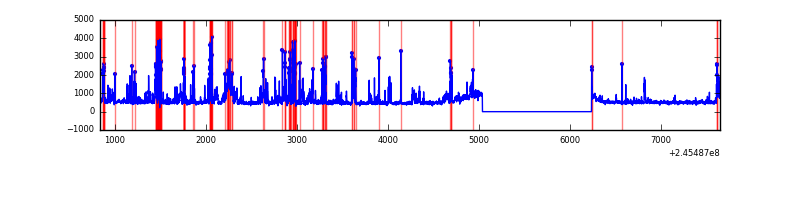

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6819 | 5619 | 130 | 130 | 1.91% | 2.31% |  |
| B | 6819 | 5619 | 316 | 316 | 4.63% | 5.62% |  |
| C | 6819 | 5619 | 11 | 11 | 0.16% | 0.20% |  |
| D | 6819 | 5619 | 298 | 298 | 4.37% | 5.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 662778 | 4548.76 | 712 | 697 | 145.6 |
| A | 15 | 174 | 231243 | 1583.94 | 712 | 697 | 145.6 |
| A | 14 | 238 | 159087 | 1088.2 | 712 | 697 | 145.6 |
| B | 4 | 239 | 1604047 | 12033.55 | 695 | 680 | 133.2 |
| B | 4 | 81 | 33919 | 249.46 | 695 | 680 | 133.2 |
| B | 0 | 214 | 19219 | 139.14 | 695 | 680 | 133.2 |
| C | 14 | 234 | 31047 | 188.59 | 692 | 695 | 160.9 |
| C | 13 | 61 | 5138 | 27.61 | 692 | 695 | 160.9 |
| C | 9 | 54 | 2921 | 13.83 | 692 | 695 | 160.9 |
| D | 2 | 14 | 542231 | 3315.59 | 679 | 661 | 163.3 |
| D | 1 | 52 | 359792 | 2198.67 | 679 | 661 | 163.3 |
| D | 11 | 129 | 240651 | 1469.26 | 679 | 661 | 163.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

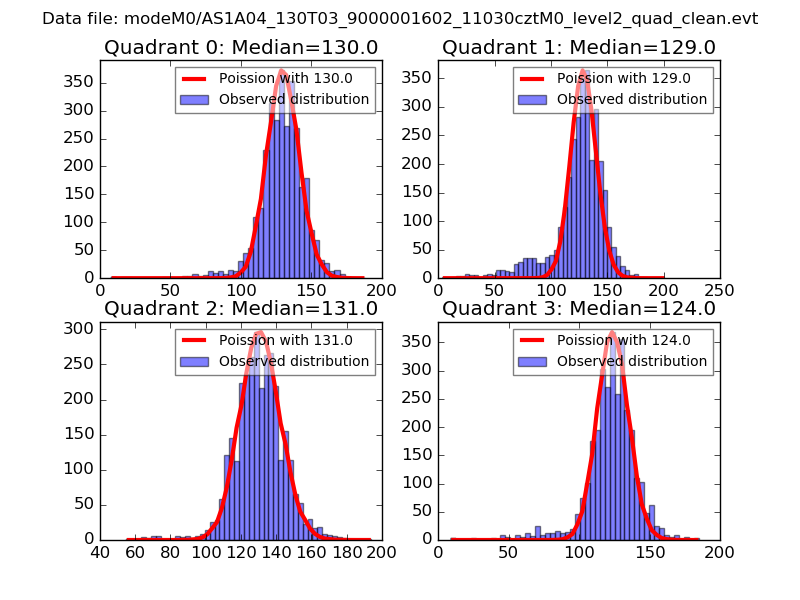

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

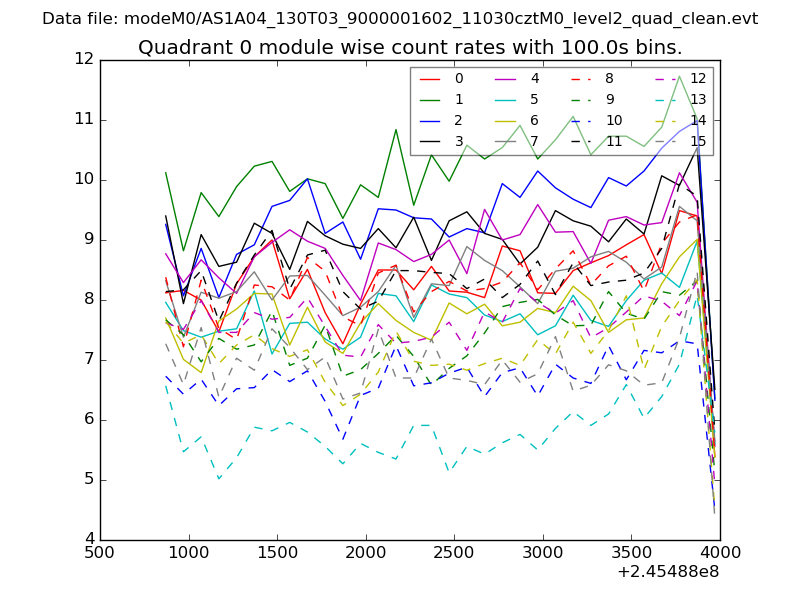

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

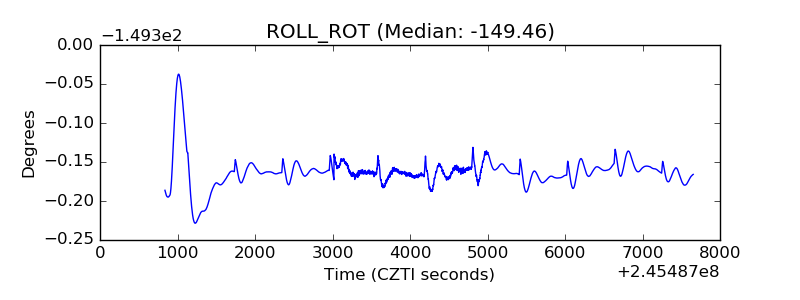

| _ROLL_ROT |  |

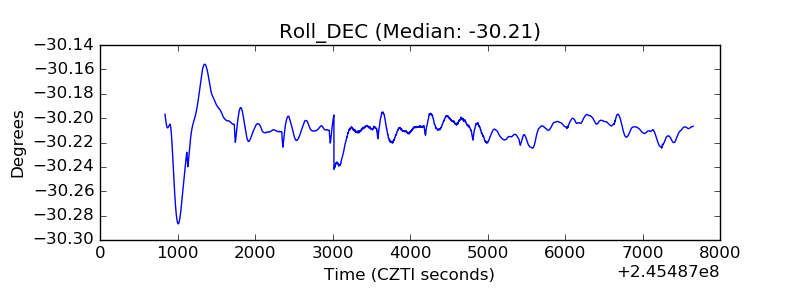

| _Roll_DEC |  |

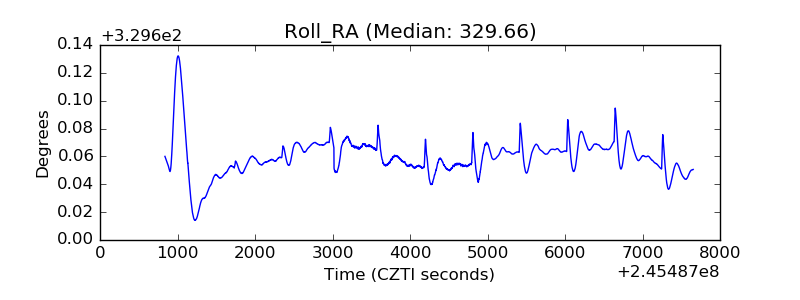

| _Roll_RA |  |
| Veto Counter |  |
