| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_130T03_9000001602_11032cztM0_level2.evt | modeM0/AS1A04_130T03_9000001602_11032cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,585,920 | 77,181,120 |
| Size | 573.7 MB | 73.6 MB |
| Events in quadrant A | 7,179,505 | 432,030 |
| Events in quadrant B | 4,123,715 | 483,696 |
| Events in quadrant C | 2,975,820 | 499,437 |
| Events in quadrant D | 3,510,434 | 479,586 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 10 |
| B | 0 | 150 | 14 |
| C | 0 | 150 | 22 |
| D | 0 | 150 | 14 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 5 |
| B | 0 | 14 | 3 |
| C | 0 | 14 | 3 |
| D | 0 | 14 | 4 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29331 | 3674 |
| B | 0 | 18833 | 2537 |
| C | 0 | 15006 | 1676 |
| D | 0 | 17095 | 2680 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6163 | 1174 | 19.049164% |
| B | 6325 | 456 | 7.209486% |
| C | 6433 | 153 | 2.378362% |
| D | 6329 | 183 | 2.891452% |

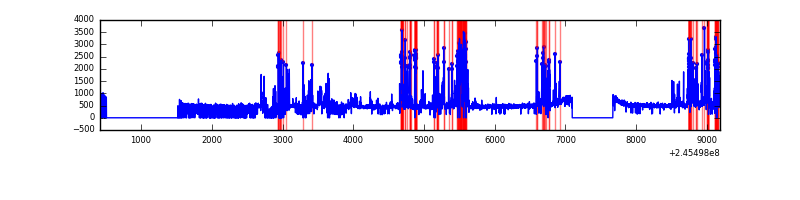

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8767 | 6701 | 756 | 756 | 8.62% | 11.28% |  |
| B | 8767 | 6808 | 182 | 182 | 2.08% | 2.67% |  |
| C | 8766 | 6914 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8767 | 6789 | 29 | 29 | 0.33% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 3173274 | 21667.85 | 711 | 695 | 146.4 |
| A | 15 | 174 | 1122525 | 7661.79 | 711 | 695 | 146.4 |
| A | 8 | 5 | 135118 | 918.07 | 711 | 695 | 146.4 |
| B | 4 | 239 | 1003490 | 6838.31 | 761 | 739 | 146.6 |
| B | 3 | 189 | 89382 | 604.51 | 761 | 739 | 146.6 |
| B | 15 | 204 | 28027 | 186.09 | 761 | 739 | 146.6 |
| C | 13 | 61 | 5667 | 27.86 | 760 | 764 | 176.0 |
| C | 14 | 234 | 4636 | 22.0 | 760 | 764 | 176.0 |
| C | 12 | 4 | 4230 | 19.7 | 760 | 764 | 176.0 |
| D | 11 | 129 | 232049 | 1288.36 | 744 | 721 | 179.6 |
| D | 1 | 52 | 129895 | 719.42 | 744 | 721 | 179.6 |
| D | 2 | 14 | 111441 | 616.64 | 744 | 721 | 179.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

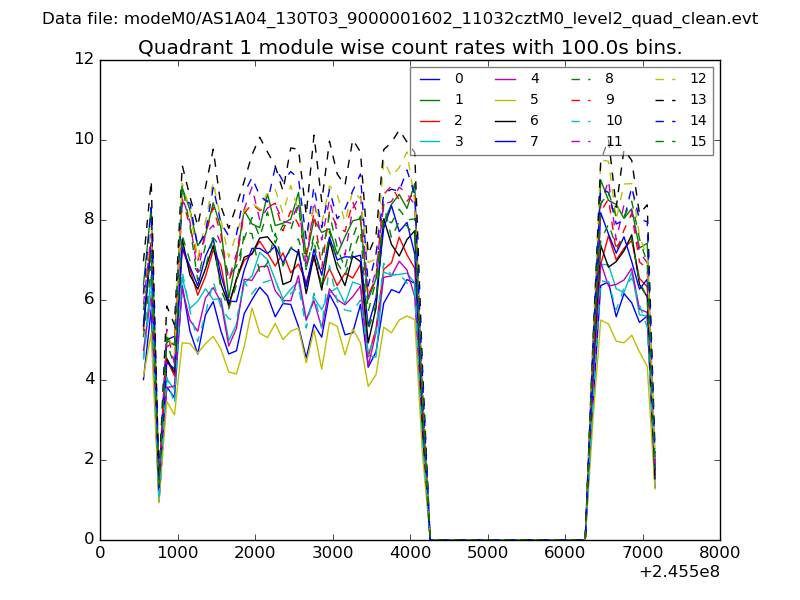

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

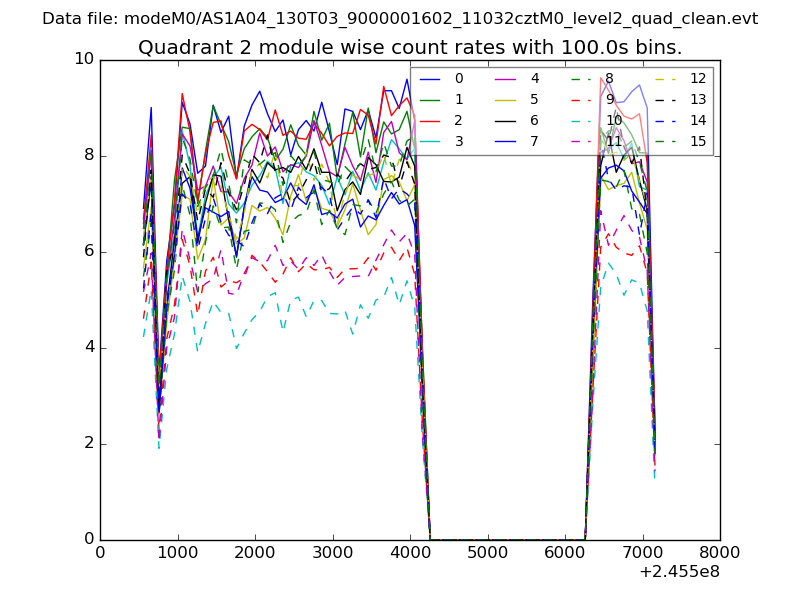

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

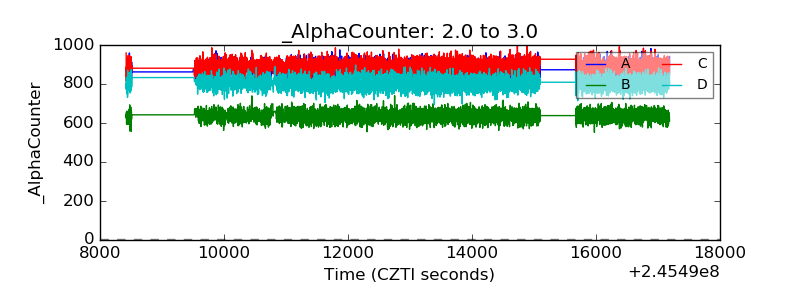

| Alpha Counter |  |

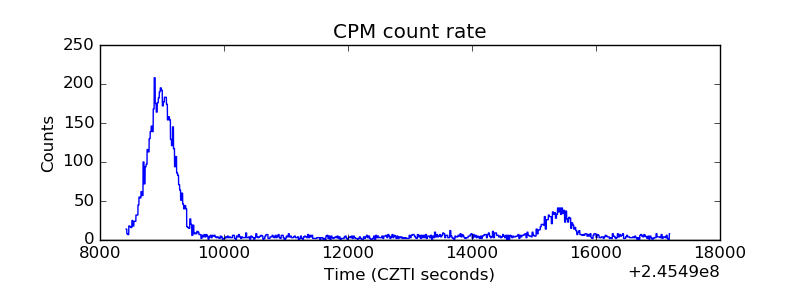

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

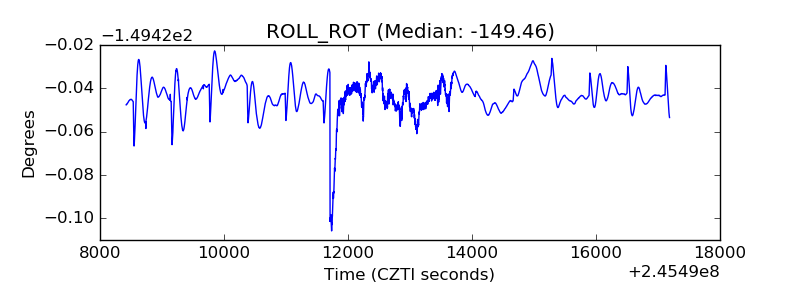

| _ROLL_ROT |  |
| _Roll_DEC |  |

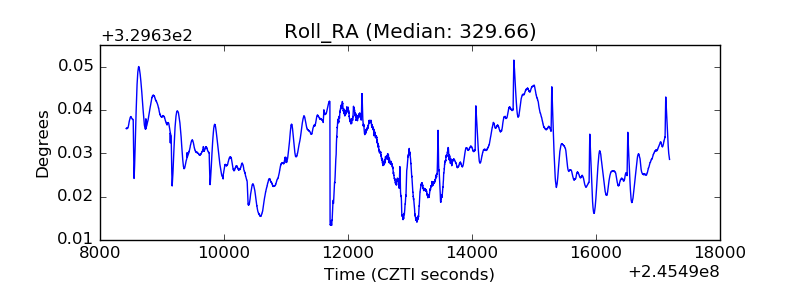

| _Roll_RA |  |
| Veto Counter |  |
