| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_006T01_9000001608_11052cztM0_level2.evt | modeM0/AS1C03_006T01_9000001608_11052cztM0_level2_quad_clean.evt |
| Size (bytes) | 664,320,960 | 96,667,200 |
| Size | 633.5 MB | 92.2 MB |
| Events in quadrant A | 6,412,927 | 610,156 |
| Events in quadrant B | 4,696,356 | 611,268 |
| Events in quadrant C | 3,212,394 | 620,289 |
| Events in quadrant D | 5,313,478 | 587,122 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23982 | 3 |
| B | 0 | 18609 | 2 |
| C | 0 | 14580 | 2 |
| D | 0 | 20854 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7152 | 725 | 10.137025% |
| B | 7152 | 338 | 4.725951% |
| C | 7152 | 29 | 0.405481% |
| D | 7152 | 171 | 2.390940% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8572 | 7153 | 456 | 456 | 5.32% | 6.37% |  |
| B | 8572 | 7154 | 198 | 198 | 2.31% | 2.77% |  |
| C | 8572 | 7154 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8572 | 7154 | 112 | 112 | 1.31% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1986127 | 11757.95 | 823 | 804 | 168.8 |
| A | 15 | 174 | 674688 | 3991.03 | 823 | 804 | 168.8 |
| A | 13 | 210 | 581310 | 3438.01 | 823 | 804 | 168.8 |
| B | 4 | 239 | 1263990 | 7776.36 | 840 | 817 | 162.4 |
| B | 11 | 51 | 37164 | 223.76 | 840 | 817 | 162.4 |
| B | 0 | 219 | 35259 | 212.03 | 840 | 817 | 162.4 |
| C | 13 | 61 | 6131 | 27.51 | 822 | 826 | 192.8 |
| C | 14 | 67 | 4142 | 17.2 | 822 | 826 | 192.8 |
| C | 14 | 234 | 2922 | 10.87 | 822 | 826 | 192.8 |
| D | 1 | 52 | 985790 | 4993.41 | 811 | 787 | 197.3 |
| D | 11 | 129 | 681309 | 3449.86 | 811 | 787 | 197.3 |
| D | 8 | 195 | 212163 | 1071.56 | 811 | 787 | 197.3 |

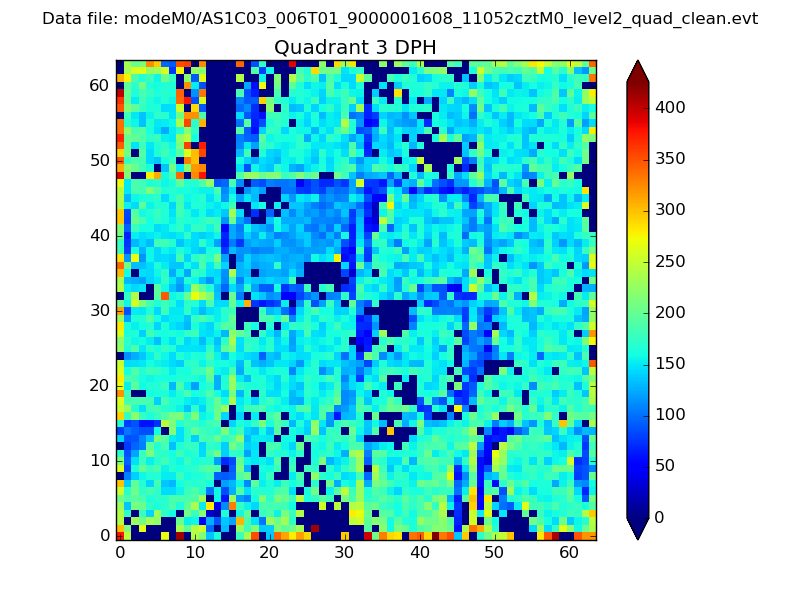

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

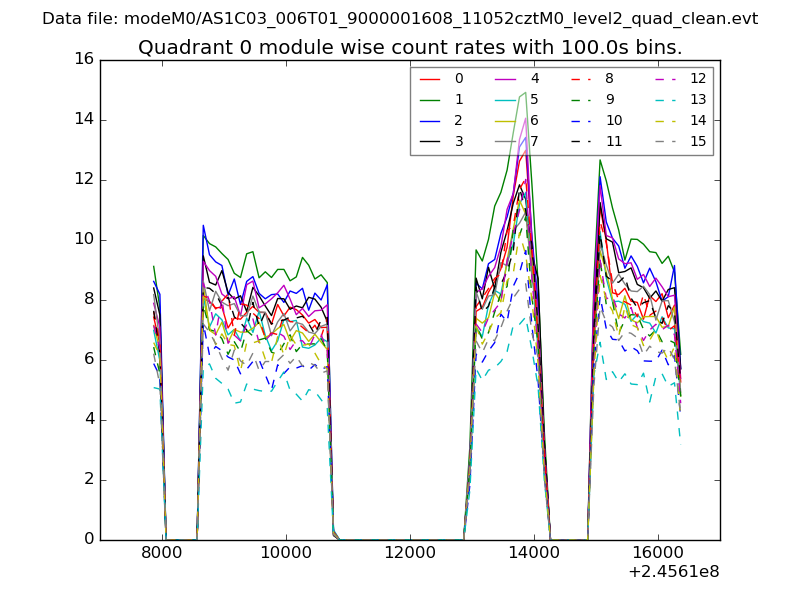

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

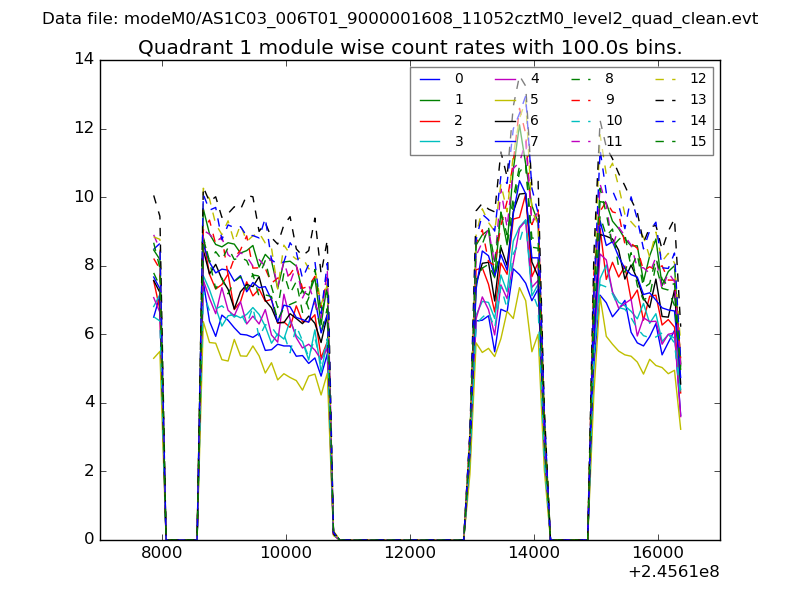

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

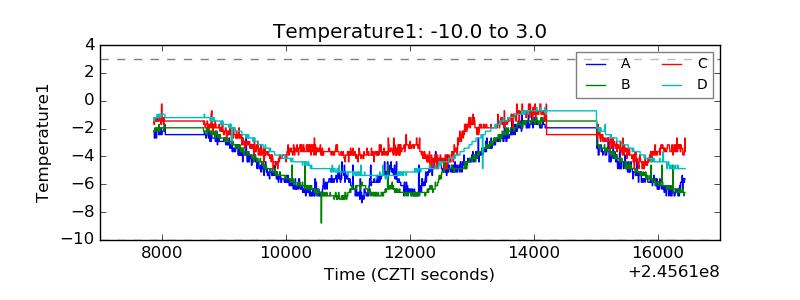

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

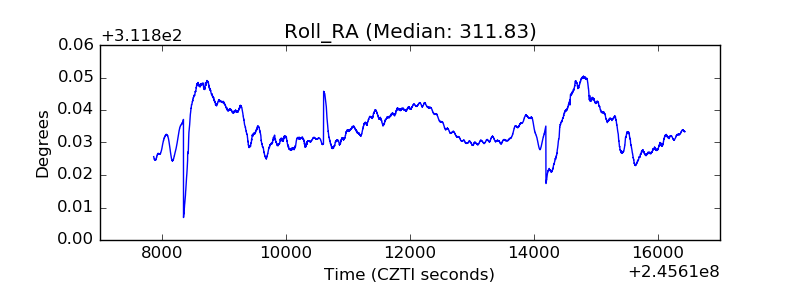

| _Roll_RA |  |

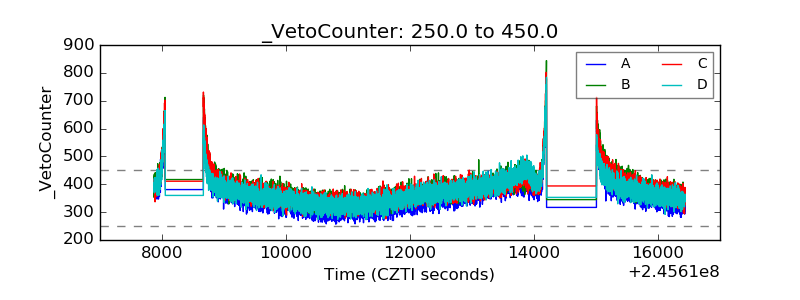

| Veto Counter |  |
