| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_006T01_9000001608_11053cztM0_level2.evt | modeM0/AS1C03_006T01_9000001608_11053cztM0_level2_quad_clean.evt |
| Size (bytes) | 641,522,880 | 96,160,320 |
| Size | 611.8 MB | 91.7 MB |
| Events in quadrant A | 5,902,535 | 597,112 |
| Events in quadrant B | 4,753,929 | 605,079 |
| Events in quadrant C | 3,325,596 | 612,781 |
| Events in quadrant D | 4,952,631 | 588,596 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22451 | 3 |
| B | 0 | 18997 | 2 |
| C | 0 | 14926 | 2 |
| D | 0 | 19565 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7295 | 432 | 5.921864% |
| B | 7295 | 323 | 4.427690% |
| C | 7295 | 31 | 0.424949% |
| D | 7295 | 99 | 1.357094% |

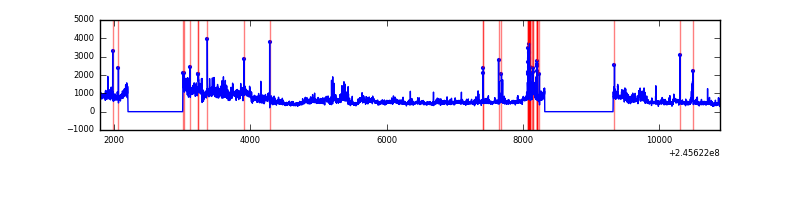

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9105 | 7296 | 252 | 252 | 2.77% | 3.45% |  |
| B | 9105 | 7297 | 194 | 194 | 2.13% | 2.66% |  |
| C | 9105 | 7297 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9105 | 7297 | 40 | 40 | 0.44% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 2211276 | 12731.22 | 852 | 834 | 173.6 |
| A | 15 | 174 | 325050 | 1867.35 | 852 | 834 | 173.6 |
| A | 13 | 210 | 70660 | 402.17 | 852 | 834 | 173.6 |
| B | 4 | 239 | 1198285 | 7227.68 | 862 | 841 | 165.7 |
| B | 0 | 214 | 45727 | 270.93 | 862 | 841 | 165.7 |
| B | 11 | 51 | 35488 | 209.13 | 862 | 841 | 165.7 |
| C | 9 | 54 | 36109 | 178.62 | 843 | 847 | 197.4 |
| C | 13 | 61 | 6429 | 28.28 | 843 | 847 | 197.4 |
| C | 12 | 4 | 3064 | 11.23 | 843 | 847 | 197.4 |
| D | 1 | 52 | 1040201 | 5166.87 | 835 | 812 | 201.2 |
| D | 11 | 129 | 391620 | 1942.73 | 835 | 812 | 201.2 |
| D | 8 | 195 | 133208 | 658.15 | 835 | 812 | 201.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

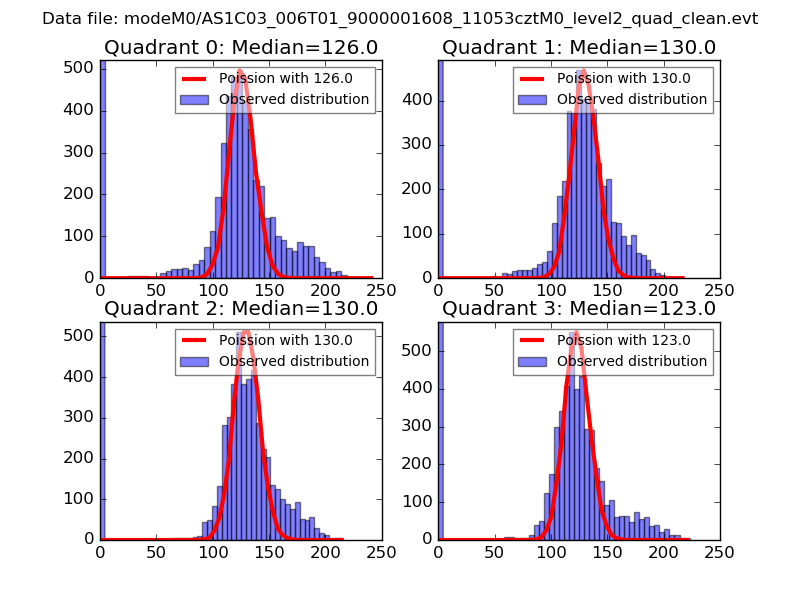

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

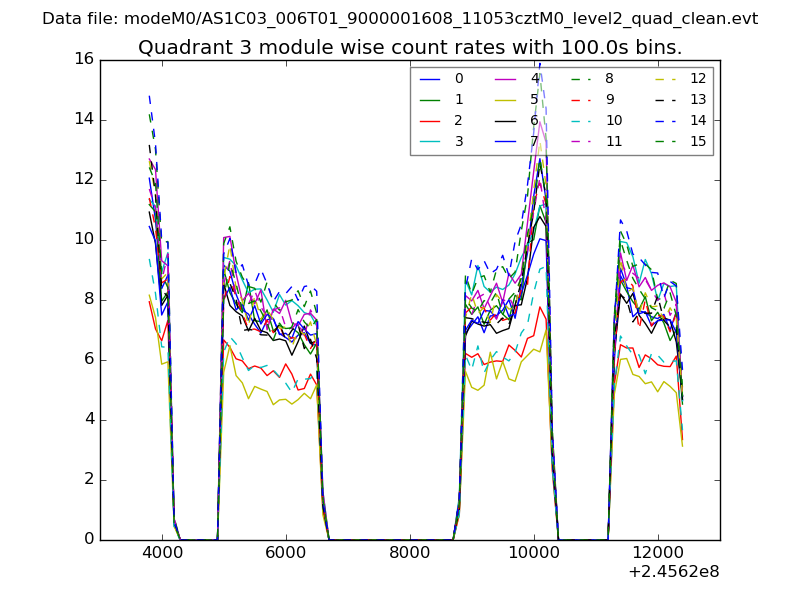

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

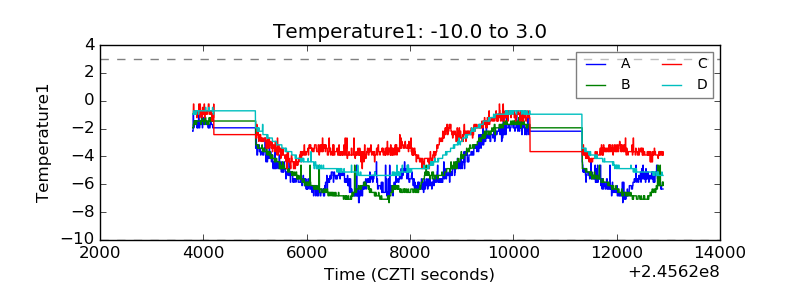

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

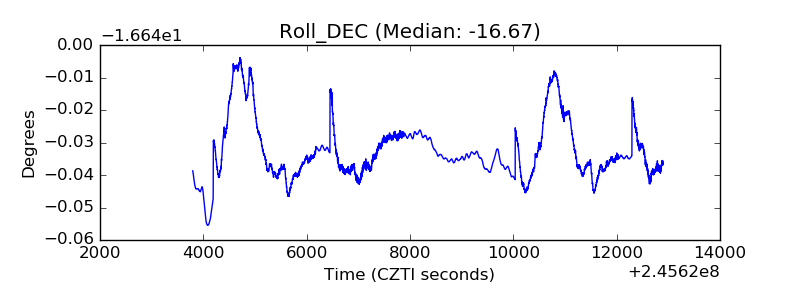

| _Roll_DEC |  |

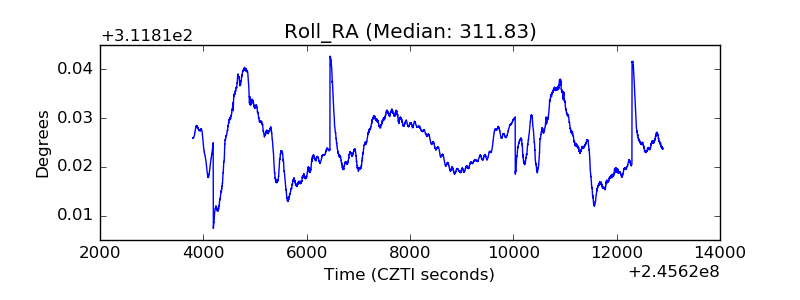

| _Roll_RA |  |

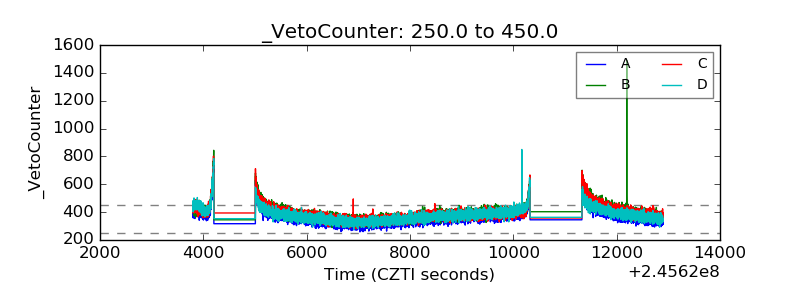

| Veto Counter |  |
